8-40 — HEATER SYSTEM (#2918) — 52 parça

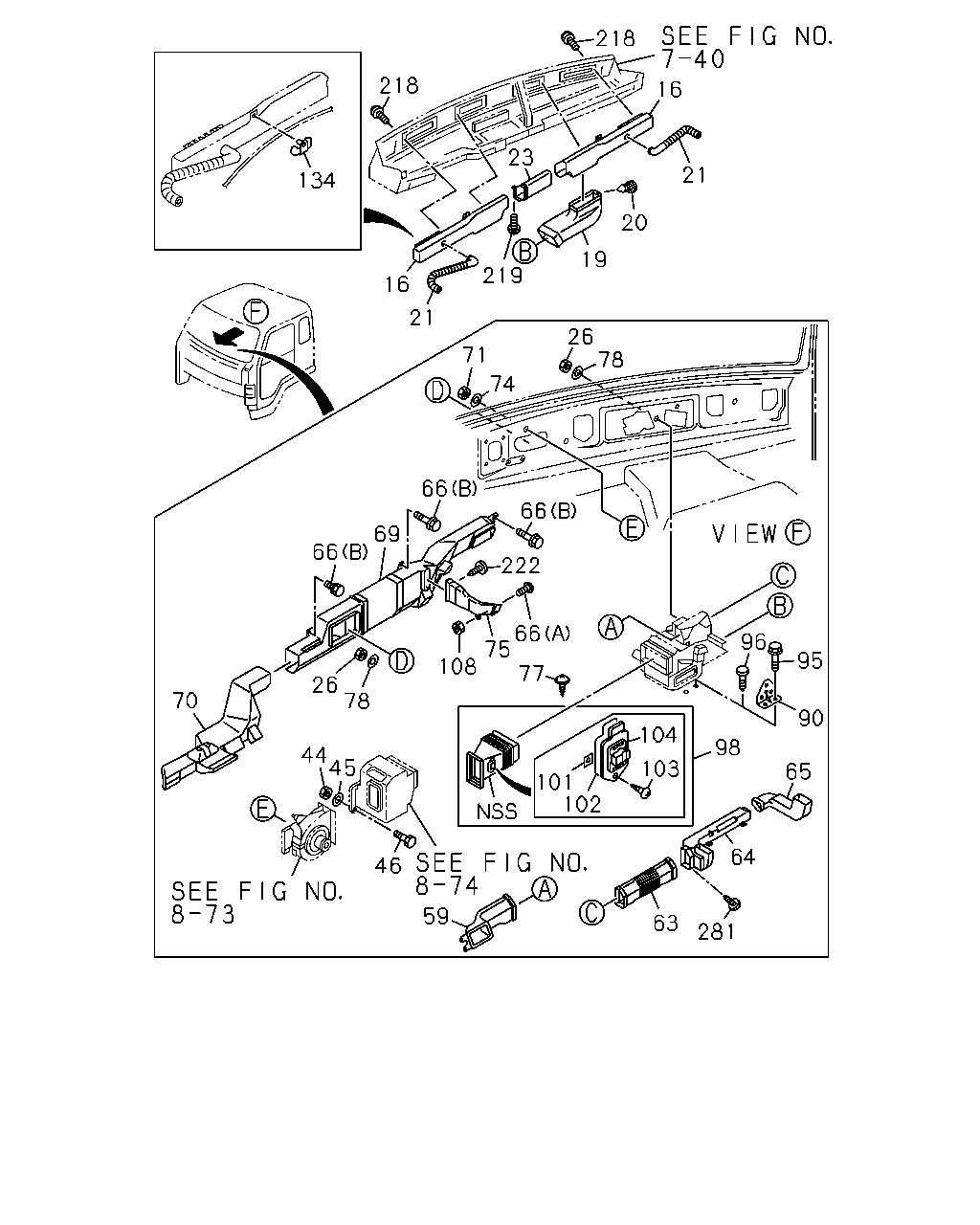

çizim 28173
281 63 64 65 90 95 98 96 103 104 102 101 59 46 45 44 70 26 78 77 75 108 66 222 66 66 69 66 74 71 78 26 219 21 16 19 20 21 16 23 218 218 134
BalonParca AdiParca NoAdetTipApplied Date A B
16 DUCT ASM; DEFROSTER 1-76377-072-5 01 1 9002- ● ●
16 DUCT ASM; DEFROSTER 1-76377-071-6 01 1 9002- ● ●
19 DUCT; DEFROSTER,HTR JOINT 1-76377-076-2 01 1 9002- ● ●
20 FASTENER; DEFROSTER DUCT,HTR JOINT 1-09987-144-0 01 1 9002- ● ●
21 HOSE; DEFROSTER,DRIVER SIDE
WO/URETHANE 		1-76377-085-4 02 1 9002- ● ●
23 DUCT ASM; DEFROSTER,JOINT CTR 1-76377-087-4 01 1 9002- ● ●
26 NUT; HTR
M6 FLANGE 		1-09984-141-0 03 1 9002- ● ●
44 NUT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 9002- ● ●
45 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14 		9-09160-606-0 04 1 9002- ● ●
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		9-02040-625-0 02 1 9002-9204 ● ●
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		0-20800-625-0 02 1 9205- ● ●
59 DUCT; VENT,ASSIST SIDE 1-76377-083-2 01 1 9002- ● ●
63 DUCT; VENT,DRIVER JOINT 1-76377-082-5 01 1 9002- ● ●
64 DUCT; VENT,DRIVER SIDE 1-76377-080-2 01 1 9002- ● ●
65 DUCT; VENT,DRIVER SIDE 1-76377-078-3 01 1 9002- ● ●
66 BOLT; DUCT
(A) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ●
66 BOLT; DUCT
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
66 BOLT; DUCT
(B) M6X16 W/LK&PL WASHER 		9-01960-616-0 03 1 9002-9204 ● ●
66 BOLT; DUCT
(B) M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9205- ● ●
69 DUCT; ROOM 1-83542-047-0 01 1 9002- ● ●
70 DUCT; ROOM 1-83542-044-1 01 1 9002- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		1-09984-141-0 03 1 9002- ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
OD=20 		1-09509-047-0 01 1 9002- ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
OD=14 		1-09509-048-0 02 1 9002- ● ●
75 DUCT; ROOM 1-83542-045-0 01 1 9002- ● ●
77 BOLT; HTR UNIT
CAB SUSPENSION RIGID(W71) M5X16 TAPPING W/PL WASHER 		0-74110-516-0 03 1 9002- ●
78 WASHER; PL,HTR UNIT
OD=20 		1-09509-047-0 01 1 9002- ● ●
78 WASHER; PL,HTR UNIT
OD=14 		1-09509-048-0 02 1 9002- ● ●
90 BRACKET; SUPPORT,HTR UNIT
CAB SUSPENSION RIGID(W71) 		1-76397-008-2 01 1 9002- ●
95 BOLT; SUPPORT BRKT
CAB SUSPENSION RIGID(W71) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9301 ●
95 BOLT; SUPPORT BRKT
CAB SUSPENSION RIGID(W71) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9302- ●
96 PLUG; DUMMY,HTR UNIT BRKT
EXC. CAB SUSPENSION RIGID(W71) D4.7X11 		1-76378-154-0 02 1 9002- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83542-048-3 01 1 9002- ● ●
101 NUT; RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-047-0 01 1 9002- ● ●
102 LINING; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-049-0 01 1 9002- ● ●
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-048-0 01 1 9002- ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-028-0 01 1 9002- ● ●
108 NUT; STAY
CAB SUSPENSION RIGID(W71) M6 FLANGE 		1-09466-001-0 01 1 9002- ●
134 CLIP; CONT CABLE 1-09987-147-0 01 1 9002- ● ●
218 SCREW; DEFROSTER DUCT
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002- ● ●
219 SCREW; DEFROSTER DUCT,CTR
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
222 FASTENER; DUCT
BLACK 		8-94104-935-0 01 1 9408- ● ●
281 FASTENER; VENT DUCT,DRIVER SIDE
BLACK 		8-94104-935-0 04 1 9407- ● ●
çizim 95906
107 106 109 92 91 86 93 83
BalonParca AdiParca NoAdetTipApplied Date A B
83 SEAL; COVER,HTR HOLE 1-71997-456-3 01 1 9002- ● ●
86 NUT; COVER,HTR HOLE
M6 FLANGE 		1-09984-141-0 03 1 9002- ● ●
91 GRILLE ASM; AIR OUTLET,METER CLUSTER 1-76367-050-1 02 1 9002- ● ●
92 BUSHING; AIR OUTLET GRILLE,METER CLUST 1-72547-048-1 02 1 9002- ● ●
93 COVER; HTR CORE 1-71997-891-0 01 1 9002- ● ●
106 STAY; HTR UNIT
CAB SUSPENSION RIGID(W71) 		1-65680-450-1 01 1 9002- ●
107 BOLT; STAY,HTR UNIT
CAB SUSPENSION RIGID(W71) M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204 ●
107 BOLT; STAY,HTR UNIT
CAB SUSPENSION RIGID(W71) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205- ●
109 NUT; STAY,HTR UNIT
CAB SUSPENSION RIGID(W71) M6 FLANGE 		5-09440-004-0 01 1 9002- ●
