3-20 — AIR TANK (#29179) — 402 parça

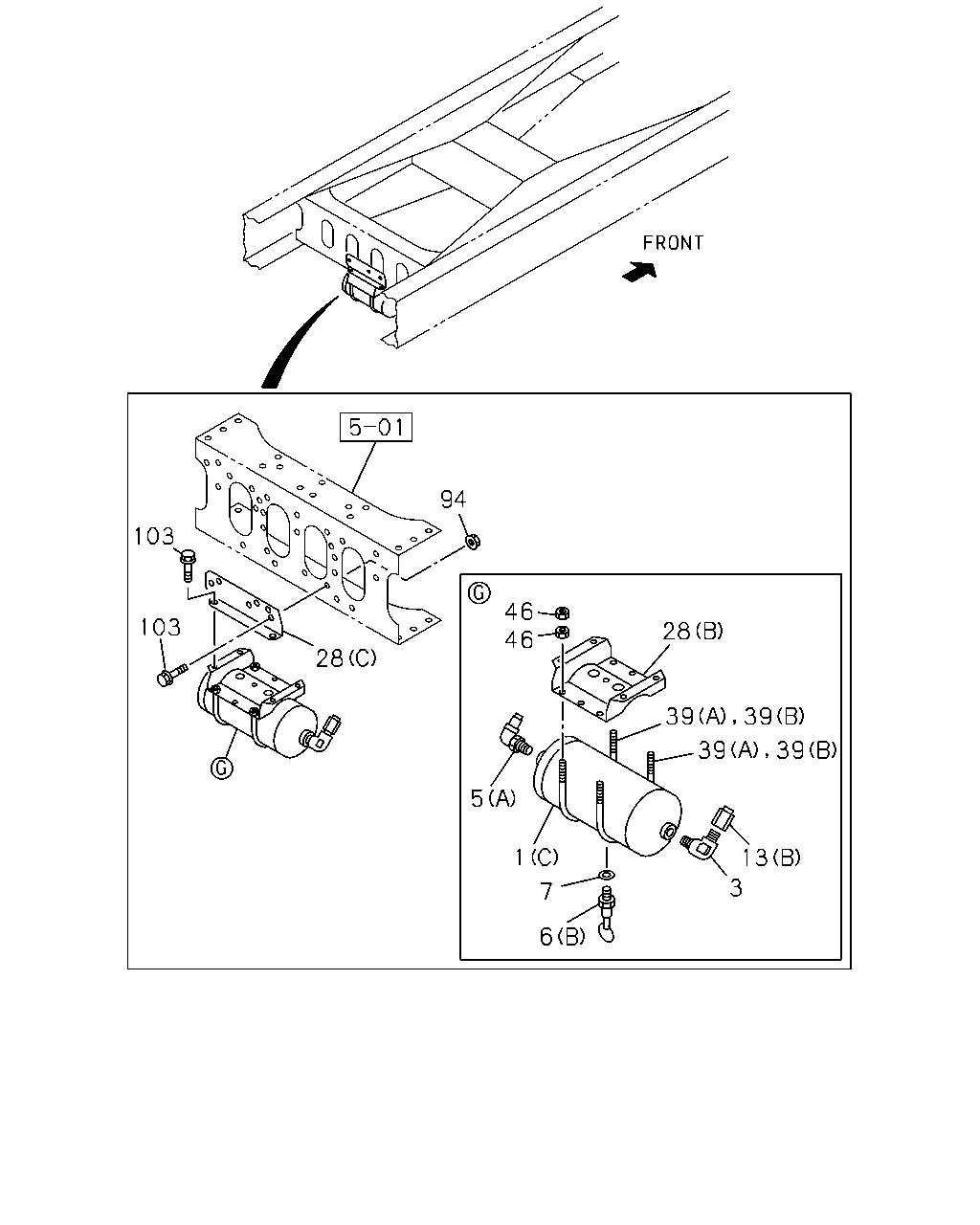

çizim 87261
94 103 46 46 103 28 28 39 39 39 39 5 1 13 3 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; AIR
SMOOTHER-G(C1W) (C) 		1-48371-165-3 01 1 0407-0511 ●
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0512- ● ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0407-0511 ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0512- ● ●
3 VALVE; CHECK,AIR TANK
SMOOTHER-G(C1W) 		1-48410-605-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
5 UNION; AIR TANK
SMOOTHER-G(C1W) (A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512- ● ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ● ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0512- ● ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0407-0511 ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0512- ● ●
5 UNION; AIR TANK
(D) 		1-09661-568-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(D) 		1-09661-568-0 01 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
SMOOTHER-G(C1W) (B) 		1-48312-015-0 01 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
7 GASKET; DRAIN COCK
SMOOTHER-G(C1W) ID=14 		1-09630-145-0 01 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
SMOOTHER-G(C1W) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0512- ● ●
28 BRACKET; AIR TANK
SMOOTHER-G(C1W) (C) 		1-48316-031-0 01 1 0407-0511 ●
28 BRACKET; AIR TANK
SMOOTHER-G(C1W) (B) 		1-48317-473-2 01 1 0407-0511 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0407-0511 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0512- ● ●
39 U-BOLT; AIR TANK
SMOOTHER-G(C1W) (B) L=210 		1-48317-458-1 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
SMOOTHER-G(C1W) M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511 ●
94 NUT; BRKT FIX
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
103 BOLT; BRKT
SMOOTHER-G(C1W) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
103 BOLT; BRKT
SMOOTHER-G(C1W) M10X30 FLANGE 		0-28681-030-0 04 1 0407-0511 ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0407-0511 ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ● ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●

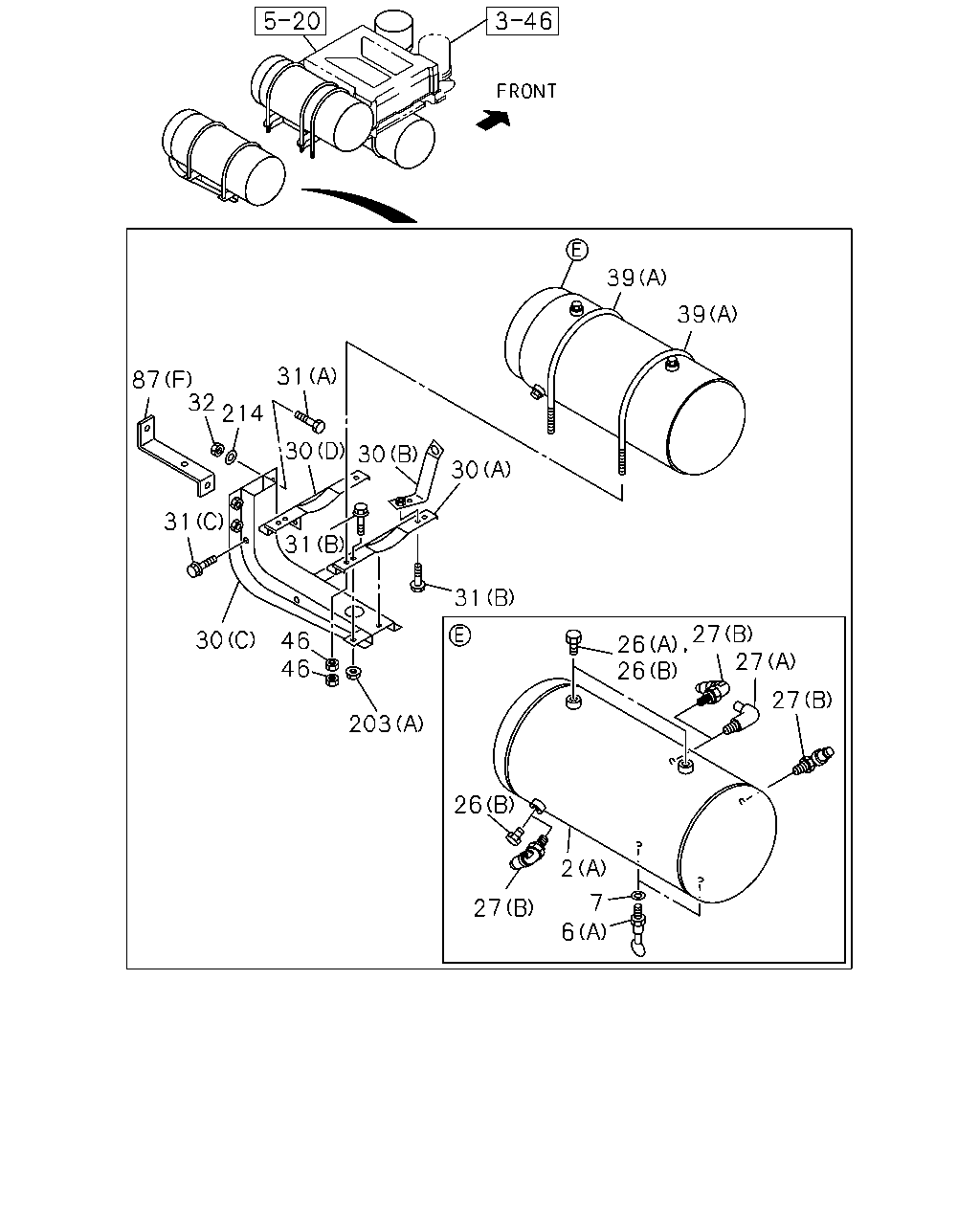

çizim 87284
39 39 31 87 32 214 30 30 30 31 31 31 27 26 27 26 30 46 46 27 203 26 2 7 27 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0407-0511 ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0512- ● ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
SMOOTHER-G(C1W) (B) 		1-48312-015-0 01 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
7 GASKET; DRAIN COCK
SMOOTHER-G(C1W) ID=14 		1-09630-145-0 01 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0407-0511 ●
26 PLUG; SUB AIR TANK
(B) M22 		1-09661-502-0 01 1 0407-0511 ●
26 PLUG; SUB AIR TANK
(A) 		1-09661-569-0 02 1 0407-0511 ●
26 PLUG; SUB AIR TANK
(A) 		1-09661-569-0 02 1 0512- ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-0511 ●
27 UNION; ELBOW,AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 03 1 0512- ● ●
27 UNION; ELBOW,AIR TANK
(A) 		1-09661-550-0 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-0 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-1 01 1 0512- ● ●
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0512- ● ●
30 BRACKET; AIR TANK,SUB
(C) 		1-48317-979-6 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(C) 		1-48316-024-3 01 1 0512- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 0512- ● ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0512-0512 ● ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20851-450-0 04 1 0601- ● ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0512-0512 ● ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28651-225-0 04 1 0601- ● ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0512-0512 ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 0601- ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0407-0511 ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 03 1 0512-0512 ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 03 1 0601- ●
39 U-BOLT; AIR TANK
SMOOTHER-G(C1W) (B) L=210 		1-48317-458-1 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
SMOOTHER-G(C1W) M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-690-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(H) 		1-47479-707-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(G) 		1-47479-944-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-698-0 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0512- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0512- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0512-0606 ● ●
87 BRACKET; AIR PIPE JOINT
6WF1 TC-C(1B8) (A) 		1-47479-663-1 01 1 0607- ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0512-0607 ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0512-0607 ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0608- ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0511 ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ● ●
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0511 ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0512-0512 ● ●
203 NUT
(B) M16 		0-91110-516-0 01 1 0601- ● ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0511 ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0512-0512 ● ●
203 NUT
(C) M18 		0-91110-518-0 03 1 0601- ● ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0407-0511 ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0512-0603 ● ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604- ● ●

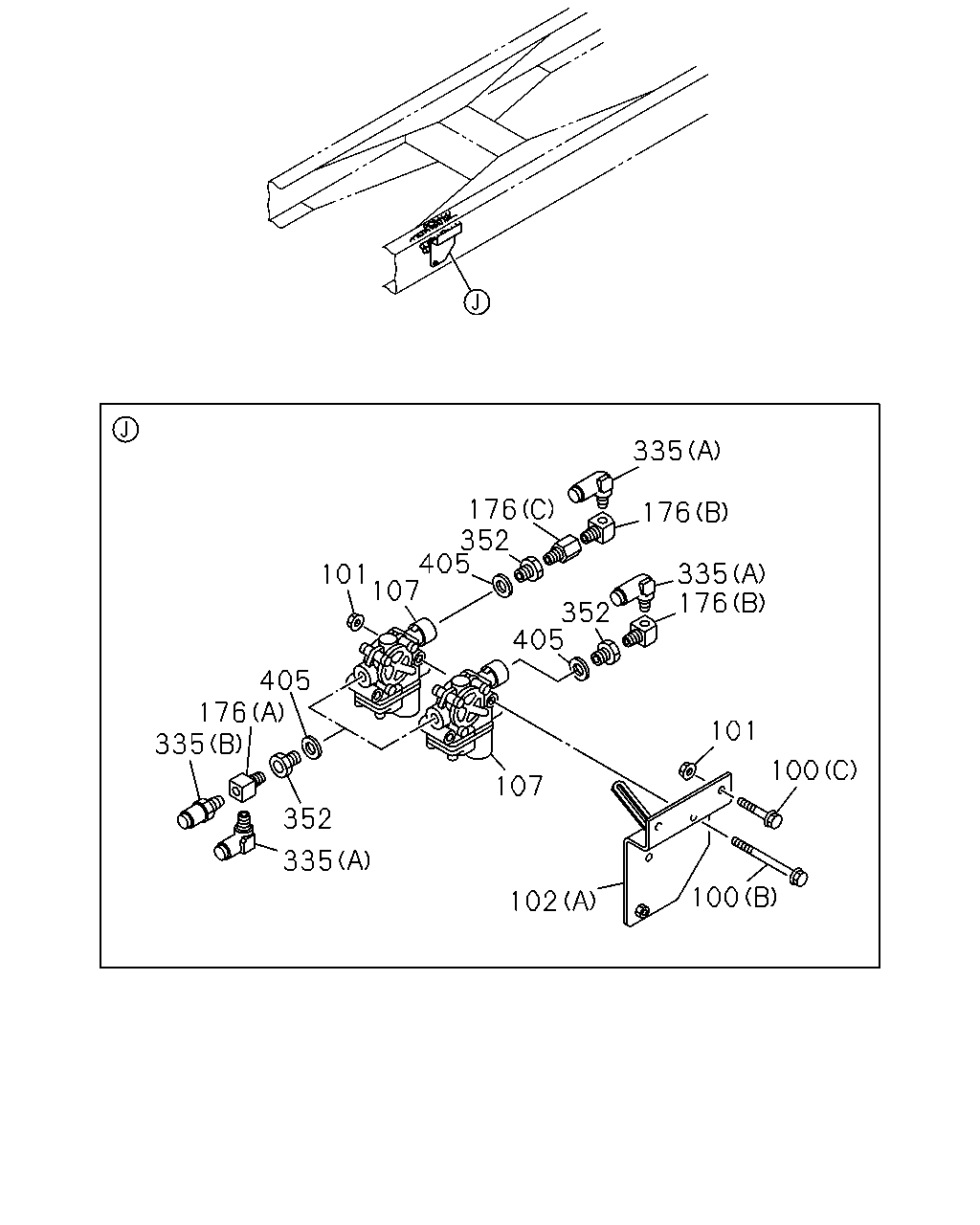

çizim 87304
335 176 352 405 101 107 176 335 176 352 405 405 176 335 101 100 107 352 335 100 102
BalonParca AdiParca NoAdetTipApplied Date A B C
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0512-0512 ● ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(D) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(D) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 07 1 0407-0511 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 07 1 0512-0602 ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 07 1 0603- ● ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 02 1 0407-0511 ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0512- ● ●
107 MODULATOR; RR 1-48240-115-0 02 1 0407-0511 ●
107 MODULATOR; RR 1-48240-115-0 02 1 0512- ● ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0407-0511 ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0512- ● ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0407-0511 ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0512- ● ●
176 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 0407-0511 ●
176 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 0512- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0407-0511 ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0512- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0407-0511 ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0512- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0407-0511 ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0512- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 06 1 0407-0511 ●
405 GASKET
ID=22.5 		9-09571-422-0 06 1 0512- ● ●
çizim 87305

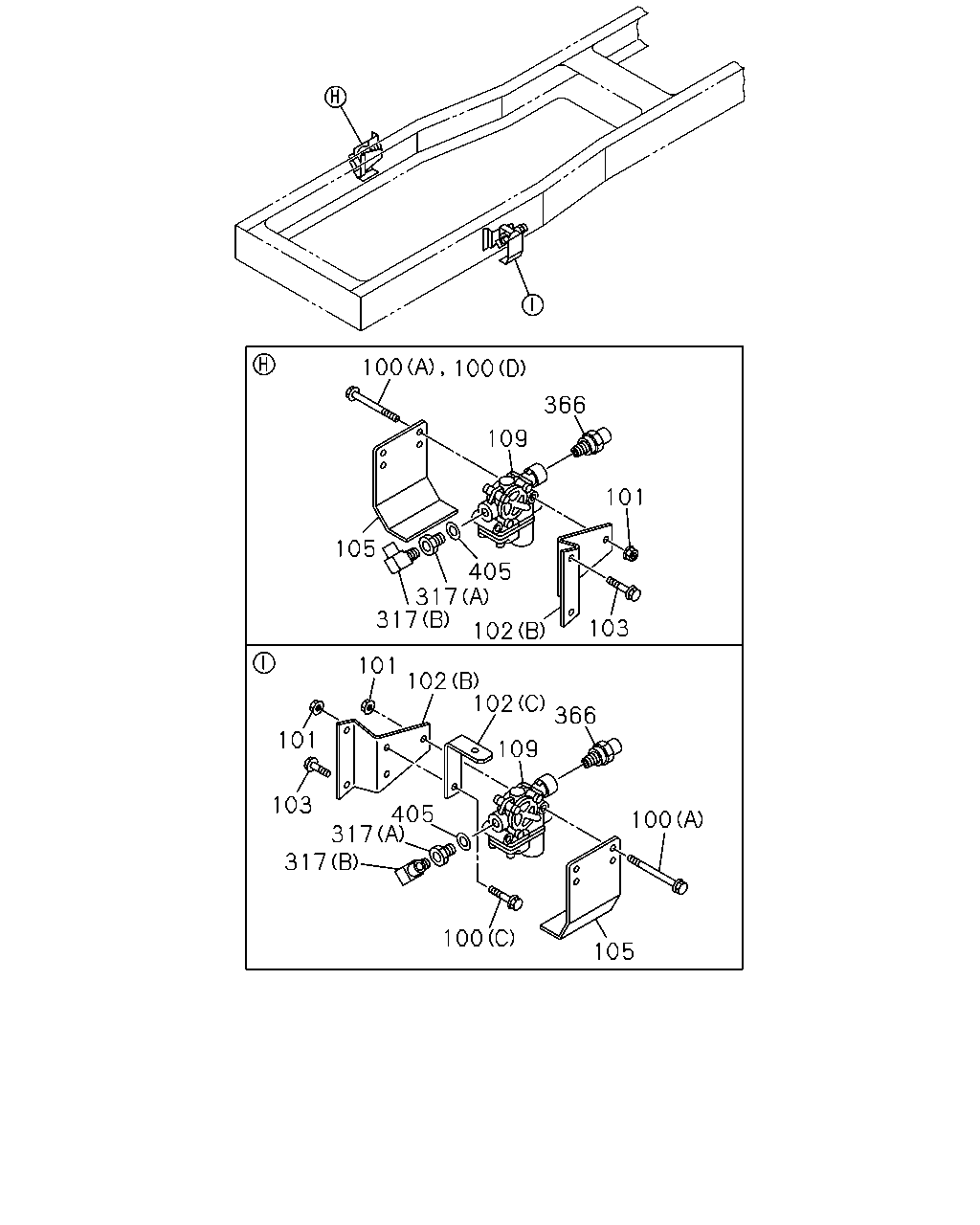

100 100 366 109 101 105 405 317 317 103 102 101 102 102 366 101 109 103 405 317 317 100 100 105
BalonParca AdiParca NoAdetTipApplied Date A B C
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0512-0512 ● ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0512-0512 ● ●
100 BOLT; MODULATOR
(D) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
100 BOLT; MODULATOR
(D) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 07 1 0407-0511 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 07 1 0512-0602 ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 07 1 0603- ● ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 02 1 0407-0511 ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0512- ● ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0512- ● ●
103 BOLT; BRKT
SMOOTHER-G(C1W) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
103 BOLT; BRKT
SMOOTHER-G(C1W) M10X30 FLANGE 		0-28681-030-0 04 1 0407-0511 ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0407-0511 ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ● ●
103 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
105 COVER; MODULATOR 1-47479-434-1 01 1 0407-0511 ●
105 COVER; MODULATOR 1-47479-434-1 01 1 0407-0511 ●
105 COVER; MODULATOR 1-47479-434-1 01 1 0512- ● ●
105 COVER; MODULATOR 1-47479-434-1 01 1 0512- ● ●
109 MODULATOR; FRT 1-48240-115-0 02 1 0407-0511 ●
109 MODULATOR; FRT 1-48240-115-0 02 1 0512- ● ●
317 CONNECTOR; MODULATOR
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 0512- ● ●
317 CONNECTOR; MODULATOR
(B) M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(B) M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 0512- ● ●
366 CONNECTOR; NYLON TUBE
DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0407-0511 ●
366 CONNECTOR; NYLON TUBE
DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0512- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 06 1 0407-0511 ●
405 GASKET
ID=22.5 		9-09571-422-0 06 1 0512- ● ●
çizim 104167

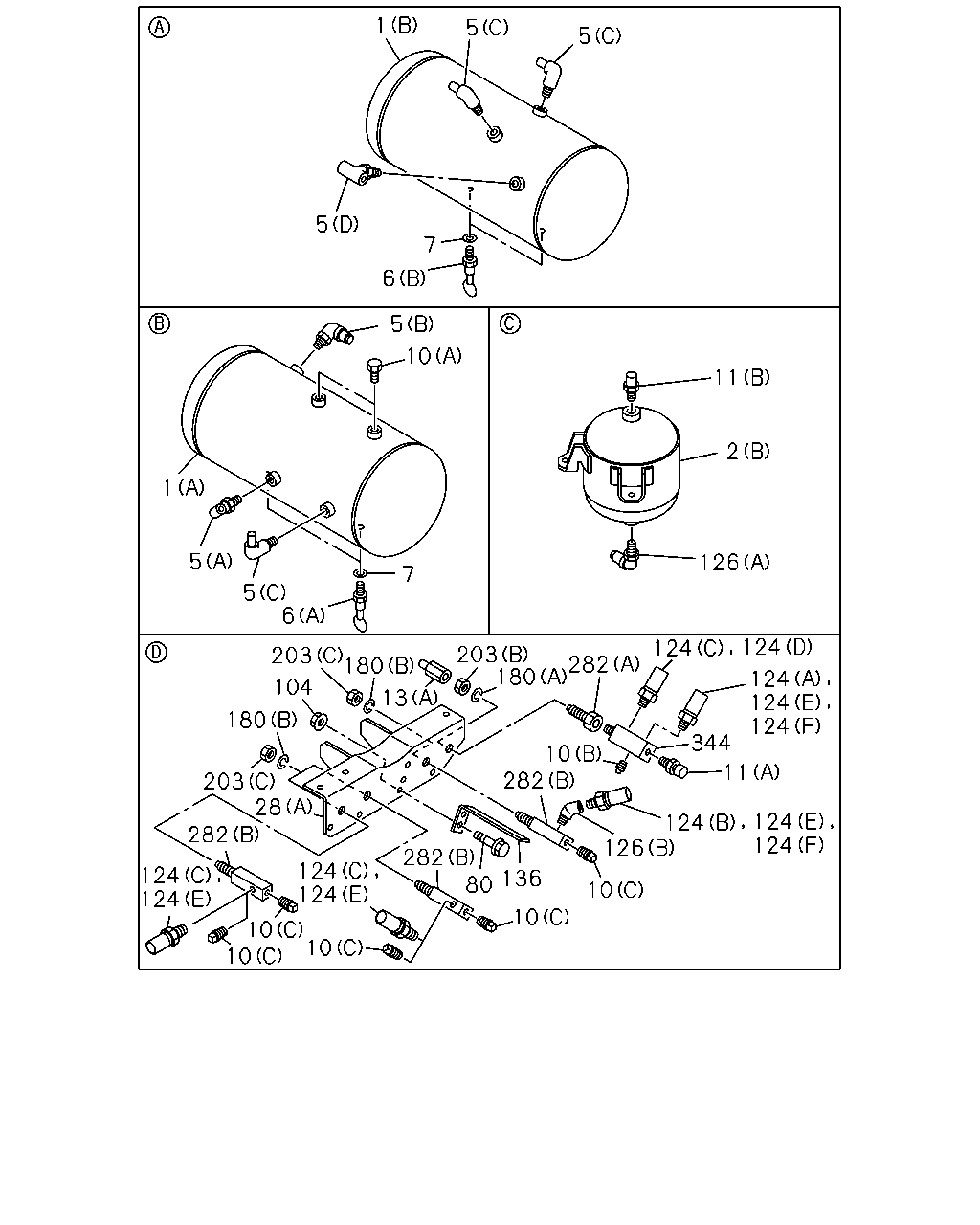

1 5 5 5 7 6 5 10 11 2 1 5 126 7 5 6 124 124 203 180 203 180 282 124 124 124 104 13 180 344 10 282 11 203 28 282 124 124 124 126 282 80 124 124 124 124 136 10 10 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; AIR
SMOOTHER-G(C1W) (C) 		1-48371-165-3 01 1 0407-0511 ●
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0512- ● ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0407-0511 ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0512- ● ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0407-0511 ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0512- ● ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0512- ● ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
5 UNION; AIR TANK
SMOOTHER-G(C1W) (A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512- ● ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ● ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0512- ● ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0407-0511 ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0512- ● ●
5 UNION; AIR TANK
(D) 		1-09661-568-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(D) 		1-09661-568-0 01 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
SMOOTHER-G(C1W) (B) 		1-48312-015-0 01 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ● ●
7 GASKET; DRAIN COCK
SMOOTHER-G(C1W) ID=14 		1-09630-145-0 01 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0407-0511 ●
10 PLUG; AIR TANK
6WG1 TC-C(72L) (C) PT1/4 		9-99204-513-0 05 1 0512- ● ●
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0407-0511 ●
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0512- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0407-0511 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0512- ● ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 03 1 0407-0511 ●
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 03 1 0512-0603 ●
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 04 1 0604- ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-1 01 1 0407-0511 ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0512- ● ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-1 01 1 0407-0511 ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0512- ● ●
13 ADAPTER; NYLON TUBE
SMOOTHER-G(C1W) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0512- ● ●
28 BRACKET; AIR TANK
SMOOTHER-G(C1W) (C) 		1-48316-031-0 01 1 0407-0511 ●
28 BRACKET; AIR TANK
SMOOTHER-G(C1W) (B) 		1-48317-473-2 01 1 0407-0511 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0407-0511 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0512- ● ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ● ●
80 BOLT; BRKT
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28050-816-0 02 1 0607- ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0607- ● ●
104 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607- ●
124 SWITCH; AIR PRESSURE
(B) 		1-48340-065-0 01 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
6WF1 TC-C(1B8) (E) 		1-48340-065-0 04 1 0512- ●
124 SWITCH; AIR PRESSURE
(C) 		1-48340-066-0 03 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
(D) 		1-48340-066-0 01 1 0512-0603 ● ●
124 SWITCH; AIR PRESSURE
6WG1 TC-C(72L) (D) 		1-48340-066-0 01 1 0604- ● ●
124 SWITCH; AIR PRESSURE
(A) 		1-48340-067-0 01 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
6WG1 TC-C(72L) (F) 		1-48340-065-0 02 1 0512- ● ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512- ● ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0407-0511 ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0512- ● ●
136 BRACKET; CLIP 1-47479-674-0 01 1 0407-0511 ●
136 BRACKET; CLIP 1-47479-674-0 01 1 0512-0606 ● ●
136 BRACKET; CLIP
6WF1 TC-C(1B8) 		1-47479-674-0 01 1 0607- ●
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0407-0511 ●
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0512-0603 ● ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604- ● ●
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0407-0511 ●
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0512-0603 ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 0604- ● ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0511 ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ● ●
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0511 ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0512-0512 ● ●
203 NUT
(B) M16 		0-91110-516-0 01 1 0601- ● ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0511 ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0512-0512 ● ●
203 NUT
(C) M18 		0-91110-518-0 03 1 0601- ● ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0407-0511 ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0512- ● ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0407-0511 ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0512- ● ●
344 CONNECTOR; 4WAY 1-09660-521-1 01 1 0407-0511 ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0512- ● ●
çizim 104168
241
BalonParca AdiParca NoAdetTipApplied Date A B C
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0407-0511 ●
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0512-0512 ● ●
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601- ● ●
çizim 104170

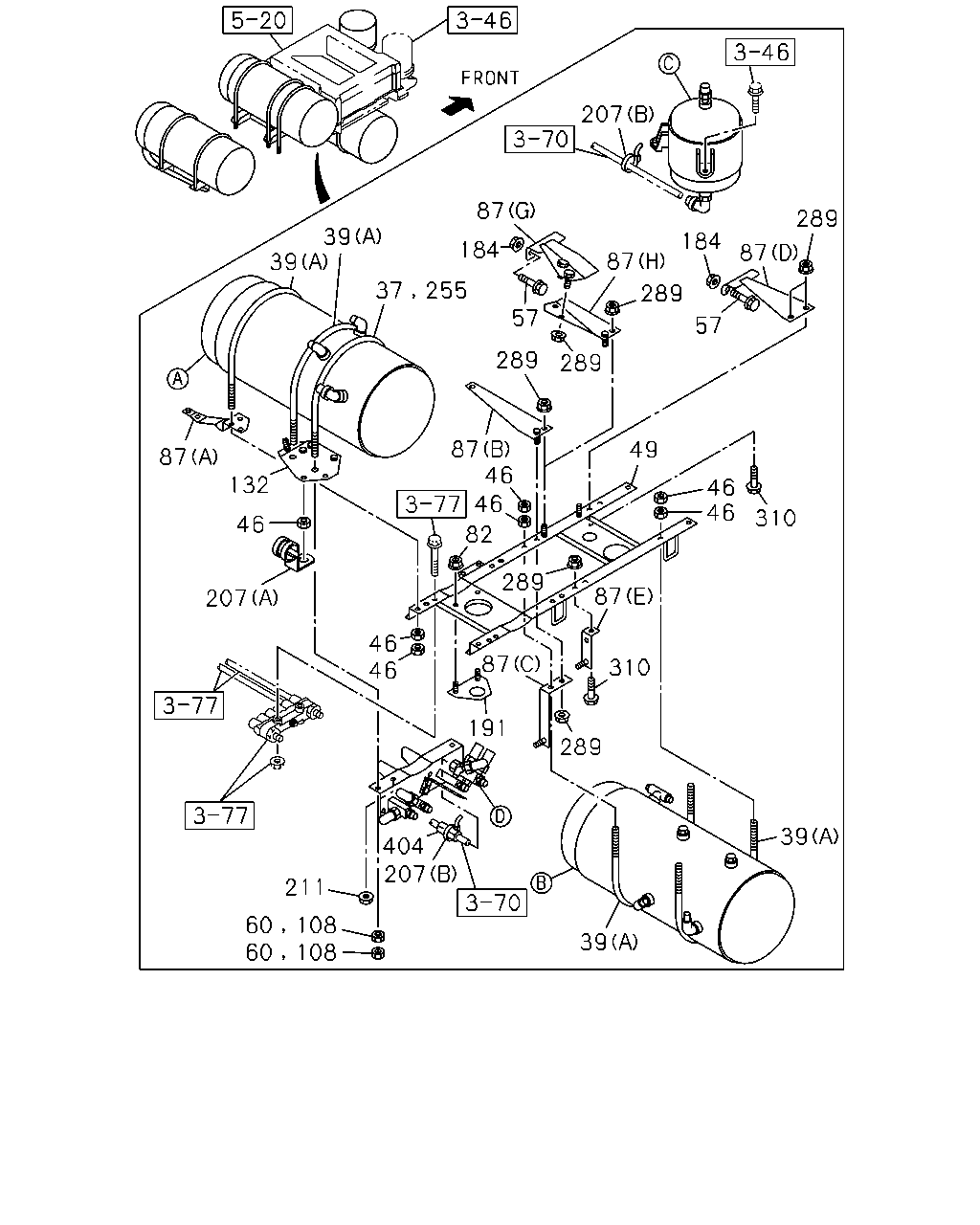

207 87 289 39 184 184 87 87 39 289 57 57 289 289 87 46 49 87 132 46 46 46 310 46 82 289 87 46 46 207 87 310 191 289 39 404 207 211 60 60 108 108 39 37 255
BalonParca AdiParca NoAdetTipApplied Date A B C
37 BOLT; AIR TANK
L=303 		1-48317-087-2 01 1 0407-0409 ●
39 U-BOLT; AIR TANK
SMOOTHER-G(C1W) (B) L=210 		1-48317-458-1 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
SMOOTHER-G(C1W) M8 		9-09110-408-0 08 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511 ●
49 BRACKET; AIR TANK 1-48316-046-0 01 1 0407-0511 ●
49 BRACKET; AIR TANK 1-48316-046-1 01 1 0512- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0511 ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
60 NUT; AIR TANK FIX
M8 		9-09110-408-0 04 1 0407-0409 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-690-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(H) 		1-47479-707-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(G) 		1-47479-944-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-698-0 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0512- ● ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0512- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0512-0606 ● ●
87 BRACKET; AIR PIPE JOINT
6WF1 TC-C(1B8) (A) 		1-47479-663-1 01 1 0607- ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0512-0607 ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0608- ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0512-0607 ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0608- ●
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0410-0511 ●
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0512-0512 ● ●
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 0601- ● ●
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0407-0511 ●
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0512- ● ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0407-0511 ●
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0512- ● ●
207 CLIP; AIR PIPE
(B) L=256 		1-09707-189-0 02 1 0512- ●
207 CLIP; AIR PIPE
(A) ID=16 H=25 L=25 		1-09701-162-0 01 1 0512- ●
207 CLIP; AIR PIPE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0407-0511 ●
207 CLIP; AIR PIPE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0512- ● ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 15 1 0407-0511 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 15 1 0512- ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0410-0511 ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0512- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 08 1 0512-0602 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 08 1 0603- ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 07 1 0407-0511 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 07 1 0512-0602 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 07 1 0603-0607 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 0608- ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 04 1 0512-0607 ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 10 1 0608- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 0512-0512 ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 0512-0512 ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512 ● ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512 ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0607 ● ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0607 ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 04 1 0407-0511 ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 04 1 0512-0607 ● ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 05 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
