◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#29177) — 48 parça

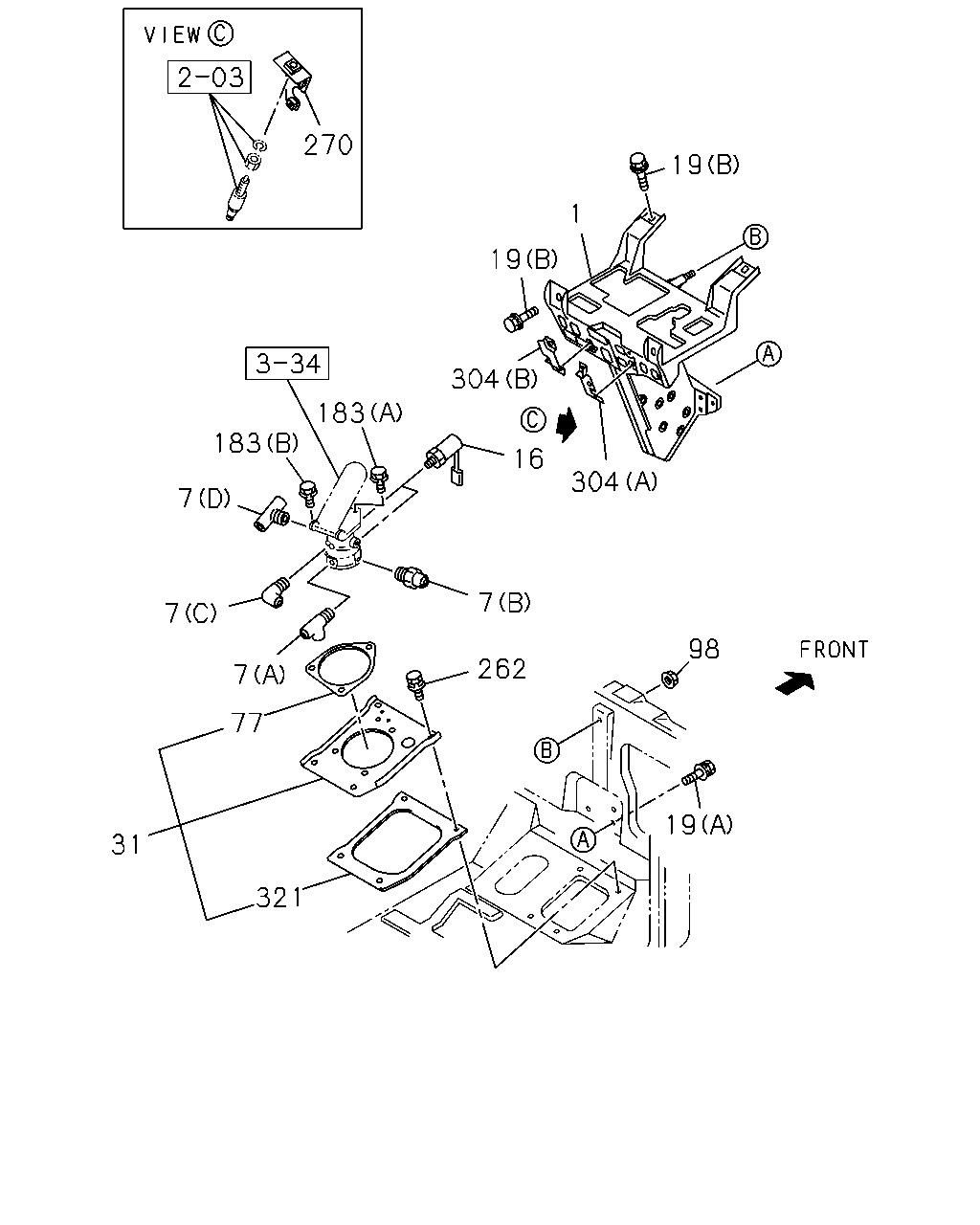

çizim 87324
270 19 1 19 304 183 183 16 304 7 7 7 98 262 7 77 19 31 321
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 1-73908-191-7 01 1 0407-0511 ●
1 BRACKET ASM; PEDAL 1-73908-191-7 01 1 0512- ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) 		1-09661-537-0 02 1 0512-0703 ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) 		1-09661-537-0 01 1 0704-0704 ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) 		1-09661-537-0 01 1 0704-0704 ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705-0803 ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705-0803 ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 02 1 0804- ● ●
7 CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (A) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 0512- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0407-0511 ●
7 CONNECTOR; BRK VALVE
(B) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0512-0512 ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0601- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0407-0511 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0512-0512 ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0601- ● ●
7 CONNECTOR; BRK VALVE
(A) 		1-09660-969-0 01 1 0407-0511 ●
7 CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (A) 		1-09660-969-0 01 1 0512- ●
7 CONNECTOR; BRK VALVE
(D) 		1-09660-970-0 01 1 0407-0511 ●
7 CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (D) 		1-09660-970-0 01 1 0512- ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 0407-0511 ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 0512- ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 0407-0511 ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 0512- ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0511 ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
31 PLATE; MTG,BRKT VLV
6WG1 TC-C(72L) 		1-73996-329-1 01 1 0512- ● ●
31 PLATE; MTG,BRKT VLV 1-73996-271-3 01 1 0407-0511 ●
31 PLATE; MTG,BRKT VLV
6WF1 TC-C(1B8) 		1-73996-271-3 01 1 0512- ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0407-0511 ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0512- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-0511 ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0512- ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0407-0511 ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0512- ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0407-0511 ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0512- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0511 ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
270 BRACKET ASM; BRK SW
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73908-169-2 01 1 0407-0511 ●
270 BRACKET ASM; BRK SW
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73908-169-2 01 1 0512- ●
304 SUPPORT ASM; PEDAL BRKT
(A) 		1-73996-341-1 01 1 0407-0511 ●
304 SUPPORT ASM; PEDAL BRKT
(A) 		1-73996-341-1 01 1 0512- ● ●
304 SUPPORT ASM; PEDAL BRKT
(B) 		1-73996-342-1 01 1 0407-0511 ●
304 SUPPORT ASM; PEDAL BRKT
(B) 		1-73996-342-1 01 1 0512- ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 0407-0511 ●
321 SEAL; VALVE 1-73996-143-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
