3-05 — REAR WHEEL BRAKE (#29174) — 235 parça
çizim 86545
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date A B C
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0407-0511 ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0407-0511 ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0512- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0512- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0407-0511 ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0407-0511 ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0512- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0512- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0407-0511 ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0407-0511 ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0512- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0512- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0407-0511 ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0407-0511 ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0512- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0512- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0407-0511 ●
319 RING; DRIVE 1-47629-200-0 04 1 0407-0511 ●
319 RING; DRIVE 1-47629-200-0 04 1 0512- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0512- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0407-0511 ●
327 SPRING; ADJ 1-47629-196-0 04 1 0407-0511 ●
327 SPRING; ADJ 1-47629-196-0 04 1 0512- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0512- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0407-0511 ●
328 CAGE; SPRING 1-47629-192-0 04 1 0407-0511 ●
328 CAGE; SPRING 1-47629-192-0 04 1 0512- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0512- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0407-0511 ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0407-0511 ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0512- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0512- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0407-0511 ●
334 SPRING; ROD 1-47649-041-0 02 1 0407-0511 ●
334 SPRING; ROD 1-47649-041-0 02 1 0512- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0512- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0407-0511 ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0407-0511 ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0512- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0512- ● ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0407-0511 ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0407-0511 ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0512- ● ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0512- ● ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0407-0511 ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0407-0511 ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0512- ● ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0512- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0407-0511 ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0407-0511 ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0512- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0512- ● ●

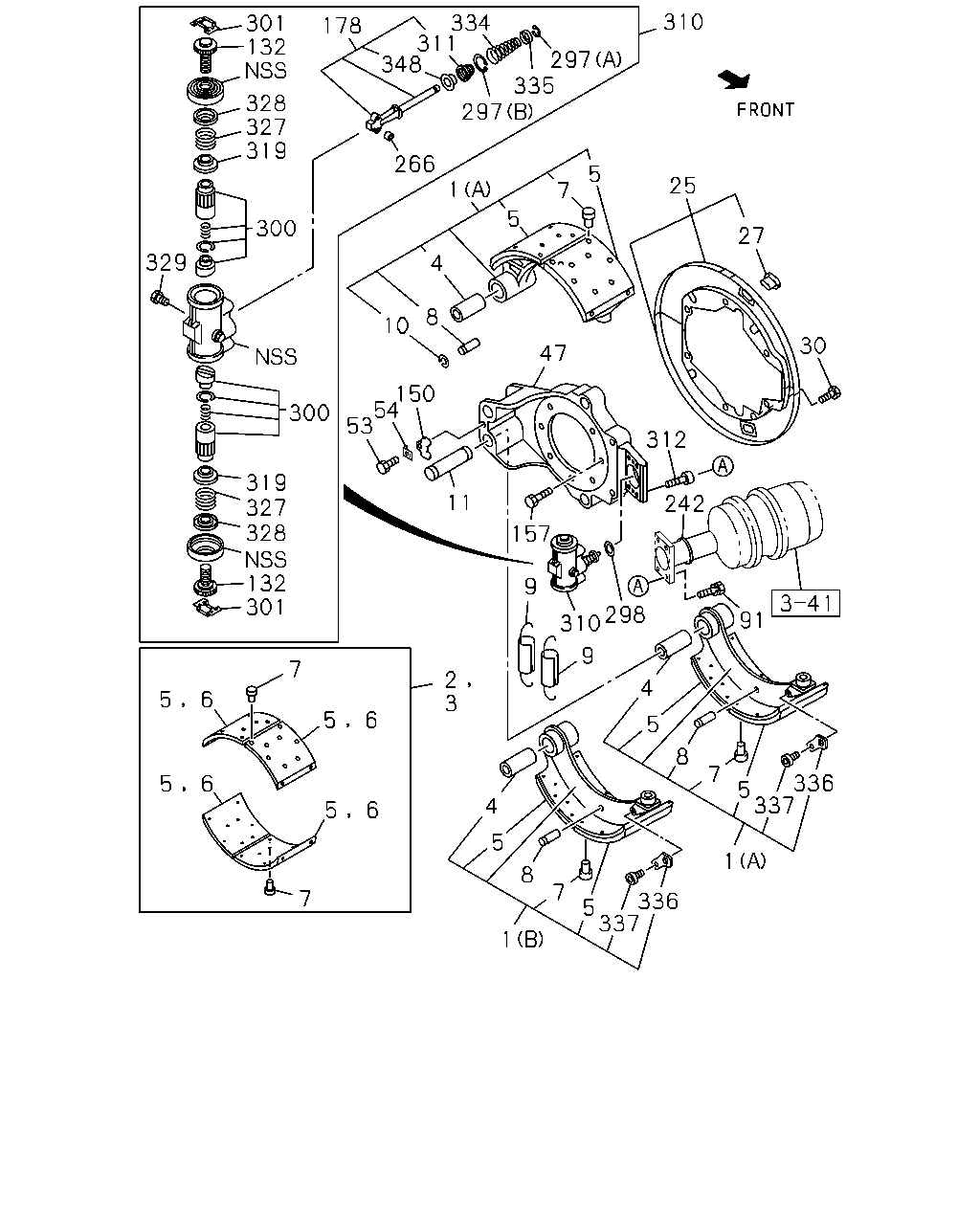

çizim 104171
310 334 311 348 301 132 178 297 335 297 328 327 319 266 5 25 1 7 5 300 27 329 4 8 10 30 47 150 54 53 300 312 319 327 328 132 11 242 157 9 298 310 91 9 7 2 3 4 5 6 5 6 5 8 336 5 337 7 5 6 4 5 6 5 1 8 336 5 337 7 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
(A) LEADING 		1-47170-326-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-326-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-327-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-327-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-252-0 02 1 0407-0511 ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-252-0 02 1 0407-0511 ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-324-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-324-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-253-0 02 1 0407-0511 ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-253-0 02 1 0407-0511 ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-325-0 01 1 0512- ● ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-325-0 01 1 0512- ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-255-0 02 1 0407-0511 ●
2 LINING SET; RR BRK,STANDARD 1-88311-255-0 02 1 0407-0511 ●
2 LINING SET; RR BRK,STANDARD 1-88310-775-0 02 1 0512- ● ●
2 LINING SET; RR BRK,STANDARD 1-88310-775-0 02 1 0512- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-258-0 02 1 0407-0511 ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-258-0 02 1 0407-0511 ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-0 02 1 0512- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-0 02 1 0512- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-021-0 04 1 0407-0511 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-021-0 04 1 0407-0511 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-665-0 08 1 0407-0511 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-665-0 08 1 0407-0511 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 0512- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 0512- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-667-0 08 1 0407-0511 ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-667-0 08 1 0407-0511 ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 0512- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 0512- ● ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0407-0511 ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0407-0511 ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0512- ● ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 0512- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 0512- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 0512- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-159-0 04 1 0407-0511 ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-159-0 04 1 0407-0511 ●
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 0512- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 0512- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-366-0 04 1 0407-0511 ●
9 SPRING; RETURN,BRK SHOE 1-09583-366-0 04 1 0407-0511 ●
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 0512- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 0512- ● ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 02 1 0512-0604 ● ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 02 1 0512-0604 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0605- ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0605- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0407-0511 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0407-0511 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0512- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 0512- ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0407-0511 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 0407-0511 ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0512-1309 ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0512-1309 ● ●
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310- ● ●
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310- ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0407-0511 ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 0407-0511 ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0512-1309 ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0512-1309 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0407-0511 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0407-0511 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0512- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0512- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0407-0511 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0407-0511 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0512- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0512- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-448-0 01 1 0407-0511 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-448-0 01 1 0512-1306 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98231-448-0 01 1 1307- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-449-0 01 1 0407-0511 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-449-0 01 1 0512-1306 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98231-449-0 01 1 1307- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0407-0511 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0512-1306 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-253-1 02 1 1307- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0407-0511 ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0407-0511 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0512-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0512-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0512-0512 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0512-0512 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-0910 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-0910 ● ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911- ● ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 0911- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0407-0511 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0407-0511 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0512- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0512- ● ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0407-0511 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0407-0511 ●
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 0512- ● ●
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 0512- ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-1 04 1 0407-0511 ●
132 SCREW; ADJ,RR BRK 1-47623-035-1 04 1 0407-0511 ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0512- ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 0512- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0407-0511 ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0407-0511 ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0512- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 0512- ● ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0407-0511 ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0407-0511 ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0407-0511 ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0407-0511 ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0512- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 0512- ● ●
242 SEAL 1-47159-186-0 04 1 0407-0511 ●
242 SEAL 1-47159-186-0 04 1 0407-0511 ●
242 SEAL 1-47159-186-0 04 1 0512- ● ●
242 SEAL 1-47159-186-0 04 1 0512- ● ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0407-0511 ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0407-0511 ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0512- ● ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 0512- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0407-0511 ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0407-0511 ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0512- ● ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 0512- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0407-0511 ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0407-0511 ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0512- ● ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 0512- ● ●
298 GASKET 1-48259-231-0 02 1 0407-0511 ●
298 GASKET 1-48259-231-0 02 1 0407-0511 ●
298 GASKET 1-48259-231-0 02 1 0512- ● ●
298 GASKET 1-48259-231-0 02 1 0512- ● ●
300 SLEEVE 1-47629-247-0 04 1 0407-0511 ●
300 SLEEVE 1-47629-247-0 04 1 0407-0511 ●
300 SLEEVE 1-47629-247-1 04 1 0512- ● ●
300 SLEEVE 1-47629-247-1 04 1 0512- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0407-0511 ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0407-0511 ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0512- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0512- ● ●
310 EXPANDER 1-47601-087-0 02 1 0407-0511 ●
310 EXPANDER 1-47601-087-0 02 1 0407-0511 ●
310 EXPANDER 1-47601-087-0 02 1 0512- ● ●
310 EXPANDER 1-47601-087-0 02 1 0512- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0407-0511 ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0407-0511 ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0512- ● ●
311 BOOT; WEDGE 1-47649-042-0 02 1 0512- ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0407-0511 ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0407-0511 ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0512- ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0512- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0407-0511 ●
319 RING; DRIVE 1-47629-200-0 04 1 0407-0511 ●
319 RING; DRIVE 1-47629-200-0 04 1 0512- ● ●
319 RING; DRIVE 1-47629-200-0 04 1 0512- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0407-0511 ●
327 SPRING; ADJ 1-47629-196-0 04 1 0407-0511 ●
327 SPRING; ADJ 1-47629-196-0 04 1 0512- ● ●
327 SPRING; ADJ 1-47629-196-0 04 1 0512- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0407-0511 ●
328 CAGE; SPRING 1-47629-192-0 04 1 0407-0511 ●
328 CAGE; SPRING 1-47629-192-0 04 1 0512- ● ●
328 CAGE; SPRING 1-47629-192-0 04 1 0512- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0407-0511 ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0407-0511 ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0512- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0512- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0407-0511 ●
334 SPRING; ROD 1-47649-041-0 02 1 0407-0511 ●
334 SPRING; ROD 1-47649-041-0 02 1 0512- ● ●
334 SPRING; ROD 1-47649-041-0 02 1 0512- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0407-0511 ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0407-0511 ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0512- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0512- ● ●
336 PLATE; PIVOT 1-47119-152-0 04 1 0512- ● ●
336 PLATE; PIVOT 1-47119-152-0 04 1 0512- ● ●
337 BOLT; PLATE 1-47119-153-0 04 1 0512- ● ●
337 BOLT; PLATE 1-47119-153-0 04 1 0512- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0407-0511 ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0407-0511 ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0512- ● ●
348 CAP; EXPANDER 1-47649-044-0 02 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
