Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

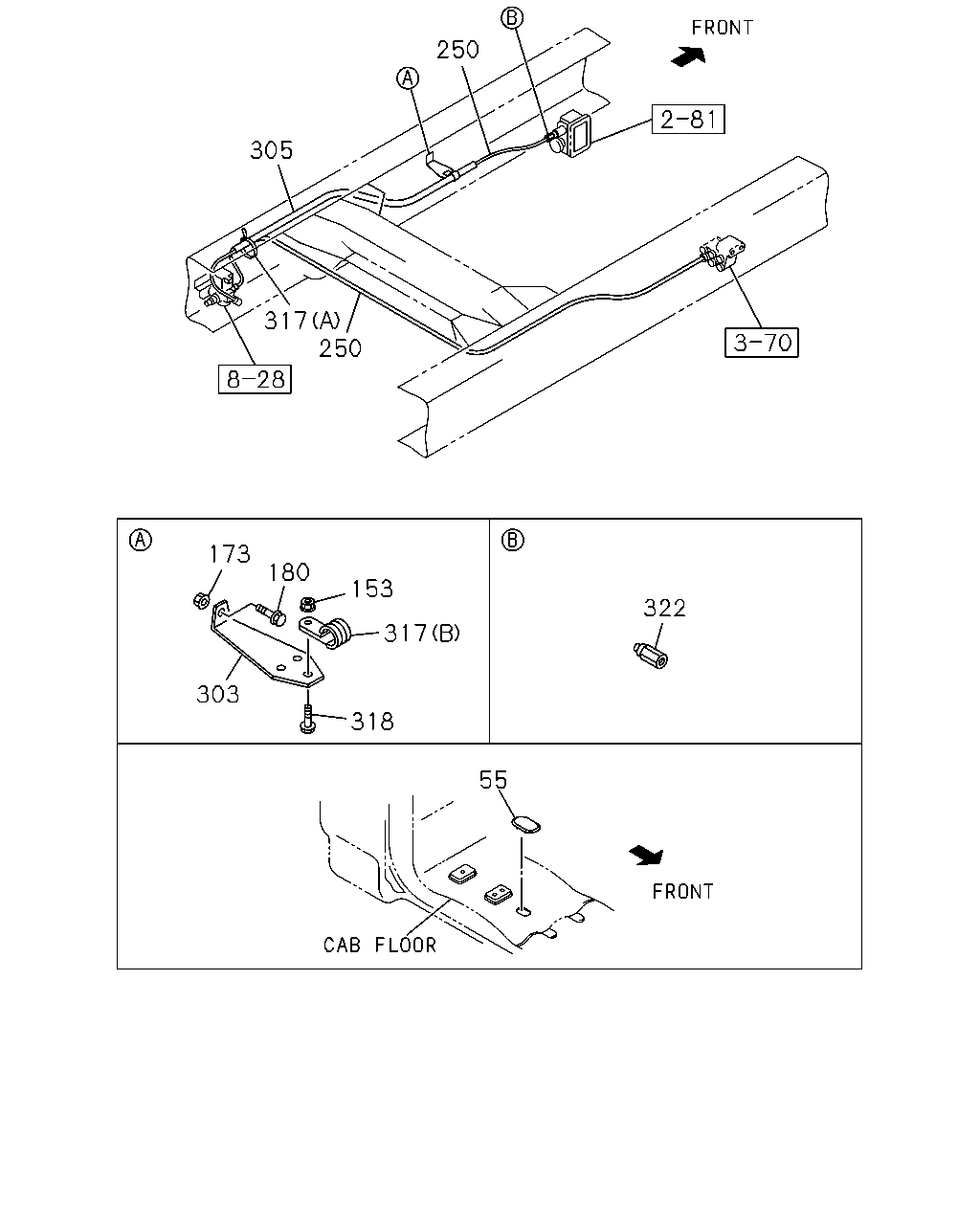

2-85 — POWER TAKE OFF CONTROL
(#29172) — 27 parça
Tümü
A - CXZ5MF
B - CYZ5MC
C - CYZ5MF
250
305
317
250
173
180
153
322
317
303
318
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
55
GROMMET; CABLE
1-09983-068-0
01
1
0407-0511
●
55
GROMMET; CABLE
1-09983-068-0
01
1
0512-
●
●
153
NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91150-108-0
01
1
0407-0511
●
153
NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91150-108-0
01
1
0512-0602
●
●
153
NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
173
NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) M8 FLANGE
0-91150-108-0
01
1
0407-0511
●
173
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0512-0602
●
●
173
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
180
BOLT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) M8X35 FLANGE
0-28680-835-0
01
1
0407-0511
●
180
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
01
1
0512-0512
●
●
180
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0601-
●
●
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
0407-0511
●
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
0512-
●
●
303
BRACKET; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W)
1-47479-779-0
01
1
0407-0511
●
303
BRACKET; CLIP
1-47479-779-0
01
1
0512-
●
●
305
TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
0407-0511
●
305
TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
0512-
●
●
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=350
1-09707-183-0
01
1
0407-0511
●
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=350
1-09707-183-0
01
1
0512-
●
●
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=11 L=16
9-09525-025-0
01
1
0407-0511
●
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=11 L=16
9-09525-025-0
01
1
0512-0606
●
●
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=11 L=16
0-95235-025-0
01
1
0607-
●
●
318
BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE
0-28680-825-0
01
1
0407-0511
●
318
BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE
0-28680-825-0
01
1
0512-0512
●
●
318
BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
322
UNION
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
0407-0511
●
322
UNION
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
0512-
●
●
