8-28 — CHASSIS ELECTRICAL (#2917) — 114 parça

8 9 15 16 3 1 13 10 4 73 76 75 74 27 28 26 24 21 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-034-1	01	1	9002-	●
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-034-1	01	1	9002-		●
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-030-0	01	1	9002-		●
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	9002-	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13>	1-82550-095-3	01	1	9002-	●	●
9	SCREW; WIPER RELAY INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
10	DETECTOR ASM; FUEL	1-81553-001-0	01	1	9002-	●	●
13	BOLT; FUEL DETECTOR M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9203-	●	●
15	RELAY; STOP & TAIL WARNING	1-82550-143-2	01	1	9002-	●	●
16	SCREW; RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●	●
16	SCREW; RELAY FULL TRACTOR TRUCK<RD6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-		●
21	RELAY; TRAILER TAIL FULL TRACTOR TRUCK<RD6> GREEN	1-82550-146-0	01	1	9002-		●
22	RELAY; STOP LAMP GREEN	1-82550-146-0	01	1	9002-	●	●
24	RELAY; LIGHTING GREEN	1-82550-146-0	02	1	9002-	●	●
25	RELAY; TAIL LAMP GREEN	1-82550-146-0	01	1	9002-	●	●
26	RELAY; CONSENT GREEN	1-82550-146-0	01	1	9002-	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9002-	●	●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER	0-74100-514-0	04	1	9002-	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9002-	●	●

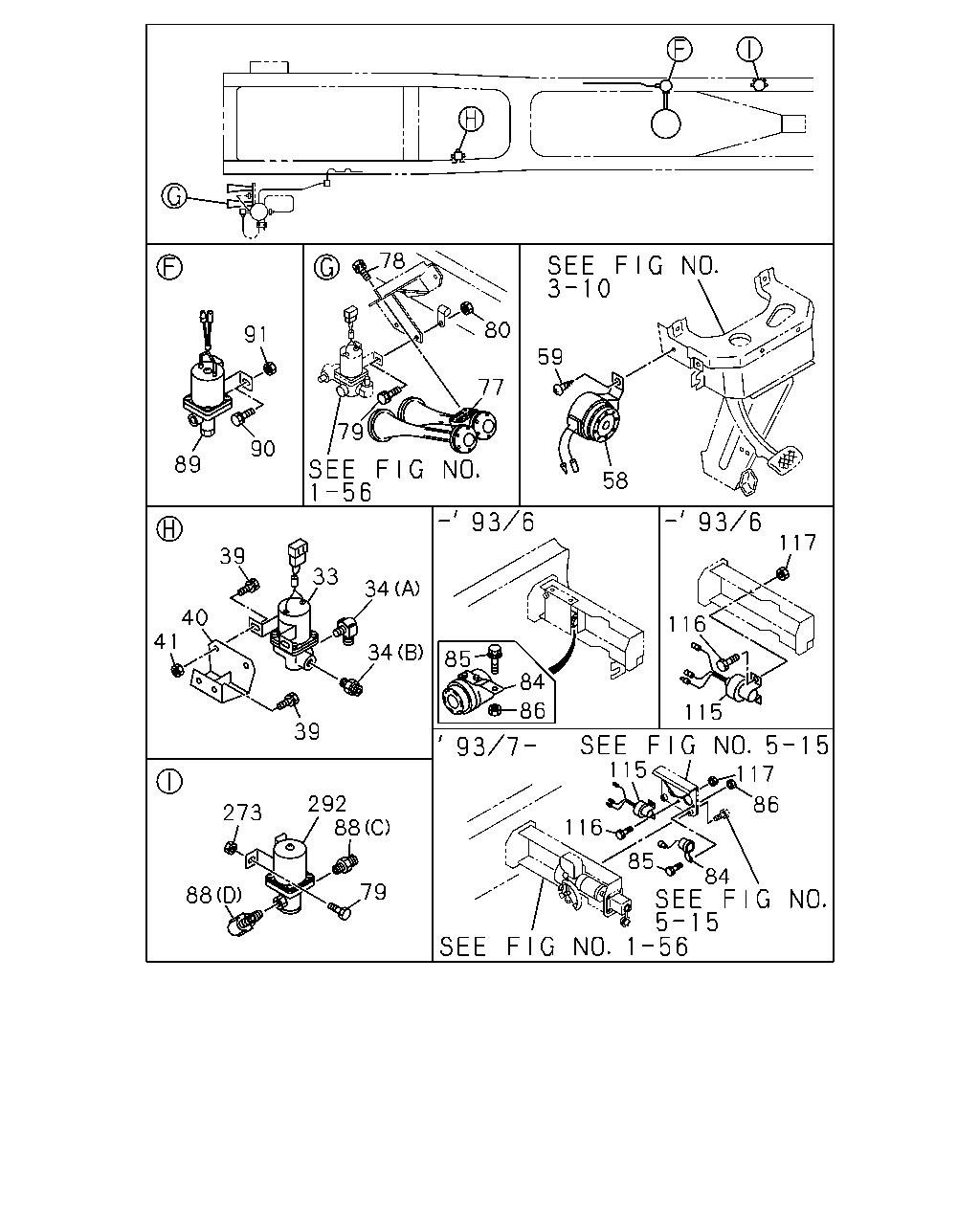

85 84 86 117 115 116 79 88 292 273 88 39 34 34 33 39 40 41 85 84 86 115 116 117 58 59 77 80 78 79 91 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-305-0	01	1	9002-	●	●
34	CONNECTOR; MAG VLV,INL PORT L TYPE ENG<90L> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M20 & PT1/4	9-09902-386-0	01	1	9307-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9307-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-9306	●	●
34	CONNECTOR; MAG VLV,INL PORT V TYPE ENG<91L> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9303-	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-361-3	01	1	9002-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-029-0	01	1	9002-	●	●
59	SCREW; BUZZER M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●
77	HORN ASM	1-83430-017-0	01	1	9002-	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
79	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
79	BOLT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
80	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>	1-83460-033-3	01	1	9002-9306	●	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> NIKKO	1-83460-054-0	01	1	9307-	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-9304	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9305-	●	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8	9-09110-408-0	01	1	9002-	●	●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-		●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (D) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-361-0	01	1	9002-9105	●	●
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-404-0	01	1	9106-	●	●
89	VALVE; MAG,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-301-0	01	1	9002-	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
91	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-034-1	01	1	9002-9306	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-071-0	01	1	9307-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9002-	●	●
273	NUT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-		●
292	VALVE; MAG SPR BRK NYLON TUBE AIR PIPING<Z29>	1-82563-433-0	01	1	9307-		●

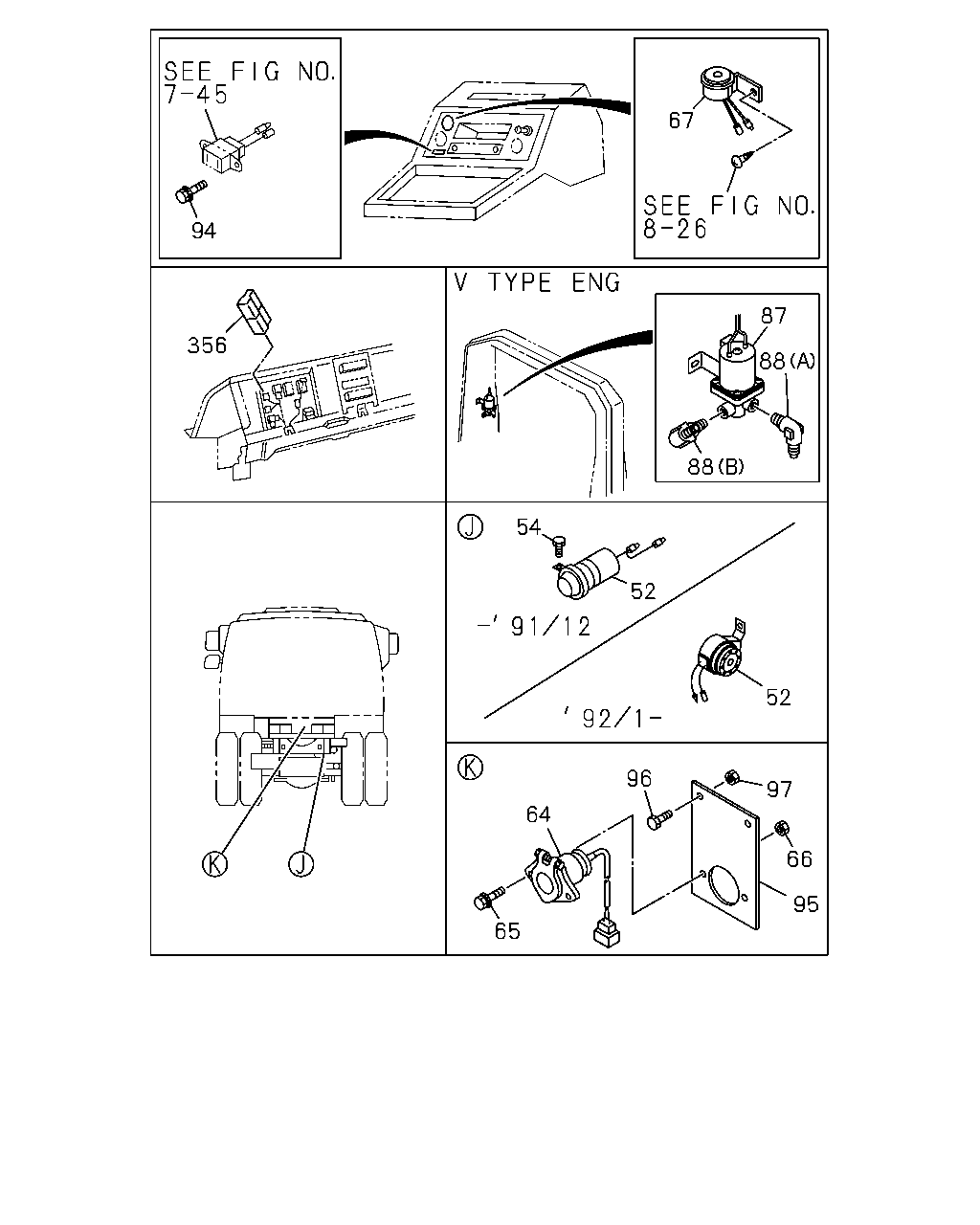

95 97 96 66 65 64 52 52 54 88 88 87 67 94 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-010-0	01	1	9002-9112	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	8-97061-718-0	01	1	9201-9306	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9307-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9002-9006	●	●
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6>	1-82523-019-0	01	1	9002-9011	●	●
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6>	1-82523-014-0	01	1	9012-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9306	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9002-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-	●	●
67	BUZZER; ENG OVERRUN EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-	●	●
87	VALVE; MAG,GOV CONT GOVERNOR CONTROL<W69>	1-82563-094-0	01	1	9002-9306		●
87	VALVE; MAG,GOV CONT GOVERNOR CONTROL<W69>	1-82563-402-0	01	1	9307-		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9002-9302		●
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-		●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (D) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9002-	●	●
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	9002-	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9002-	●	●
356	DIODE; TRAILER HAND BRK FULL TRACTOR TRUCK<RD6> 1.1A 2P	8-94249-985-0	01	1	9302-		●
