2-39A — POWER ASSISTOR (#29169) — 62 parça

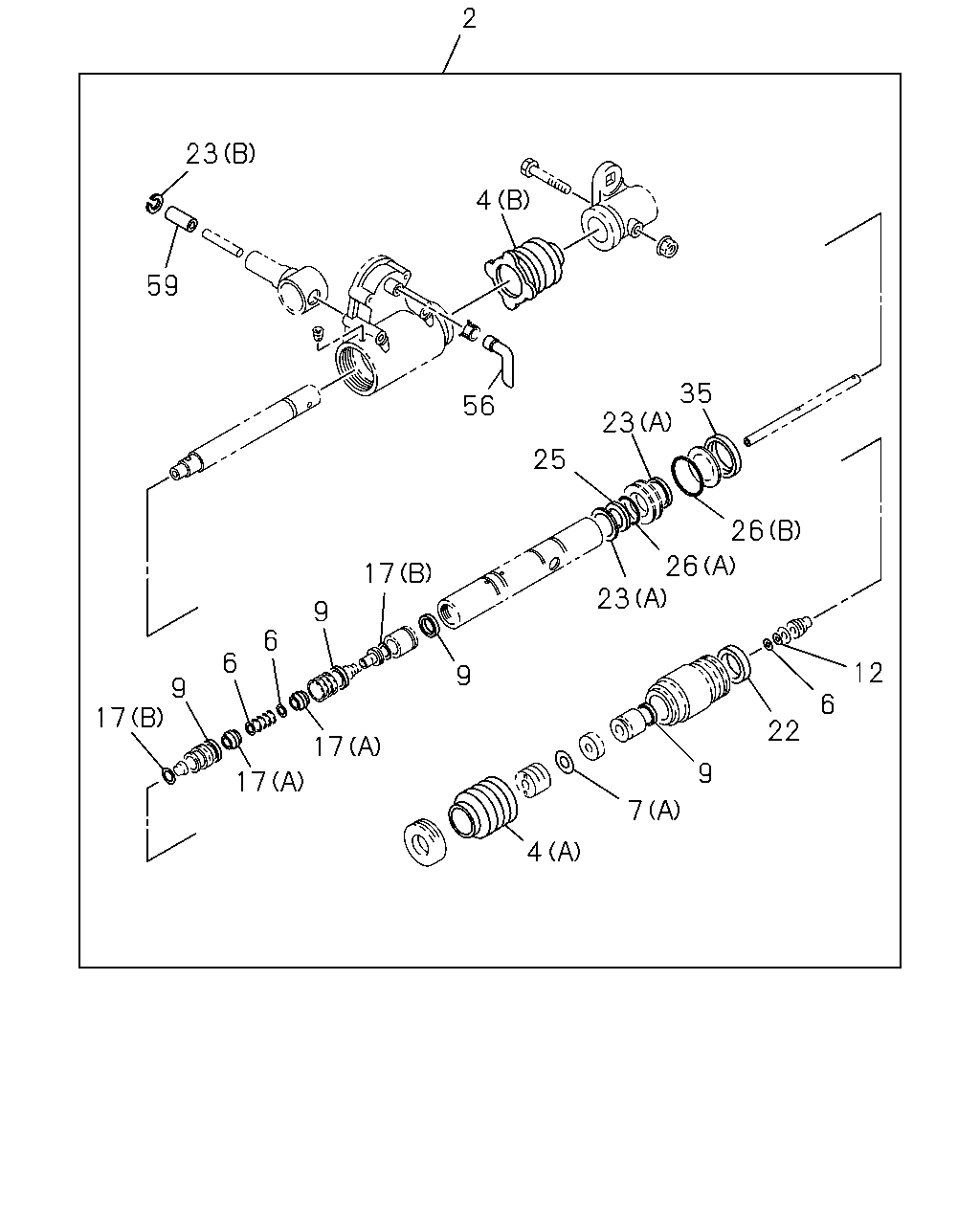

2 23 4 59 35 56 23 25 26 26 17 23 9 6 6 12 9 9 17 6 22 17 9 17 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33738-106-0	01	1	0407-0511
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33738-101-0	01	1	0407-0511
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-038-0	01	1	0407-0511
6	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-013-0	03	1	0407-0511
7	FILTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33738-036-0	01	1	0407-0511
7	FILTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-033-0	01	1	0407-0511
9	RING; SQUARE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-086-0	04	1	0407-0511
12	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-016-0	01	1	0407-0511
17	SEAL ASM; VALVE TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-012-0	02	1	0407-0511
17	SEAL ASM; VALVE TRANSMISSION CONTROL LINK TYPE(B2A) (B)	9-83335-055-0	02	1	0407-0511
22	SEAL; OIL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-353-0	01	1	0407-0511
23	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-022-0	02	1	0407-0511
23	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33739-564-0	01	1	0407-0511
25	RING; "X",PISTON TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-613-0	01	1	0407-0511
26	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-124-0	01	1	0407-0511
26	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33739-604-0	01	1	0407-0511
35	GASKET; CUP TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-073-0	01	1	0407-0511
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-570-0	01	1	0407-0511
59	SHIM; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33738-102-0	01	1	0407-0511

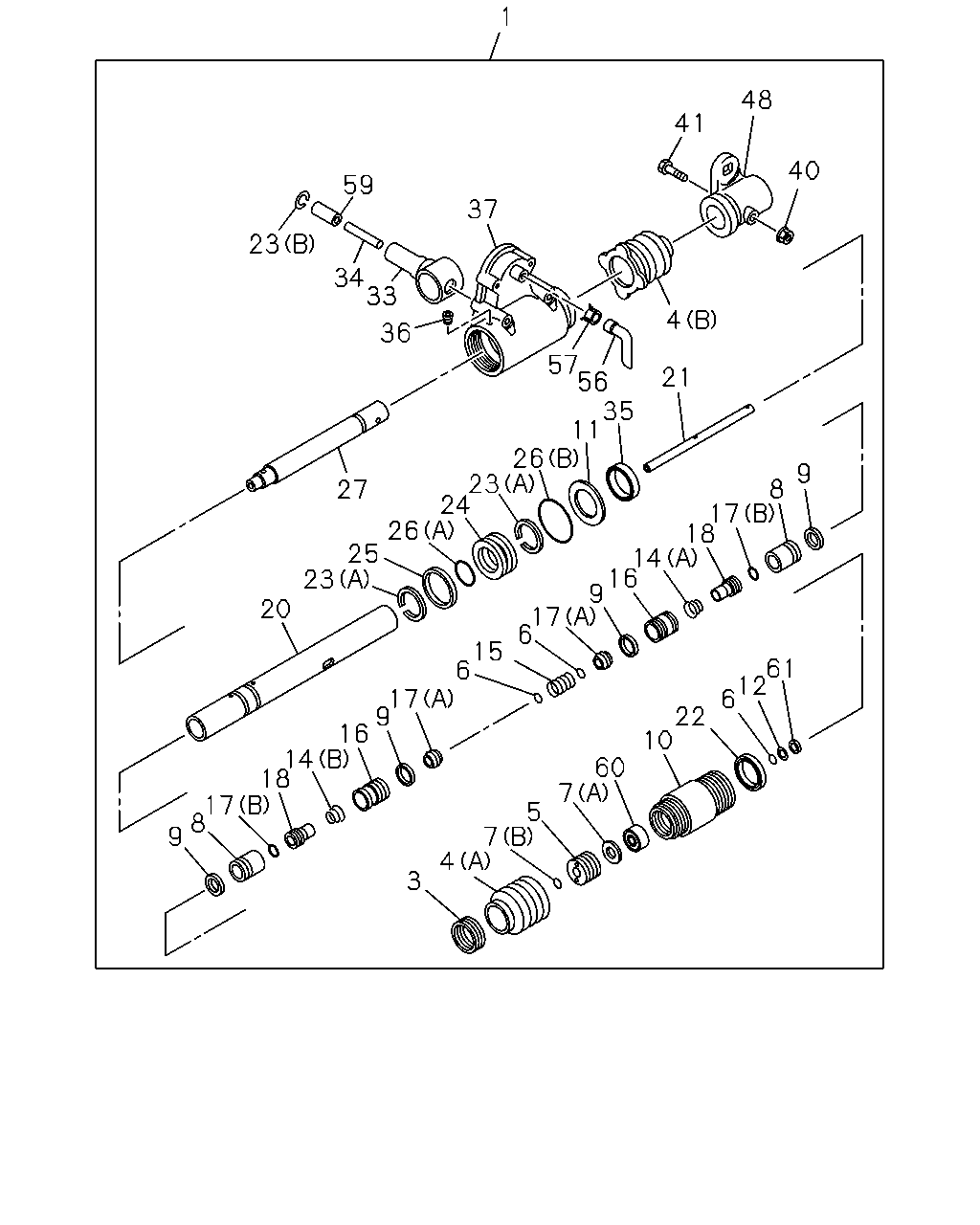

1 48 41 40 59 37 23 34 33 4 36 57 56 35 11 26 23 24 26 25 23 21 9 8 17 18 27 14 16 9 20 17 6 15 6 61 12 6 17 9 16 14 18 17 8 9 22 10 60 7 5 7 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33730-270-1	01	1	0407-0511
3	NUT; LK,ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-025-0	01	1	0407-0511
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33738-101-0	01	1	0407-0511
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-038-0	01	1	0407-0511
5	CONNECTOR; CYL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-596-0	01	1	0407-0511
6	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-013-0	03	1	0407-0511
7	FILTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33738-036-0	01	1	0407-0511
7	FILTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-033-0	01	1	0407-0511
8	TUBE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-560-0	02	1	0407-0511
9	RING; SQUARE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-086-0	04	1	0407-0511
10	CYLINDER; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-605-0	01	1	0407-0511
11	PLATE; CYL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-600-0	01	1	0407-0511
12	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-016-0	01	1	0407-0511
14	SPRING; VALVE LIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-347-0	01	1	0407-0511
14	SPRING; VALVE LIFTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33739-354-0	01	1	0407-0511
15	SPRING; VALVE SEAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-014-0	01	1	0407-0511
16	SEAT; VALVE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-067-0	02	1	0407-0511
17	SEAL ASM; VALVE TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-012-0	02	1	0407-0511
17	SEAL ASM; VALVE TRANSMISSION CONTROL LINK TYPE(B2A) (B)	9-83335-055-0	02	1	0407-0511
18	LIFTER; VALVE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-586-0	02	1	0407-0511
20	ROD ASM; W/CAP TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-599-0	01	1	0407-0511
21	PIPE; AIR,POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-598-0	01	1	0407-0511
22	SEAL; OIL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-353-0	01	1	0407-0511
23	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-022-0	02	1	0407-0511
23	RING; RET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33739-564-0	01	1	0407-0511
24	PISTON TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-601-0	01	1	0407-0511
25	RING; "X",PISTON TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-613-0	01	1	0407-0511
26	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33739-124-0	01	1	0407-0511
26	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33739-604-0	01	1	0407-0511
27	ROD; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-597-0	01	1	0407-0511
33	STRIKER; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-609-0	01	1	0407-0511
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-575-0	01	1	0407-0511
35	GASKET; CUP TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-073-0	01	1	0407-0511
36	SCREW; SET TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-040-0	01	1	0407-0511
37	HOUSING; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-603-0	01	1	0407-0511
40	NUT; LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-940-0	01	1	0407-0511
41	BOLT; SET,LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-939-0	01	1	0407-0511
48	LEVER; CONT,CABLE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-591-1	01	1	0407-0511
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-570-0	01	1	0407-0511
57	CLAMP; HOSE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-569-0	01	1	0407-0511
59	SHIM; POWER SHIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33738-102-0	01	1	0407-0511
60	COLLAR; CYL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-595-0	01	1	0407-0511
61	PLATE; VLV LIFTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33739-581-0	01	1	0407-0511

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
