Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#29162) — 737 parça

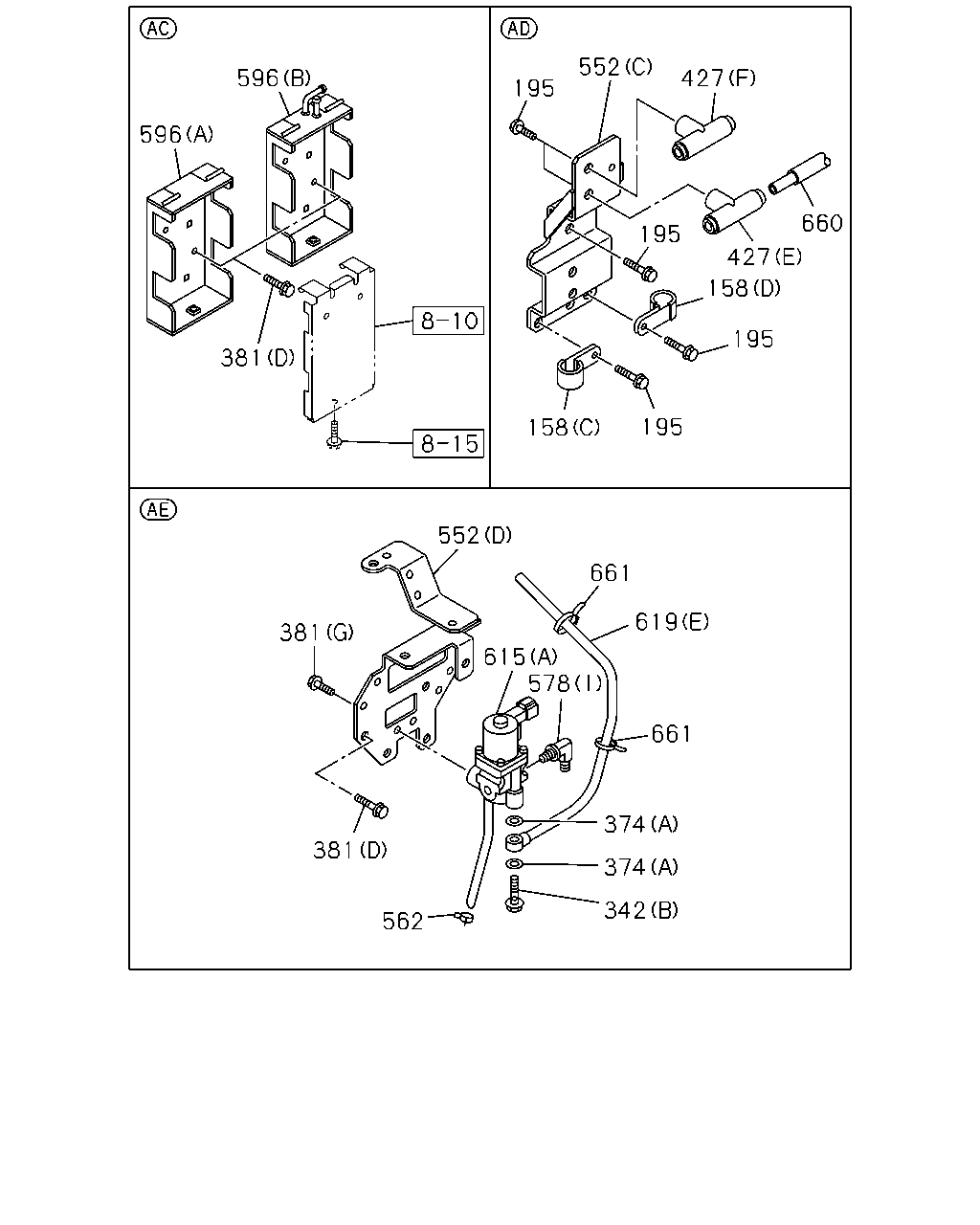

552 596 427 195 596 660 195 427 158 195 381 195 158 552 661 619 381 615 578 661 374 381 374 342 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
195	BOLT M10X25 FLANGE	0-28781-025-0	03	1	0512-0512
195	BOLT M10X25 FLANGE	0-28751-025-0	03	1	0601-
195	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
195	BOLT M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	0601-
342	BOLT SMOOTHER-G(C1W) (A) M12X41	1-09675-140-0	01	1	0407-0511
342	BOLT (A) M12X41	1-09675-140-0	01	1	0512-
342	BOLT SMOOTHER-G(C1W) (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0511
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0512-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09661-390-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0512-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0512-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
427	CONNECTOR; NYLON TUBE (E) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW	1-09660-924-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (F) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12	1-09660-931-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (G)	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE (G) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33719-082-0	01	1	0407-0511
552	BRACKET (D)	1-47471-393-0	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33719-083-0	01	1	0407-0511
552	BRACKET (E)	1-82569-397-1	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET (C)	1-82698-607-0	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-304-0	01	1	0407-0511
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	0407-0511
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
578	CONNECTOR (H)	1-09661-134-0	01	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-09661-292-0	02	1	0407-0511
578	CONNECTOR (I) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33712-023-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-024-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33712-025-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-026-0	01	1	0407-0511
578	CONNECTOR SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-0511
578	CONNECTOR (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0512-
596	BOX; CONNECTOR SMOOTHER-G(C1W) (A)	1-82569-315-1	01	1	0407-0511
596	BOX; CONNECTOR (A)	1-82569-414-0	01	1	0512-0606
596	BOX; CONNECTOR (A)	1-82569-434-0	01	1	0607-0701
596	BOX; CONNECTOR (B)	8-98067-899-0	01	1	0702-1003
596	BOX; CONNECTOR (B)	8-98160-716-1	01	1	1004-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=430	1-09376-828-1	01	1	0407-0511
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0512-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	0407-0511
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (D) L=490	1-09376-832-1	01	1	0407-0511

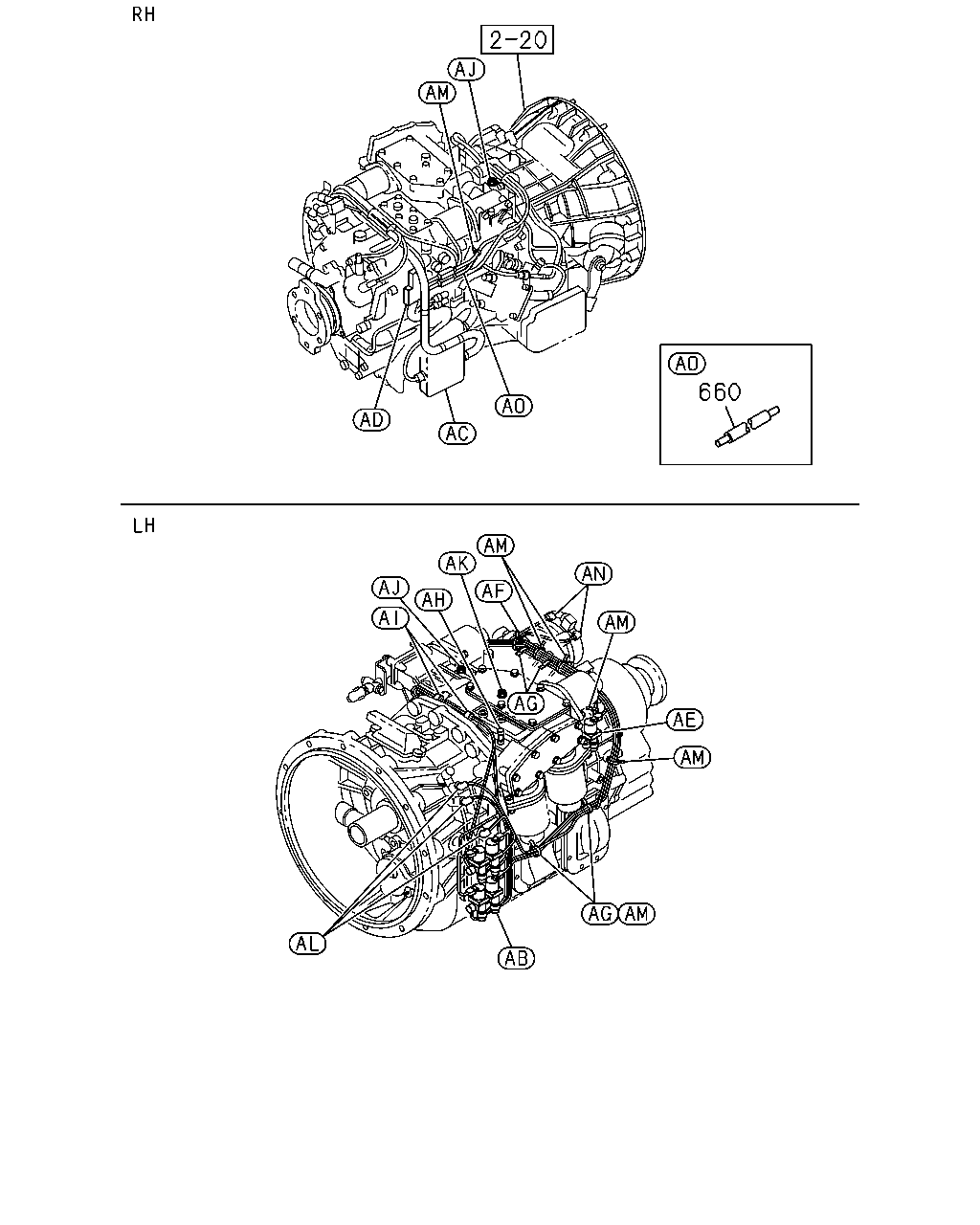

660	PROTECTOR; NYLON TUBE	1-09377-342-0	01	1	0512-
661	CLIP L=150	1-82569-328-0	02	1	0512-

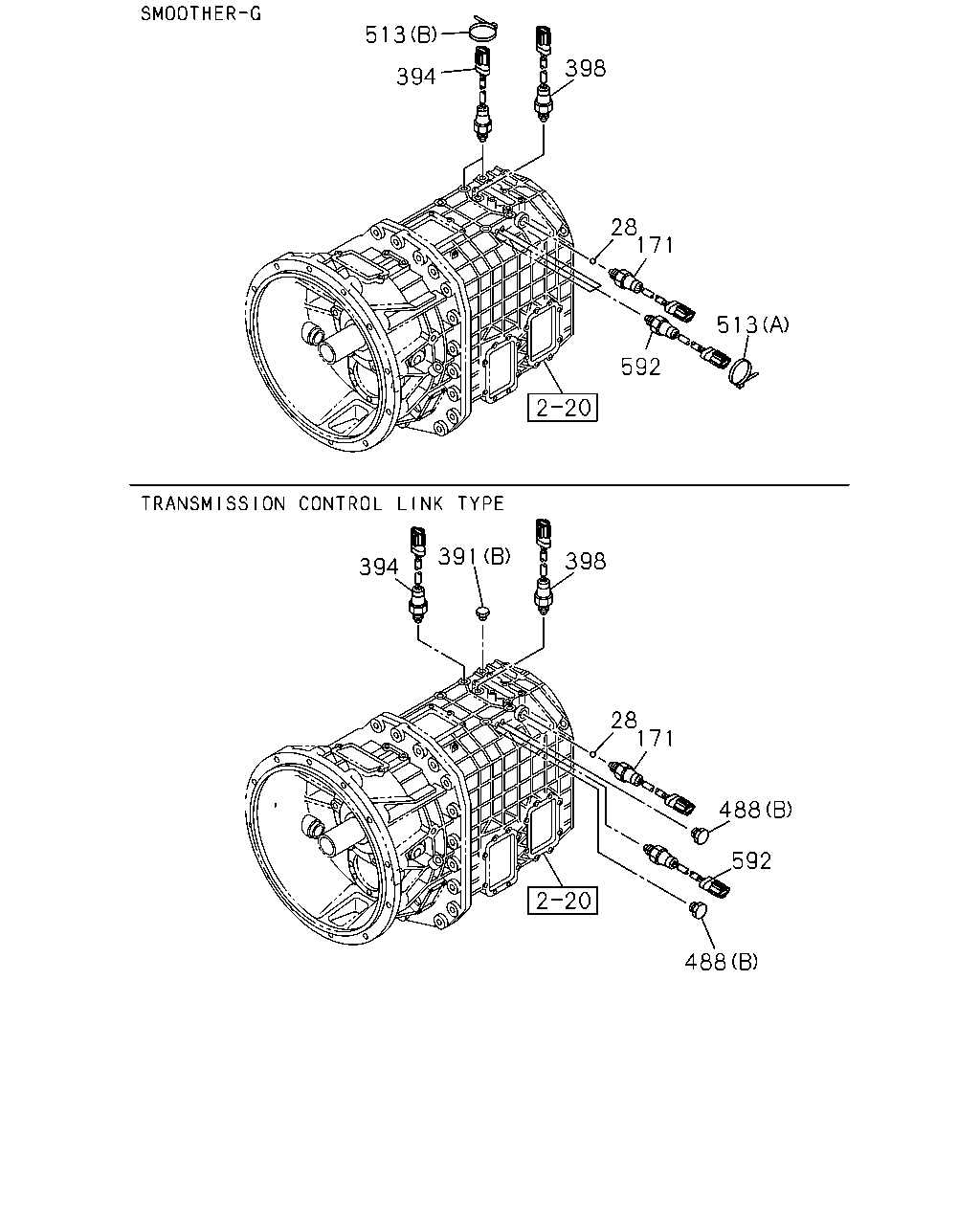

513 398 394 28 171 513 592 391 398 394 28 171 488 592 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BALL; INTER LK	9-00097-501-0	02	1	0407-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0407-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1005
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1006-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
391	PLUG; SW HOLE TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9	9-99202-312-0	01	1	0407-0511
391	PLUG; SW HOLE TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9	9-99202-314-0	01	1	0407-0511
394	SWITCH; RANGE CHANGE TRANSMISSION CONTROL LINK TYPE(B2A)	1-82440-083-3	01	1	0407-0511
394	SWITCH; RANGE CHANGE	1-82440-124-0	02	1	0512-0602
394	SWITCH; RANGE CHANGE	8-98042-854-0	02	1	0603-1209
394	SWITCH; RANGE CHANGE	8-98228-481-0	02	1	1210-
394	SWITCH; RANGE CHANGE SMOOTHER-G(C1W)	1-82440-083-3	02	1	0407-0511
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0407-0511
398	SWITCH; REV LAMP	1-82440-124-0	01	1	0512-0602
398	SWITCH; REV LAMP	8-98042-854-0	01	1	0603-1209
398	SWITCH; REV LAMP	8-98228-483-0	01	1	1210-
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9	9-99202-314-0	02	1	0407-0511
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4	9-99204-513-0	01	1	0407-0511
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0407-
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND SMOOTHER-G(C1W) (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	0512-
592	SWITCH; POSITION TRANSMISSION CONTROL LINK TYPE(B2A)	1-82440-083-3	01	1	0407-0511
592	SWITCH; POSITION	1-82440-124-0	03	1	0512-0602
592	SWITCH; POSITION	8-98042-854-0	03	1	0603-1209
592	SWITCH; POSITION	8-98228-481-0	03	1	1210-
592	SWITCH; POSITION SMOOTHER-G(C1W)	1-82440-083-3	03	1	0407-0511

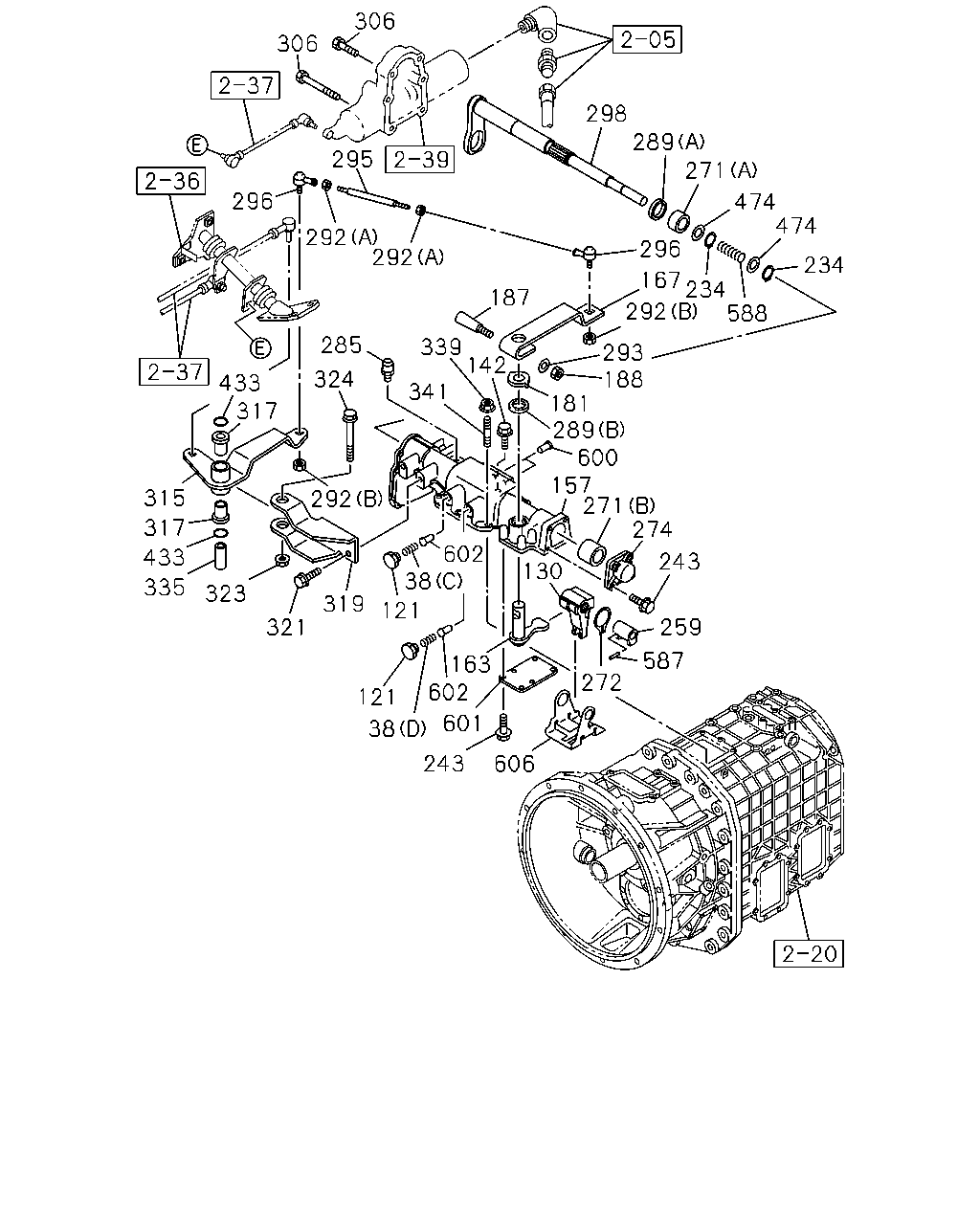

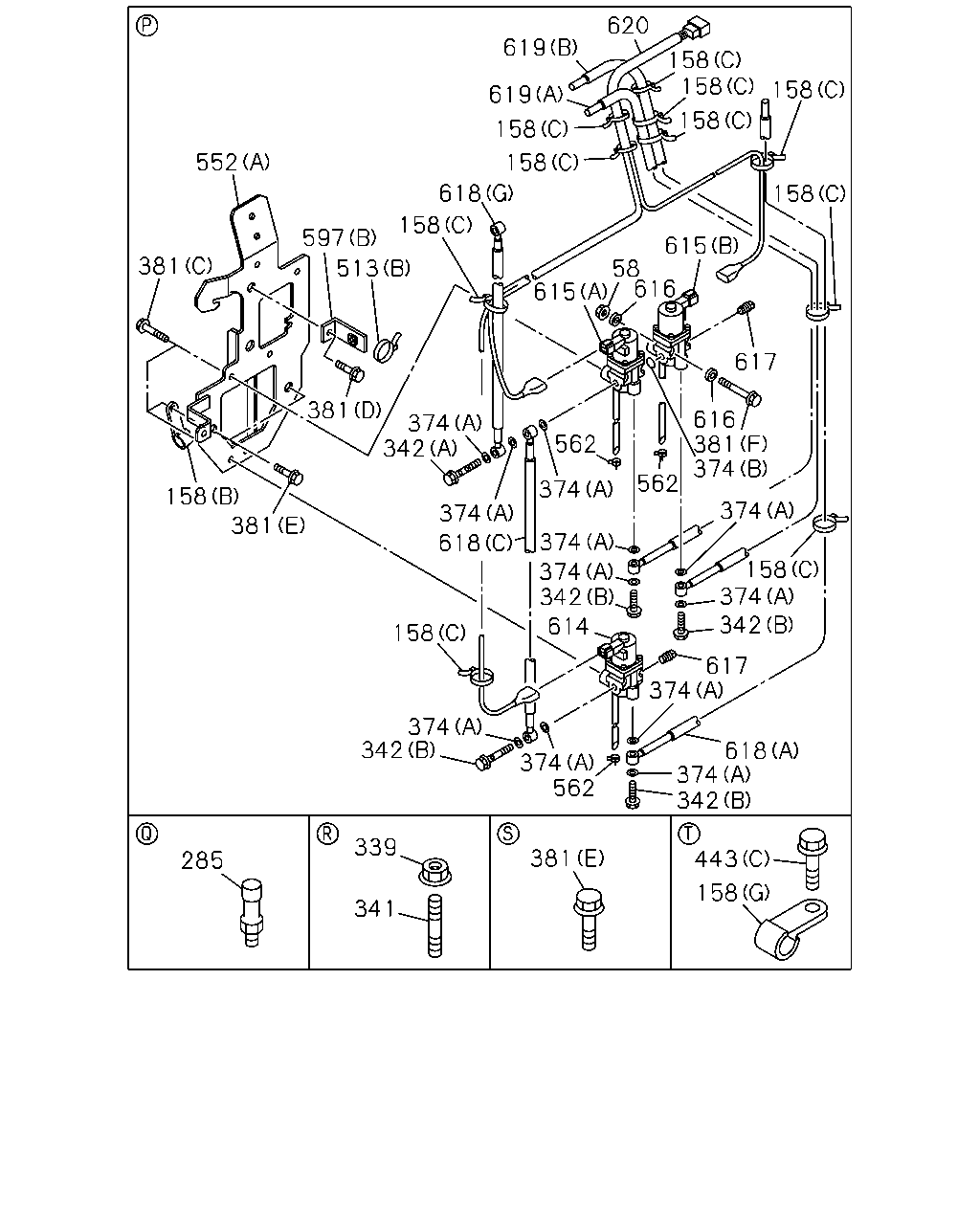

381 444 512 285 222 512 339 339 339 341 341 341 158 513 578 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
222	BRACKET; CLIP	1-82698-591-0	01	1	0512-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-33149-003-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX SMOOTHER-G(C1W)	1-33149-008-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0512-0512
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0407-0602
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-
341	STUD; QUAD BOX M10X81.5 L=96.5	8-98019-465-0	01	1	0512-
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0407-0511
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	04	1	0512-0604
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	04	1	0605-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
427	CONNECTOR; NYLON TUBE (E) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW	1-09660-924-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (F) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12	1-09660-931-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (G)	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE (G) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
444	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	06	1	0407-0511
444	BOLT; CLIP M10X25 FLANGE	0-28781-025-0	04	1	0512-0512
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	04	1	0601-
512	CLIP; PIPE ID=13X2 L=25	9-09916-814-0	04	1	0512-
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND SMOOTHER-G(C1W) (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
578	CONNECTOR (H)	1-09661-134-0	01	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-09661-292-0	02	1	0407-0511
578	CONNECTOR (I) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33712-023-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-024-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33712-025-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-026-0	01	1	0407-0511
578	CONNECTOR SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-0511
578	CONNECTOR (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0512-

595 552 593 59 191 599 578 553 374 578 548 578 578 578 444 598 192 81 578 427 443 427 391 218 195 552 594 444 548 427 443 353 443 353 621 427 578 488 218 348 553 158 590 622 591 322 621 353 443 348

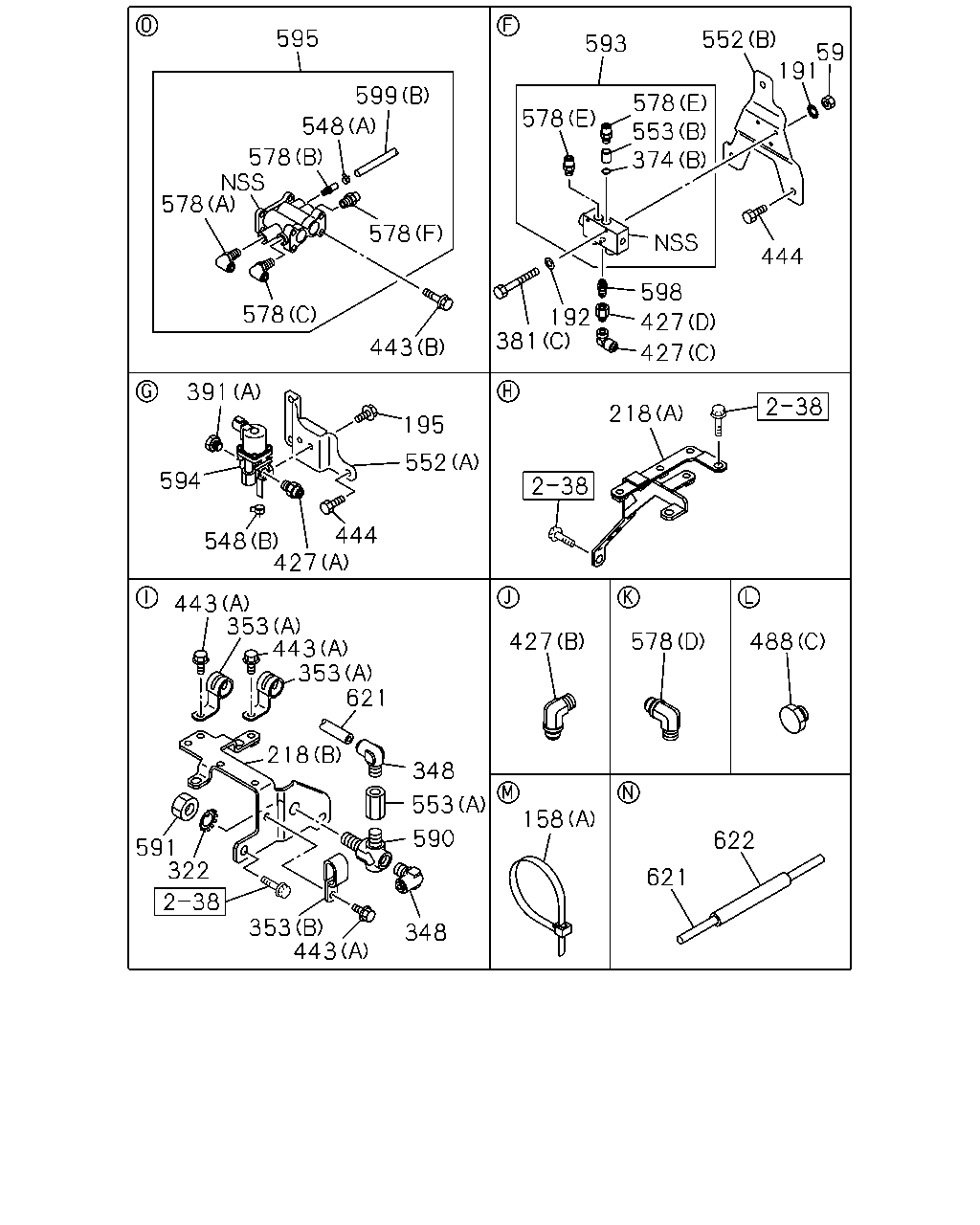

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	NUT TRANSMISSION CONTROL LINK TYPE(B2A)	1-09440-068-0	04	1	0407-0511
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	0407-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
191	WASHER; LK TRANSMISSION CONTROL LINK TYPE(B2A)	1-09503-311-0	04	1	0407-0511
192	WASHER; PL TRANSMISSION CONTROL LINK TYPE(B2A)	1-09503-310-0	04	1	0407-0511
195	BOLT M10X25 FLANGE	0-28781-025-0	03	1	0512-0512
195	BOLT M10X25 FLANGE	0-28751-025-0	03	1	0601-
195	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
195	BOLT M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	0601-
218	BRACKET; HARNESS CLIP,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82698-350-0	01	1	0407-0511
218	BRACKET; HARNESS CLIP,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82698-490-0	01	1	0407-0511
322	WASHER; LK TRANSMISSION CONTROL LINK TYPE(B2A) ID=16.2	9-09150-516-0	01	1	0407-0511
348	CONNECTOR; AIR HOSE TRANSMISSION CONTROL LINK TYPE(B2A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0407-0511
353	CLIP; AIR HOSE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=20 H=23 L=27	1-09700-861-0	02	1	0407-0511
353	CLIP; AIR HOSE TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=16X2 L=40	9-09535-576-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09661-390-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0512-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0512-
391	PLUG; SW HOLE TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9	9-99202-312-0	01	1	0407-0511
391	PLUG; SW HOLE TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9	9-99202-314-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
427	CONNECTOR; NYLON TUBE (E) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW	1-09660-924-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (F) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12	1-09660-931-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (G)	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE (G) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0511
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE	0-28080-890-0	04	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (C) M8X10 FLANGE	0-28080-810-0	01	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
444	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	06	1	0407-0511
444	BOLT; CLIP M10X25 FLANGE	0-28781-025-0	04	1	0512-0512
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	04	1	0601-
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9	9-99202-314-0	02	1	0407-0511
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4	9-99204-513-0	01	1	0407-0511
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0407-
548	CLIP; HOSE TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-028-0	01	1	0407-0511
548	CLIP; HOSE TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=7.8	8-94246-958-0	01	1	0407-0511
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33719-082-0	01	1	0407-0511
552	BRACKET (D)	1-47471-393-0	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33719-083-0	01	1	0407-0511
552	BRACKET (E)	1-82569-397-1	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET (C)	1-82698-607-0	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-304-0	01	1	0407-0511
553	ADAPTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0407-0511
553	ADAPTER; AIR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09661-389-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
578	CONNECTOR (H)	1-09661-134-0	01	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-09661-292-0	02	1	0407-0511
578	CONNECTOR (I) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33712-023-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-024-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33712-025-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-026-0	01	1	0407-0511
578	CONNECTOR SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-0511
578	CONNECTOR (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0512-
590	UNION; AIR TRANSMISSION CONTROL LINK TYPE(B2A) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0407-0511
591	NUT; UNION TRANSMISSION CONTROL LINK TYPE(B2A) M16	9-99111-516-0	01	1	0407-0511
593	VALVE; SPLITTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33712-009-0	01	1	0407-0511
594	VALVE; MAGNETIC,AIR TRANSMISSION CONTROL LINK TYPE(B2A)	1-82564-069-0	01	1	0407-0511
595	VALVE; RANGE TRANSMISSION CONTROL LINK TYPE(B2A)	1-33712-008-1	01	1	0407-0511
598	UNION TRANSMISSION CONTROL LINK TYPE(B2A) M10 & M12 STRAIGHT	1-09664-235-0	01	1	0407-0511
599	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09377-036-1	01	1	0407-0511
599	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-027-0	01	1	0407-0511
621	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 OD=8	1-87410-073-0	05	1	0407-0511
622	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 ID=10	1-87410-088-0	05	1	0407-0511

620 619 158 158 158 619 158 158 552 158 618 158 158 597 615 381 513 58 616 615 617 381 616 381 374 374 342 562 562 374 158 374 374 381 374 618 158 374 342 374 342 614 158 617 374 374 342 374 562 618 374 342 443 339 381 285 158 341

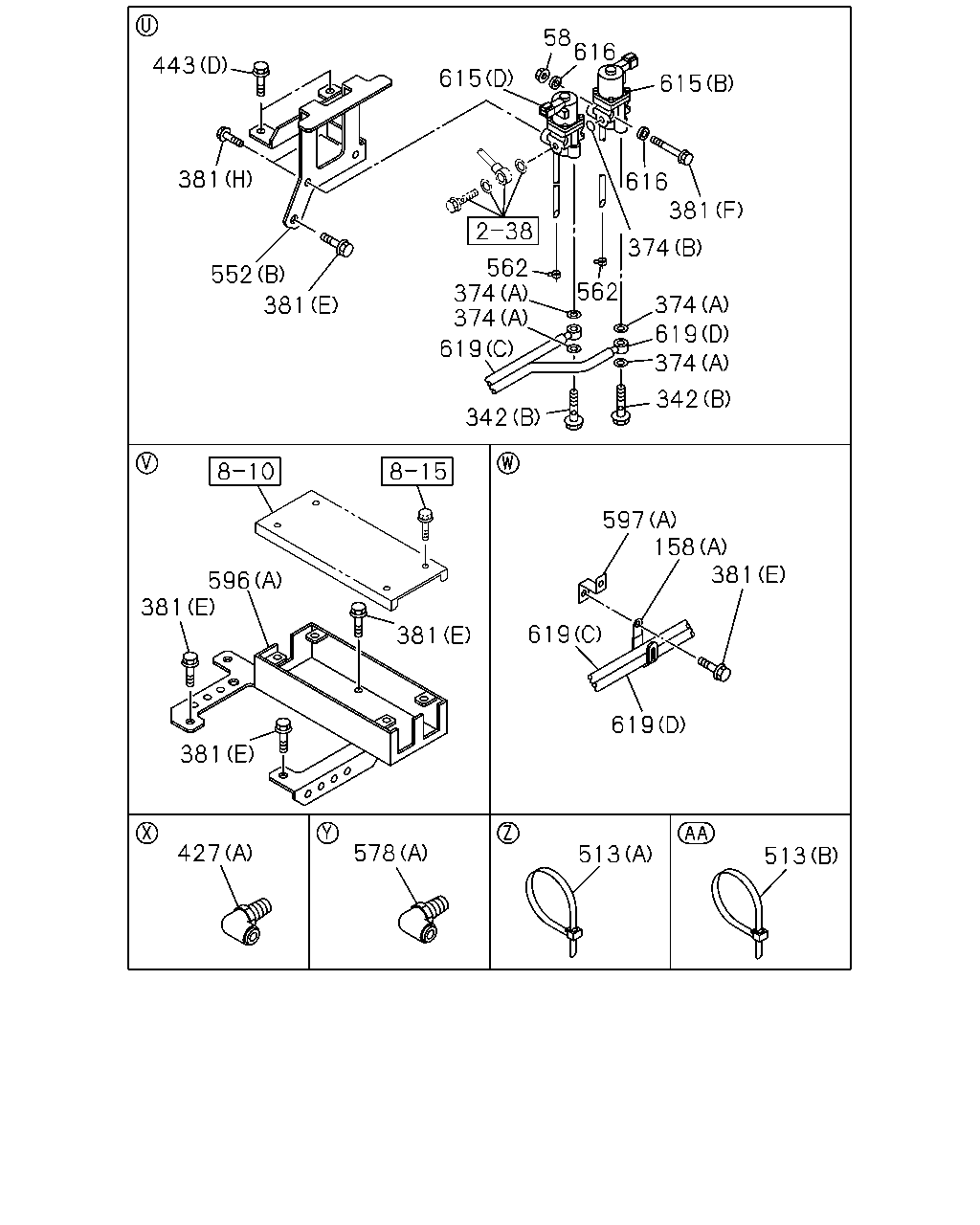

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0407-0511
58	NUT M6 FLANGE	0-91150-106-0	02	1	0512-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-33149-003-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX SMOOTHER-G(C1W)	1-33149-008-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0512-0512
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0407-0602
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-
341	STUD; QUAD BOX M10X81.5 L=96.5	8-98019-465-0	01	1	0512-
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0407-0511
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	04	1	0512-0604
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	04	1	0605-
342	BOLT SMOOTHER-G(C1W) (A) M12X41	1-09675-140-0	01	1	0407-0511
342	BOLT (A) M12X41	1-09675-140-0	01	1	0512-
342	BOLT SMOOTHER-G(C1W) (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0511
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0512-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09661-390-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0512-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0512-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0511
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE	0-28080-890-0	04	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (C) M8X10 FLANGE	0-28080-810-0	01	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND SMOOTHER-G(C1W) (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33719-082-0	01	1	0407-0511
552	BRACKET (D)	1-47471-393-0	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33719-083-0	01	1	0407-0511
552	BRACKET (E)	1-82569-397-1	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET (C)	1-82698-607-0	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-304-0	01	1	0407-0511
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	0407-0511
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0512-
597	BRACKET; RANGE,NYLON TUBE SMOOTHER-G(C1W) (B) L=55	1-47476-177-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE SMOOTHER-G(C1W) (A)	1-82699-425-0	01	1	0407-0511
614	VALVE ASM SMOOTHER-G(C1W)	1-82564-068-0	01	1	0407-0511
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	0512-
616	COLLAR SMOOTHER-G(C1W)	1-82569-266-0	04	1	0407-0511
616	COLLAR	1-82569-266-0	04	1	0512-
617	PLUG SMOOTHER-G(C1W) PT3/8	8-94475-259-0	02	1	0407-0511
618	TUBE; NYLON (D) L=750	1-09377-322-0	01	1	0512-

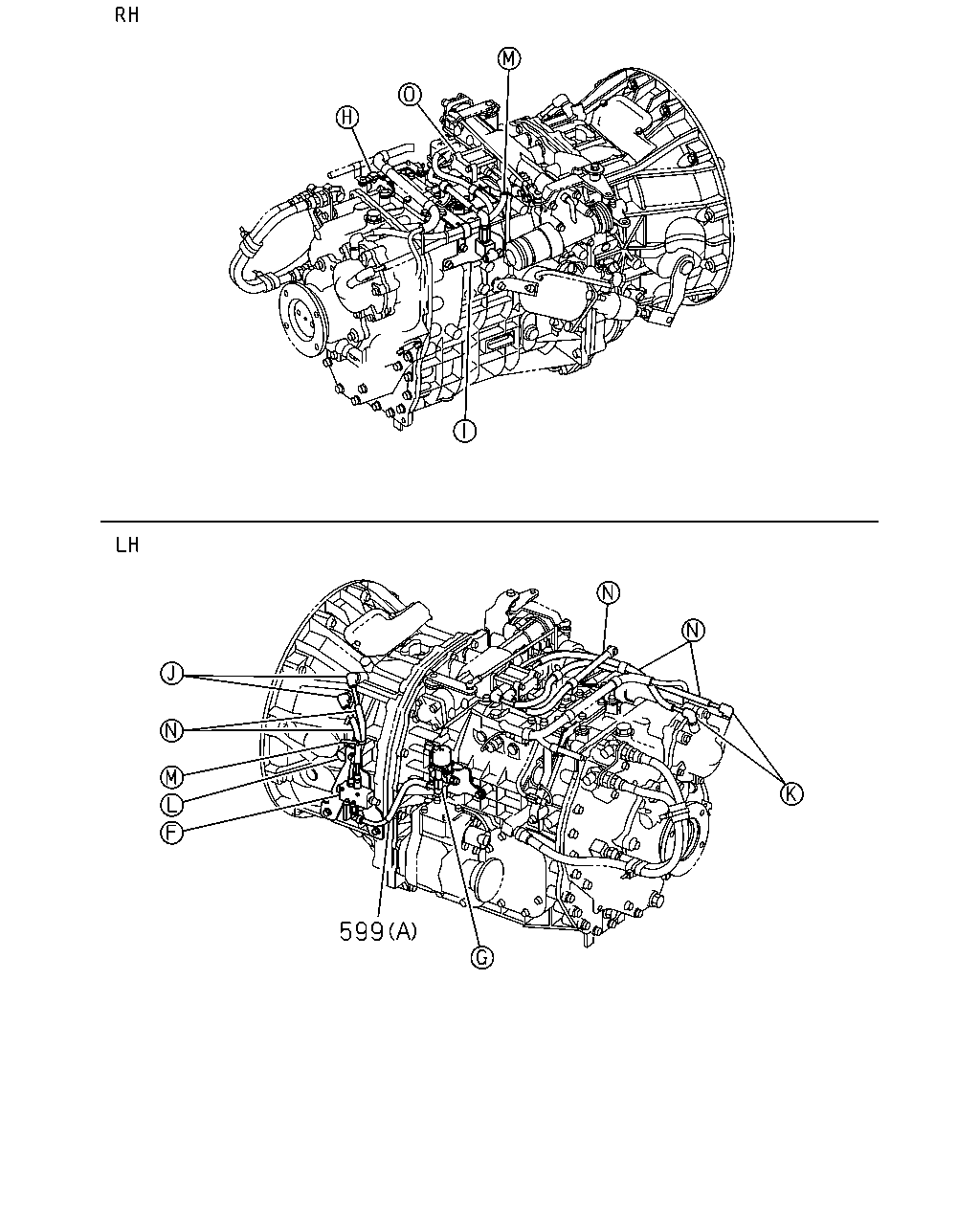

618	TUBE; NYLON (E) L=700	1-09377-323-0	01	1	0512-
618	TUBE; NYLON (F) L=1500	1-09377-324-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (G) L=470	1-09376-825-0	01	1	0407-0511
618	TUBE; NYLON (C) L=1400	1-09377-321-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (A) L=140	1-09376-826-0	01	1	0407-0511
618	TUBE; NYLON (A) L=140	1-09376-826-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (B) L=550	1-09376-830-1	01	1	0407-0511
618	TUBE; NYLON (B) L=550	1-09376-830-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=430	1-09376-828-1	01	1	0407-0511
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0512-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	0407-0511
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (D) L=490	1-09376-832-1	01	1	0407-0511
620	HARNESS SMOOTHER-G(C1W)	1-82675-069-0	01	1	0407-0511
620	HARNESS	1-82677-897-1	01	1	0512-

306 306 298 289 295 271 296 474 474 296 292 292 234 167 234 292 588 187 285 339 142 293 188 324 433 341 181 289 600 157 271 274 317 315 292 602 38 130 317 433 243 335 323 319 121 259 321 587 163 602 272 121 601 38 243 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SPRING; DETENT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09580-574-0	01	1	0407-0511
38	SPRING; DETENT TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-09580-580-0	01	1	0407-0511
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0407-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0407-
121	PLUG; DETENT SPR TRANSMISSION CONTROL LINK TYPE(B2A) M14X9	9-99202-314-0	02	1	0407-0511
121	PLUG; DETENT SPR M16X12	9-99202-316-0	01	1	0407-0606
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	0607-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33521-189-0	01	1	0407-0511
142	BOLT; QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
157	BOX; QUAD,TRANS TRANSMISSION CONTROL LINK TYPE(B2A)	1-33541-534-0	01	1	0407-0511
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33522-171-1	01	1	0407-0511
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33521-179-0	01	1	0407-0505
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-33521-190-0	01	1	0506-0511
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=40	1-09532-008-0	01	1	0407-0511
187	BOLT; SELECT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M8X42	1-33659-045-0	01	1	0407-0511
188	NUT; SELECT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	01	1	0407-0511
234	RING; SNAP TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.7	9-09180-416-0	02	1	0407-0511
243	BOLT; COVER TRANSMISSION CONTROL LINK TYPE(B2A) M8X35 FLANGE	0-28680-835-0	10	1	0407-0511
259	GUIDE; SELECT,CONT BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-33519-135-0	01	1	0407-0511
271	BUSHING; QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=20 OD=23	1-33549-016-0	01	1	0407-0511
271	BUSHING; QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=28 OD=32	1-33549-104-0	01	1	0407-0511
272	RING; SNAP,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-09588-213-0	01	1	0407-0511
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-33545-010-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-33149-003-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX SMOOTHER-G(C1W)	1-33149-008-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0512-0512
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (B) OD=30	1-09625-386-0	01	1	0407-0511
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (A) OD=41	1-09625-647-0	01	1	0407-0511
292	NUT; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	1-09440-062-1	02	1	0407-0511
292	NUT; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8	9-09111-408-0	02	1	0407-0511
293	WASHER; PL,TAPER BOLT TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22	9-09160-708-0	01	1	0407-0511
295	ROD; LINK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33652-924-0	01	1	0407-0511
296	ROD END TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	0407-0511
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33522-196-0	01	1	0407-0511
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL LINK TYPE(B2A) M10X45 FLANGE	0-28181-045-0	02	1	0407-0511
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL LINK TYPE(B2A) M10X80 FLANGE	0-28181-080-0	04	1	0407-0511
315	LEVER; SELECT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-754-0	01	1	0407-0511
317	BUSHING; LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	02	1	0407-0511
319	BRACKET; SELECT LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-753-0	01	1	0407-0511
321	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X22 FLANGE	0-28181-022-0	02	1	0407-0511
323	NUT; LK,SELECT LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-219-0	01	1	0407-0511
324	BOLT; SHAFT TRANSMISSION CONTROL LINK TYPE(B2A) M10X60 FLANGE	0-28081-060-0	01	1	0407-0511
335	COLLAR; DIST,RELAY LEVER ASM TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-220-0	01	1	0407-0511
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0407-0602
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-
341	STUD; QUAD BOX M10X81.5 L=96.5	8-98019-465-0	01	1	0512-
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0407-0511
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	04	1	0512-0604
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	04	1	0605-
433	GASKET; BUSHING TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-636-0	02	1	0407-0511
474	WASHER; SPRING STOPPER TRANSMISSION CONTROL LINK TYPE(B2A)	9-09160-716-0	02	1	0407-0511
587	PIN; SHIFT GUIDE TRANSMISSION CONTROL LINK TYPE(B2A)	9-08160-420-0	01	1	0407-0511
588	SPRING; RETURN,QUADRANT BOX TRANSMISSION CONTROL LINK TYPE(B2A)	1-09580-576-0	01	1	0407-0511
600	PLUNGER; VLV TRANSMISSION CONTROL LINK TYPE(B2A)	1-33263-037-0	02	1	0407-0511
601	COVER; SHAFT,SELECT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33545-011-0	01	1	0407-0511
602	PLUNGER; DETENT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33263-037-0	02	1	0407-0511
606	INHIBITOR TRANSMISSION CONTROL LINK TYPE(B2A)	1-33529-116-0	01	1	0407-0511

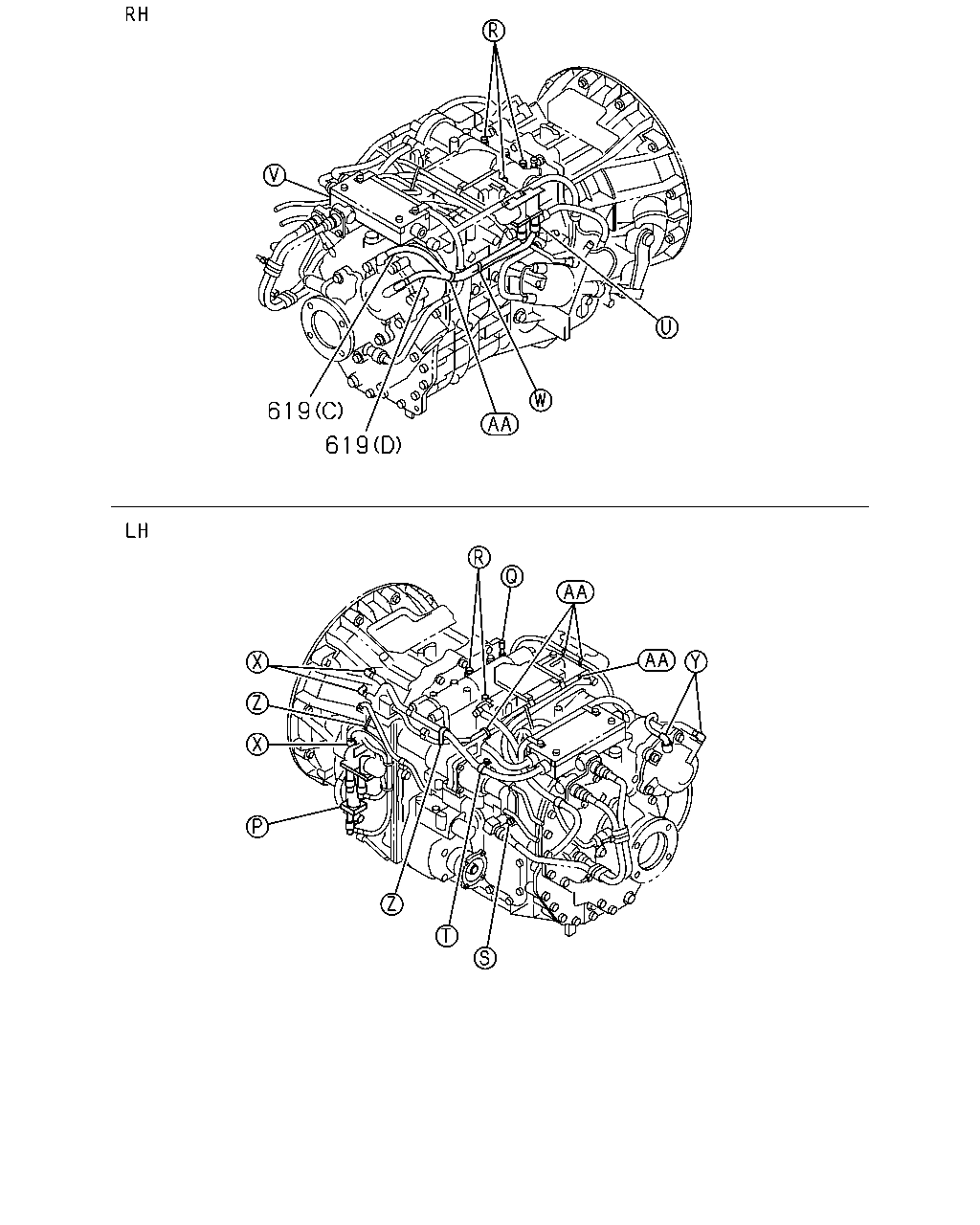

619 619

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=430	1-09376-828-1	01	1	0407-0511
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0512-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	0407-0511
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (D) L=490	1-09376-832-1	01	1	0407-0511

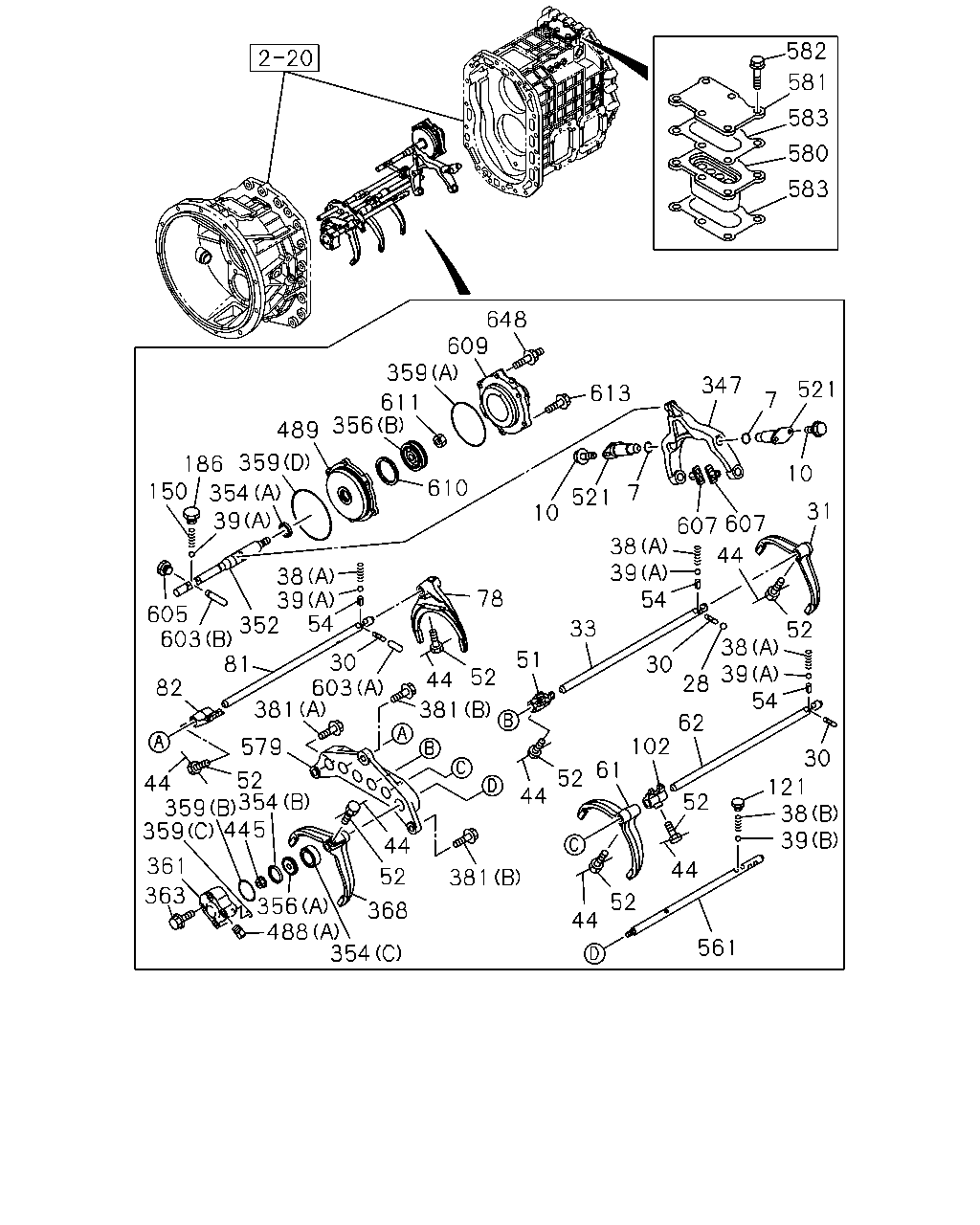

582 581 583 580 583 648 609 359 347 521 613 7 611 356 489 359 186 150 10 610 354 39 7 521 31 10 607 607 38 39 54 44 38 39 605 603 81 78 33 52 38 39 54 51 30 603 381 30 52 44 28 82 381 62 102 579 30 61 52 44 52 354 359 121 38 39 44 52 44 361 44 52 381 363 356 488 354 52 368 44 561 352 54 359 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0407-
10	BOLT; SPINDLE M10X30 FLANGE	0-28781-030-0	04	1	0407-0512
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	0601-
28	BALL; INTER LK	9-00097-501-0	02	1	0407-
30	PIN; INTER LK	9-33534-003-0	03	1	0407-
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	0407-
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	0407-
38	SPRING; DETENT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09580-574-0	01	1	0407-0511
38	SPRING; DETENT TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-09580-580-0	01	1	0407-0511
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0407-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0407-
39	BALL; DETENT (A)	1-09843-012-0	04	1	0407-
39	BALL; DETENT (B)	9-00097-013-0	01	1	0407-
44	WIRE; LK L=200	9-08351-020-0	07	1	0407-
51	BLOCK; SHIFT,1ST & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33511-617-0	01	1	0407-0511
51	BLOCK; SHIFT,1ST & 2ND SMOOTHER-G(C1W)	1-33511-590-0	01	1	0407-0511
51	BLOCK; SHIFT,1ST & 2ND	1-33511-590-0	01	1	0512-
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0407-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0407-
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	0407-
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	0407-
78	ARM; SHIFT,REV	1-33511-589-0	01	1	0407-
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	0407-
82	BLOCK; SHIFT,REV TRANSMISSION CONTROL LINK TYPE(B2A)	1-33511-600-0	01	1	0407-0511
82	BLOCK; SHIFT,REV SMOOTHER-G(C1W)	1-33511-451-0	01	1	0407-0511
82	BLOCK; SHIFT,REV	1-33511-451-0	01	1	0512-
102	BLOCK; SHIFT,3RD & 4TH TRANSMISSION CONTROL LINK TYPE(B2A)	1-33511-615-0	01	1	0407-0511
102	BLOCK; SHIFT,3RD & 4TH SMOOTHER-G(C1W)	1-33511-592-0	01	1	0407-0511
102	BLOCK; SHIFT,3RD & 4TH	1-33511-592-0	01	1	0512-0602
102	BLOCK; SHIFT,3RD & 4TH	8-98044-038-0	01	1	0603-
121	PLUG; DETENT SPR TRANSMISSION CONTROL LINK TYPE(B2A) M14X9	9-99202-314-0	02	1	0407-0511
121	PLUG; DETENT SPR M16X12	9-99202-316-0	01	1	0407-0606
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	0607-
150	SPRING; DETENT BALL	1-09580-379-0	01	1	0407-
186	PLUG; SHIFTER ROD M16X12	9-99202-316-0	01	1	0407-0606
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	0607-
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	0407-
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	0407-
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	0407-
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	0407-
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	0407-
356	PISTON; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33551-025-0	01	1	0409-0502
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	0503-
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	0407-
356	PISTON; AIR CYL (B)	1-33551-024-0	01	1	0407-0408
356	PISTON; AIR CYL SMOOTHER-G(C1W) (B)	1-33551-024-0	01	1	0409-0502
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	0407-
359	GASKET; AIR CYL (B) ID=55.6	1-09623-547-0	01	1	0407-0704
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	0705-
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	0407-
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	0407-
361	CYLINDER; AIR,SHIFT	1-33561-013-0	01	1	0407-0702
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	0703-
363	BOLT; AIR CYL M10X60 FLANGE	0-28181-060-0	04	1	0407-0512
363	BOLT; AIR CYL M10X60 FLANGE	0-28151-060-0	04	1	0601-1003
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1004-
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	0407-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91303-612-0	01	1	0407-0604
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	0605-
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9	9-99202-314-0	02	1	0407-0511
488	PLUG; AIR CYL TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4	9-99204-513-0	01	1	0407-0511
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0407-
489	COVER; AIR CYL	1-33569-052-0	01	1	0407-
521	SPINDLE; 6TH	1-33519-131-0	02	1	0407-
561	ROD; SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33531-466-0	01	1	0407-0511
561	ROD; SHIFT SMOOTHER-G(C1W)	1-33531-460-0	01	1	0407-0511
561	ROD; SHIFT	1-33531-460-0	01	1	0512-
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	0407-
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	0407-
581	COVER; BLOCK	1-33141-056-0	01	1	0407-
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28181-035-0	06	1	0407-0512
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	0601-
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	0407-
603	ROD; INTER LK TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=77	1-33534-010-0	01	1	0407-0511
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	0407-
605	PLUG; INTER LK M18X12	9-99202-318-0	01	1	0407-0606
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	0607-
607	PIECE; SHIFT	1-33518-010-0	02	1	0407-
609	BODY; AIR,CYL	1-33561-018-0	01	1	0407-
610	SEAL; PISTON	1-33738-054-0	01	1	0407-
611	NUT; SHAFT	8-97324-304-0	01	1	0407-
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	06	1	0407-0408
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	04	1	0409-0511
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	03	1	0512-0512
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	03	1	0601-
648	STUD; AIR CYL M10X20,M10X45 L=75	1-09049-015-0	02	1	0409-0511
648	STUD; AIR CYL M10X20,M10X45 L=75	1-09049-015-0	03	1	0512-0805
648	STUD; AIR CYL M10X20,M10X45 L=75	8-98010-335-0	03	1	0806-

58 616 443 615 615 381 616 381 374 562 374 374 552 562 374 381 619 619 374 342 342 597 158 381 596 381 619 381 619 381 427 578 513 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0407-0511
58	NUT M6 FLANGE	0-91150-106-0	02	1	0512-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
342	BOLT SMOOTHER-G(C1W) (A) M12X41	1-09675-140-0	01	1	0407-0511
342	BOLT (A) M12X41	1-09675-140-0	01	1	0512-
342	BOLT SMOOTHER-G(C1W) (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0511
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0512-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09661-390-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0512-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0512-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
427	CONNECTOR; NYLON TUBE (E) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW	1-09660-924-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (F) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12	1-09660-931-1	01	1	0407-0511
427	CONNECTOR; NYLON TUBE (G)	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0407-0511
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE (G) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE	0-28080-816-0	03	1	0407-0511
443	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE	0-28080-890-0	04	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (C) M8X10 FLANGE	0-28080-810-0	01	1	0407-0511
443	BOLT; CLIP SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND SMOOTHER-G(C1W) (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33719-082-0	01	1	0407-0511
552	BRACKET (D)	1-47471-393-0	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33719-083-0	01	1	0407-0511
552	BRACKET (E)	1-82569-397-1	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET (C)	1-82698-607-0	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-304-0	01	1	0407-0511
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	0407-0511
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
578	CONNECTOR (H)	1-09661-134-0	01	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-09661-292-0	02	1	0407-0511
578	CONNECTOR (I) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33712-023-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-024-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33712-025-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-026-0	01	1	0407-0511
578	CONNECTOR SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-0511
578	CONNECTOR (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0512-
596	BOX; CONNECTOR SMOOTHER-G(C1W) (A)	1-82569-315-1	01	1	0407-0511
596	BOX; CONNECTOR (A)	1-82569-414-0	01	1	0512-0606
596	BOX; CONNECTOR (A)	1-82569-434-0	01	1	0607-0701
596	BOX; CONNECTOR (B)	8-98067-899-0	01	1	0702-1003
596	BOX; CONNECTOR (B)	8-98160-716-1	01	1	1004-
597	BRACKET; RANGE,NYLON TUBE SMOOTHER-G(C1W) (B) L=55	1-47476-177-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE SMOOTHER-G(C1W) (A)	1-82699-425-0	01	1	0407-0511
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	0512-
616	COLLAR SMOOTHER-G(C1W)	1-82569-266-0	04	1	0407-0511
616	COLLAR	1-82569-266-0	04	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=430	1-09376-828-1	01	1	0407-0511
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0512-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	0407-0511
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (D) L=490	1-09376-832-1	01	1	0407-0511

599

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	599	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09377-036-1	01	1	0407-0511
	599	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-027-0	01	1	0407-0511

618 158 158 552 618 619 619 381 158 618 620 381 158 158 58 616 615 158 615 158 158 618 578 374 342 381 616 158 346 374 562 374 381 158 374 346 374 562 374 342 374 342 374 158 615 58 616 615 578 381 618 374 616 374 346 346 374 618 342 562 374 562 374 374 342 342 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT SMOOTHER-G(C1W) M6 FLANGE	0-91150-106-0	02	1	0407-0511
58	NUT M6 FLANGE	0-91150-106-0	02	1	0512-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	02	1	0407-0511
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	0407-0511
158	CLIP; HARNESS (F) L=150	1-82569-328-0	10	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS SMOOTHER-G(C1W) (G) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	0607-
342	BOLT SMOOTHER-G(C1W) (A) M12X41	1-09675-140-0	01	1	0407-0511
342	BOLT (A) M12X41	1-09675-140-0	01	1	0512-
342	BOLT SMOOTHER-G(C1W) (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0511
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0512-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
346	HOSE; AIR ID=6 OD=9 L=150	1-33739-872-0	04	1	1004-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09661-390-0	01	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0512-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	0407-0511
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0512-
381	BOLT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-09044-111-0	04	1	0407-0511
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28080-650-0	02	1	0407-0511
381	BOLT (E) M6X50 FLANGE	0-28080-650-0	02	1	0512-0512
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (H) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT (F) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	11	1	0407-0511
381	BOLT (D) M10X25 FLANGE	0-28781-025-0	11	1	0512-0512
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT SMOOTHER-G(C1W) (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33719-082-0	01	1	0407-0511
552	BRACKET (D)	1-47471-393-0	01	1	0512-
552	BRACKET TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33719-083-0	01	1	0407-0511
552	BRACKET (E)	1-82569-397-1	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET (C)	1-82698-607-0	01	1	0512-
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-304-0	01	1	0407-0511
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	0407-0511
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0407-0511
578	CONNECTOR (H)	1-09661-134-0	01	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-09661-292-0	02	1	0407-0511
578	CONNECTOR (I) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33712-023-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33712-024-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33712-025-0	01	1	0407-0511
578	CONNECTOR TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33712-026-0	01	1	0407-0511
578	CONNECTOR SMOOTHER-G(C1W) (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-0511
578	CONNECTOR (G) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	0512-
616	COLLAR SMOOTHER-G(C1W)	1-82569-266-0	04	1	0407-0511
616	COLLAR	1-82569-266-0	04	1	0512-
618	TUBE; NYLON (D) L=750	1-09377-322-0	01	1	0512-
618	TUBE; NYLON (E) L=700	1-09377-323-0	01	1	0512-
618	TUBE; NYLON (F) L=1500	1-09377-324-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (G) L=470	1-09376-825-0	01	1	0407-0511
618	TUBE; NYLON (C) L=1400	1-09377-321-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (A) L=140	1-09376-826-0	01	1	0407-0511
618	TUBE; NYLON (A) L=140	1-09376-826-0	01	1	0512-
618	TUBE; NYLON SMOOTHER-G(C1W) (B) L=550	1-09376-830-1	01	1	0407-0511
618	TUBE; NYLON (B) L=550	1-09376-830-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=430	1-09376-828-1	01	1	0407-0511
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0512-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	0407-0511
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON SMOOTHER-G(C1W) (D) L=490	1-09376-832-1	01	1	0407-0511
620	HARNESS SMOOTHER-G(C1W)	1-82675-069-0	01	1	0407-0511
620	HARNESS	1-82677-897-1	01	1	0512-

660

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	660	PROTECTOR; NYLON TUBE	1-09377-342-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
