Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#29160) — 334 parça

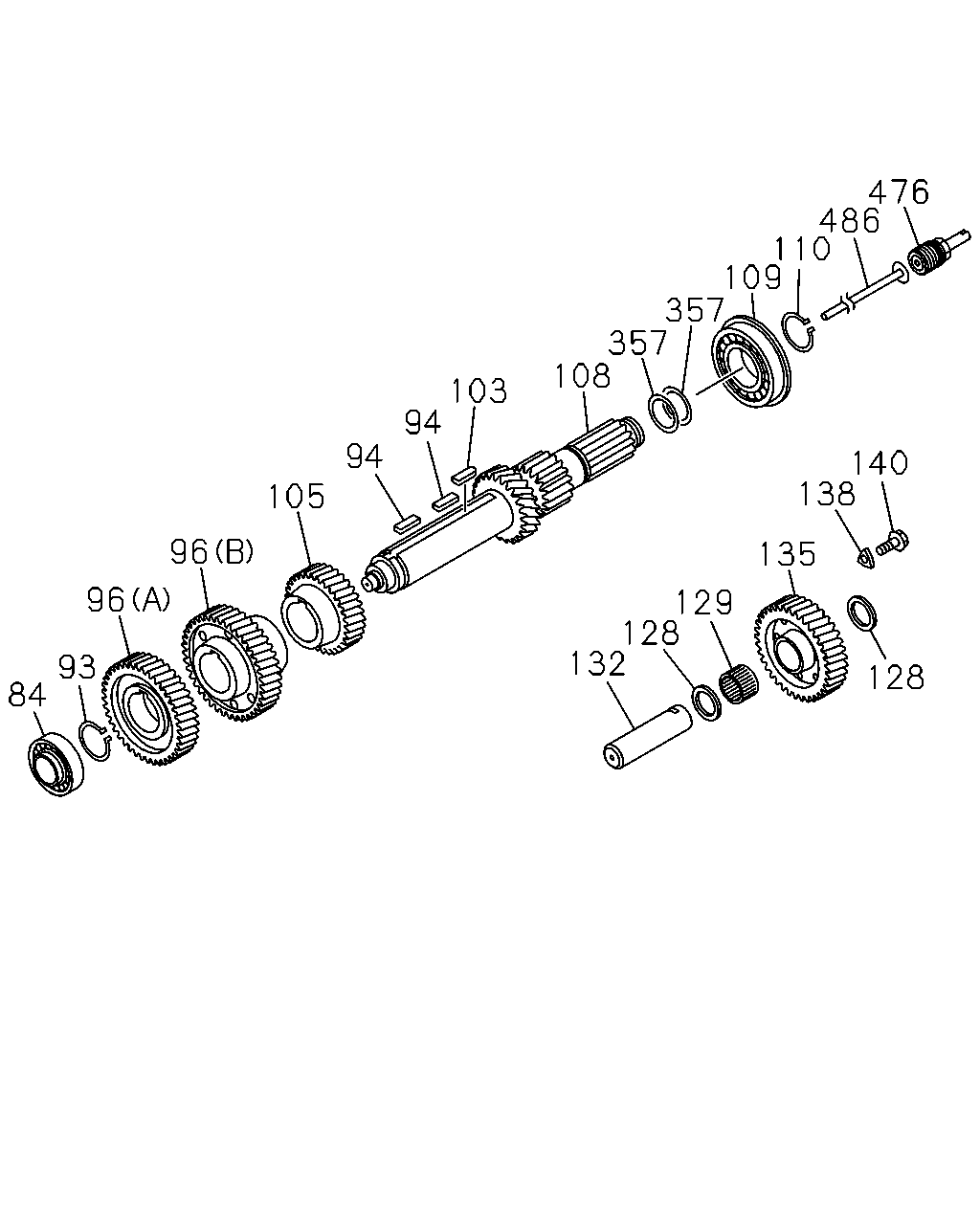

476 486 110 109 357 357 108 103 94 94 140 138 105 96 135 96 129 128 132 93 84 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0407-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0407-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0407-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0407-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0407-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0407-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0407-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0407-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0407-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	0407-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	0407-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0407-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0407-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0407-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0407-
132	SHAFT; REV	1-33351-035-1	01	1	0407-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0407-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0407-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0407-
357	RING	1-31349-044-0	04	1	0407-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0407-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0407-

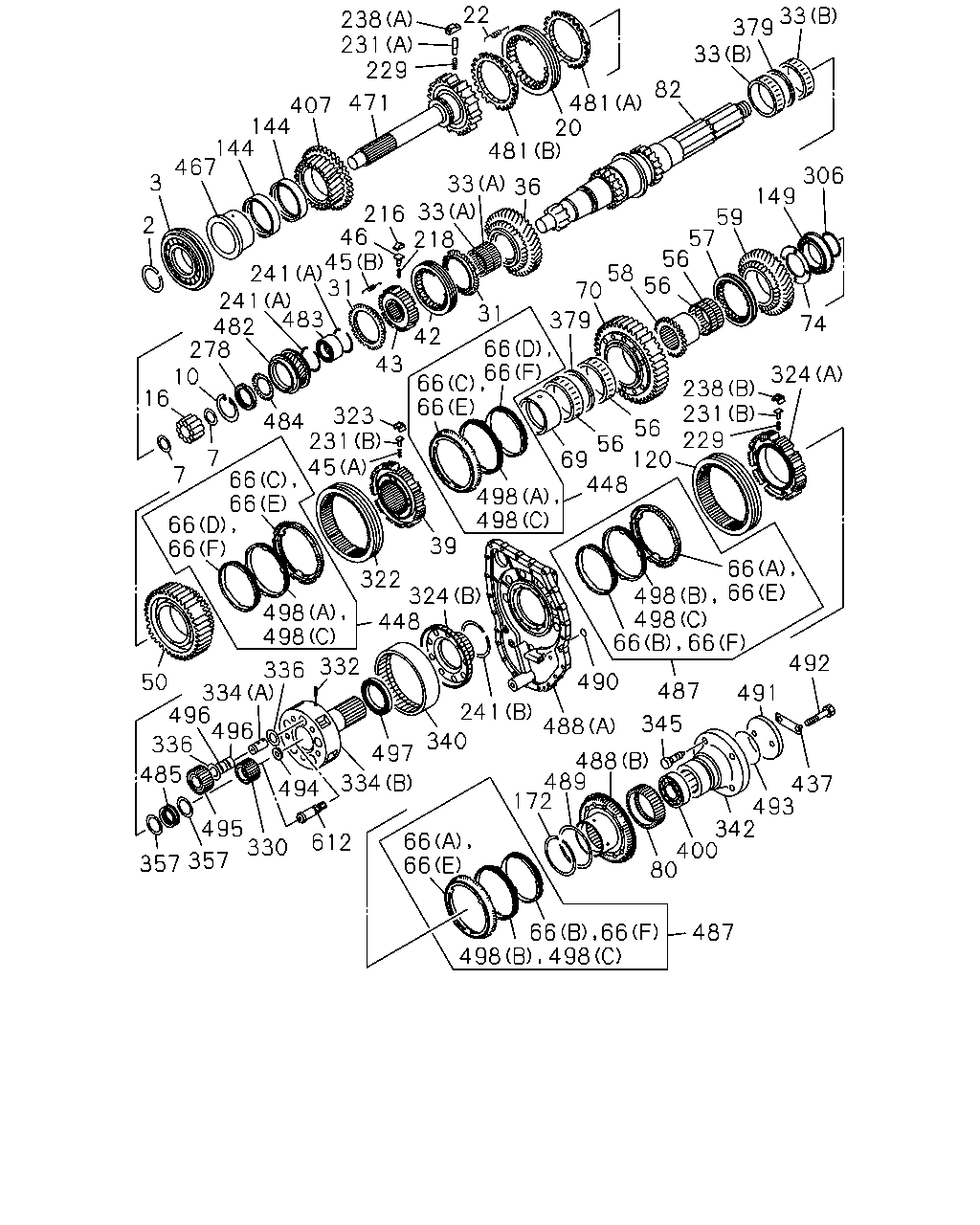

238 231 229 22 471 407 144 144 467 3 2 33 379 33 82 481 20 481 33 33 42 43 483 241 482 278 10 16 7 7 334 334 332 336 496 496 495 485 306 149 59 57 56 56 70 241 484 379 69 39 322 50 494 612 330 336 357 357 74 238 231 229 58 56 56 487 324 340 498 498 66 66 66 66 324 120 498 498 66 66 66 66 488 172 489 492 491 487 345 103 94 94 490 488 241 497 84 93 437 493 342 400 80 108 109 105 96 96 357 357 110 132 486 476 140 138 128 135 129 128 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0407-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0407-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0407-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0407-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0407-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0407-
20	SLEEVE	1-33262-216-1	01	1	0407-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0407-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0407-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0407-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0407-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0407-
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=41	1-33253-704-1	01	1	0407-0511
36	GEAR; 3RD,MAINSHAFT SMOOTHER-G(C1W) Z=41	1-33253-680-1	01	1	0407-0511
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	0512-
39	HUB; CLU,LOW & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33261-277-0	01	1	0407-0511
39	HUB; CLU,LOW & 2ND SMOOTHER-G(C1W)	1-33261-279-1	01	1	0407-0511
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	0512-
42	SLEEVE	1-33262-222-0	01	1	0407-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	0407-
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=43	1-33251-411-1	01	1	0407-0511
50	GEAR; 2ND,MAINSHAFT SMOOTHER-G(C1W) Z=43	1-33251-393-1	01	1	0407-0511
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	0512-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0407-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0407-
57	SLEEVE; REV	1-33262-209-1	01	1	0407-
58	HUB; CLU,REV	1-33261-286-1	01	1	0407-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0407-
66	RING; BLOCK,SYN TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33265-536-0	02	1	0407-0502
66	RING; BLOCK,SYN TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-33265-538-0	02	1	0407-0502
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0407-0502
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-33265-588-0	02	1	0503-0511
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (E)	1-33265-588-0	02	1	0503-0511
66	RING; BLOCK,SYN (E)	1-33265-588-0	02	1	0512-1312
66	RING; BLOCK,SYN (E)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0407-0502
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33265-590-0	02	1	0503-0511
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (F)	1-33265-590-0	02	1	0503-0511
66	RING; BLOCK,SYN (F)	1-33265-590-0	02	1	0512-1307
66	RING; BLOCK,SYN (F)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (F)	8-98239-911-1	02	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	0407-
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=49	1-33255-074-1	01	1	0407-0511
70	GEAR; 1ST,MAINSHAFT SMOOTHER-G(C1W) Z=49	1-33255-071-1	01	1	0407-0511
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	0512-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0407-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0407-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0407-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0407-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0407-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0407-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0407-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0407-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0407-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0407-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0407-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0407-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	0407-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	0407-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0407-
120	SLEEVE	1-33262-229-0	01	1	0407-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0407-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0407-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0407-
132	SHAFT; REV	1-33351-035-1	01	1	0407-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0407-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0407-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0407-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0407-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0407-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	0407-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	0407-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0407-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0407-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33263-038-0	03	1	0407-0511
231	PLUNGER (B)	1-33263-038-1	09	1	0512-
231	PLUNGER (A)	1-33263-033-0	06	1	0407-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-0	09	1	0407-0511
238	INSERT (A)	1-33263-036-0	06	1	0407-
238	INSERT (B)	1-33263-039-0	09	1	0407-
241	RING; SNAP (A)	1-09587-023-0	02	1	0407-
241	RING; SNAP (B)	1-09587-104-0	01	1	0407-
278	NUT; BRG	1-09449-080-0	01	1	0407-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0407-
322	SLEEVE; SYN,LOW & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33262-225-0	01	1	0407-0511
322	SLEEVE; SYN,LOW & 2ND SMOOTHER-G(C1W)	1-33262-222-0	01	1	0407-0511
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	0512-
324	HUB; CLU (A)	1-34231-015-0	01	1	0407-
324	HUB; CLU (B)	1-34371-017-0	01	1	0407-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0407-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0407-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0407-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0407-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0407-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0510-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0410-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0407-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0407-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0407-0511
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0512-
357	RING	1-31349-044-0	04	1	0407-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0407-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0407-0910
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0407-0910
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0407-
437	PLATE; LOCK	1-34252-032-0	01	1	0407-
467	COLLAR; SHAFT	1-33234-091-1	01	1	0407-
471	SHAFT; INPUT	1-33215-020-0	01	1	0407-1102
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0407-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0407-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0407-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY TRANSMISSION CONTROL LINK TYPE(B2A) Z=29	1-33253-718-0	01	1	0407-0511
482	GEAR; PRIMARY SMOOTHER-G(C1W) Z=29	1-33253-720-0	01	1	0407-0511
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0512-
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0407-1007
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	0407-
485	PIECE; GUIDE	1-33363-040-1	01	1	0407-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0407-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0407-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0407-0703
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0407-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	0407-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0407-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0407-
492	BOLT; PLATE	1-09000-740-0	02	1	0407-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0407-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0407-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0407-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0407-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0407-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0407-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0407-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33265-537-0	02	1	0407-0502
498	CONE; SYN (B)	1-33265-617-0	02	1	0407-0502
498	CONE; SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33265-617-0	02	1	0503-0511
498	CONE; SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (C)	1-33265-617-0	02	1	0503-0511
498	CONE; SYN (C)	1-33265-617-0	02	1	0512-1312
498	CONE; SYN (C)	8-98239-910-0	02	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

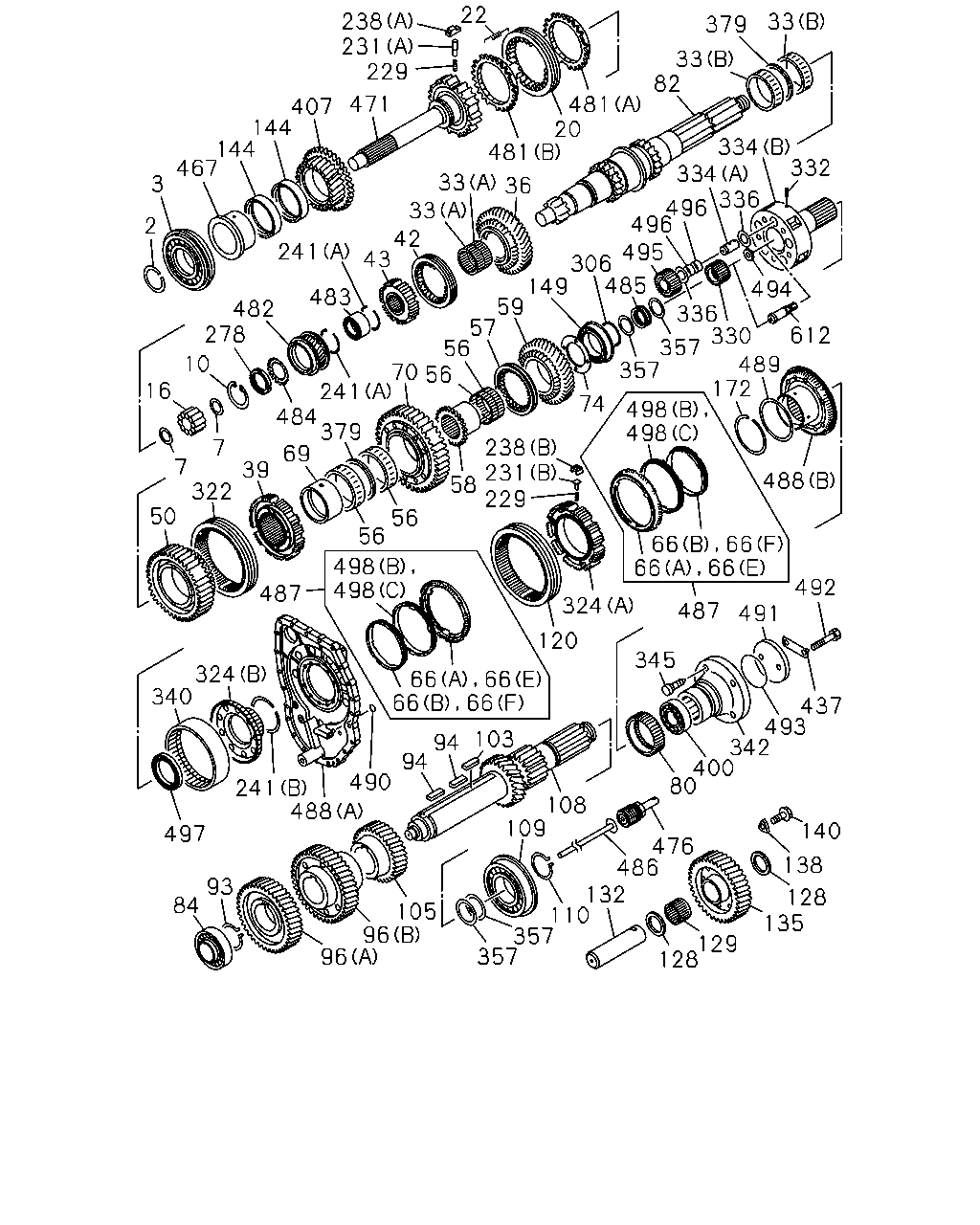

2 467 144 144 407 471 229 231 238 22 481 20 481 16 10 278 482 241 241 45 46 216 33 218 33 483 31 36 82 33 379 33 7 66 66 66 66 484 45 323 231 43 42 31 66 66 66 66 379 70 58 56 56 57 59 149 306 50 498 498 357 357 495 330 612 494 334 497 485 336 334 496 496 336 332 448 322 324 241 340 66 66 172 488 490 66 498 498 66 66 487 345 488 489 491 492 437 493 342 400 80 498 66 66 487 498 66 39 498 498 69 56 448 56 120 238 231 229 324 74 7 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0407-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0407-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0407-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0407-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0407-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0407-
20	SLEEVE	1-33262-216-1	01	1	0407-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0407-
31	RING; BLOCK,3RD & 4TH TRANSMISSION CONTROL LINK TYPE(B2A)	1-33265-552-0	02	1	0407-0511
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0407-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0407-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0407-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0407-
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=41	1-33253-704-1	01	1	0407-0511
36	GEAR; 3RD,MAINSHAFT SMOOTHER-G(C1W) Z=41	1-33253-680-1	01	1	0407-0511
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	0512-
39	HUB; CLU,LOW & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33261-277-0	01	1	0407-0511
39	HUB; CLU,LOW & 2ND SMOOTHER-G(C1W)	1-33261-279-1	01	1	0407-0511
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	0512-
42	SLEEVE	1-33262-222-0	01	1	0407-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	0407-
45	SPRING; BLOCK INSERT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09580-578-0	03	1	0407-0511
45	SPRING; BLOCK INSERT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-171-0	03	1	0407-0511
46	PLUNGER; DETENT,SYN TRANSMISSION CONTROL LINK TYPE(B2A)	1-33263-020-0	03	1	0407-0511
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=43	1-33251-411-1	01	1	0407-0511
50	GEAR; 2ND,MAINSHAFT SMOOTHER-G(C1W) Z=43	1-33251-393-1	01	1	0407-0511
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	0512-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0407-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0407-
57	SLEEVE; REV	1-33262-209-1	01	1	0407-
58	HUB; CLU,REV	1-33261-286-1	01	1	0407-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0407-
66	RING; BLOCK,SYN TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33265-536-0	02	1	0407-0502
66	RING; BLOCK,SYN TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-33265-538-0	02	1	0407-0502
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0407-0502
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (E)	1-33265-588-0	02	1	0503-0511
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (E)	1-33265-588-0	02	1	0503-0511
66	RING; BLOCK,SYN (E)	1-33265-588-0	02	1	0512-1312
66	RING; BLOCK,SYN (E)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0407-0502
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (F)	1-33265-590-0	02	1	0503-0511
66	RING; BLOCK,SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (F)	1-33265-590-0	02	1	0503-0511
66	RING; BLOCK,SYN (F)	1-33265-590-0	02	1	0512-1307
66	RING; BLOCK,SYN (F)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (F)	8-98239-911-1	02	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	0407-
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL LINK TYPE(B2A) Z=49	1-33255-074-1	01	1	0407-0511
70	GEAR; 1ST,MAINSHAFT SMOOTHER-G(C1W) Z=49	1-33255-071-1	01	1	0407-0511
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	0512-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0407-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0407-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0407-
120	SLEEVE	1-33262-229-0	01	1	0407-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0407-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0407-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	0407-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	0407-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0407-
216	INSERT; CLU HUB,2ND TO 3RD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33263-025-2	03	1	0407-0511
218	SPRING; INSERT,CLU HUB,2ND TO 3RD TRANSMISSION CONTROL LINK TYPE(B2A) D=6.2	1-09580-091-1	03	1	0407-0511
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0407-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33263-038-0	03	1	0407-0511
231	PLUNGER (B)	1-33263-038-1	09	1	0512-
231	PLUNGER (A)	1-33263-033-0	06	1	0407-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-0	09	1	0407-0511
238	INSERT (A)	1-33263-036-0	06	1	0407-
238	INSERT (B)	1-33263-039-0	09	1	0407-
241	RING; SNAP (A)	1-09587-023-0	02	1	0407-
241	RING; SNAP (B)	1-09587-104-0	01	1	0407-
278	NUT; BRG	1-09449-080-0	01	1	0407-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0407-
322	SLEEVE; SYN,LOW & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33262-225-0	01	1	0407-0511
322	SLEEVE; SYN,LOW & 2ND SMOOTHER-G(C1W)	1-33262-222-0	01	1	0407-0511
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	0512-
323	INSERT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33263-041-0	03	1	0407-0511
324	HUB; CLU (A)	1-34231-015-0	01	1	0407-
324	HUB; CLU (B)	1-34371-017-0	01	1	0407-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0407-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0407-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0407-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0407-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0407-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0510-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0410-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0407-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0407-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0407-0511
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0512-
357	RING	1-31349-044-0	04	1	0407-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0407-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0407-0910
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0407-0910
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0407-
437	PLATE; LOCK	1-34252-032-0	01	1	0407-
448	SYNCHRONIZER ASM; 1ST & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33265-539-0	02	1	0407-0502
448	SYNCHRONIZER ASM; 1ST & 2ND TRANSMISSION CONTROL LINK TYPE(B2A)	1-33265-616-0	02	1	0503-0511
467	COLLAR; SHAFT	1-33234-091-1	01	1	0407-
471	SHAFT; INPUT	1-33215-020-0	01	1	0407-1102
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0407-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0407-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY TRANSMISSION CONTROL LINK TYPE(B2A) Z=29	1-33253-718-0	01	1	0407-0511
482	GEAR; PRIMARY SMOOTHER-G(C1W) Z=29	1-33253-720-0	01	1	0407-0511
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0512-
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0407-1007
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	0407-
485	PIECE; GUIDE	1-33363-040-1	01	1	0407-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0407-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0407-0703
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0407-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	0407-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0407-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0407-
492	BOLT; PLATE	1-09000-740-0	02	1	0407-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0407-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0407-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0407-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0407-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0407-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0407-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0407-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33265-537-0	02	1	0407-0502
498	CONE; SYN (B)	1-33265-617-0	02	1	0407-0502
498	CONE; SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33265-617-0	02	1	0503-0511
498	CONE; SYN CXZ(CX****) TRANSMISSION CONTROL LINK TYPE(B2A),SMOOTHER-G(C1W) (C)	1-33265-617-0	02	1	0503-0511
498	CONE; SYN (C)	1-33265-617-0	02	1	0512-1312
498	CONE; SYN (C)	8-98239-910-0	02	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
