Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10660 - CXZ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#2916) — 50 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀
[826A] NO.1 (28 parça)
[826A] NO.2 (15 parça)
[826A] NO.3 (7 parça)
▶
410
410
29
26
341
27
30
258
341
259
327
280
2
1
302
328
329
359
274
414

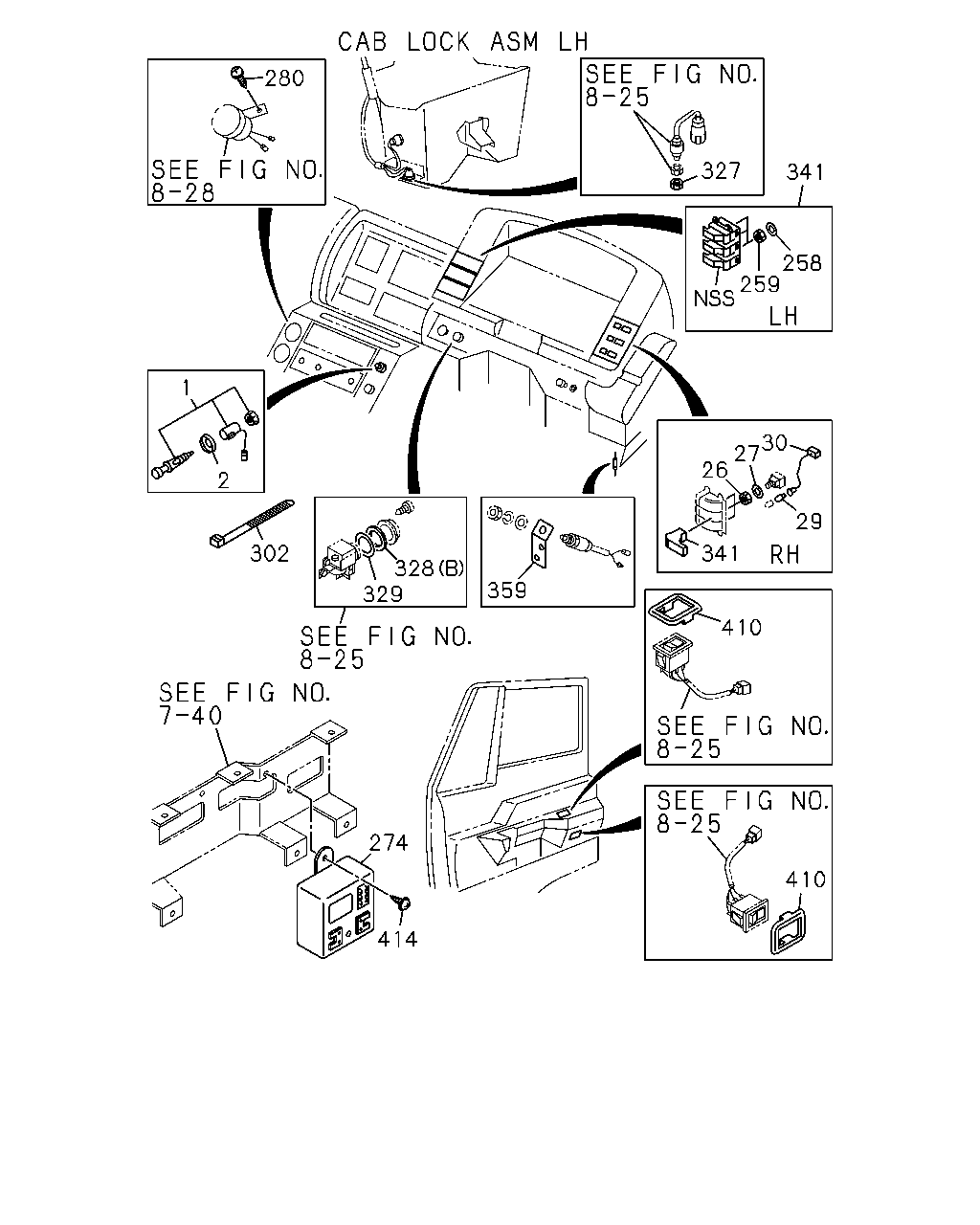

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LIGHTER; CIGAR
1-84190-023-0
01
1
9002-
●
●
2
BEZEL; CIGAR LIGHTER
8-94232-213-1
01
1
9002-
●
●
26
NUT; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) M12
1-09400-066-0
03
1
9002-
●
●
26
NUT; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M12
1-09400-066-0
02
1
9002-
●
●
27
WASHER; WAVE,SW
AIR CONDITIONER MANUAL CONTROL(C60)
1-09550-006-0
03
1
9002-
●
●
27
WASHER; WAVE,SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-09550-006-0
02
1
9002-
●
●
29
BULB; METER SW
AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W
1-82194-027-0
03
1
9002-
●
●
29
BULB; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.2W
1-82194-027-0
02
1
9002-
●
●
30
CORD ASM; METER SW
AIR CONDITIONER MANUAL CONTROL(C60)
1-82359-034-0
01
1
9002-
●
●
30
CORD ASM; METER SW
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-82359-033-0
01
1
9002-
●
●
258
WASHER; WAVE,HOLE COVER
1-09550-006-0
01
1
9002-
●
●
259
NUT; HOLE COVER
M12
1-09400-066-0
01
1
9002-
●
●
274
UNIT; CORNERING LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>
1-83470-044-1
01
1
9307-
●
●
280
SCREW; BUZZER,SEAT BELT
ENGINE OVERRUN BUZZER<SK4> M5X14 W/PL WASHER
5-09981-050-0
01
1
9002-
●
●
280
SCREW; BUZZER,SEAT BELT
EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4> M5X14 W/PL WASHER
5-09981-050-0
01
1
9002-
●
●
302
CLIP; A/C HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140
5-09707-031-1
01
1
9002-
●
●
327
NUT; SWITCH
AUTO CAB TILT<WV2> M16
9-99111-416-0
01
1
9503-
●
●
328
NUT
AUTO ENG SHUTOFF<KB6> (A) M8 FLANGE
8-94279-504-1
02
1
9307-
●
●
328
NUT
INTAKE HEATER<SL2> (B)
1-09449-037-1
01
1
9002-
●
●
329
WASHER
INTAKE HEATER<SL2> OD=36.0 ID=30.5
1-09503-100-0
01
1
9002-
●
●
341
COVER ASM
1-82353-011-0
01
1
9002-
●
●
341
COVER ASM
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-82359-059-0
01
1
9002-
●
●
359
BRACKET ASM; MAG VLV
FIRE TRUCK<RA9> PTO CONTROL(SV6)
1-79997-137-0
01
1
9002-9306
●
359
BRACKET ASM; MAG VLV
FIRE TRUCK<RA9> PTO CONTROL(SV6)
1-79997-137-0
01
1
9307-9411
●
359
BRACKET ASM; MAG VLV
FIRE TRUCK<RA9> PTO CONTROL(SV6)
1-79997-137-0
01
1
9505-
●
410
BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30>
1-73337-381-0
03
1
9205-9306
●
●
410
BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30>
1-73337-381-0
02
1
9307-
●
●
414
SCREW; CORNERING LAMP UNIT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X14 TAPPING W/PL WASHER
0-74100-514-0
01
1
9307-
●
●
287
288
285
339
368
266
41
42
24
37
36
25

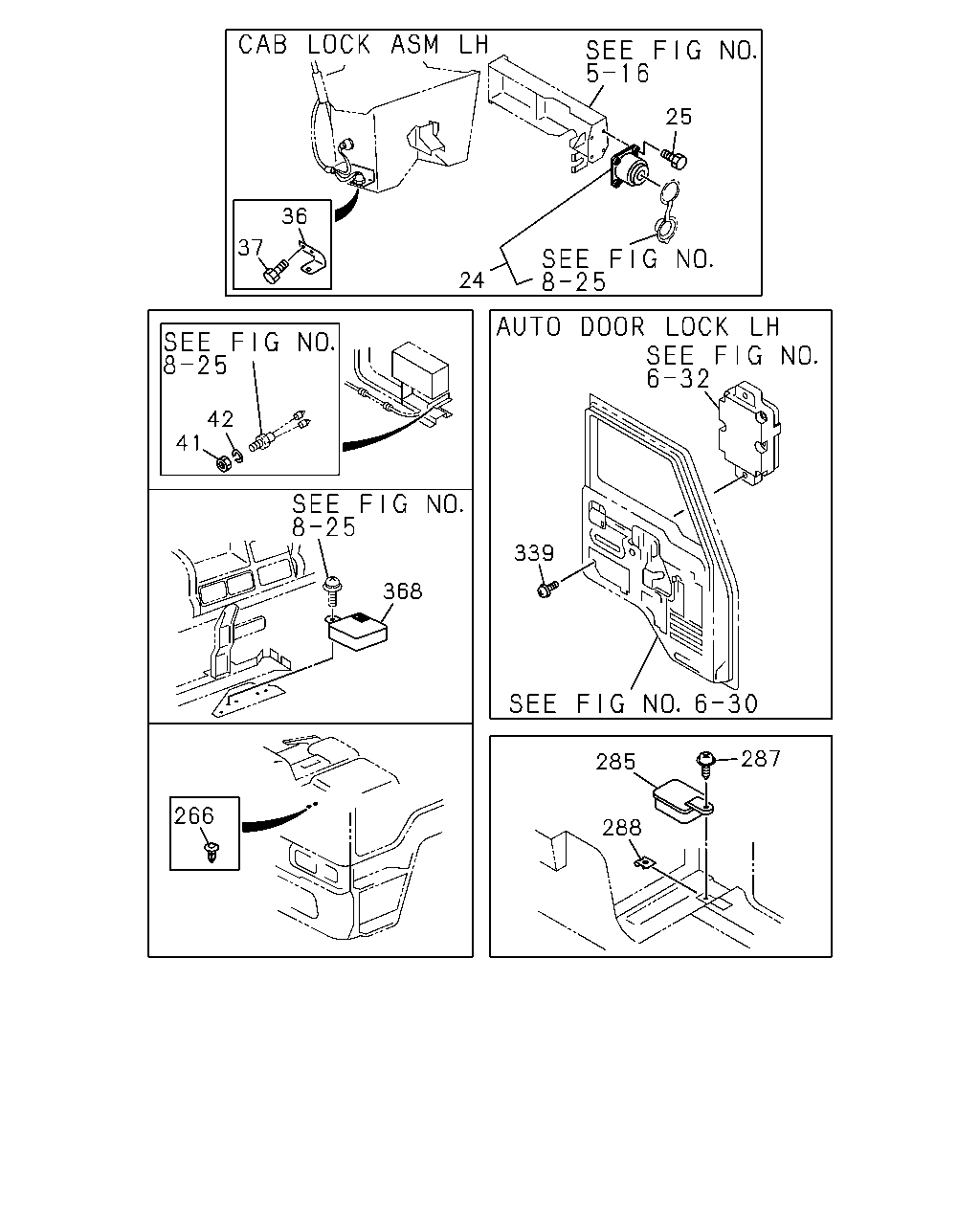

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BOX; SW,CAB TILT
AUTO CAB TILT<WV2>
1-82389-007-1
01
1
9002-
●
●
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER
9-01960-620-0
04
1
9002-9204
●
●
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER
0-50140-620-0
04
1
9205-
●
●
36
BRACKET; LIMIT SW
AUTO CAB TILT<WV2>
1-82385-003-0
01
1
9002-
●
●
37
BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER
0-50000-616-0
02
1
9002-9204
●
●
37
BOLT; BRKT FIX
AUTO CAB TILT<WV2> M6X16 W/LK WASHER
0-50080-616-0
02
1
9205-
●
●
41
NUT; SUB STARTER SW
9-82755-020-0
01
1
9002-9306
●
●
42
WASHER; LK,SUB STARTER SW
ID=14.2
9-09150-514-0
01
1
9002-9306
●
●
266
PLUG; BRKT HOLE,CONT UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) D4.7X11
1-76378-154-0
04
1
9002-
●
●
285
BUZZER ASM; ALARM CLOCK
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73>
1-83460-053-0
01
1
9308-
●
●
287
SCREW; BUZZER
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73>
1-09981-388-1
01
1
9308-
●
●
288
NUT; SPIRE
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> M5 SPIRE NUT
8-94279-051-0
01
1
9308-
●
●
339
SCREW; ACTUATOR
POWER WINDOW<A30> M6X16 W/PL WASHER
1-09981-176-0
02
1
9211-9302
●
●
339
SCREW; ACTUATOR
POWER WINDOW<A30> M4X30
8-94279-360-0
02
1
9303-
●
●
368
CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4>
8-94437-633-1
01
1
9203-
●
●
15
15
17
15
328

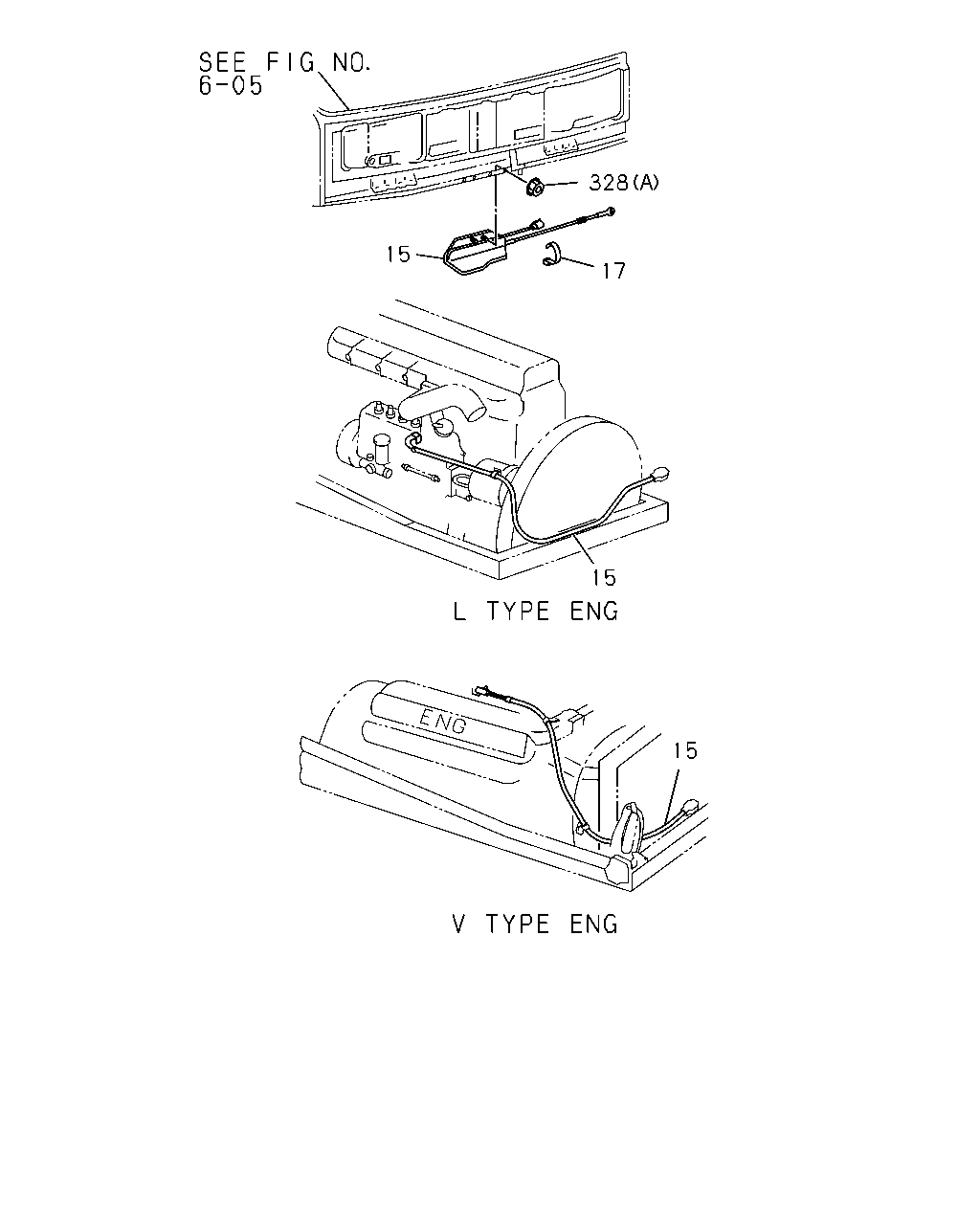

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> L TYPE ENG<90L>
1-82840-135-0
01
1
9307-9310
●
●
15
ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> L TYPE ENG<90L>
1-82840-083-7
01
1
9311-9401
●
●
15
ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> L TYPE ENG<90L>
1-82840-135-2
01
1
9402-
●
●
15
ACTUATOR; ENG STOP
AUTO ENG SHUTOFF<KB6> V TYPE ENG<91L>
1-82840-080-7
01
1
9307-
●
●
17
CLIP; ACTUATOR TO HARNESS
AUTO ENG SHUTOFF<KB6> L=140
5-09707-031-1
01
1
9307-
●
●
328
NUT
AUTO ENG SHUTOFF<KB6> (A) M8 FLANGE
8-94279-504-1
02
1
9307-
●
●
328
NUT
INTAKE HEATER<SL2> (B)
1-09449-037-1
01
1
9002-
●
●
