Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#29156) — 342 parça

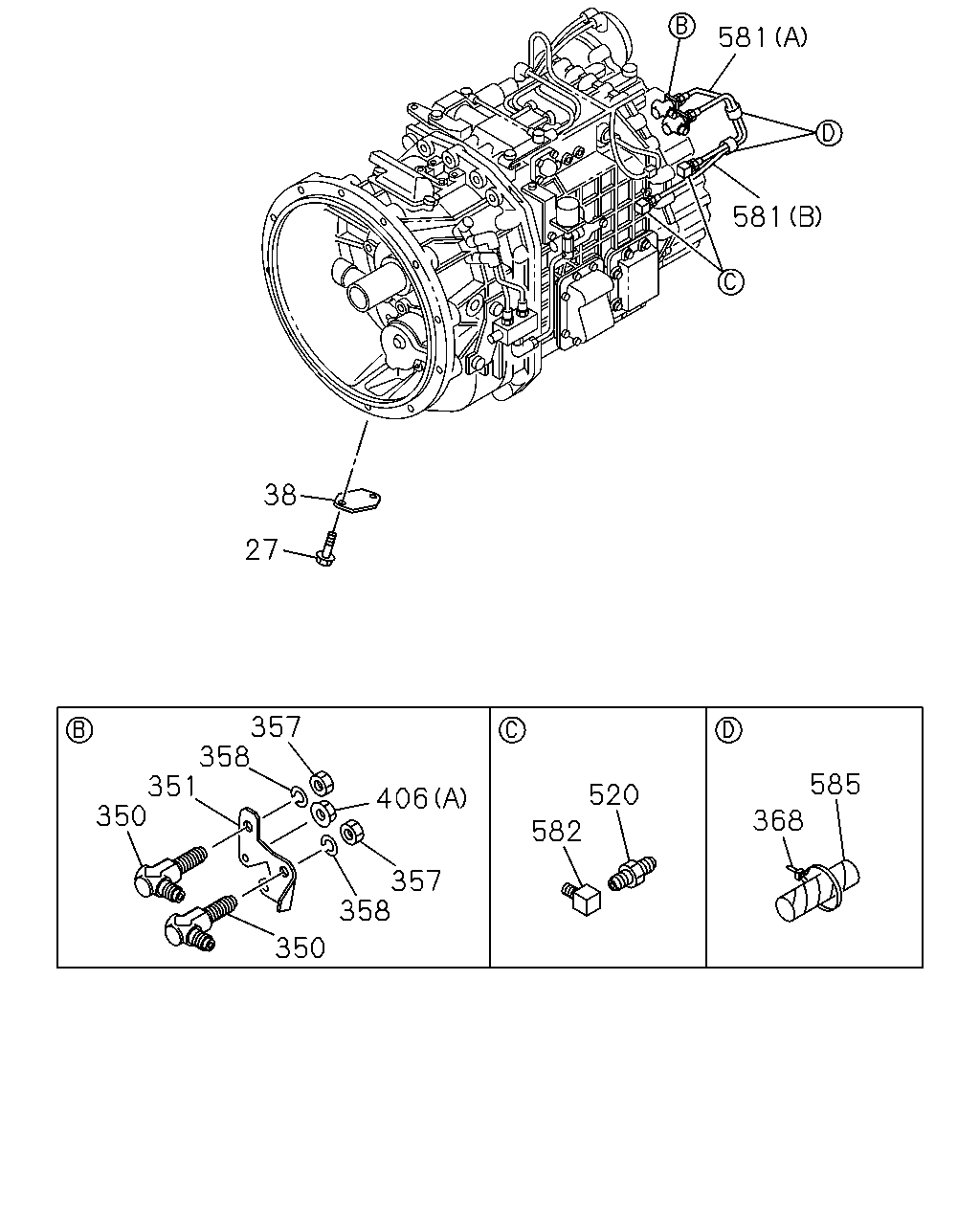

581 581 38 27 357 358 351 350 585 520 406 368 582 357 358 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0407-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0407-
351	BRACKET; UNION,FLEX HOSE	1-46147-302-0	01	1	0407-0511
351	BRACKET; UNION,FLEX HOSE	1-46147-308-1	01	1	0512-
357	NUT; UNION,FLEX HOSE M22	9-09111-422-0	02	1	0407-0512
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0407-0603
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0407-
406	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91150-108-0	02	1	0512-0602
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0603-
406	NUT; BRKT CXZ(CX****) (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
520	CONNECTOR M20	9-99220-610-0	02	1	0407-0607
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0608-
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	0407-
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	0407-
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0407-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0407-

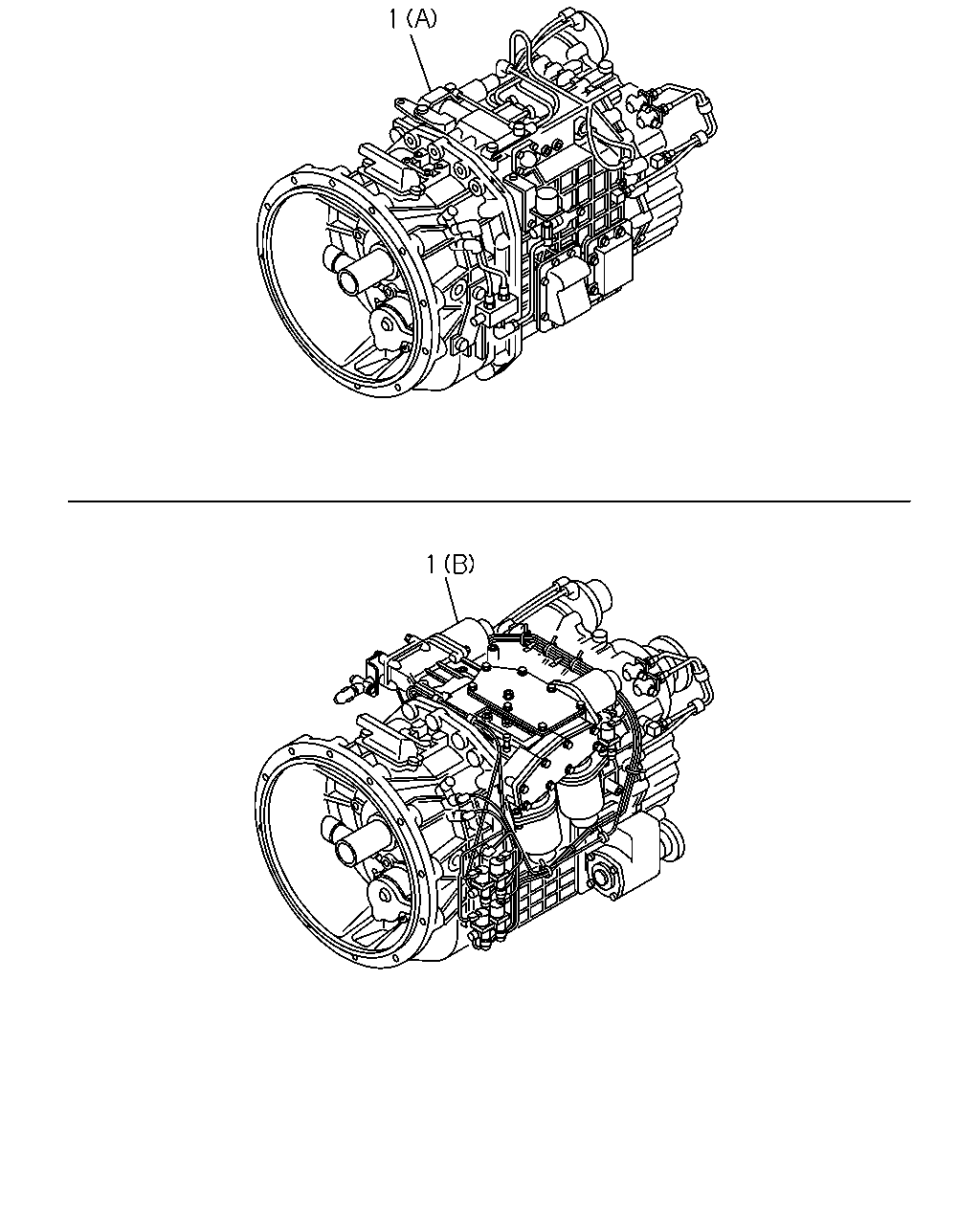

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33043-667-0	01	1	0407-0511
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33043-816-0	01	1	0512-0604
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33044-066-0	01	1	0605-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) (B)	1-33043-713-0	01	1	0407-0511
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33043-816-0	01	1	0512-0604
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33044-066-0	01	1	0605-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL LINK TYPE(B2A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-33043-667-0	01	1	0407-0511
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33043-713-0	01	1	0407-0511

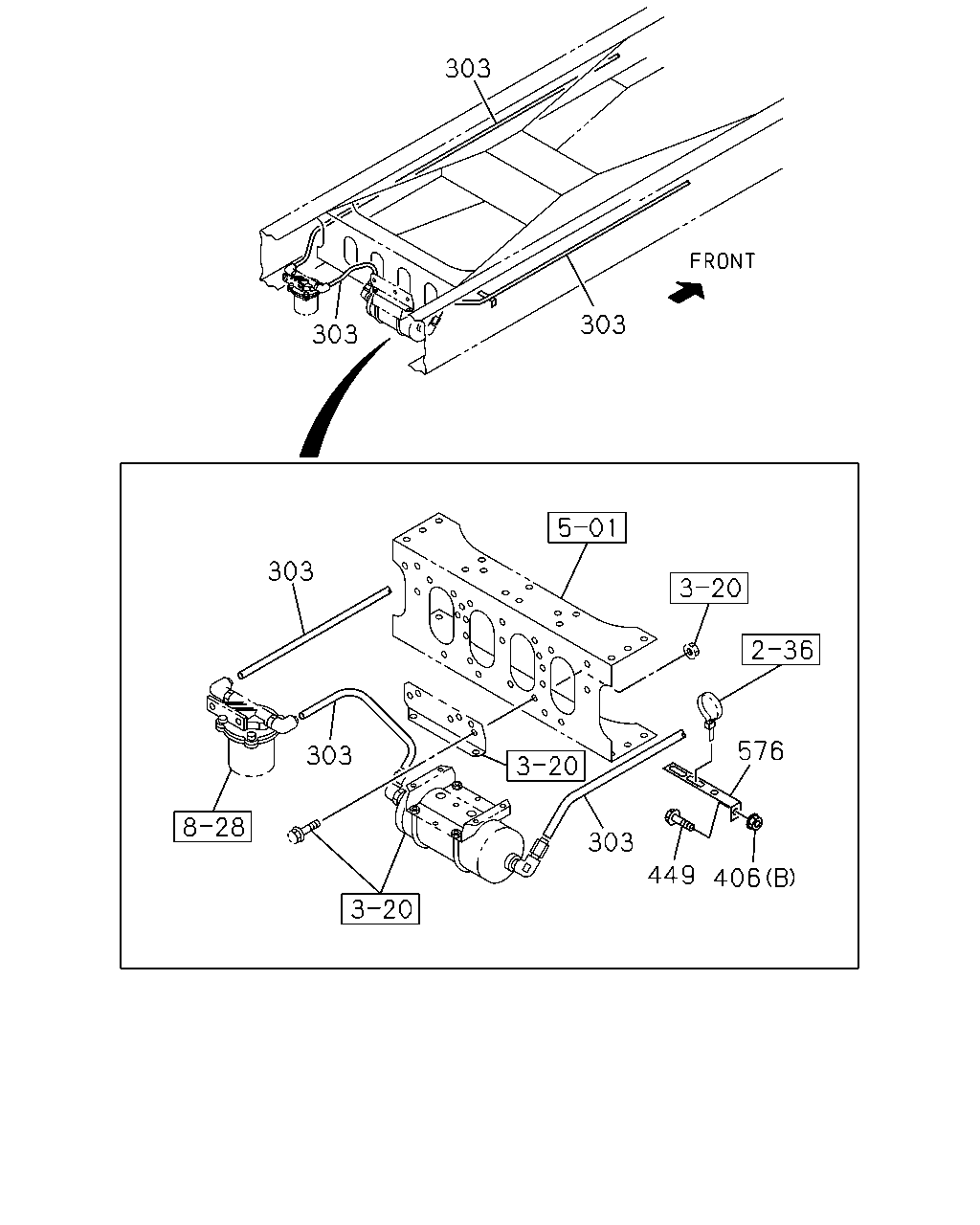

303 303 303 303 576 303 303 449 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0512-
303	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0407-0511
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0407-0511
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0512-
406	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91150-108-0	02	1	0512-0602
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0603-
406	NUT; BRKT CXZ(CX****) (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
449	BOLT; BRKT SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
576	BRACKET; NYLON TUBE SMOOTHER-G(C1W) L=225	1-47477-646-3	01	1	0407-0511

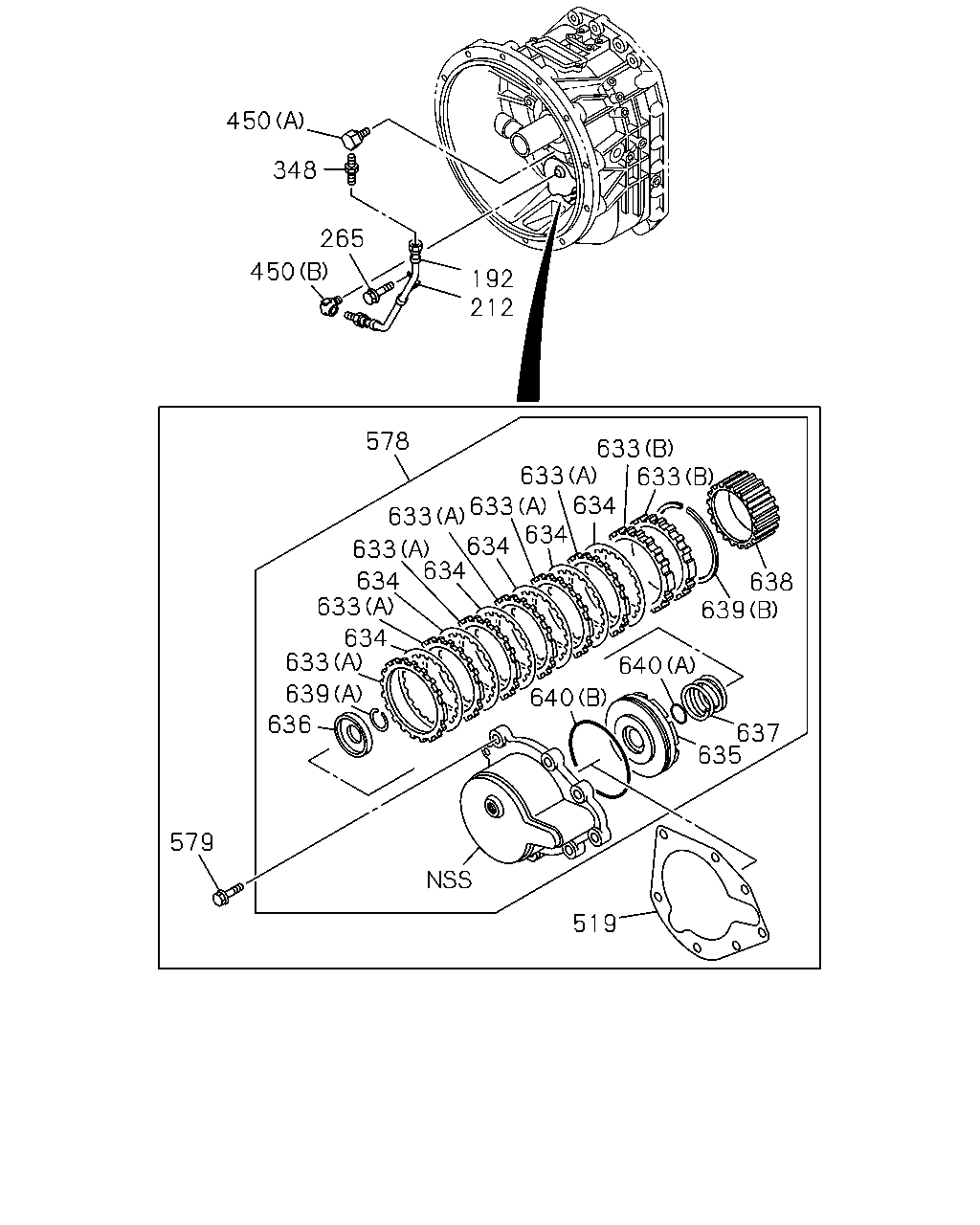

450 348 265 450 192 212 578 633 633 633 633 634 634 634 634 633 633 634 633 638 639 634 633 640 639 640 636 637 635 579 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=252	1-09365-062-0	01	1	0407-0511
192	HOSE; FLEX,TRANS L=252	1-09365-062-0	01	1	0512-
212	CLIP; FLEX HOSE SMOOTHER-G(C1W) ID=9 H=20 L=25	1-09701-073-0	01	1	0407-0511
212	CLIP; FLEX HOSE ID=9 H=20 L=25	1-09701-073-0	01	1	0512-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	03	1	0601-
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511
265	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
348	NIPPLE; GREASE,SHAFT SMOOTHER-G(C1W)	9-09902-299-0	01	1	0407-0511
348	NIPPLE; GREASE,SHAFT	9-09902-299-0	01	1	0512-
450	ADAPTER; OIL SMOOTHER-G(C1W) (A)	1-09660-012-0	01	1	0407-0511
450	ADAPTER; OIL (A)	1-09660-012-0	01	1	0512-
450	ADAPTER; OIL SMOOTHER-G(C1W) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0407-0511
450	ADAPTER; OIL (B) PT1/8 ELBOW	8-94338-418-1	01	1	0512-
519	GASKET; SHAFT SMOOTHER-G(C1W)	1-34142-034-0	01	1	0407-0511
519	GASKET; SHAFT	1-34142-034-0	01	1	0512-
578	BRAKE; COUNTER SHAFT SMOOTHER-G(C1W)	1-33316-005-1	01	1	0407-0511
578	BRAKE; COUNTER SHAFT	1-33316-005-1	01	1	0512-
579	BOLT; COUNTER SHAFT SMOOTHER-G(C1W) M10X30 FLANGE	0-28181-030-0	07	1	0407-0511
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28181-030-0	07	1	0512-0512
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28151-030-0	07	1	0601-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (A)	1-33319-208-0	06	1	0407-0511
633	PLATE; SEPARATE,BRAKE (A)	1-33319-208-0	06	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.6	1-33319-209-0	02	1	0407-0511
633	PLATE; SEPARATE,BRAKE (B) T=3.6	1-33319-209-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.8	1-33319-210-0	02	1	0407-0511
633	PLATE; SEPARATE,BRAKE (B) T=3.8	1-33319-210-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.0	1-33319-211-0	02	1	0407-0511
633	PLATE; SEPARATE,BRAKE (B) T=4.0	1-33319-211-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.2	1-33319-212-0	02	1	0407-0511
633	PLATE; SEPARATE,BRAKE (B) T=4.2	1-33319-212-0	02	1	0512-
634	PLATE; FRICTION,BRAKE SMOOTHER-G(C1W)	1-33319-207-0	06	1	0407-0511
634	PLATE; FRICTION,BRAKE	1-33319-207-0	06	1	0512-
635	PISTON; BRAKE SMOOTHER-G(C1W) T=4.90	1-33319-230-0	01	1	0407-0511
635	PISTON; BRAKE T=4.90	1-33319-230-0	01	1	0512-
636	PLATE; PRESSURE,BRAKE SMOOTHER-G(C1W)	1-33319-213-1	01	1	0407-0511
636	PLATE; PRESSURE,BRAKE	1-33319-213-1	01	1	0512-
637	SPRING; BRAKE SMOOTHER-G(C1W)	1-33319-215-0	01	1	0407-0511
637	SPRING; BRAKE	1-33319-215-0	01	1	0512-
638	HUB; BRAKE SMOOTHER-G(C1W)	1-33319-220-0	01	1	0407-0511
638	HUB; BRAKE	1-33319-220-0	01	1	0512-
639	RING; BRAKE SMOOTHER-G(C1W) (A)	1-33319-216-0	01	1	0407-0511
639	RING; BRAKE (A)	1-33319-216-0	01	1	0512-
639	RING; BRAKE SMOOTHER-G(C1W) (B)	1-33319-217-0	01	1	0407-0511
639	RING; BRAKE (B)	1-33319-217-0	01	1	0512-
640	GASKET; BRAKE SMOOTHER-G(C1W) (A)	1-33319-218-0	01	1	0407-0511
640	GASKET; BRAKE (A)	1-33319-218-0	01	1	0512-
640	GASKET; BRAKE SMOOTHER-G(C1W) (B)	1-33319-219-0	01	1	0407-0511
640	GASKET; BRAKE (B)	1-33319-219-0	01	1	0512-

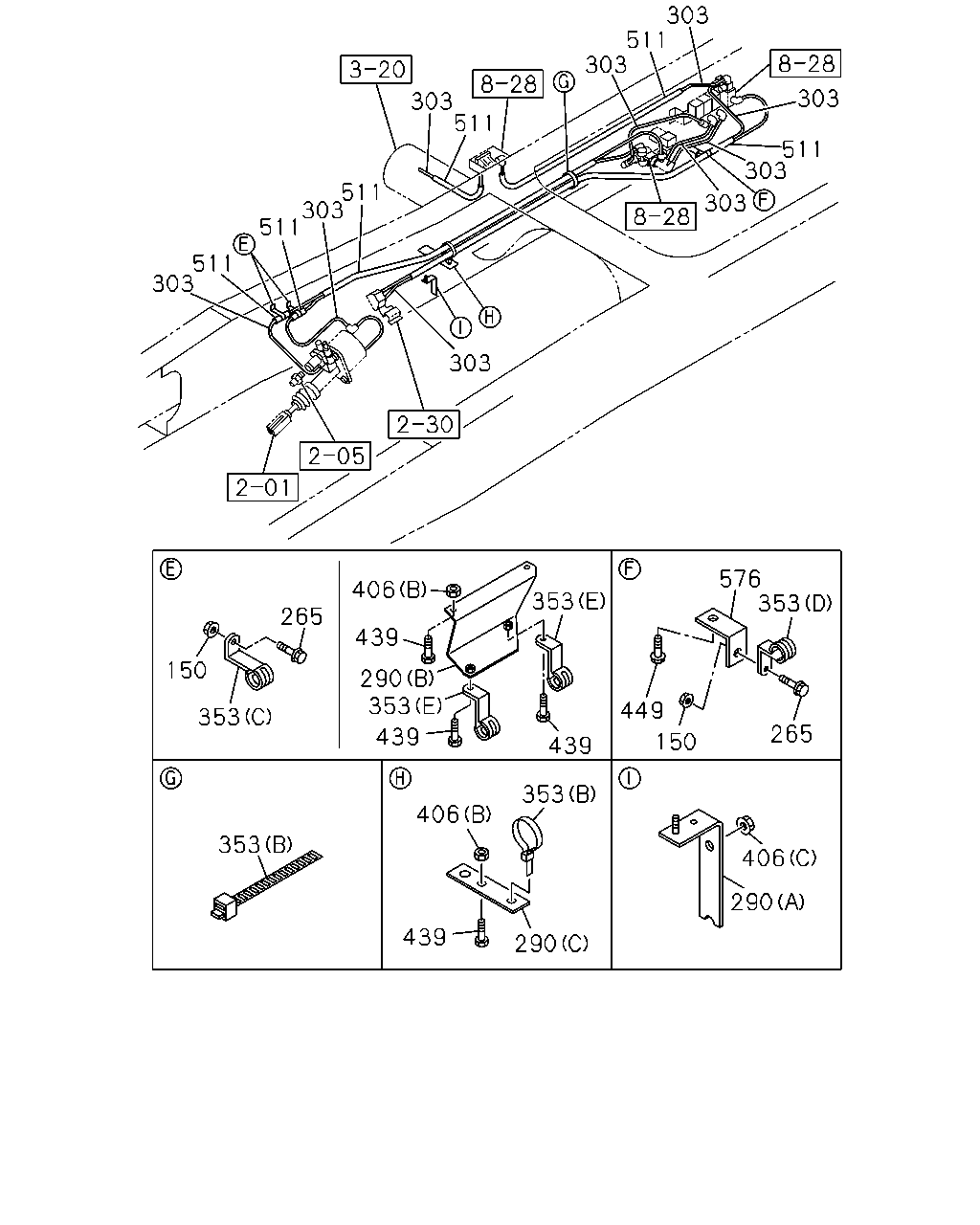

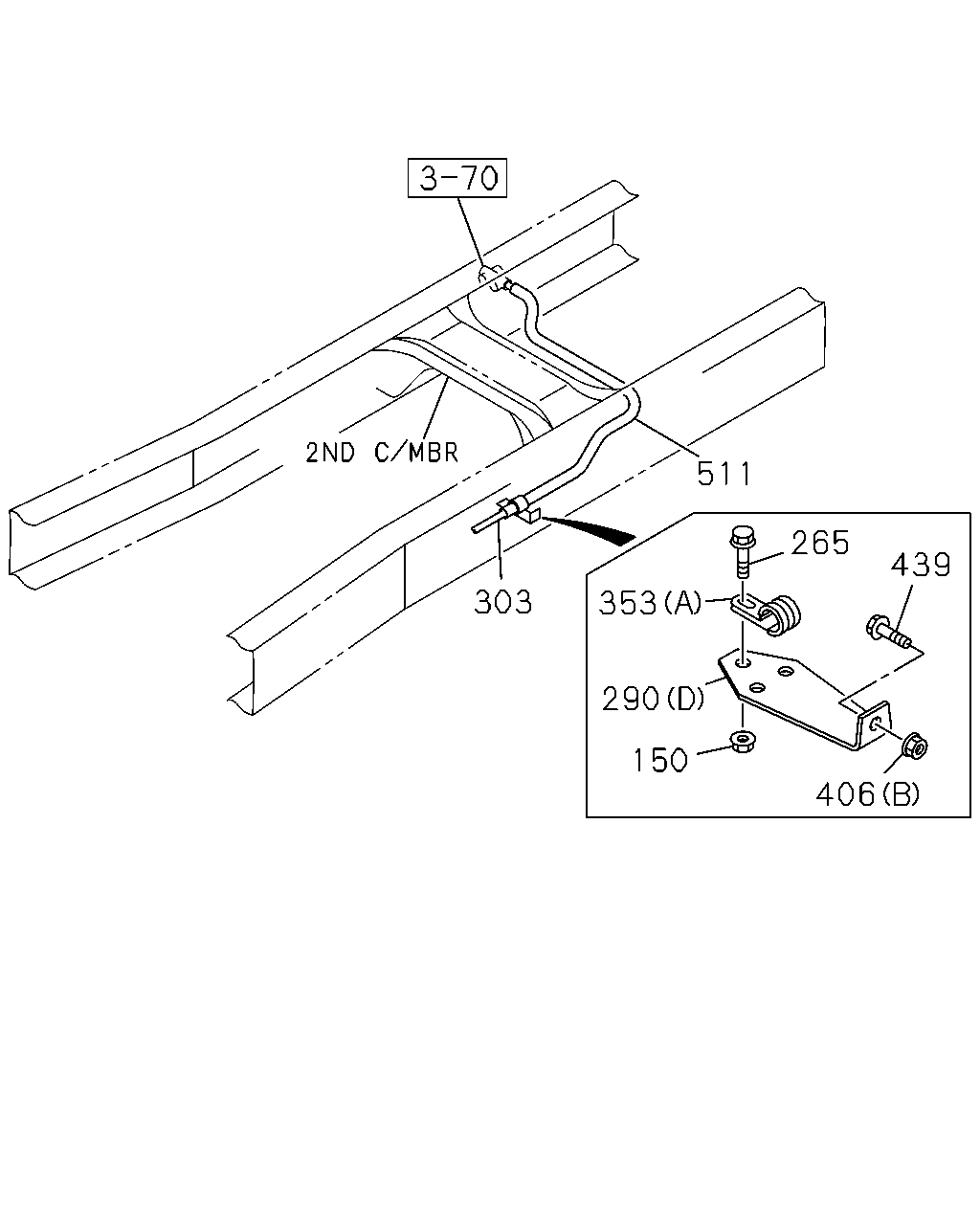

511 265 439 303 353 290 150 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	04	1	0512-0602
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	04	1	0603-0606
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0407-0602
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0407-0511
150	NUT M8 FLANGE	0-91180-108-0	03	1	0607-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	03	1	0601-
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511
265	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
290	BRACKET; CLIP (A)	8-97609-042-0	01	1	0512-
290	BRACKET; CLIP SMOOTHER-G(C1W) (B)	1-47471-357-0	01	1	0512-
290	BRACKET; CLIP (C) L=125	1-47477-975-1	01	1	0512-
290	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-47479-779-0	01	1	0407-0705
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0512-
303	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0407-0511
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0407-0511
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0512-
353	CLIP; NYLON TUBE CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	01	1	0512-
353	CLIP; NYLON TUBE CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	02	1	0512-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0602
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=20 H=23 L=27	1-09700-861-0	03	1	0603-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=25 H=30 L=35	1-09700-875-0	02	1	0512-0602
353	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	0512-
353	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0407-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0407-0511
353	CLIP; NYLON TUBE (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0512-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (D) ID=25 H=30 L=35	1-09700-875-0	01	1	0407-0511
406	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91150-108-0	02	1	0512-0602
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0603-
406	NUT; BRKT CXZ(CX****) (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
439	BOLT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
439	BOLT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0512-0512
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28650-830-0	01	1	0601-0705
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0407-0511
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0407-0511
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0407-0511
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-

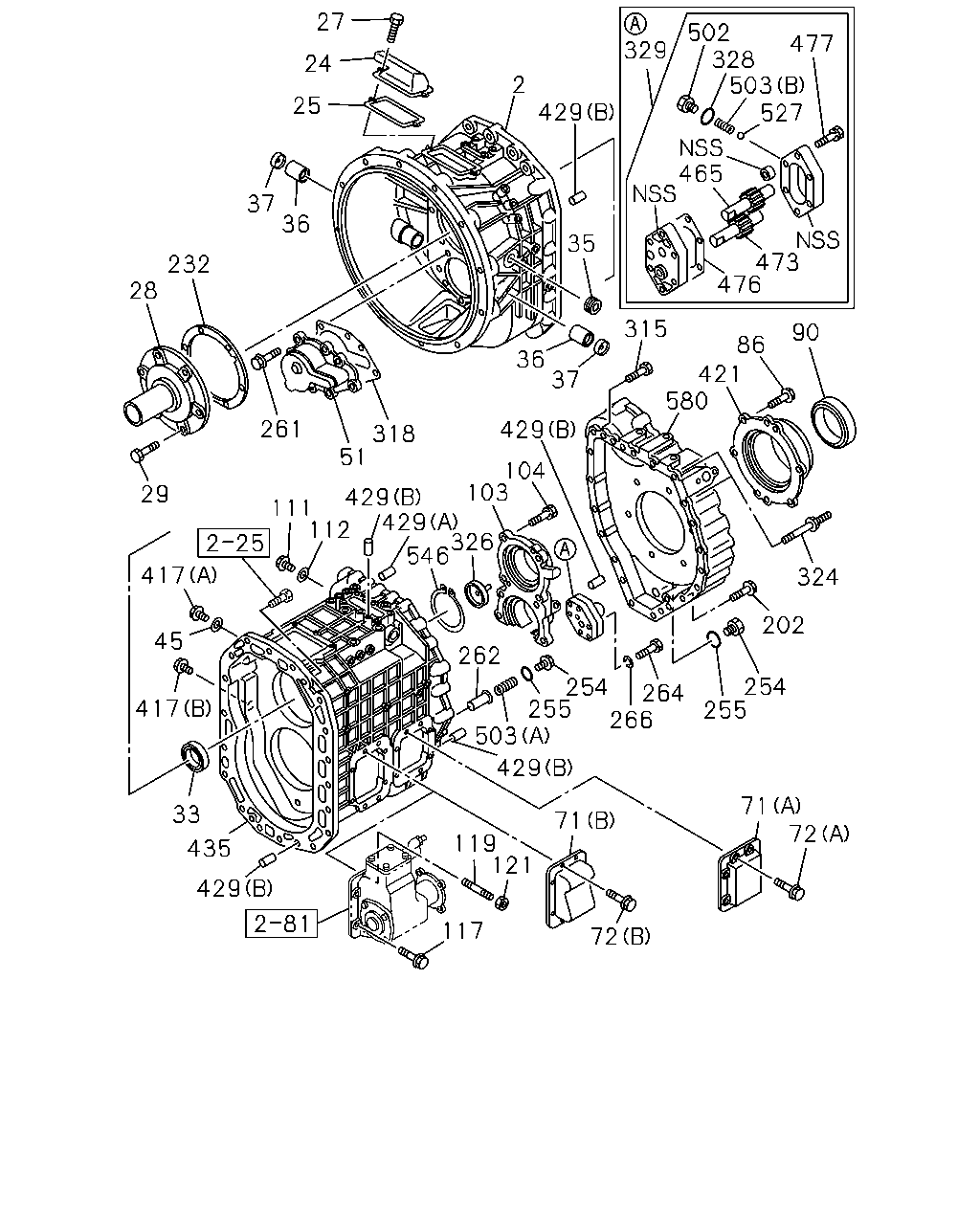

27 329 502 328 503 527 477 24 2 25 429 465 37 36 473 476 35 232 28 315 90 86 421 580 36 37 261 429 318 51 104 103 29 429 429 111 112 326 546 417 324 202 45 417 262 254 255 254 255 503 264 266 429 71 72 33 71 119 121 435 429 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-204-5	01	1	0407-0608
2	HOUSING; CLU	8-98052-280-0	01	1	0609-1003
2	HOUSING; CLU	8-98168-737-0	01	1	1004-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0407-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0407-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0407-
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0407-0512
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0601-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0407-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0407-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0407-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0407-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0407-
51	COVER; SEAL,COUNTER,FRT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33319-200-1	01	1	0407-0511
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0407-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0407-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0407-0512
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0601-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0407-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	0407-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0407-
103	RETAINER; BRG TRANSMISSION CONTROL LINK TYPE(B2A)	1-33151-063-0	01	1	0407-0511
103	RETAINER; BRG SMOOTHER-G(C1W)	1-33151-062-0	01	1	0407-0511
103	RETAINER; BRG	1-33151-062-0	01	1	0512-0910
103	RETAINER; BRG	1-33151-060-1	01	1	0911-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0407-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0407-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0407-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28781-235-0	04	1	0407-0512
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	0601-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	9-94411-230-0	04	1	0407-0604
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	0-44011-230-0	04	1	0605-0609
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0610-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0407-0602
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	0603-
202	BOLT; PLATE M12X35 FLANGE	0-28781-235-0	09	1	0407-0512
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0601-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0407-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0407-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0407-
261	BOLT; COVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28181-030-0	07	1	0407-0511
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0407-
264	BOLT; OIL PUMP M8X50	0-10805-850-0	02	1	0407-0512
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0601-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0407-
266	WASHER; LK ID=8.2	9-09150-508-0	04	1	0407-0603
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0604-
315	BOLT; CASE M12X50 FLANGE	0-28181-250-0	11	1	0407-0512
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0601-
315	BOLT; CASE M12X110	0-28186-211-0	05	1	0407-0512
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0601-
315	BOLT; CASE M12X35 FLANGE	0-28781-235-0	02	1	0407-0512
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0601-
318	GASKET; COVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-34142-034-0	01	1	0407-0511
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0407-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0407-
328	GASKET; PLUG	1-34159-100-0	01	1	0407-
329	PUMP ASM; OIL	1-34150-117-0	01	1	0407-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL LINK TYPE(B2A) (B) M22X12	1-09604-035-0	01	1	0407-0511
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0407-
421	COVER; RR,TRANS TRANSMISSION CONTROL LINK TYPE(B2A)	1-33131-238-0	01	1	0407-0511
421	COVER; RR,TRANS	1-33131-238-0	01	1	0512-
421	COVER; RR,TRANS SMOOTHER-G(C1W)	1-33131-234-0	01	1	0407-0511
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0407-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0407-
435	CASE; TRANS	1-33111-319-6	01	1	0407-0409
435	CASE; TRANS	1-33111-352-1	01	1	0410-0412
435	CASE; TRANS	1-33111-361-0	01	1	0501-0511
435	CASE; TRANS	1-33111-349-2	01	1	0512-0609
435	CASE; TRANS	8-98049-690-1	01	1	0610-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0407-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0407-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0407-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0407-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0407-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0407-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0407-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0407-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0407-
580	CASE; RANGE	1-33115-051-2	01	1	0407-

303 511 303 303 303 511 511 303 511 303 511 303 511 303 303 576 353 406 353 265 439 150 290 353 449 353 265 439 150 439 353 406 353 406 290 439 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	04	1	0512-0602
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	04	1	0603-0606
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0407-0602
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0407-0511
150	NUT M8 FLANGE	0-91180-108-0	03	1	0607-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	03	1	0601-
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511
265	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
290	BRACKET; CLIP (A)	8-97609-042-0	01	1	0512-
290	BRACKET; CLIP SMOOTHER-G(C1W) (B)	1-47471-357-0	01	1	0512-
290	BRACKET; CLIP (C) L=125	1-47477-975-1	01	1	0512-
290	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (D)	1-47479-779-0	01	1	0407-0705
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0512-
303	TUBE; NYLON TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	0407-0511
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON CYZ LONG CHASSIS & RHD(CYZ5MF) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0407-0511
303	TUBE; NYLON CYZ SHORT CHASSIS & RHD(CYZ5MC) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0512-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0407-0511
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0512-
353	CLIP; NYLON TUBE CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	01	1	0512-
353	CLIP; NYLON TUBE CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	02	1	0512-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0602
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=20 H=23 L=27	1-09700-861-0	03	1	0603-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (E) ID=25 H=30 L=35	1-09700-875-0	02	1	0512-0602
353	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	0512-
353	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0407-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0407-0511
353	CLIP; NYLON TUBE (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0512-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (D) ID=25 H=30 L=35	1-09700-875-0	01	1	0407-0511
406	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91150-108-0	02	1	0512-0602
406	NUT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	0603-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	03	1	0603-
406	NUT; BRKT CXZ(CX****) (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
439	BOLT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
439	BOLT; BRKT CYZ SHORT CHASSIS & RHD(CYZ5MC) SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0512-0512
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28650-830-0	01	1	0601-0705
449	BOLT; BRKT SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0407-0511
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0407-0511
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0407-0511
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-
576	BRACKET; NYLON TUBE SMOOTHER-G(C1W) L=225	1-47477-646-3	01	1	0407-0511

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
