2-07B — CLUTCH BOOSTER; MINIPACK (#29153) — 52 parça

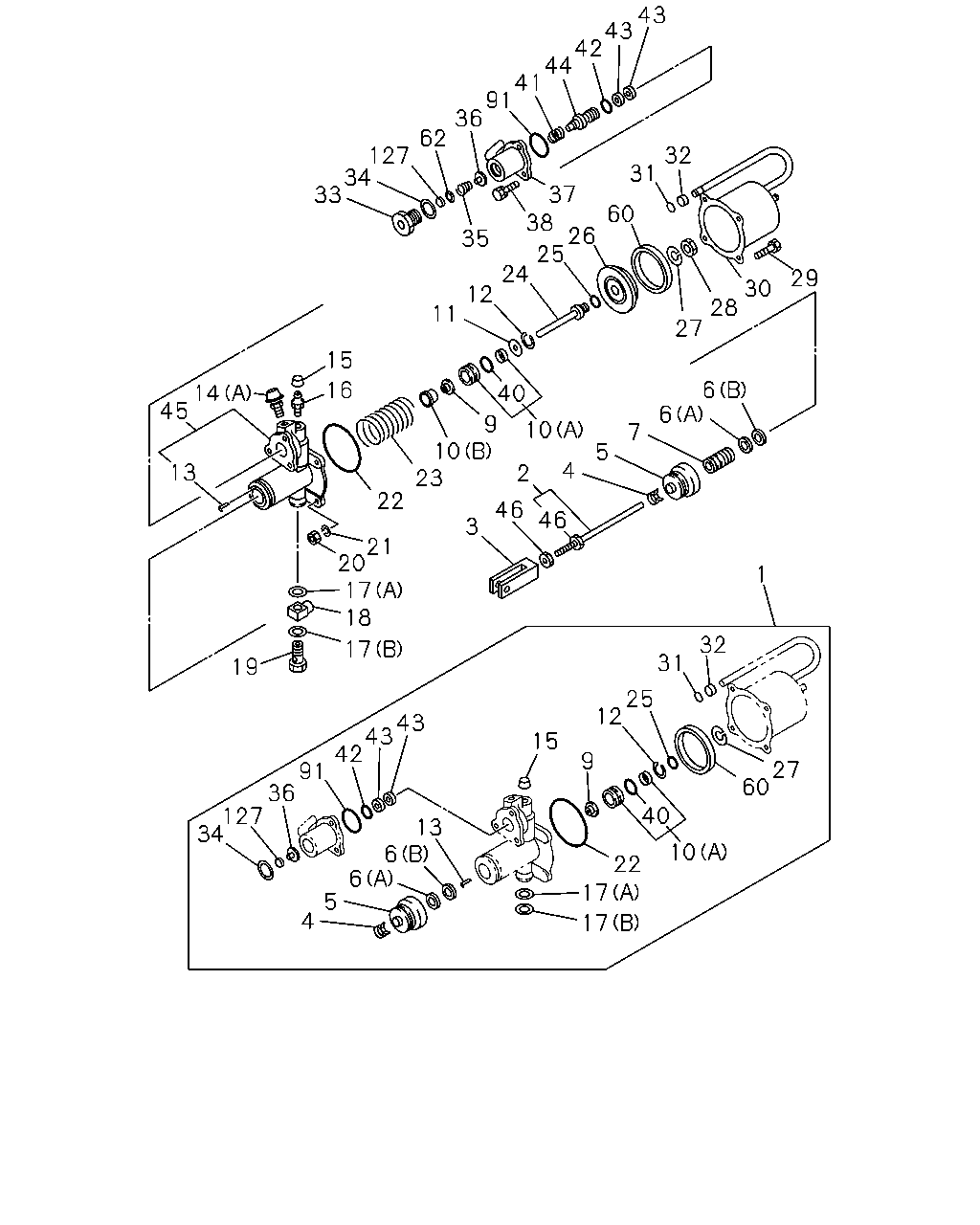

çizim 105031
43 43 42 44 41 91 36 62 32 127 34 33 31 37 38 60 26 25 24 12 35 29 30 28 27 11 15 6 16 40 14 45 6 9 10 23 10 7 5 4 13 2 22 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 9 91 36 127 34 40 13 6 10 22 17 6 5 4 17
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0512-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0512-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0512-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0512-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0512-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0512-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0512-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0512-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0512-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0512-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0512-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0512-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0512-
13 PIN; SPR 1-31829-109-0 01 1 0512-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0512-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0512-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0512-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0512-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0512-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0512-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0512-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0512-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0512-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0512-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0512-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0512-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0512-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0512-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0512-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0512-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0512-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0512-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0512-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0512-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0512-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0512-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0512-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0512-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0512-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0512-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0512-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0512-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0512-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0512-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0512-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0512-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0512-1105
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0512-
62 RETAINER; POPPET 1-31829-489-0 01 1 0512-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0512-
127 FILTER; POPPET 1-31829-495-0 01 1 0512-
