Sayfa 2-07A - Isuzu EPC

2-07A — CLUTCH BOOSTER; MINIPACK (#29152) — 299 parça

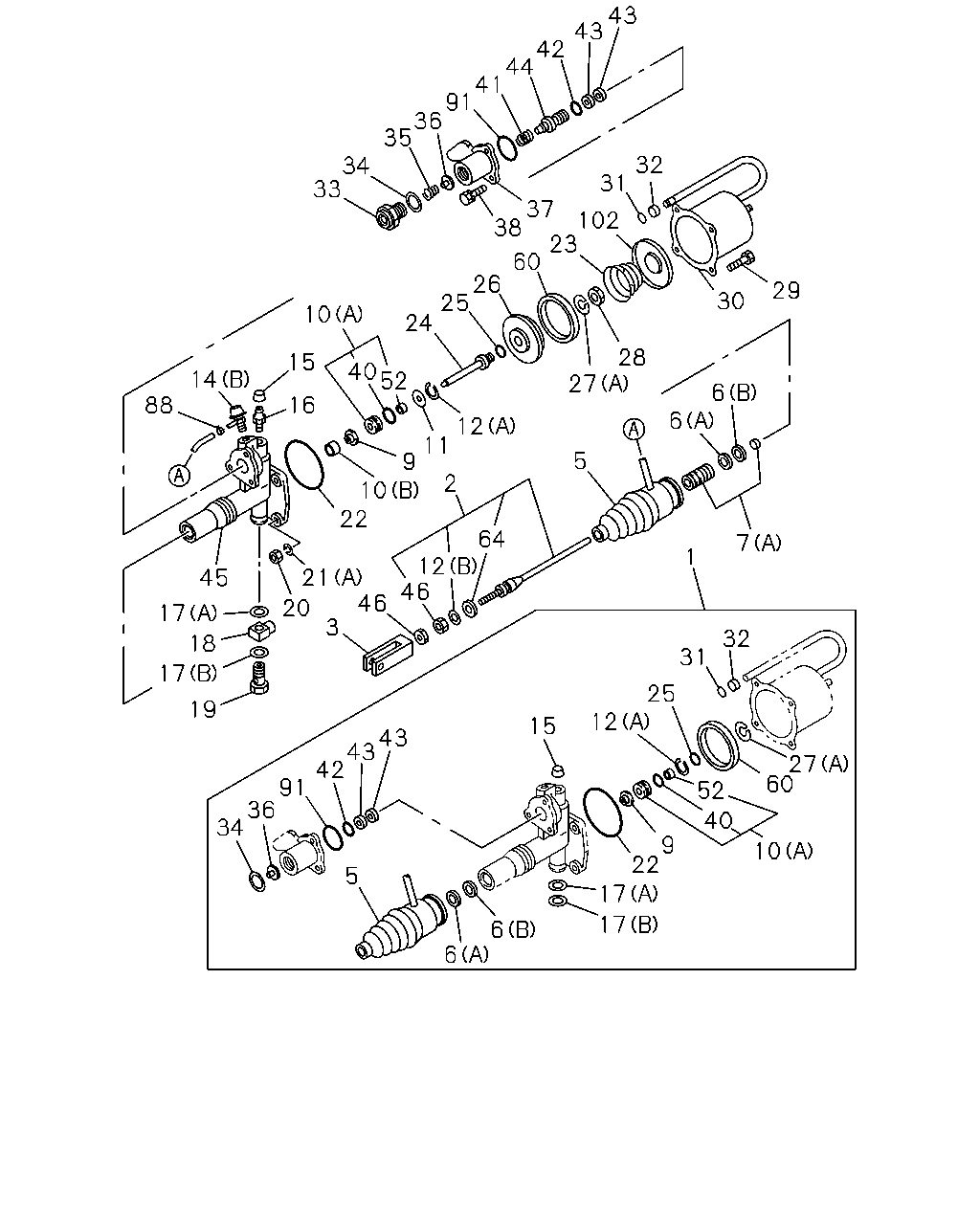

43 43 42 44 41 91 36 35 32 34 33 31 37 38 102 23 60 26 25 24 29 30 10 28 15 40 52 14 27 6 88 16 6 12 11 5 9 10 22 2 64 12 46 7 1 21 45 46 20 17 3 32 18 31 17 25 19 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0407-0511
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0512-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (F)	1-31829-444-0	01	1	0512-
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31821-068-0	01	1	0407-0511
7	PISTON; CLU BOOSTER (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-081-0	01	1	0407-0511
7	PISTON; CLU BOOSTER (C)	1-31821-081-0	01	1	0512-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0511
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0512-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0511
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0512-
12	RING; RET,CLU BOOSTER (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0407-0511
12	RING; RET,CLU BOOSTER (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0407-0511
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0407-0511
14	COVER; EXH,CLU BOOSTER (A)	1-31829-365-0	01	1	0512-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0511
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0512-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0511
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0512-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0511
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0512-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0511
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0512-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0512-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-0511
21	WASHER; END PLATE TO SHELL,CLU BOOSTER (A) ID=10.2	9-09150-510-0	04	1	0407-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-446-0	01	1	0407-0511
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER	1-31829-506-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER	1-31824-211-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER	1-31821-080-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0407-0511
27	SPRING; CLU BOOSTER (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0407-0511
27	SPRING; CLU BOOSTER (C)	1-31829-510-0	01	1	0512-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER	1-31811-120-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0511
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0512-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0511
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0512-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0511
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0512-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0511
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0512-
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-037-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER	1-31811-119-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0407-0511
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0512-1105
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) M10	9-09111-410-0	01	1	0407-0511
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-47819-027-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0512-
64	WASHER; PUSH ROD TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22	9-09164-610-0	01	1	0407-0511
88	CLAMP; HOSE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-063-0	01	1	0407-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0512-
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0407-0511
102	PLATE; BOOSTER	1-31829-508-0	01	1	0512-

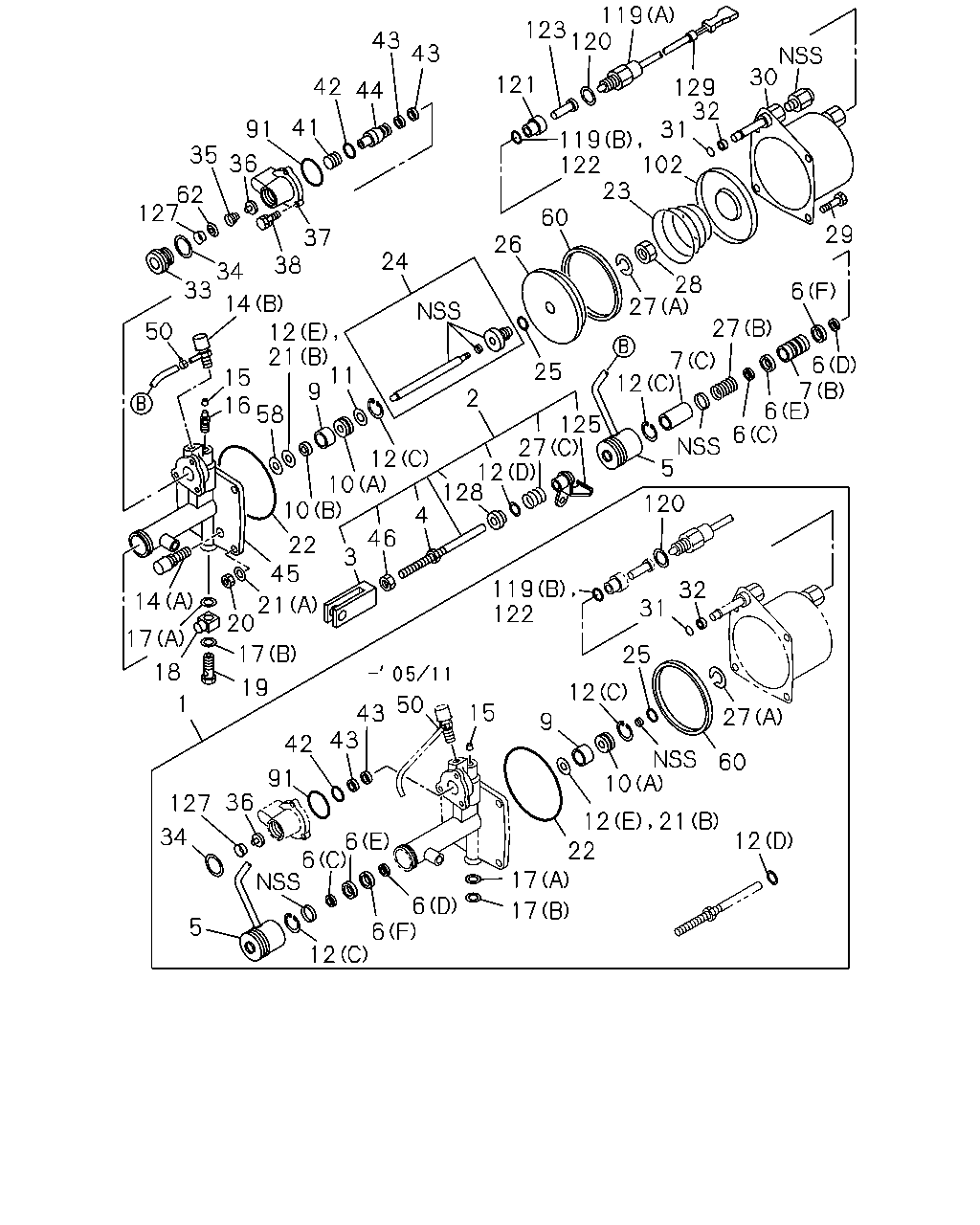

119 123 120 43 43 30 121 42 129 32 31 44 41 91 119 122 102 23 35 36 62 127 60 29 37 38 26 24 34 33 28 27 6 14 12 21 11 27 7 12 50 6 7 6 6 25 15 16 58 9 2 125 27 12 128 5 12 10 10 120 4 46 22 45 3 119 122 32 14 21 20 31 17 17 25 18 19 12 1 50 15 43 43 27 9 42 60 91 10 36 127 34 12 6 6 22 17 6 6 12 17 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0407-0511
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0512-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-0511
4	CLAMP; BOOSTER SMOOTHER-G(C1W) M10	9-09111-410-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER (F)	1-31829-444-0	01	1	0512-
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31821-068-0	01	1	0407-0511
7	PISTON; CLU BOOSTER (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-081-0	01	1	0407-0511
7	PISTON; CLU BOOSTER (C)	1-31821-081-0	01	1	0512-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0511
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0512-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0511
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0512-
12	RING; RET,CLU BOOSTER (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0407-0511
12	RING; RET,CLU BOOSTER (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0407-0511
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0407-0511
14	COVER; EXH,CLU BOOSTER (A)	1-31829-365-0	01	1	0512-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0511
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0512-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0511
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0512-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0511
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0512-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0511
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0512-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0512-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-0511
21	WASHER; END PLATE TO SHELL,CLU BOOSTER (A) ID=10.2	9-09150-510-0	04	1	0407-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-446-0	01	1	0407-0511
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER	1-31829-506-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER	1-31824-211-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER	1-31821-080-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0407-0511
27	SPRING; CLU BOOSTER (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0407-0511
27	SPRING; CLU BOOSTER (C)	1-31829-510-0	01	1	0512-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER	1-31811-120-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0511
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0512-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0511
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0512-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0511
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0512-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0511
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0512-
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER	1-31811-119-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0407-0511
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0512-1105
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) M10	9-09111-410-0	01	1	0407-0511
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-063-0	01	1	0407-0511
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-063-0	01	1	0512-
58	WASHER; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-294-0	01	1	0407-0511
58	WASHER; PISTON,CLU BOOSTER	1-31829-294-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0512-
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	0407-0511
62	RETAINER; POPPET	1-31829-489-0	01	1	0512-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0512-
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0407-0511
102	PLATE; BOOSTER	1-31829-508-0	01	1	0512-
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31824-178-0	01	1	0407-0511
119	SWITCH; CLU BOOSTER (A)	1-31824-178-0	01	1	0512-
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-360-0	01	1	0407-0511
120	GASKET; SWITCH SMOOTHER-G(C1W)	1-31829-361-0	01	1	0407-0511
120	GASKET; SWITCH	1-31829-361-0	01	1	0512-
121	GUIDE; ROD SMOOTHER-G(C1W)	1-31824-165-0	01	1	0407-0511
121	GUIDE; ROD	1-31824-165-0	01	1	0512-
122	GASKET; ROD	1-31829-360-0	01	1	0512-
123	ROD; SWITCH L=23.2	1-31824-167-0	01	1	0512-1105
123	ROD; SWITCH L=23.2	1-31824-167-0	AR	1	1106-
123	ROD; SWITCH L=24.0	1-31824-168-0	01	1	0512-1105
123	ROD; SWITCH L=24.0	1-31824-168-0	AR	1	1106-
123	ROD; SWITCH L=22.5	1-31824-176-0	01	1	0512-1105
123	ROD; SWITCH L=22.5	1-31824-176-0	AR	1	1106-
123	ROD; SWITCH L=24.5	1-31824-189-0	01	1	0512-1105
123	ROD; SWITCH L=24.5	1-31824-189-0	AR	1	1106-
123	ROD; SWITCH L=25.0	1-31824-212-0	01	1	0512-1105
123	ROD; SWITCH L=25.0	1-31824-212-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	AR	1	0407-0511
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	AR	1	0407-0511
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	AR	1	0407-0511
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	AR	1	0407-0511
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	AR	1	0407-0511
125	BRACKET; CLU BOOSTER	1-31829-512-0	01	1	0512-1105
125	BRACKET; CLU BOOSTER	1-31829-622-0	01	1	1106-
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-512-0	01	1	0407-0511
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	0407-0511
127	FILTER; POPPET	1-31829-488-0	01	1	0512-
128	COLLAR; ROD,CLU BOOSTER	1-31829-509-0	01	1	0512-1105
128	COLLAR; ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-509-0	01	1	0407-0511
129	CONNECTOR ASM; CLU BOOSTER SMOOTHER-G(C1W)	1-09656-753-0	01	1	0407-0511
129	CONNECTOR ASM; CLU BOOSTER	1-09656-753-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
