Sayfa 2-03 - Isuzu EPC

2-03 — CLUTCH PEDAL AND CONTROL (#29150) — 215 parça

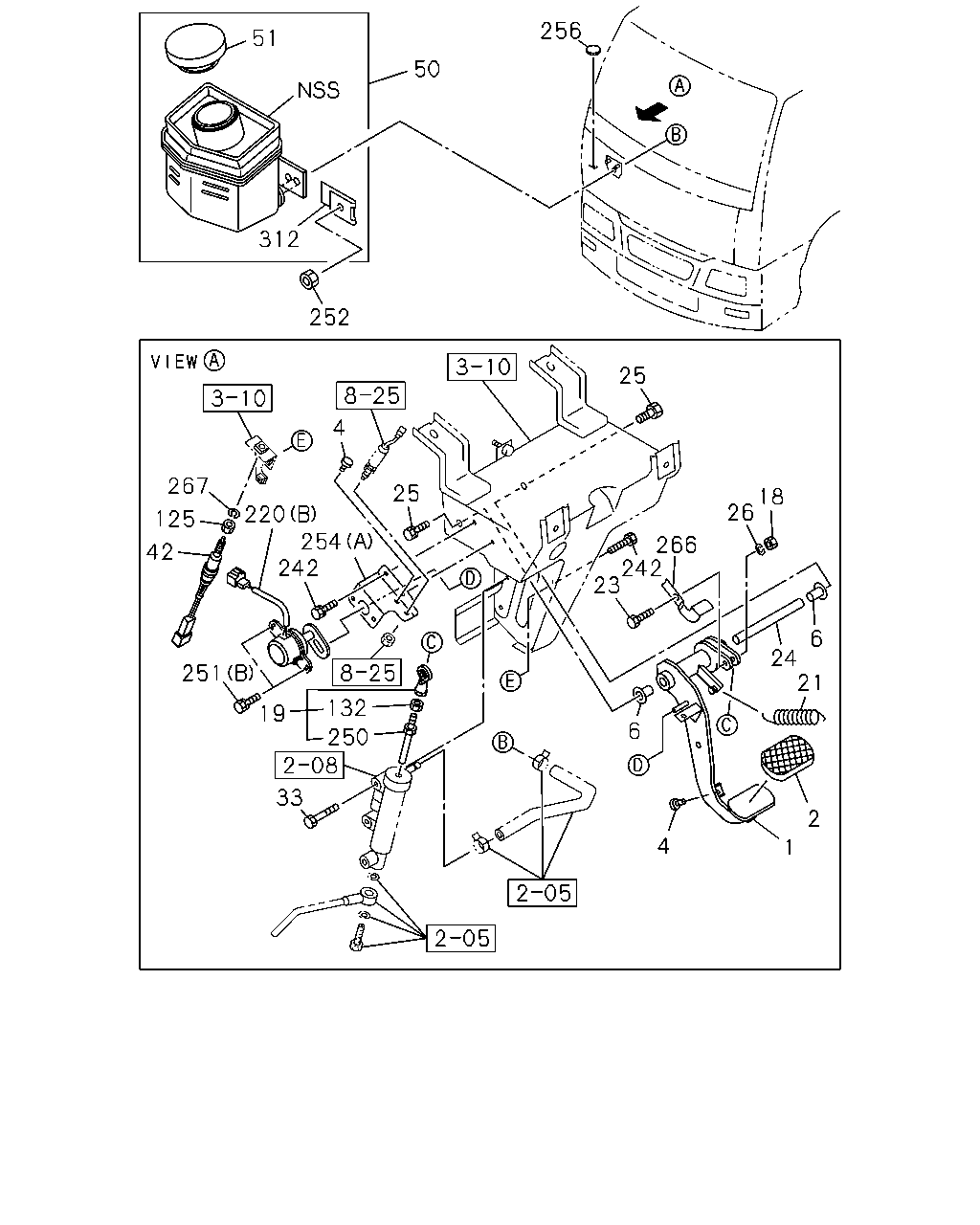

256 51 50 312 252 25 4 220 254 242 267 25 18 26 125 266 242 23 42 6 24 21 251 132 19 6 250 33 2 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PEDAL; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-510-1	01	1	0407-0511	●
1	PEDAL; CLU MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-510-1	01	1	0512-		●
1	PEDAL; CLU SMOOTHER-G(C1W)	1-73907-474-1	01	1	0407-0511	●
1	PEDAL; CLU MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-73907-474-1	01	1	0512-0703		●
1	PEDAL; CLU TRANSMISSION-FULLER RTLO149 18(Y4C)	1-73907-474-1	01	1	0512-0703		●
1	PEDAL; CLU	1-73907-474-1	01	1	0512-0703			●
1	PEDAL; CLU MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-73907-474-1	01	1	0704-		●
1	PEDAL; CLU FULLER M/T<X9B>	1-73907-474-1	01	1	0704-		●
1	PEDAL; CLU	1-73907-474-1	01	1	0704-			●
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0407-0511	●
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0512-		●	●
4	STOPPER; CLU PEDAL	1-47319-014-1	02	1	0407-0511	●
4	STOPPER; CLU PEDAL	1-47319-014-1	02	1	0512-0703		●	●
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	0704-		●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	0407-0511	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	0512-		●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	0407-0511	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	0512-		●	●
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	0407-0511	●
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	0512-		●	●
21	SPRING; RETURN,CLU PEDAL TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-445-0	01	1	0407-0511	●
21	SPRING; RETURN,CLU PEDAL MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-445-0	01	1	0512-		●
21	SPRING; RETURN,CLU PEDAL SMOOTHER-G(C1W)	1-73908-265-0	01	1	0407-0511	●
21	SPRING; RETURN,CLU PEDAL MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-73908-265-0	01	1	0512-0703		●
21	SPRING; RETURN,CLU PEDAL TRANSMISSION-FULLER RTLO149 18(Y4C)	1-73908-265-0	01	1	0512-0703		●
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	0512-0703			●
21	SPRING; RETURN,CLU PEDAL MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-73908-265-0	01	1	0704-		●
21	SPRING; RETURN,CLU PEDAL FULLER M/T<X9B>	1-73908-265-0	01	1	0704-		●
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	0704-			●
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	0407-0511	●
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	0512-		●	●
24	SHAFT; CLU PEDAL	1-73908-195-1	01	1	0407-0511	●
24	SHAFT; CLU PEDAL	1-73908-195-1	01	1	0512-		●	●
25	BOLT; PEDAL M10X35 W/LK WASHER	0-50051-035-0	02	1	0407-0511	●
25	BOLT; PEDAL M10X35 W/LK WASHER	0-50051-035-0	02	1	0512-		●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	0407-0511	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	0512-		●	●
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0407-0511	●
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0512-0512		●	●
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0601-		●	●
42	SWITCH; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-82380-114-2	01	1	0407-0511	●
42	SWITCH; CLU MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-82380-114-2	01	1	0512-		●
50	TANK; OIL,CLU	1-47530-182-0	01	1	0407-0511	●
50	TANK; OIL,CLU	1-47530-182-0	01	1	0512-		●	●
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	0407-0511	●
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	0512-		●	●
125	NUT; CLU SWITCH TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09110-510-0	01	1	0407-0511	●
125	NUT; CLU SWITCH MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09110-510-0	01	1	0512-		●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	0407-0511	●
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	0512-		●	●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-81541-121-0	01	1	0512-1502		●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A)	1-81541-121-0	01	1	0512-1502			●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	8-98297-150-0	01	1	1503-		●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A)	8-98297-150-0	01	1	1503-			●
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-80250-014-0	01	1	0407-0511	●
220	SENSOR; CLUTCH MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-80250-014-0	01	1	0512-		●
220	SENSOR; CLUTCH MJX16P M/T(Y3Z) (B)	1-80250-014-0	01	1	0512-			●
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-81541-106-1	01	1	0407-0511	●
220	SENSOR; CLUTCH 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-81541-106-1	01	1	0512-		●
242	BOLT; BRKT,CLUTCH TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER	0-50040-616-0	06	1	0407-0511	●
242	BOLT; BRKT,CLUTCH MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER	0-50040-616-0	06	1	0512-		●
242	BOLT; BRKT,CLUTCH SMOOTHER-G(C1W) M6X16 W/LK WASHER	0-50040-616-0	04	1	0407-0511	●
242	BOLT; BRKT,CLUTCH MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER	0-50040-616-0	04	1	0512-0703		●
242	BOLT; BRKT,CLUTCH TRANSMISSION-FULLER RTLO149 18(Y4C) M6X16 W/LK WASHER	0-50040-616-0	04	1	0512-0703		●
242	BOLT; BRKT,CLUTCH M6X16 W/LK WASHER	0-50040-616-0	04	1	0512-0703			●
242	BOLT; BRKT,CLUTCH MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER	0-50040-616-0	04	1	0704-		●
242	BOLT; BRKT,CLUTCH FULLER M/T<X9B> M6X16 W/LK WASHER	0-50040-616-0	04	1	0704-		●
242	BOLT; BRKT,CLUTCH M6X16 W/LK WASHER	0-50040-616-0	04	1	0704-			●
250	ROD; PUSH,CLU	1-73996-219-0	01	1	0407-0511	●
250	ROD; PUSH,CLU	1-73996-219-0	01	1	0512-		●	●
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28680-616-0	02	1	0407-0511	●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28680-616-0	02	1	0512-0512		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (A) M6X16 FLANGE	0-28680-616-0	02	1	0512-0512			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X25 FLANGE	0-28781-025-0	01	1	0407-0511	●
251	BOLT; SENSOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (C) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512		●
251	BOLT; SENSOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (C) M10X25 FLANGE	0-28751-025-0	01	1	0601-		●	●
251	BOLT; SENSOR (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-			●
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0407-0511	●
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0512-		●	●
254	BRACKET; CLU SENSOR MJX16P M/T(Y3Z) (B)	1-31349-072-1	01	1	0512-		●	●
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0407-0511	●
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0512-		●	●
254	BRACKET; CLU SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-31349-072-1	01	1	0407-0511	●
256	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0407-0511	●
256	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0512-		●	●
266	BRACKET; CLU SWITCH TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-395-1	01	1	0407-0511	●
266	BRACKET; CLU SWITCH MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-73907-395-1	01	1	0512-		●
267	WASHER; LK,CLU SWITCH TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2	9-09150-510-0	01	1	0407-0511	●
267	WASHER; LK,CLU SWITCH MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2	9-09150-510-0	01	1	0512-		●
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	0407-0511	●
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	0512-		●	●

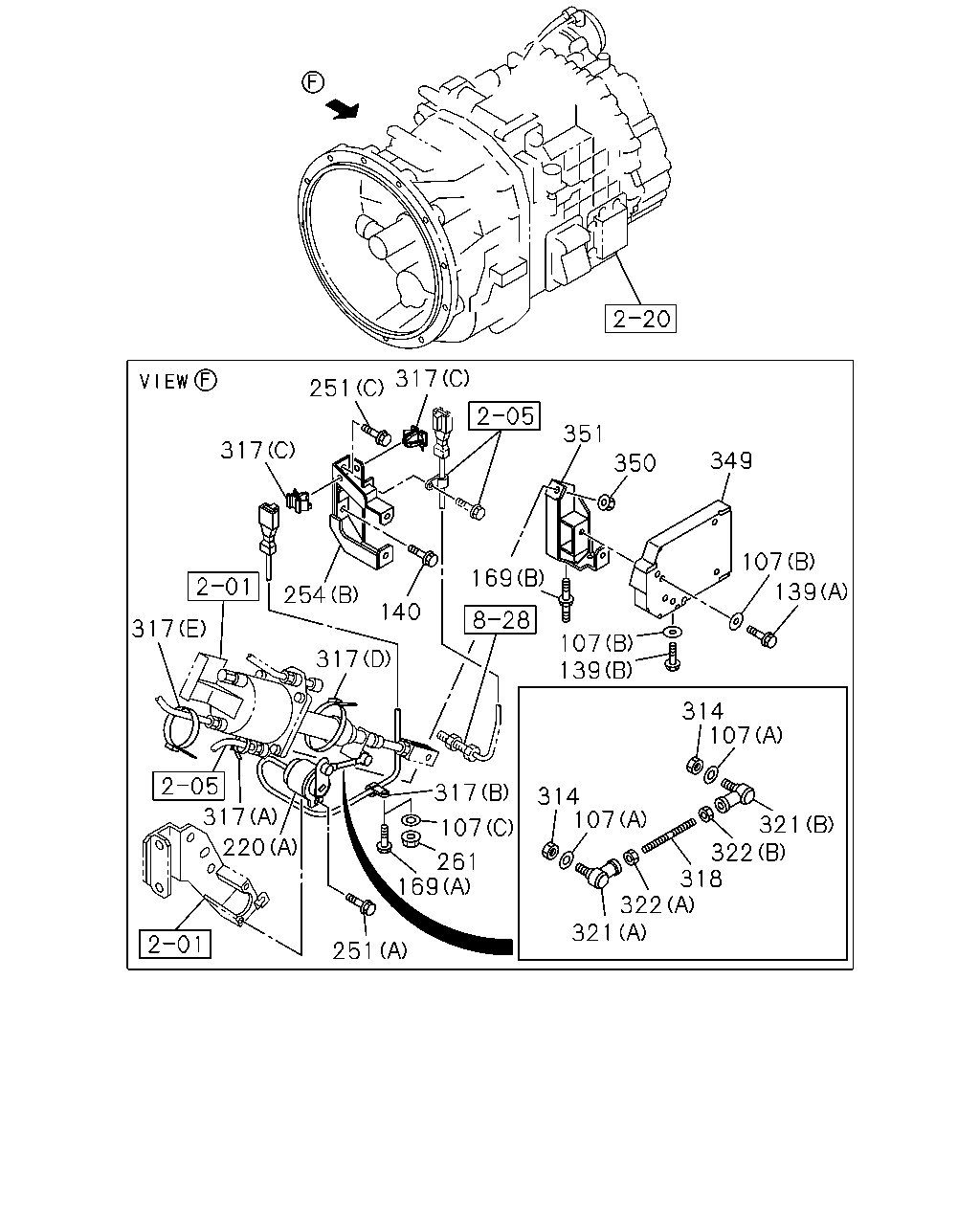

317 251 351 317 349 350 169 107 139 254 140 317 107 139 317 314 107 317 314 107 317 220 321 322 318 322 321 107 261 169 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
107	WASHER; PL MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=8.4 OD=16	0-91610-508-0	01	1	0512-		●
107	WASHER; PL MJX16P M/T(Y3Z) (C) ID=8.4 OD=16	0-91610-508-0	01	1	0512-			●
107	WASHER; PL SMOOTHER-G(C1W) (B) ID=8.4 OD=22	9-09160-708-0	06	1	0407-0511	●
107	WASHER; PL MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22	9-09160-708-0	06	1	0512-0605		●
107	WASHER; PL MJX16P M/T(Y3Z) (B) ID=8.4 OD=22	9-09160-708-0	06	1	0512-0605			●
107	WASHER; PL MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22	0-91610-708-0	06	1	0606-		●
107	WASHER; PL MJX16P M/T(Y3Z) (B) ID=8.4 OD=22	0-91610-708-0	06	1	0606-			●
107	WASHER; PL SMOOTHER-G(C1W) (A) ID=5.3 OD=16	9-09164-705-0	02	1	0407-0511	●
107	WASHER; PL MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16	9-09164-705-0	02	1	0512-0605		●
107	WASHER; PL MJX16P M/T(Y3Z) (A) ID=5.3 OD=16	9-09164-705-0	02	1	0512-0605			●
107	WASHER; PL MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16	0-91614-705-0	02	1	0606-		●
107	WASHER; PL MJX16P M/T(Y3Z) (A) ID=5.3 OD=16	0-91614-705-0	02	1	0606-			●
139	BOLT; COVER SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28080-816-0	05	1	0407-0511	●
139	BOLT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28080-816-0	05	1	0512-0512		●
139	BOLT; COVER MJX16P M/T(Y3Z) (A) M8X16 FLANGE	0-28080-816-0	05	1	0512-0512			●
139	BOLT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
139	BOLT; COVER MJX16P M/T(Y3Z) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-			●
139	BOLT; COVER SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28680-835-0	01	1	0407-0511	●
139	BOLT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●
139	BOLT; COVER MJX16P M/T(Y3Z) (B) M8X35 FLANGE	0-28680-835-0	01	1	0512-0512			●
139	BOLT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
139	BOLT; COVER MJX16P M/T(Y3Z) (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-			●
140	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511	●
140	BOLT; BRKT 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512		●
140	BOLT; BRKT 6WG1 TC-C(72L) MJX16P M/T(Y3Z) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512			●
140	BOLT; BRKT MJX16P M/T(Y3Z) M10X30 FLANGE	0-28751-030-0	01	1	0601-		●	●
169	BOLT; CLIP SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
169	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X15,M8X17 L=40	8-97320-627-0	01	1	0512-0805		●
169	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X15,M8X17 L=40	8-97320-627-0	01	1	0512-0805			●
169	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X15,M8X17 L=40	8-98009-913-0	01	1	0806-		●
169	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X15,M8X17 L=40	8-98009-913-0	01	1	0806-			●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-81541-121-0	01	1	0512-1502		●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A)	1-81541-121-0	01	1	0512-1502			●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	8-98297-150-0	01	1	1503-		●
220	SENSOR; CLUTCH 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A)	8-98297-150-0	01	1	1503-			●
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-80250-014-0	01	1	0407-0511	●
220	SENSOR; CLUTCH MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-80250-014-0	01	1	0512-		●
220	SENSOR; CLUTCH MJX16P M/T(Y3Z) (B)	1-80250-014-0	01	1	0512-			●
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-81541-106-1	01	1	0407-0511	●
220	SENSOR; CLUTCH 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-81541-106-1	01	1	0512-		●
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28680-616-0	02	1	0407-0511	●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28680-616-0	02	1	0512-0512		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (A) M6X16 FLANGE	0-28680-616-0	02	1	0512-0512			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M10X25 FLANGE	0-28781-025-0	01	1	0407-0511	●
251	BOLT; SENSOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (C) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512		●
251	BOLT; SENSOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512			●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (C) M10X25 FLANGE	0-28751-025-0	01	1	0601-		●	●
251	BOLT; SENSOR (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
251	BOLT; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
251	BOLT; SENSOR MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-			●
254	BRACKET; CLU SENSOR MJX16P M/T(Y3Z) (B)	1-31349-072-1	01	1	0512-		●	●
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0407-0511	●
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0512-		●	●
254	BRACKET; CLU SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-31349-072-1	01	1	0407-0511	●
261	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91150-208-0	01	1	0512-0602		●
261	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91150-208-0	01	1	0512-0602			●
261	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-208-0	01	1	0603-0811		●
261	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-208-0	01	1	0603-0811			●
261	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0812-		●
261	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0812-			●
314	NUT; ROD SMOOTHER-G(C1W) M5	9-99110-405-0	02	1	0407-0511	●
314	NUT; ROD MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5	9-99110-405-0	02	1	0512-0512		●
314	NUT; ROD MJX16P M/T(Y3Z) M5	9-99110-405-0	02	1	0512-0512			●
314	NUT; ROD MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5	0-91110-505-0	02	1	0601-		●
314	NUT; ROD MJX16P M/T(Y3Z) M5	0-91110-505-0	02	1	0601-			●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	01	1	0512-		●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C) OD=9 H=6	1-09709-178-0	01	1	0512-			●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-			●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32	9-09525-065-0	01	1	0512-0606		●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) ID=11 L=32	9-09525-065-0	01	1	0512-0606			●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32	0-95235-065-0	01	1	0607-		●
317	CLIP; CABLE 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) ID=11 L=32	0-95235-065-0	01	1	0607-			●
317	CLIP; CABLE SMOOTHER-G(C1W) (A) L=180	1-09707-162-1	01	1	0407-0511	●
317	CLIP; CABLE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) L=180	1-09707-162-1	01	1	0512-		●
317	CLIP; CABLE MJX16P M/T(Y3Z) (A) L=180	1-09707-162-1	01	1	0512-			●
317	CLIP; CABLE SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	02	1	0407-0511	●
317	CLIP; CABLE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	02	1	0512-		●
317	CLIP; CABLE SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	01	1	0407-0511	●
317	CLIP; CABLE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	01	1	0512-		●
317	CLIP; CABLE MJX16P M/T(Y3Z) (D) L=250	5-09707-030-1	01	1	0512-			●
317	CLIP; CABLE SMOOTHER-G(C1W) (E) L=140	5-09707-031-1	01	1	0407-0511	●
317	CLIP; CABLE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=140	5-09707-031-1	01	1	0512-		●
317	CLIP; CABLE MJX16P M/T(Y3Z) (E) L=140	5-09707-031-1	01	1	0512-			●
317	CLIP; CABLE SMOOTHER-G(C1W) (B) ID=11 L=20	9-09525-035-0	01	1	0407-0511	●
317	CLIP; CABLE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=20	9-09525-035-0	01	1	0512-0606		●
317	CLIP; CABLE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=20	0-95235-035-0	01	1	0607-		●
318	ROD; CLU SMOOTHER-G(C1W)	9-08410-506-0	01	1	0407-0511	●
318	ROD; CLU MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	9-08410-506-0	01	1	0512-0606		●
318	ROD; CLU MJX16P M/T(Y3Z)	9-08410-506-0	01	1	0512-0606			●
318	ROD; CLU MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	0-84100-506-0	01	1	0607-		●
318	ROD; CLU MJX16P M/T(Y3Z)	0-84100-506-0	01	1	0607-			●
321	END; ROD SMOOTHER-G(C1W) (A)	1-09760-103-1	01	1	0407-0511	●
321	END; ROD MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-09760-103-2	01	1	0512-		●
321	END; ROD MJX16P M/T(Y3Z) (A)	1-09760-103-2	01	1	0512-			●
321	END; ROD SMOOTHER-G(C1W) (B)	1-09760-104-1	01	1	0407-0511	●
321	END; ROD MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-09760-104-2	01	1	0512-		●
321	END; ROD MJX16P M/T(Y3Z) (B)	1-09760-104-2	01	1	0512-			●
322	NUT; ROD END SMOOTHER-G(C1W) (B) M5 LH THREAD	9-09840-277-0	01	1	0407-0511	●
322	NUT; ROD END MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M5 LH THREAD	9-09840-277-0	01	1	0512-		●
322	NUT; ROD END MJX16P M/T(Y3Z) (B) M5 LH THREAD	9-09840-277-0	01	1	0512-			●
322	NUT; ROD END SMOOTHER-G(C1W) (A) M5	9-99110-405-0	01	1	0407-0511	●
322	NUT; ROD END MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5	9-99110-405-0	01	1	0512-0512		●
322	NUT; ROD END MJX16P M/T(Y3Z) (A) M5	9-99110-405-0	01	1	0512-0512			●
322	NUT; ROD END MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5	0-91110-505-0	01	1	0601-		●
322	NUT; ROD END MJX16P M/T(Y3Z) (A) M5	0-91110-505-0	01	1	0601-			●
349	COVER; SENSOR SMOOTHER-G(C1W)	1-31349-075-0	01	1	0407-0511	●
349	COVER; SENSOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-31349-075-0	01	1	0512-		●
349	COVER; SENSOR MJX16P M/T(Y3Z)	1-31349-075-0	01	1	0512-			●
350	NUT; COVER SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	01	1	0407-0511	●
350	NUT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
350	NUT; COVER MJX16P M/T(Y3Z) M10 FLANGE	0-91150-210-0	01	1	0512-0602			●
350	NUT; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	01	1	0603-		●
350	NUT; COVER MJX16P M/T(Y3Z) M10 FLANGE	0-91180-210-0	01	1	0603-			●
351	BRACKET; COVER SMOOTHER-G(C1W)	1-31349-073-0	01	1	0407-0511	●
351	BRACKET; COVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-31349-079-0	01	1	0512-		●
351	BRACKET; COVER MJX16P M/T(Y3Z)	1-31349-079-0	01	1	0512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
