8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#2915) — 99 parça
çizim 28407
65 67 65 67
BalonParca AdiParca NoAdetTipApplied Date A B
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-066-1 01 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) 		1-82380-070-1 03 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-115-1 01 1 9307- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 01 1 9307- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 02 1 9307- ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 9002- ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=10.0 		9-99111-416-0 04 1 9002- ● ●

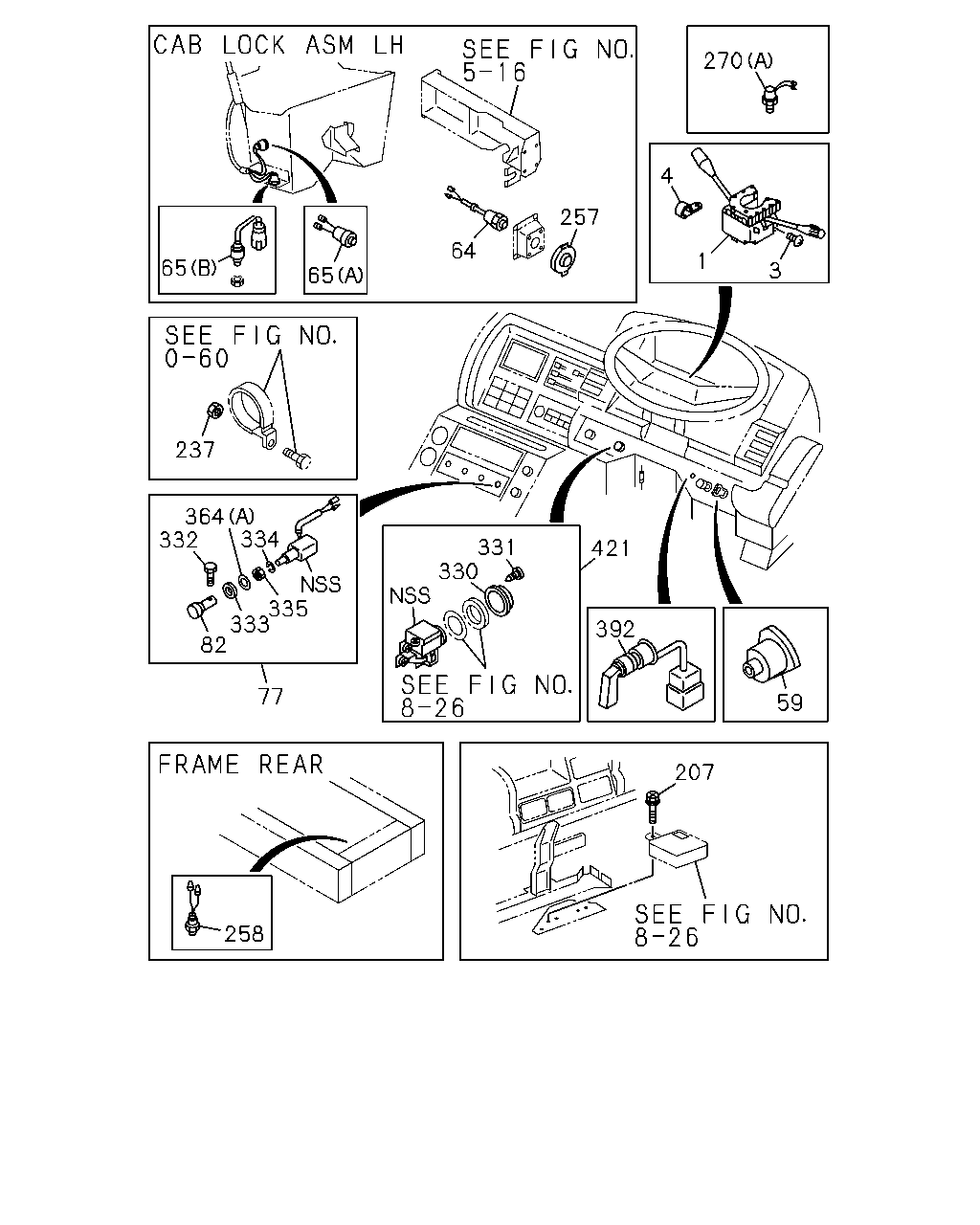

çizim 93887
207 59 392 421 331 330 258 77 82 333 335 334 364 332 237 64 257 4 1 3 270 65 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
INTERMITTENT WIPER<C13> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-286-4 01 1 9002- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-255-6 01 1 9002- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-258-6 01 1 9002- ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. INTERMITTENT WIPER<C13> 		1-82360-289-4 01 1 9002- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9002- ● ●
4 CLIP; COMB SW
ID=13 L=20 		9-09525-232-0 01 1 9002- ● ●
59 SWITCH; IGNITION 1-82313-009-1 01 1 9002- ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-069-0 01 1 9002-9306 ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 9307- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-066-1 01 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) 		1-82380-070-1 03 1 9002-9306 ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-115-1 01 1 9307- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 01 1 9307- ● ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 02 1 9307- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-193-0 01 1 9002- ● ●
82 KNOB; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82346-057-1 01 1 9002- ● ●
207 SCREW; RELAY
AUTO DOOR LOCK<AU4> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9205- ● ●
237 NUT
EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> M6 		9-09110-506-0 02 1 9002-9011 ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> 		1-82389-008-0 01 1 9002- ● ●
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> 		1-82410-079-0 01 1 9002-9306 ●
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> 		1-82410-137-0 01 1 9307- ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-036-0 01 1 9002-9306 ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9307-9308 ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9309-9411 ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9309-9411 ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-057-0 01 1 9412- ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-057-0 01 1 9412- ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-82340-278-0 01 1 9307- ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9002- ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9002- ● ●
332 SCREW; KNOB
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09106-002-0 AR 1 9002- ● ●
333 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09449-033-0 01 1 9002- ● ●
334 WASHER; LK,SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ●
335 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09400-035-0 01 1 9002- ● ●
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002- ● ●
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ●
392 SWITCH ASM; ANTI JACK
FULL TRACTOR TRUCK<RD6> 		1-82330-026-0 01 1 9002-9111 ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9002- ● ●

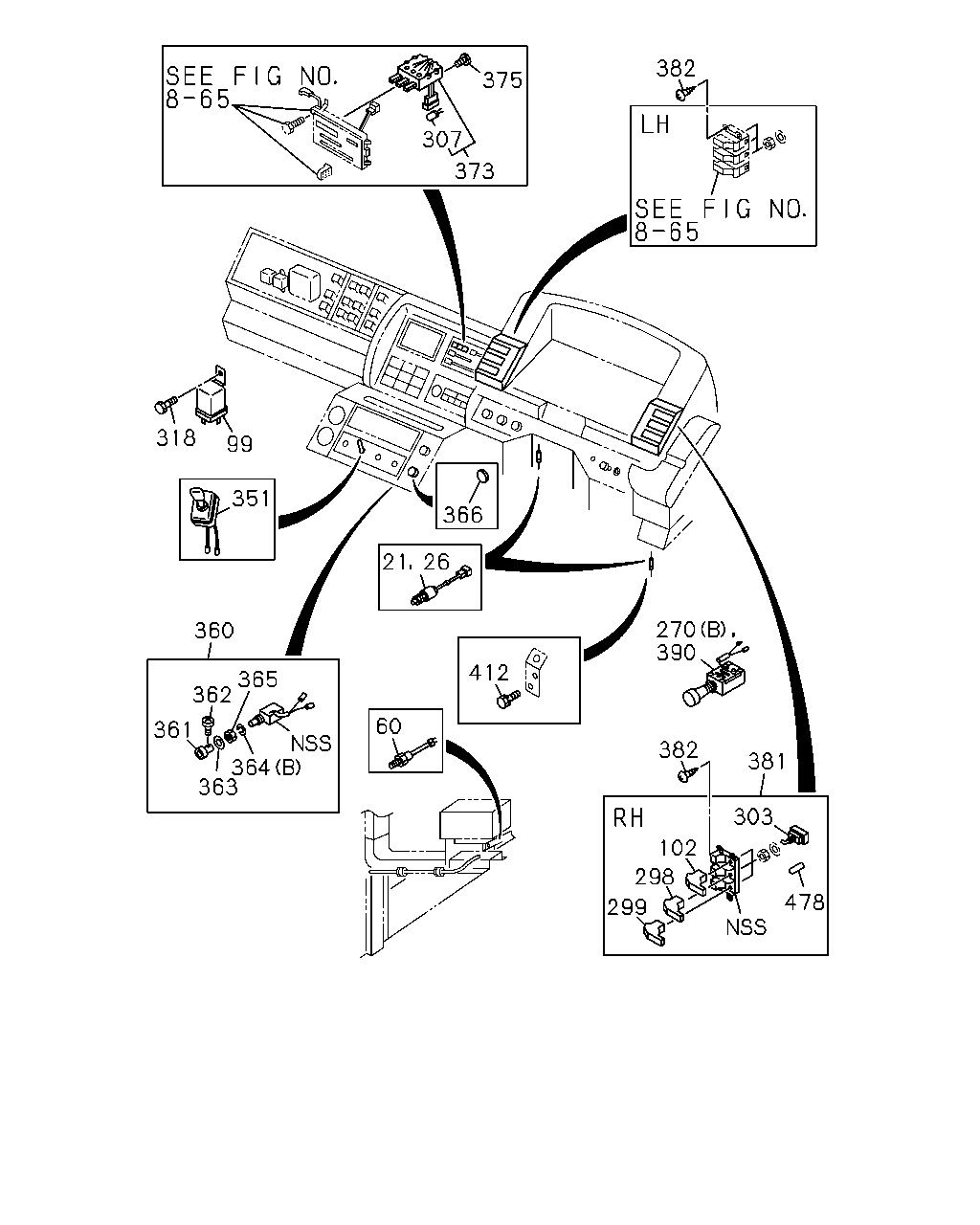

çizim 94386
478 303 381 382 102 298 299 390 270 412 60 21 26 366 365 362 364 363 361 360 351 99 318 373 307 375 382
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU 1-82380-009-3 01 1 9002- ● ●
26 SWITCH; ACCEL 1-82380-089-0 01 1 9002- ● ●
60 SWITCH; STARTER SUB 1-82380-065-0 01 1 9002-9306 ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9307- ● ●
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9002- ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9002- ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-036-0 01 1 9002-9306 ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9307-9308 ● ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9309-9411 ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-044-0 01 1 9309-9411 ●
270 SWITCH; PRESS,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-057-0 01 1 9412- ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-48340-057-0 01 1 9412- ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-82340-278-0 01 1 9307- ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9002- ● ●
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-083-0 01 1 9002- ● ●
303 SWITCH; MICRO
FOG LAMP 		1-82350-127-0 01 1 9002- ● ●
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIRCON 		1-82350-091-0 02 1 9002- ● ●
303 SWITCH; MICRO
EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING 		1-82350-091-0 01 1 9002- ● ●
307 BULB ASM; SW
28V 1.4W 		1-82194-050-0 03 1 9002- ● ●
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ●
351 SWITCH; BULB CHECK
EXH HEAT WARNING<W50> 		1-82350-023-0 01 1 9002- ● ●
360 SWITCH ASM; DIFF LK 1-82340-143-1 01 1 9002- ● ●
361 KNOB; DIFF LK 1-82346-059-1 01 1 9002- ● ●
362 SCREW; DIFF LK 1-09106-002-0 01 1 9002- ● ●
363 NUT 1-09449-032-0 01 1 9002- ● ●
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002- ● ●
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002- ● ●
365 NUT; DIFF LOCK SW 1-09400-034-0 01 1 9002- ● ●
366 SEAL; SW HOLE DIFF LK
OD=36 		1-76778-007-0 01 1 9002-9306 ● ●
366 SEAL; SW HOLE DIFF LK 5-76777-035-0 01 1 9307-9502 ● ●
373 SWITCH; A/C 1-82380-061-2 01 1 9002- ● ●
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-179-0 01 1 9002- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-153-0 01 1 9002- ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9002- ● ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82340-195-0 01 1 9002-9504 ●
390 SWITCH ASM; GOV CONT
GOVERNOR CONTROL<W69> 		1-82380-077-1 01 1 9505- ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9002-9204 ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205- ●
412 BOLT; BRKT SW
FIRE TRUCK<RA9> PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9307-9411 ●
478 CAP; COLLAR 1-82199-008-0 03 1 9002- ● ●

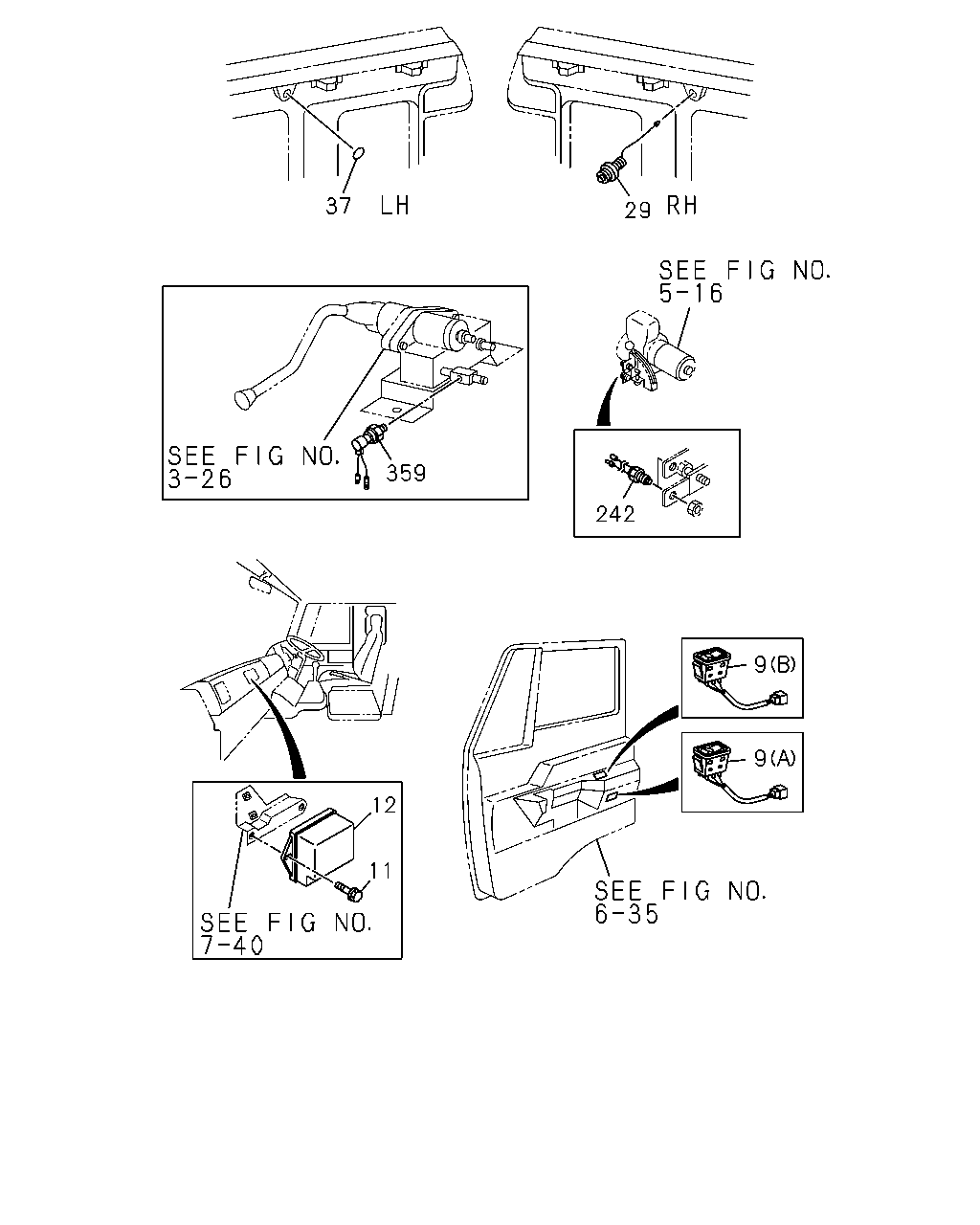

çizim 95328
9 9 242 29 37 359 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 02 1 9205-9306 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) PASSENGER 		1-82380-124-0 02 1 9205- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 01 1 9307- ● ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9203- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9203- ● ●
29 SWITCH; DOOR 1-82440-051-3 01 1 9002-9105 ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9106- ● ●
37 SEAL; DOOR SW HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9002- ● ●
242 SWITCH
AUTO CAB TILT<WV2> 		1-82380-074-0 02 1 9002-9306 ● ●
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 02 1 9307- ● ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> 		1-82410-080-1 01 1 9002-9306 ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> 		1-82410-141-1 01 1 9307-9511 ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> 		1-82410-176-0 01 1 9512- ●
