Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#29149) — 37 parça
◀

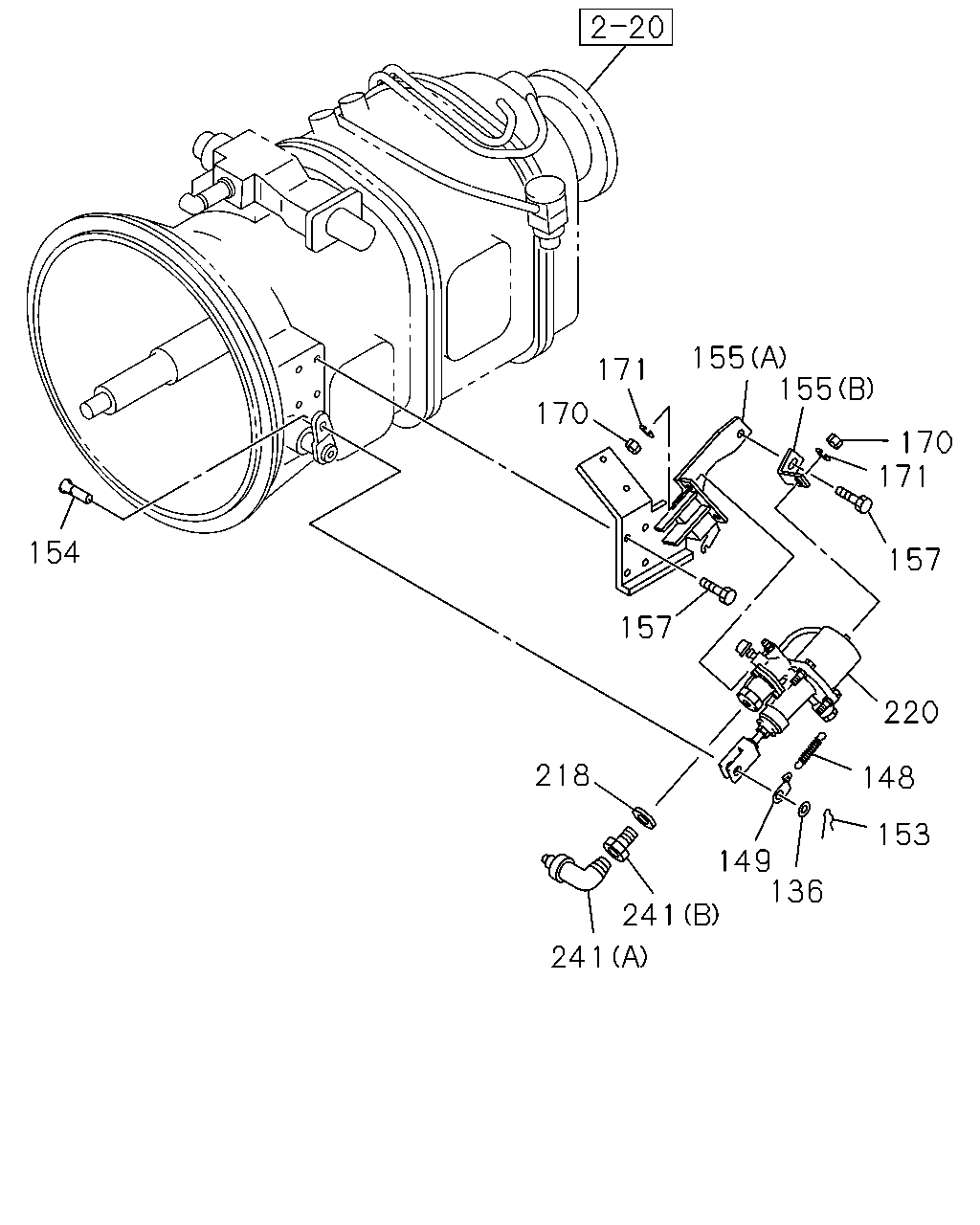

[201B] BOOSTER FIXING (21 parça)

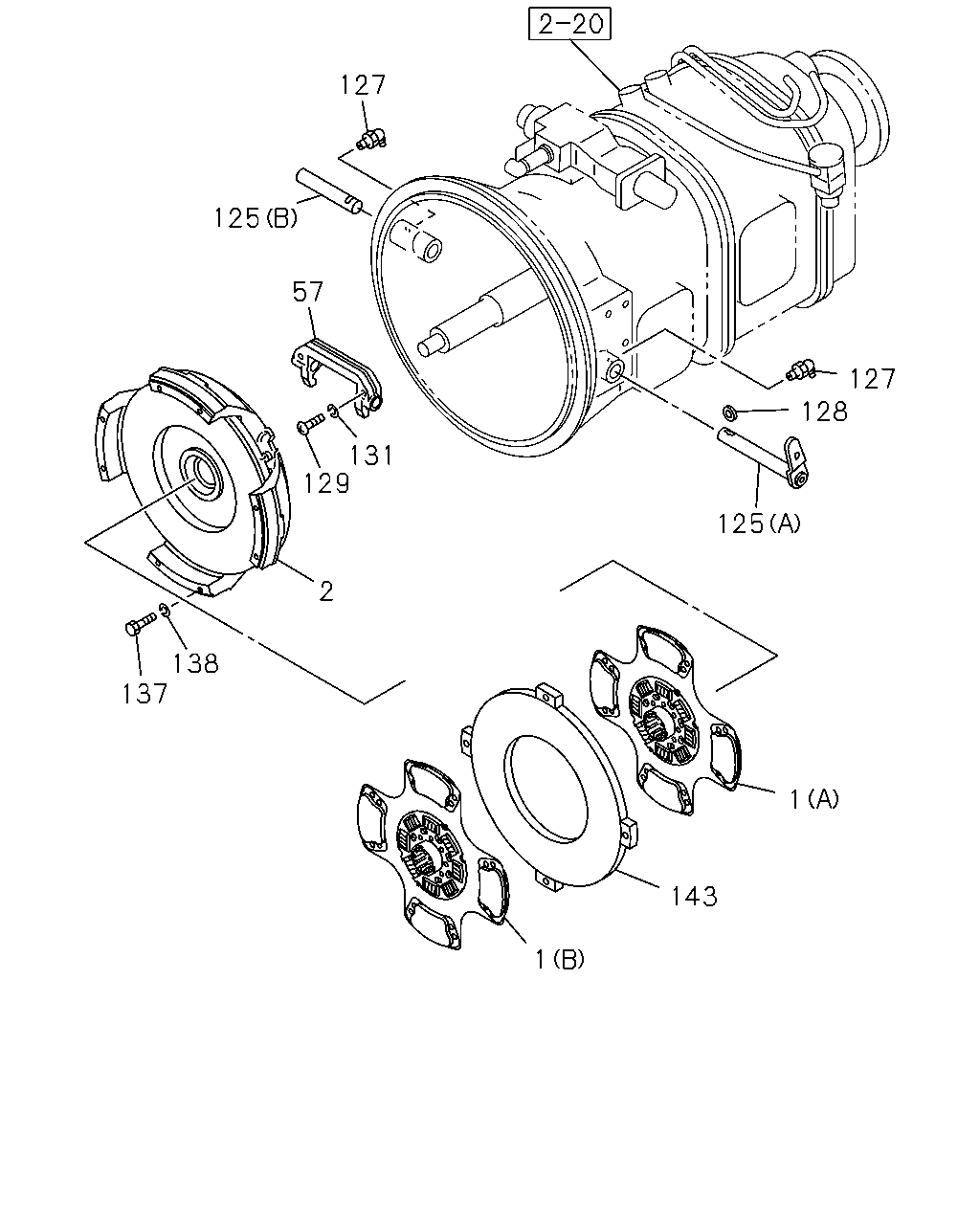

[201B] DISK AND PLATE (16 parça)
▶
155
155
171
170
170
171
154
157
157
220
218
148
153
149
136
241
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
136
WASHER; PL
ID=15
9-09160-514-0
01
1
0512-0605
136
WASHER; PL
ID=15
0-91610-514-0
01
1
0606-
148
SPRING; CLU RETURN
9-09744-034-0
01
1
0512-
149
EYE; SPRING,RETURN SPRING
1-31426-025-0
01
1
0512-
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
0512-
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
0512-
155
BRACKET; MINIPACK
(B)
1-31429-367-0
01
1
0512-
155
BRACKET; MINIPACK
(A)
1-31429-458-0
01
1
0512-
157
BOLT; BRKT
M10X16 FLANGE
0-28181-016-0
01
1
0512-0512
157
BOLT; BRKT
M10X16 FLANGE
0-28151-016-0
01
1
0601-
157
BOLT; BRKT
M10X25 W/LK WASHER
0-50051-025-0
04
1
0512-0906
157
BOLT; BRKT
M10X25 W/LK WASHER
0-50551-025-0
04
1
0907-
170
NUT; BOOSTER FIX
M8
9-09110-408-0
03
1
0512-0512
170
NUT; BOOSTER FIX
M8
0-91110-508-0
03
1
0601-
171
WASHER; LK,BOOSTER FIX
ID=8.2
9-09150-508-0
03
1
0512-0603
171
WASHER; LK,BOOSTER FIX
ID=8.2
0-91510-508-0
03
1
0604-
218
GASKET
ID=14.2 OD=23.0
9-09572-014-0
01
1
0512-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-398-1
01
1
0512-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-085-0
01
1
0512-
241
CONNECTOR
(A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0512-
241
CONNECTOR
(B) M14 & PT1/4
9-48319-149-0
01
1
0512-
127
57
127
128
131
129
125
2
138
137
1
143
1
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
(A) 15.5"
1-31240-792-0
01
1
0512-
1
DISC; CLUTCH
(B) 15.5"
1-31240-793-0
01
1
0512-
2
PLATE ASM; PRESSURE,CLU
1-31220-347-0
01
1
0512-
57
FORK; SHIFT,CLU
1-31341-020-0
01
1
0512-
125
SHAFT; CLU
(B) L=146
1-31342-283-0
01
1
0512-
125
SHAFT; CLU
(A)
1-31342-279-0
01
1
0512-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0512-0512
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-
128
KEY; FEATHER,CLU SHAFT
1-31349-007-0
01
1
0512-
129
BOLT; SHIFT FORK
1-09087-021-0
02
1
0512-1206
129
BOLT; SHIFT FORK
8-98224-040-0
02
1
1207-
131
WASHER; LK,SHIFT FORK
ID=11.4
9-09850-072-0
02
1
0512-
137
BOLT; CLU COVER
1-09087-022-0
08
1
0512-
138
WASHER; LK,CLU COVER
ID=11.4
9-09850-072-0
08
1
0512-
143
PLATE; INTERMEDIATE
1-31221-098-0
01
1
0512-1509
143
PLATE; INTERMEDIATE
8-98305-946-0
01
1
1510-
