2-01A — CLUTCH (#29148) — 113 parça

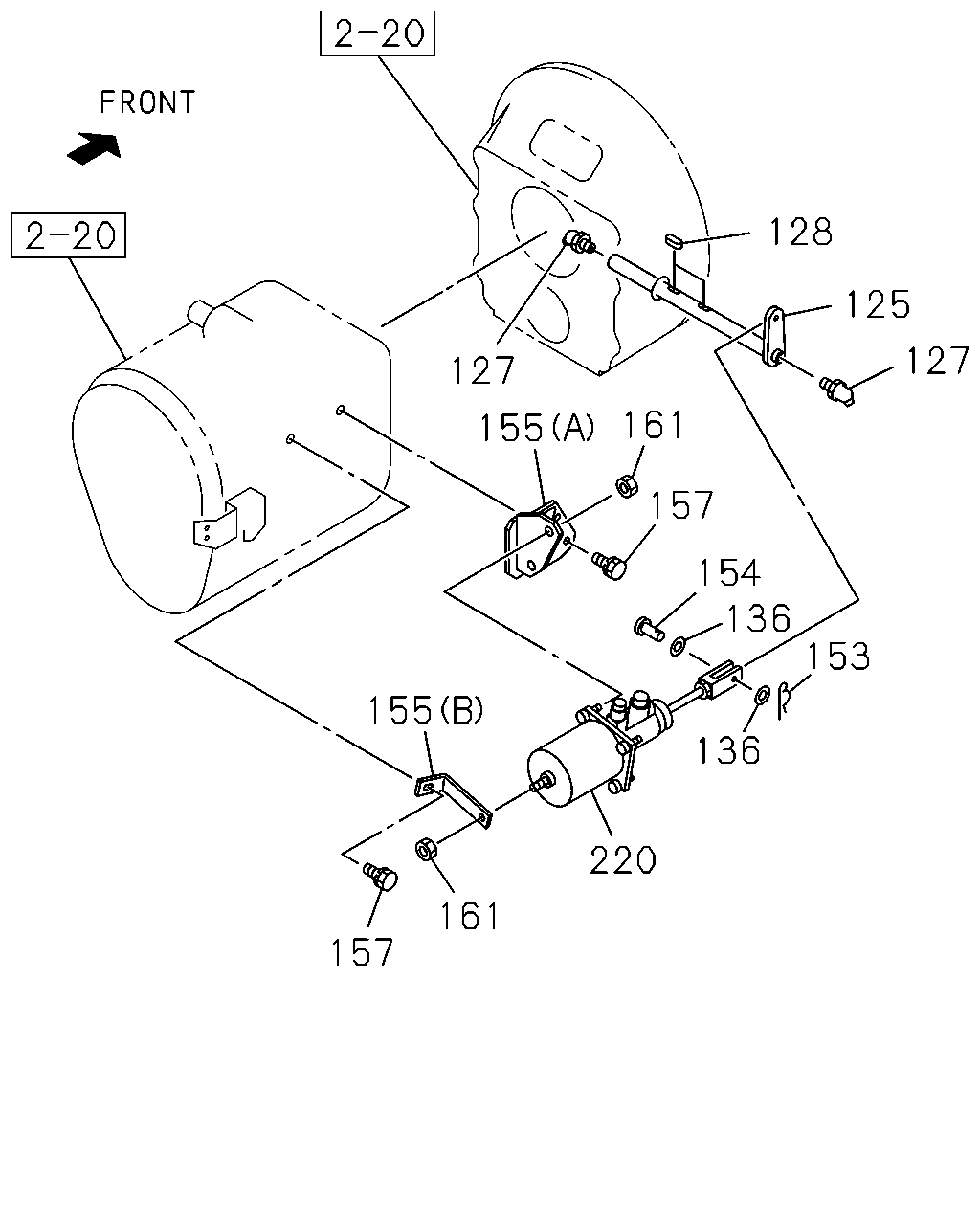

128 125 127 127 161 155 157 154 136 153 155 136 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-31342-324-0	01	1	0407-0511
125	SHAFT; CLU SMOOTHER-G(C1W)	1-31342-312-0	01	1	0407-0511
125	SHAFT; CLU	1-31342-312-0	01	1	0512-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0407-0511
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0407-
136	WASHER; PL ID=15	9-09160-514-0	02	1	0407-0605
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0407-0511
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0512-
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0407-0511
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0512-
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31429-456-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31429-457-0	01	1	0407-0511
155	BRACKET; MINIPACK SMOOTHER-G(C1W) (A)	1-31429-421-0	01	1	0407-0511
155	BRACKET; MINIPACK (A)	1-31429-470-1	01	1	0512-
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	01	1	0407-0511
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	02	1	0512-0512
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	02	1	0601-
157	BOLT; BRKT M10X30 FLANGE	0-28781-030-0	02	1	0407-0512
157	BOLT; BRKT M10X30 FLANGE	0-28751-030-0	02	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
157	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
157	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28781-025-0	02	1	0407-0511
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	03	1	0407-0511
161	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602
161	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	02	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL LINK TYPE(B2A)	1-31800-500-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-440-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-440-0	01	1	0512-1105
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-564-0	01	1	1106-

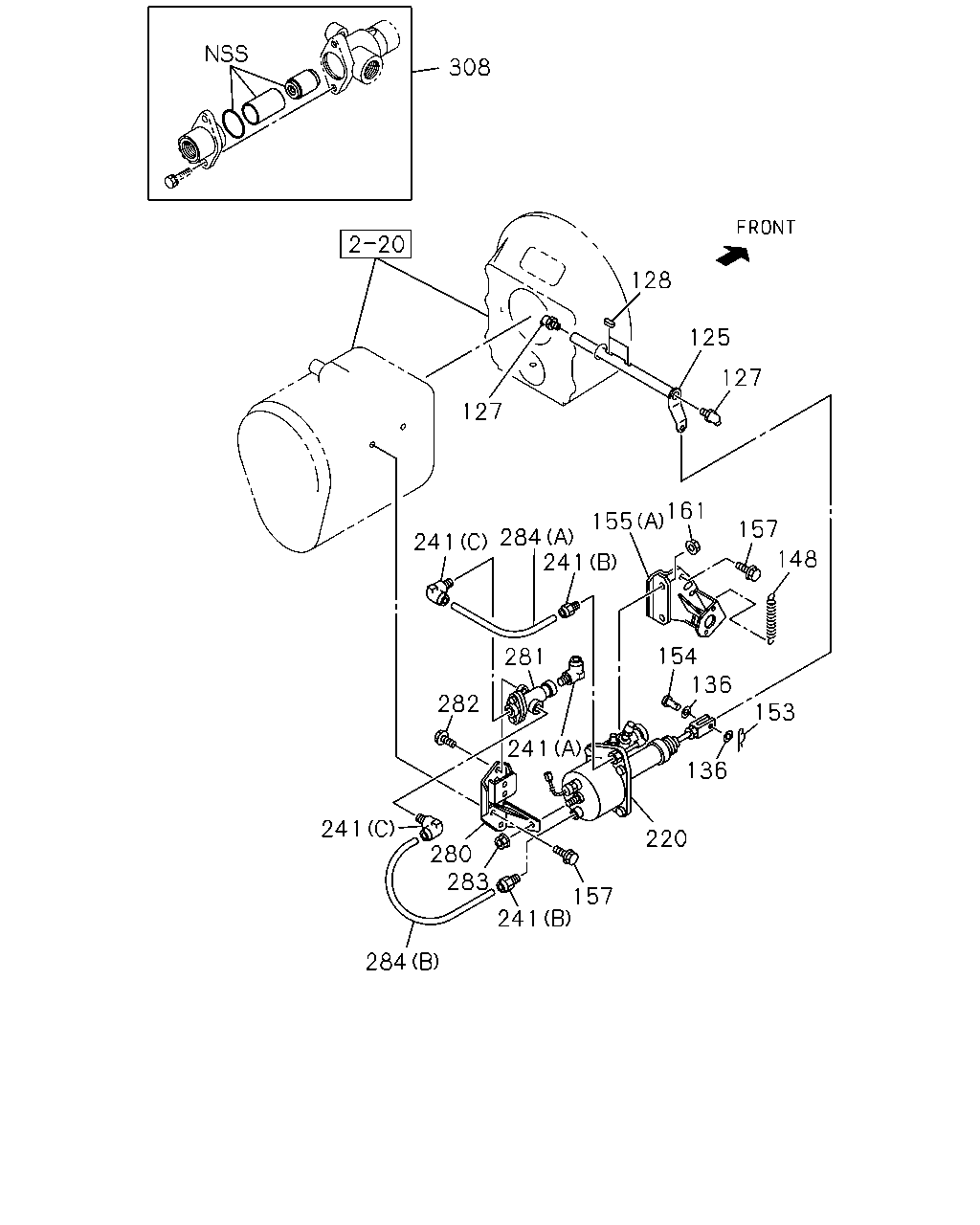

308 128 125 127 127 161 155 157 284 241 241 148 154 136 281 282 153 241 136 241 220 280 283 157 241 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-31342-324-0	01	1	0407-0511
125	SHAFT; CLU SMOOTHER-G(C1W)	1-31342-312-0	01	1	0407-0511
125	SHAFT; CLU	1-31342-312-0	01	1	0512-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0407-0511
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0512-0512
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0407-
136	WASHER; PL ID=15	9-09160-514-0	02	1	0407-0605
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-
148	SPRING; CLU RETURN SMOOTHER-G(C1W) L=43	1-31349-024-0	01	1	0407-0511
148	SPRING; CLU RETURN L=43	1-31349-024-0	01	1	0512-
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0407-0511
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0512-
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0407-0511
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0512-
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31429-456-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31429-457-0	01	1	0407-0511
155	BRACKET; MINIPACK SMOOTHER-G(C1W) (A)	1-31429-421-0	01	1	0407-0511
155	BRACKET; MINIPACK (A)	1-31429-470-1	01	1	0512-
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	01	1	0407-0511
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	02	1	0512-0512
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	02	1	0601-
157	BOLT; BRKT M10X30 FLANGE	0-28781-030-0	02	1	0407-0512
157	BOLT; BRKT M10X30 FLANGE	0-28751-030-0	02	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
157	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
157	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28781-025-0	02	1	0407-0511
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	03	1	0407-0511
161	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602
161	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	02	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL LINK TYPE(B2A)	1-31800-500-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-440-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-440-0	01	1	0512-1105
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-564-0	01	1	1106-
241	CONNECTOR SMOOTHER-G(C1W) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0407-0511
241	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0512-
241	CONNECTOR SMOOTHER-G(C1W) (B)	1-31829-590-0	02	1	0407-0511
241	CONNECTOR (B)	1-31829-590-0	02	1	0512-
241	CONNECTOR SMOOTHER-G(C1W) (C) ELBOW	1-31829-591-0	02	1	0407-0511
241	CONNECTOR (C) ELBOW	1-31829-591-0	02	1	0512-
280	BRACKET; VLV,CHK SMOOTHER-G(C1W)	1-31429-422-1	01	1	0407-0511
280	BRACKET; VLV,CHK	1-31429-422-1	01	1	0512-
281	VALVE; CHK SMOOTHER-G(C1W)	1-48410-594-0	01	1	0407-0511
281	VALVE; CHK	1-48410-594-0	01	1	0512-
282	BOLT; VLV SMOOTHER-G(C1W) M8X12 FLANGE	0-28080-812-0	02	1	0407-0511
282	BOLT; VLV M8X12 FLANGE	0-28080-812-0	02	1	0512-0512
282	BOLT; VLV M8X12 FLANGE	0-28050-812-0	02	1	0601-
283	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	01	1	0407-0511
283	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0512-0602
283	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-
284	TUBE; NYLON SMOOTHER-G(C1W) (A)	1-09376-833-1	01	1	0407-0511
284	TUBE; NYLON (A)	1-09376-833-1	01	1	0512-
284	TUBE; NYLON SMOOTHER-G(C1W) (B)	1-09376-834-1	01	1	0407-0511
284	TUBE; NYLON (B)	1-09376-834-1	01	1	0512-
308	REPAIR KIT; CHECK VALVE SMOOTHER-G(C1W)	1-31829-514-0	01	1	0407-0511
308	REPAIR KIT; CHECK VALVE	1-31829-514-0	01	1	0512-

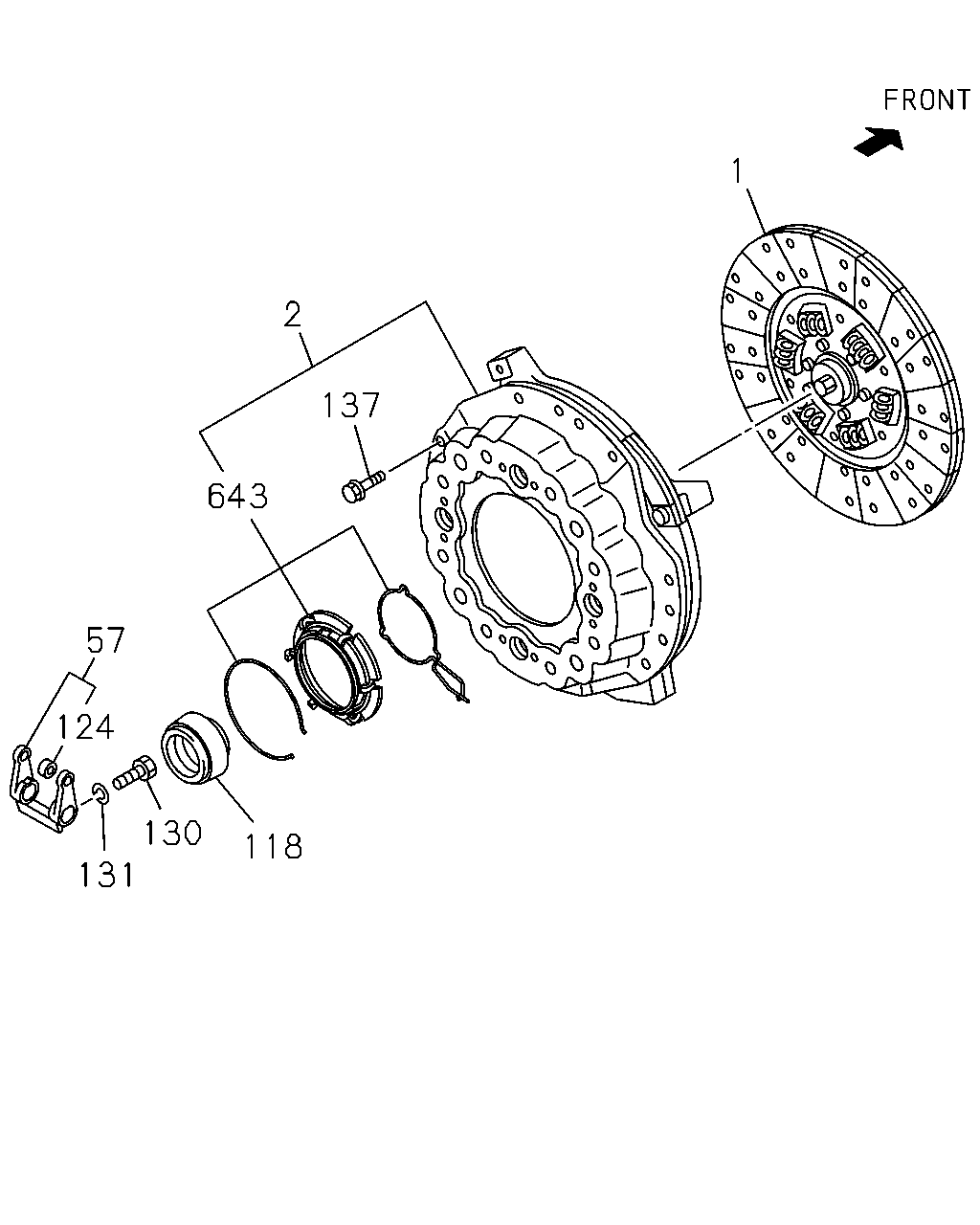

2 137 643 57 124 131 130 118 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH SMOOTHER-G(C1W) 15.5"	1-31240-802-0	01	1	0407-1008
1	DISC; CLUTCH SMOOTHER-G(C1W) 15.5"	1-31240-975-0	01	1	1009-
1	DISC; CLUTCH EXC. SMOOTHER-G(C1W) 15.5"	1-31240-907-0	01	1	0407-0709
1	DISC; CLUTCH EXC. SMOOTHER-G(C1W) 15.5"	1-31240-976-0	01	1	0710-
2	PLATE ASM; PRESSURE,CLU SMOOTHER-G(C1W)	1-31220-337-0	01	1	0407-1008
2	PLATE ASM; PRESSURE,CLU SMOOTHER-G(C1W)	1-31220-414-0	01	1	1009-
2	PLATE ASM; PRESSURE,CLU EXC. SMOOTHER-G(C1W)	1-31220-352-0	01	1	0407-0709
2	PLATE ASM; PRESSURE,CLU EXC. SMOOTHER-G(C1W)	1-31220-415-0	01	1	0710-
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0407-
118	BEARING; CLU RELEASE	1-31310-006-0	01	1	0407-0803
118	BEARING; CLU RELEASE	1-31310-021-0	01	1	0804-1306
118	BEARING; CLU RELEASE	1-31310-028-0	01	1	1307-
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0407-
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0407-0512
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0407-0603
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-
137	BOLT; CLU COVER M10X110 FLANGE	0-28186-011-0	12	1	0407-0512
137	BOLT; CLU COVER M10X110 FLANGE	0-28156-011-0	12	1	0601-
643	REPAIR KIT; CLUTCH SMOOTHER-G(C1W)	8-98207-785-0	01	1	0512-0709
643	REPAIR KIT; CLUTCH	8-98207-785-0	01	1	0710-
