1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#29146) — 48 parça

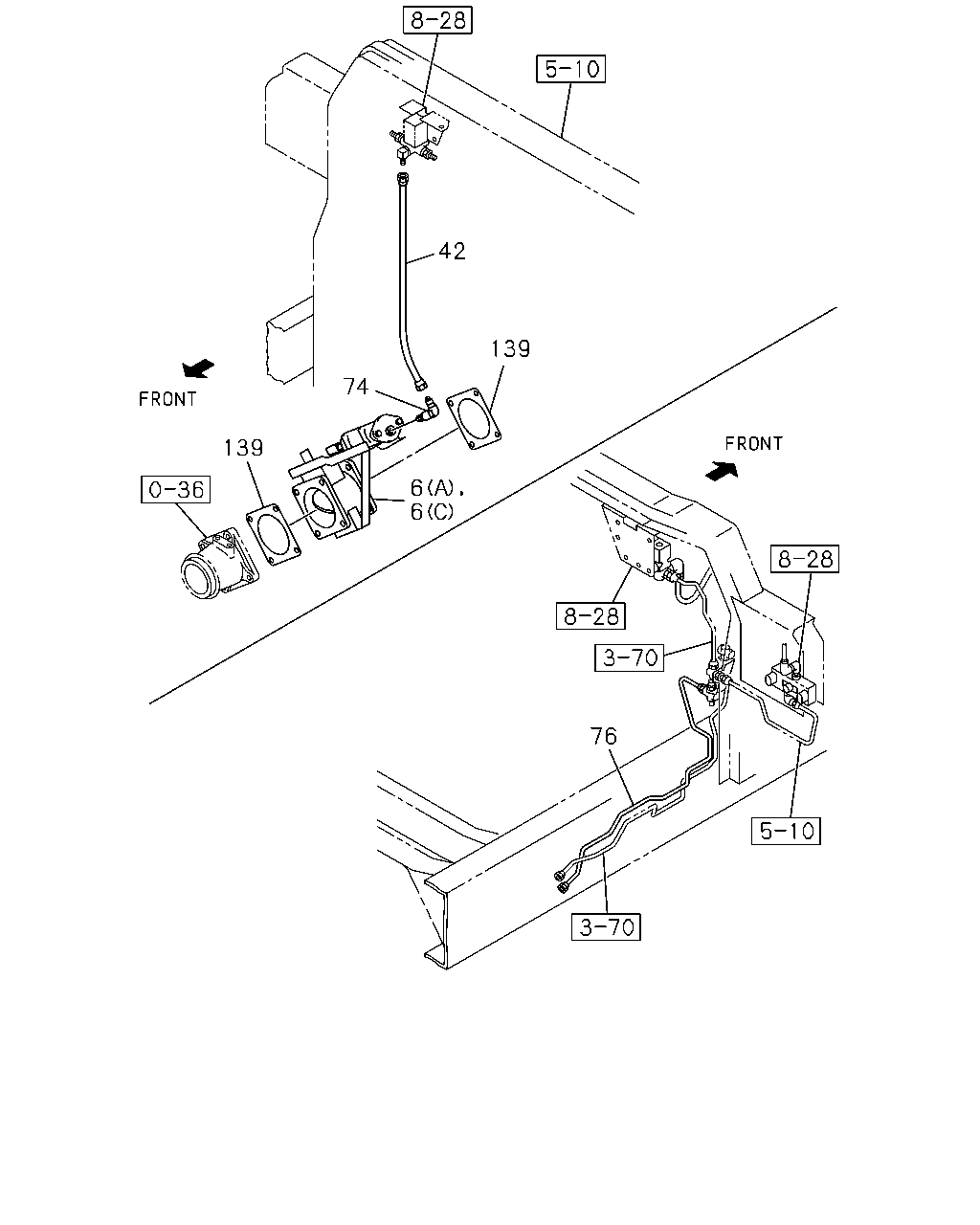

çizim 87283
42 139 74 139 6 6 76
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0407-0508 ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-0 01 1 0509-0511 ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-3 01 1 0512- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0407-0508 ●
42 HOSE; FLEX,EXH BRK
L=360 		1-09363-637-0 01 1 0512- ●
42 HOSE; FLEX,EXH BRK
L=470 		1-09363-714-0 01 1 0407-0511 ●
42 HOSE; FLEX,EXH BRK
L=470 		1-09363-714-0 01 1 0512- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
76 PIPE ASM; AIR UNION TO UNION
CYZ SHORT CHASSIS & RHD(CYZ5MC) L=587 SERVICED BY L=600 		1-47428-809-0 01 1 0512- ● ●
76 PIPE ASM; AIR UNION TO UNION
L=808 SERVICED BY L=900 		1-47428-813-0 01 1 0407-0511 ●
76 PIPE ASM; AIR UNION TO UNION
CYZ LONG CHASSIS & RHD(CYZ5MF) L=808 SERVICED BY L=900 		1-47428-813-0 01 1 0512- ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0407-0511 ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0512- ● ●

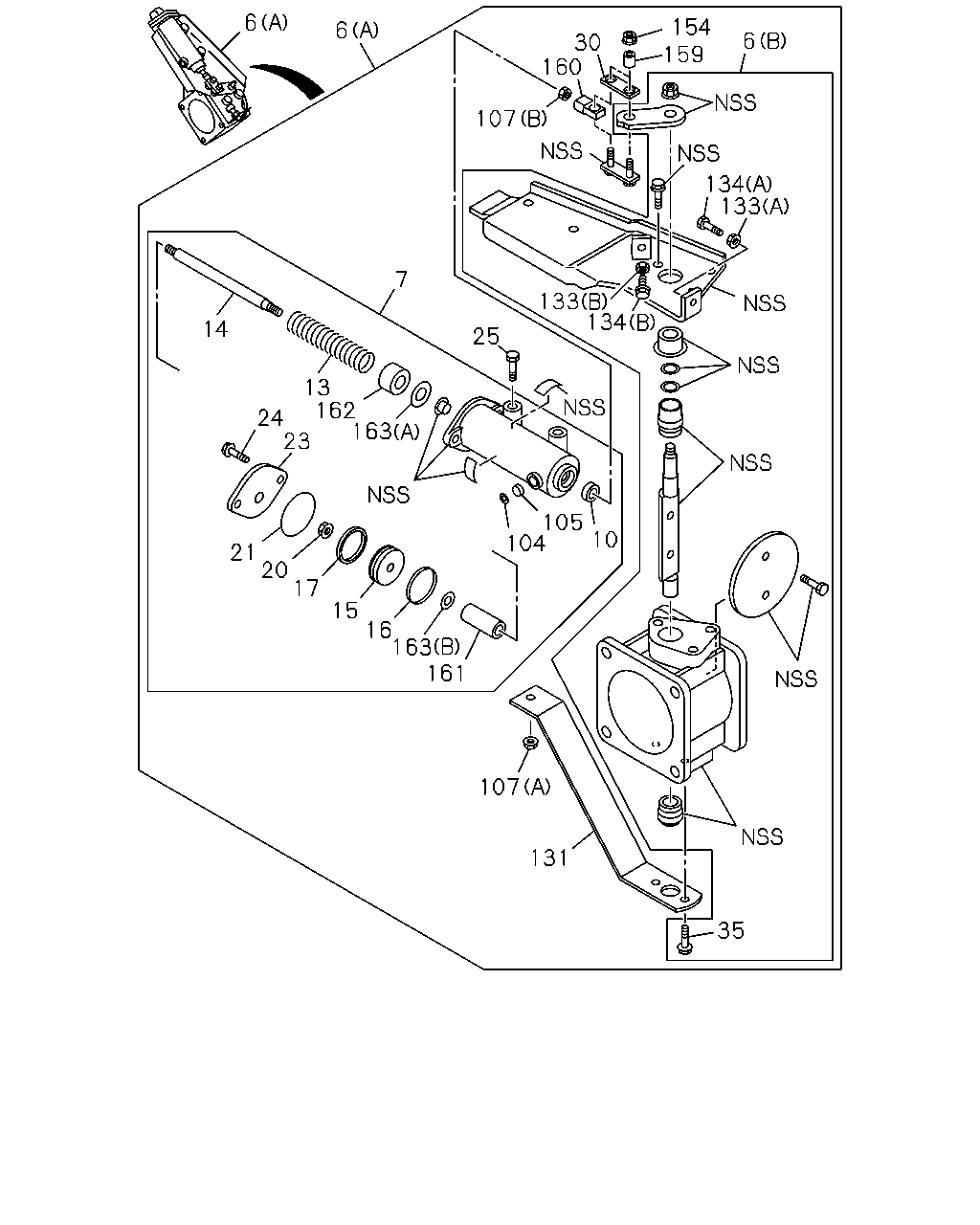

çizim 89067
6 154 159 6 6 30 160 107 7 14 25 13 162 24 23 105 104 10 21 20 17 15 16 161 107 131 35 133 134 134 133 163 163
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0407-0508 ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-0 01 1 0509-0511 ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-3 01 1 0512- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0407-0508 ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0407-0508 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0407-0508 ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 0407-0508 ●
14 SHAFT; CONT CYL 1-22199-208-0 01 1 0407-0508 ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 0407-0508 ●
16 RING; WEAR,CONT CYL 1-22189-345-0 01 1 0407-0508 ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 0407-0508 ●
20 NUT; CONT CYL 1-09440-078-0 01 1 0407-0508 ●
21 GASKET; COVER 1-22199-171-0 01 1 0407-0508 ●
23 COVER; CONT CYL 1-22199-172-0 01 1 0407-0508 ●
24 BOLT; COVER 1-22199-174-0 02 1 0407-0508 ●
25 BOLT; CONT CYL 1-09000-743-0 02 1 0407-0508 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0407-0508 ●
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0407-0508 ●
104 RING; RET 9-88510-331-0 01 1 0407-0508 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0407-0508 ●
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0407-0508 ●
107 NUT; CONT CYL
(B) M10 		9-09111-410-0 01 1 0407-0508 ●
131 PLATE; BODY 1-22189-359-0 01 1 0407-0508 ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0407-0508 ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0407-0508 ●
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0407-0508 ●
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0407-0508 ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0407-0508 ●
159 COLLAR; CONT CYL 1-22197-151-0 02 1 0407-0508 ●
160 JOINT; CONT CYL 1-22189-363-0 01 1 0407-0508 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0407-0508 ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0407-0508 ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0407-0508 ●
163 WASHER; CONT CYL
(B) 		1-22199-209-0 01 1 0407-0508 ●
