1-50 — EXHAUST PIPE AND SILENCER (#29145) — 166 parça

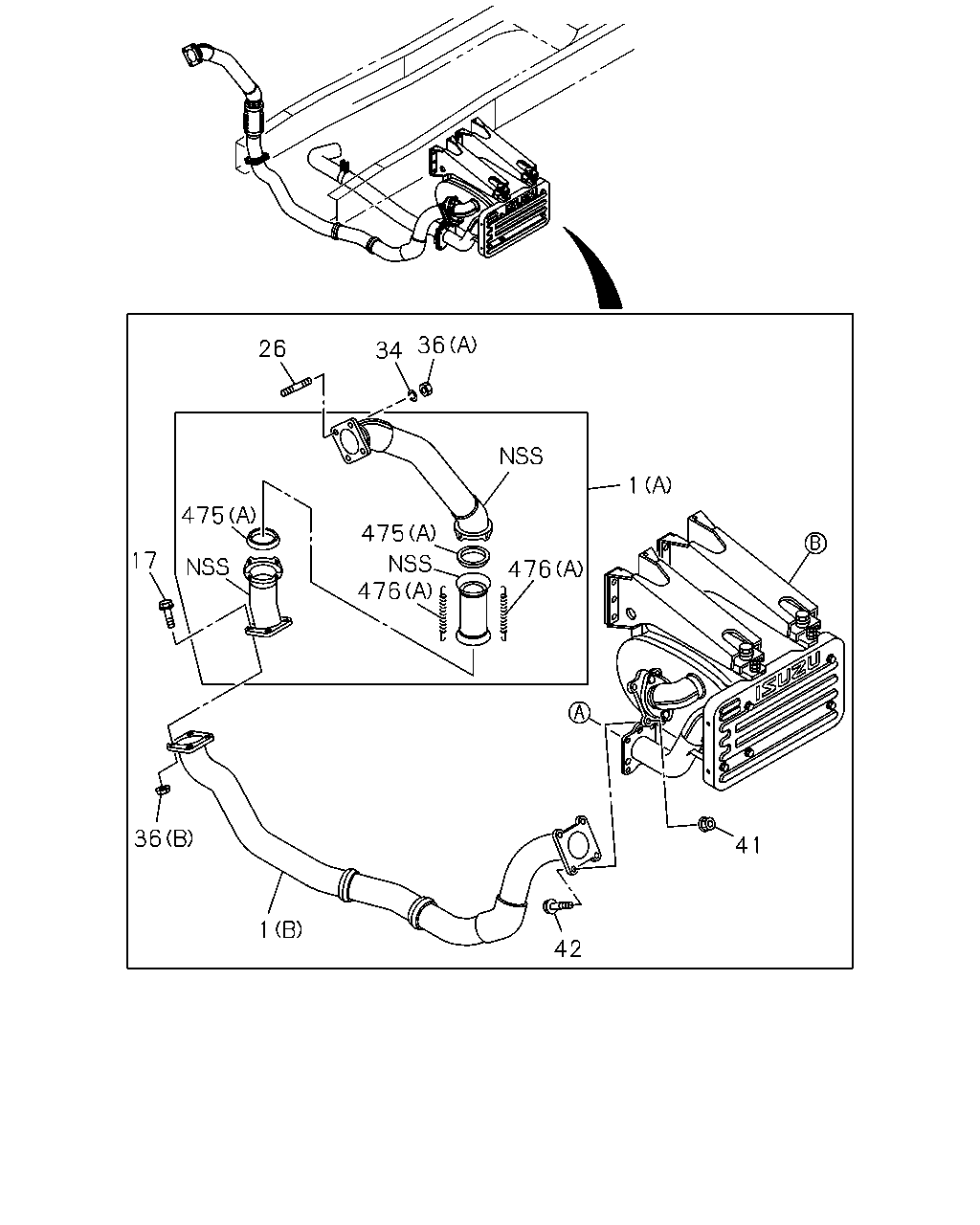

36 26 34 1 475 475 17 476 476 36 41 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 6WG1 TC-C(72L) (A)	1-22123-774-2	01	1	0512-0606	●	●
1	PIPE; EXH 6WG1 TC-C(72L) (A)	1-22124-034-0	01	1	0607-	●	●
1	PIPE; EXH (B)	1-22123-762-0	01	1	0407-0511			●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0512-	●	●
1	PIPE; EXH (A)	1-22123-773-2	01	1	0407-0511			●
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-773-2	01	1	0512-0606	●
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22124-033-0	01	1	0607-	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0407-0511			●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0512-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0407-0511			●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0512-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0407-0511			●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0512-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0407-0511			●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0512-	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0407-0511			●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0512-0512	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0407-0511			●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0512-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0407-0511			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0407-0511			●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0512-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0407-0511			●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0512-	●	●

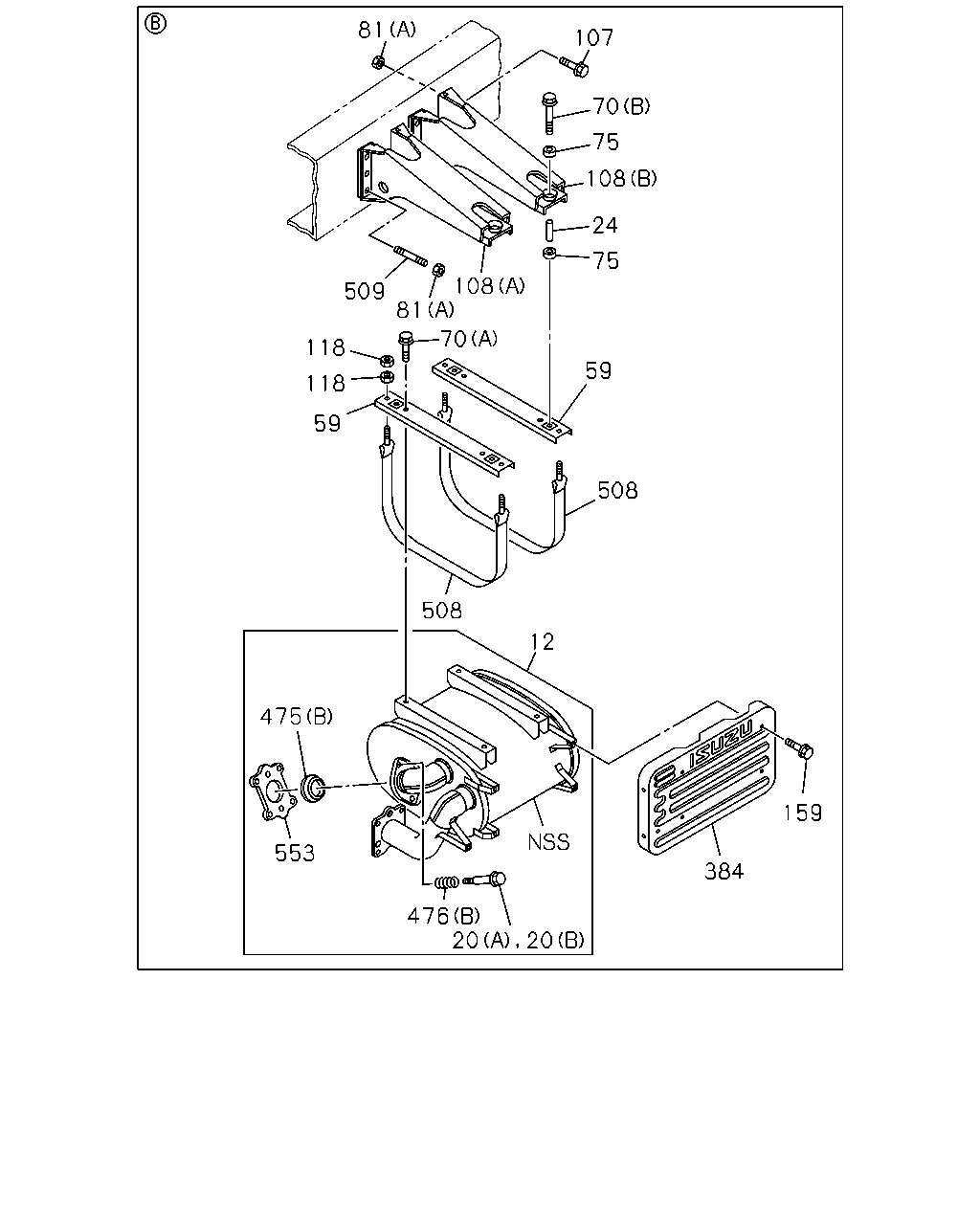

81 107 70 75 108 24 75 108 509 81 70 118 59 118 59 508 508 12 475 159 553 384 476 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH 6WG1 TC-C(72L)	1-22141-192-1	01	1	0512-	●	●
12	SILENCER ASM; EXH	1-22141-127-2	01	1	0407-0511			●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8)	1-22141-129-2	01	1	0512-	●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0512-0701	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0501-0511			●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) (B) M10X51.4	8-94436-943-0	02	1	0512-0701	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0407-0412			●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0501-0511			●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-C(72L) (B) M10X51.4	1-09009-167-0	02	1	0512-0701	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0407-0511			●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0512-	●	●
59	BRACKET; EXH SILENCER,FRT	1-22134-147-1	02	1	0407-0511			●
59	BRACKET; EXH SILENCER,FRT	1-22134-147-1	02	1	0512-	●	●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	0512-0512		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0407-0511			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0512-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0512-0512		●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0407-0511			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0512-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	06	1	0407-0511			●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0407-0511			●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0512-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0407-0511			●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0407-0511			●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0512-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	06	1	0407-0511			●
107	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	06	1	0512-0512	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0601-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-145-0	01	1	0407-0511			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-162-0	01	1	0512-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-146-0	01	1	0407-0511			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-163-0	01	1	0512-	●	●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0407-0511			●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0512-0512	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0601-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0407-0511			●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0512-	●	●
384	PROTECTOR; HEAT SILENCER MTG	1-22119-556-0	01	1	0407-0511			●
384	PROTECTOR; HEAT SILENCER MTG	1-22119-556-0	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0407-0511			●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0512-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0407-0511			●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0512-	●	●
508	BAND; EXHAUST SILENCER	1-22159-381-1	02	1	0407-0408			●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0409-0511			●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0512-	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0407-0511			●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0512-	●	●
553	FLANGE; SILENCER	1-22115-217-0	01	1	0407-0511			●
553	FLANGE; SILENCER	1-22115-217-0	01	1	0512-	●	●

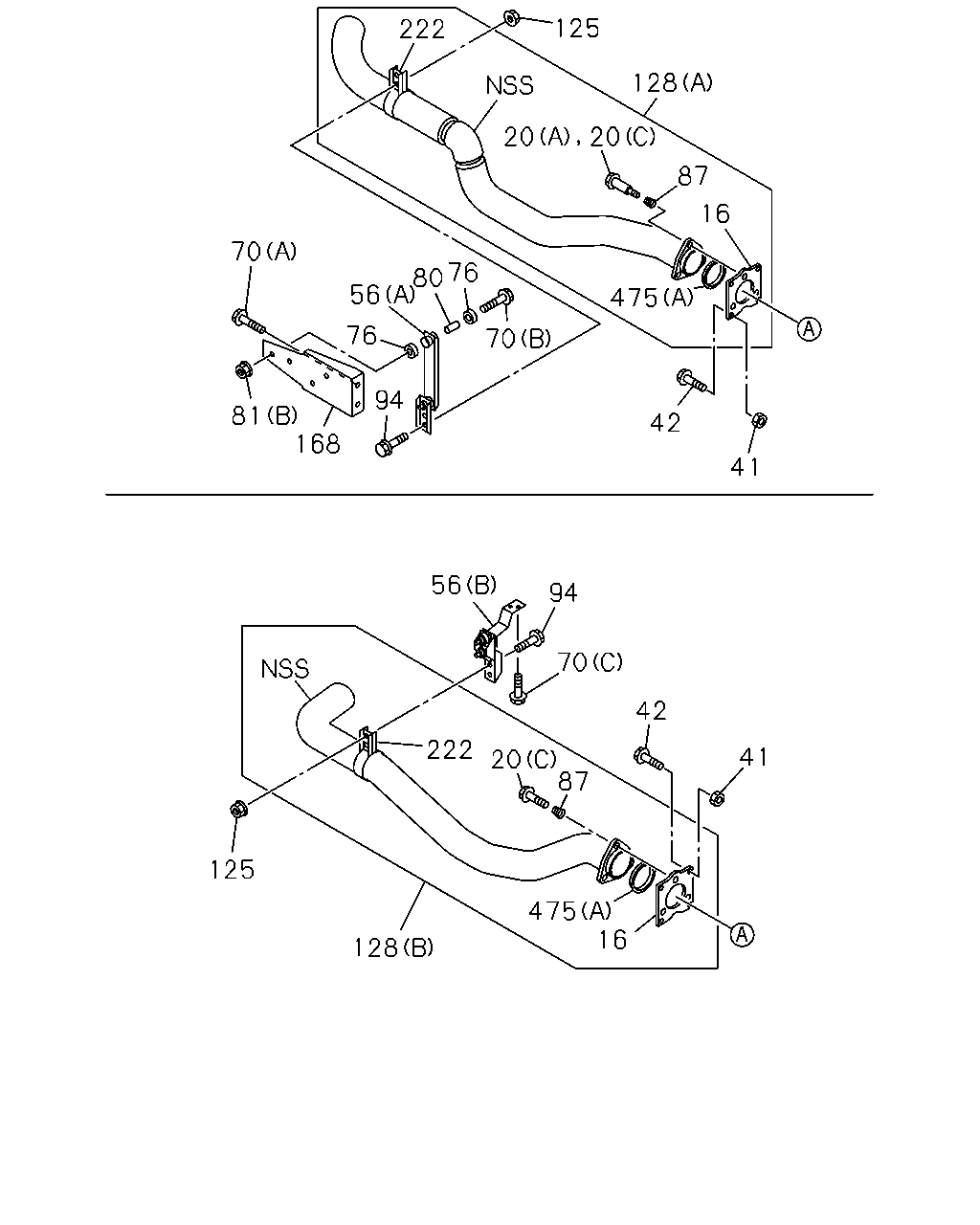

125 222 128 20 20 87 16 70 76 80 475 56 76 70 94 81 168 42 41 56 94 70 42 222 41 20 87 125 475 16 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	FLANGE; EXH PIPE	1-22115-229-0	01	1	0407-0511			●
16	FLANGE; EXH PIPE	1-22115-229-0	01	1	0512-	●	●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0512-0701	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0501-0511			●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) (B) M10X51.4	8-94436-943-0	02	1	0512-0701	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0702-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0407-0412			●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0501-0511			●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-C(72L) (B) M10X51.4	1-09009-167-0	02	1	0512-0701	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0407-0511			●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0512-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0407-0511			●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0512-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22151-976-2	01	1	0512-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-074-1	01	1	0407-0511			●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-074-1	01	1	0512-		●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	0512-0512		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0407-0511			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0512-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0512-0512		●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0407-0511			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0512-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	06	1	0407-0511			●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	04	1	0512-0512	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0407-0511			●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0512-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0407-0511			●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0512-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0407-0511			●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0407-0511			●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0512-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0407-0511			●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0512-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0407-0511			●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0512-0512	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
128	PIPE; EXH,RR (B)	1-22126-557-1	01	1	0512-	●
128	PIPE; EXH,RR (A)	1-22126-542-0	01	1	0407-0511			●
128	PIPE; EXH,RR (A)	1-22126-542-1	01	1	0512-		●
168	BRACKET; EXH PIPE,FRT	1-22134-126-0	01	1	0407-0511			●
168	BRACKET; EXH PIPE,FRT	1-22134-126-0	01	1	0512-		●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0407-0511			●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0407-0511			●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0512-	●	●
