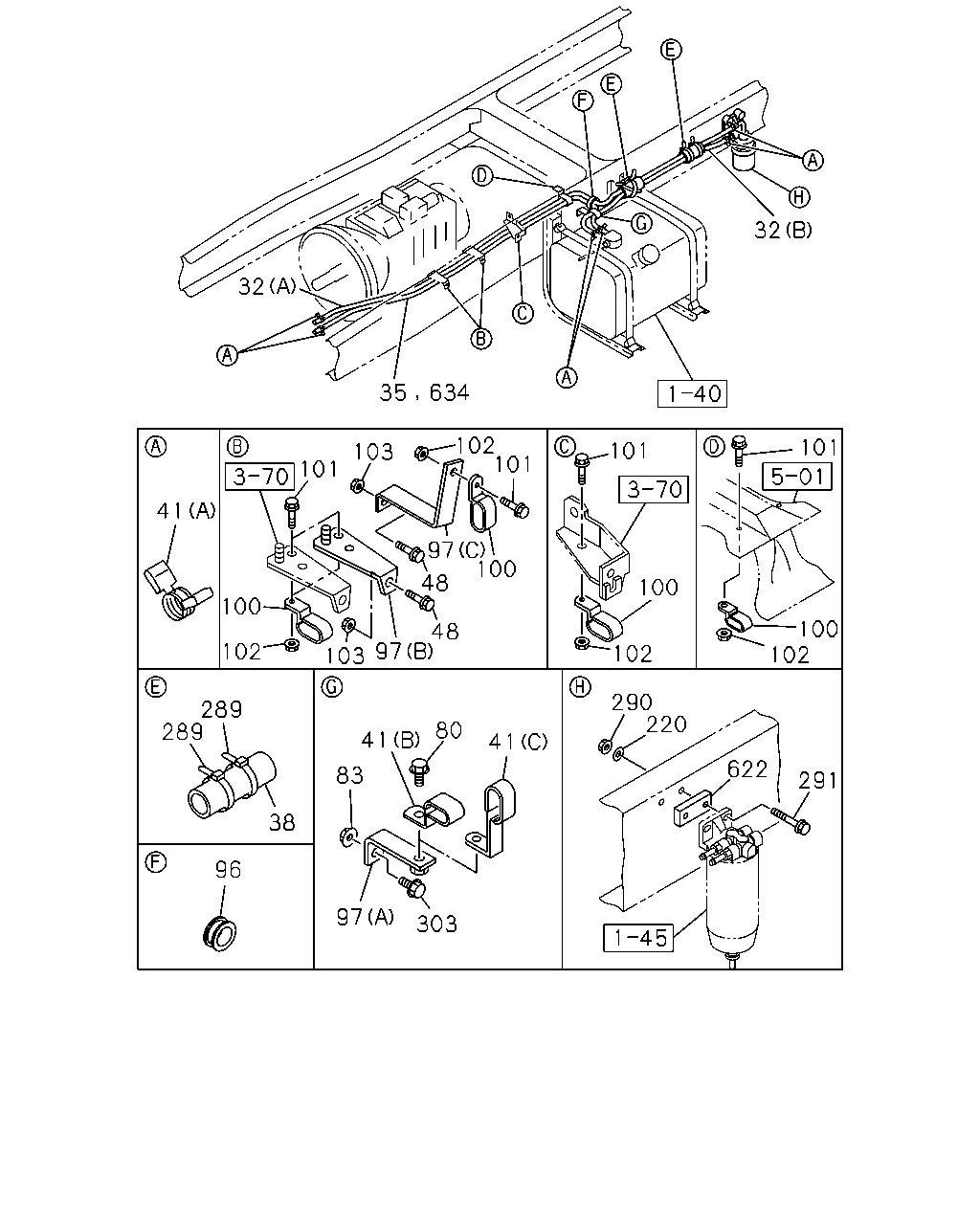

1-41 — FUEL PIPING; CHASSIS (#29143) — 71 parça

32 35 634 32 101 100 102 102 100 101 101 102 103 101 41 100 102 103 97 48 48 97 100 290 220 622 291 41 80 41 83 38 96 97 303 289 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK 6WF1 TC-C(1B8) (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●
32	PIPE; DELIVERY,FUEL TANK 6WG1 TC-C(72L) (A) L=2600 SERVICED BY L=3000	0-01262-300-0	01	1	0512-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0407-0511			●
32	PIPE; DELIVERY,FUEL TANK 6WG1 TC-C(72L) (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0512-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	0407-0511			●
32	PIPE; DELIVERY,FUEL TANK 6WF1 TC-C(1B8) (B) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0512-	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0407-0511			●
38	SLEEVE; RUBBER,RUBBER HOSE 6WG1 TC-C(72L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0512-0608	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0512-0608		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0609-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0407-0511			●
38	SLEEVE; RUBBER,RUBBER HOSE 6WF1 TC-C(1B8) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0512-0606	●
38	SLEEVE; RUBBER,RUBBER HOSE 6WF1 TC-C(1B8) L=600	9-09912-734-1	01	1	0607-0608	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 300L<RF5> (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0607-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19	8-94238-569-0	02	1	0512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0407-0511			●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0512-0606	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0607-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0607-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0407-0511			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0512-	●	●
48	BOLT; BRKT TRANSMISSION-FULLER RTLO149 18(Y4C) M8X30 FLANGE	0-28650-830-0	02	1	0604-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0407-0511			●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0512-	●	●
97	BRACKET; CLIP FUEL TANK 300L<RF5> (A) L=68	1-47475-525-0	01	1	0607-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C) (C)	1-47479-646-0	01	1	0604-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C) (B)	1-47479-723-0	01	1	0604-	●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	0407-0511			●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	0512-0606	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	0607-	●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	0607-		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	04	1	0407-0511			●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0512-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511			●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0512-0512	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0407-0511			●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
103	NUT; BRKT TRANSMISSION-FULLER RTLO149 18(Y4C) M8 FLANGE	0-91180-108-0	02	1	0604-	●
220	WASHER; PL ID=10.5 OD=26	9-09164-710-0	02	1	0407-0511			●
220	WASHER; PL ID=10.5 OD=26	9-09164-710-0	02	1	0512-0605	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0606-	●	●
289	CLIP; BAND,HOSE 6WG1 TC-C(72L) L=250	5-09707-030-1	04	1	0512-0608	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0512-0608		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0407-0511			●
289	CLIP; BAND,HOSE 6WF1 TC-C(1B8) L=250	5-09707-030-1	02	1	0512-0608	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0609-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0407-0511			●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0512-0512	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0601-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
622	SPACER; BRKT	1-53168-492-0	01	1	0407-0511			●
622	SPACER; BRKT	1-53168-492-0	01	1	0512-0909	●	●
622	SPACER; BRKT	8-98124-944-0	01	1	0910-	●	●
634	HOSE; RUBBER RETURN 6WF1 TC-C(1B8) L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	0512-	●
634	HOSE; RUBBER RETURN 6WG1 TC-C(72L) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0512-	●	●
