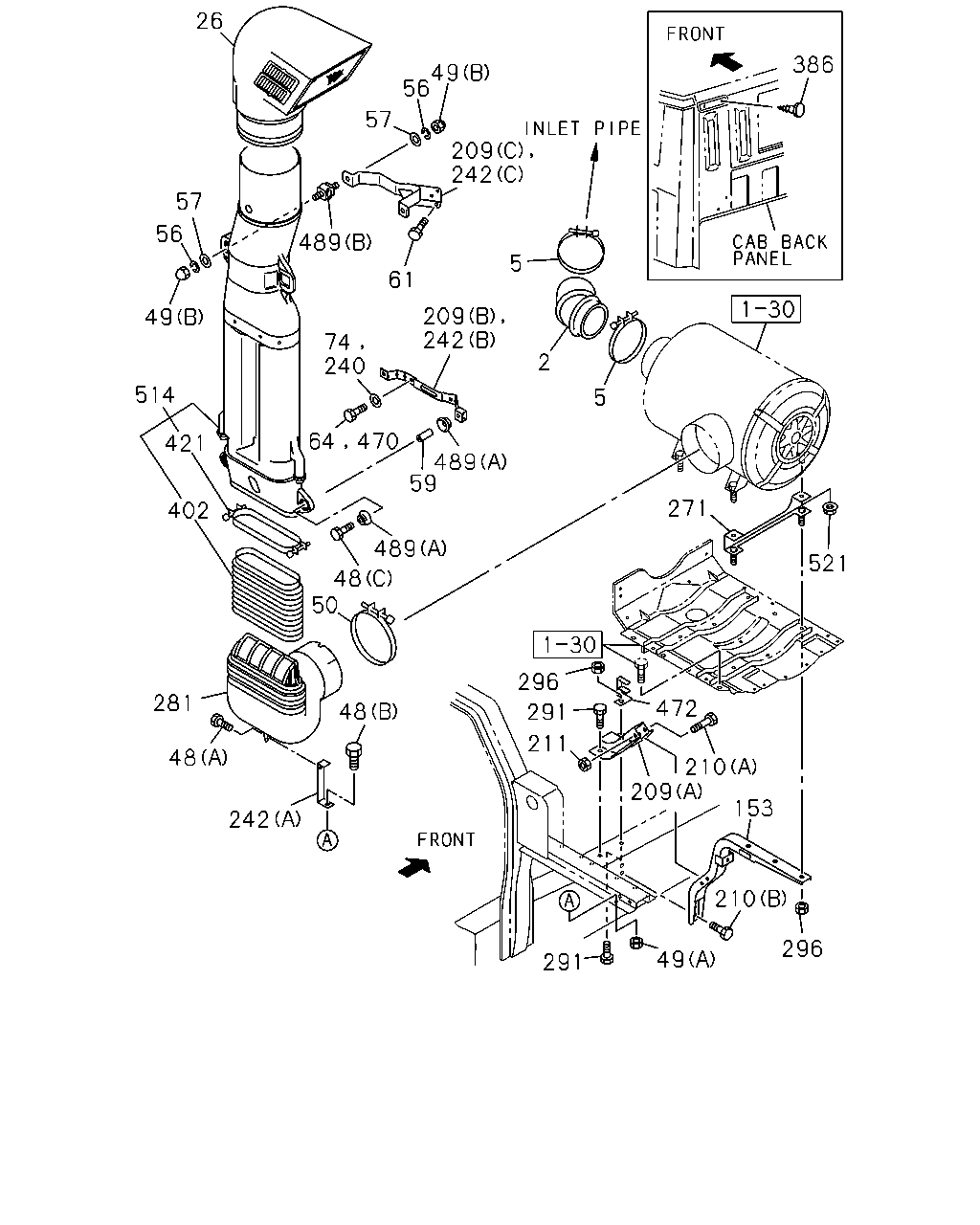

1-31 — AIR DUCT (#29140) — 85 parça

26 386 49 56 57 209 242 57 56 489 5 61 209 242 49 74 240 2 514 5 421 489 59 271 402 489 521 48 50 296 281 472 48 291 211 48 210 209 153 242 210 296 49 291 64 470

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-955-0	01	1	0407-0511	●
2	HOSE; ACL	1-14231-955-1	01	1	0512-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0407-0511	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0512-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-0	01	1	0407-0511	●
26	DUCT; AIR INT	1-14219-258-1	01	1	0512-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (A) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (B) M10X25 FLANGE	0-28681-025-0	01	1	0407-0511	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0407-0511	●
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	0512-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10 FLANGE	0-91150-210-0	01	1	0407-0511	●
49	NUT; AIR DUCT (A) M10 FLANGE	0-91150-210-0	01	1	0512-0602	●	●
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0407-0511	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	04	1	0512-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0407-0511	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0512-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0407-0511	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0512-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	04	1	0407-0511	●
57	WASHER; PL,AIR INT DUCT ID=8.4 OD=22	1-09985-188-0	04	1	0512-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17>	1-79998-228-0	02	1	0407-0511	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0512-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0407-0511	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0512-0702	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0407-0511	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0512-0702	●	●
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807	●	●
74	WASHER; PL,ACL ID=8.4 OD=22	1-09985-188-0	01	1	0808-	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0512-		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0407-	●
209	BRACKET; ACL (C)	1-79990-045-2	01	1	0808-	●	●
209	BRACKET; ACL (B)	8-98115-405-1	01	1	0808-	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0407-0511	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0512-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0407-0511	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0512-0512	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0407-0511	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0512-0512	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	0407-0511	●
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	0512-0807	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (A)	1-23957-006-0	01	1	0407-0511	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0512-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0407-0511	●
242	BRACKET; AIR DUCT (B)	1-79990-041-0	01	1	0512-0807	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0407-0511	●
242	BRACKET; AIR DUCT (C)	1-79990-045-1	01	1	0512-0807	●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0407-0511	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0512-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0407-0511	●
281	DUCT; AIR,VERTICAL INT	1-14230-194-0	01	1	0512-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	0407-0511	●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	0512-0512	●	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	0601-	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
386	PLUG; DUCT BRKT,AIR INT PRE CLEANER<W17> OD=15 L=14.5	1-76378-157-0	04	1	0407-0511	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0512-	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0407-0511	●
402	GASKET; RUBBER	1-14230-149-2	01	1	0512-	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0407-0511	●
421	CLAMP; AIR DUCT	1-14239-237-0	01	1	0512-	●	●
470	BOLT; BRKT M8X25 FLANGE	8-98074-570-0	04	1	0808-	●	●
472	STOPPER; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-227-0	01	1	0407-0511	●
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0512-		●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0407-0511	●
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	0512-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0407-0511	●
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	0512-	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0407-0511	●
514	DUCT; PRE CLEANER	1-14230-170-1	01	1	0512-	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
