◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#2914) — 169 parça

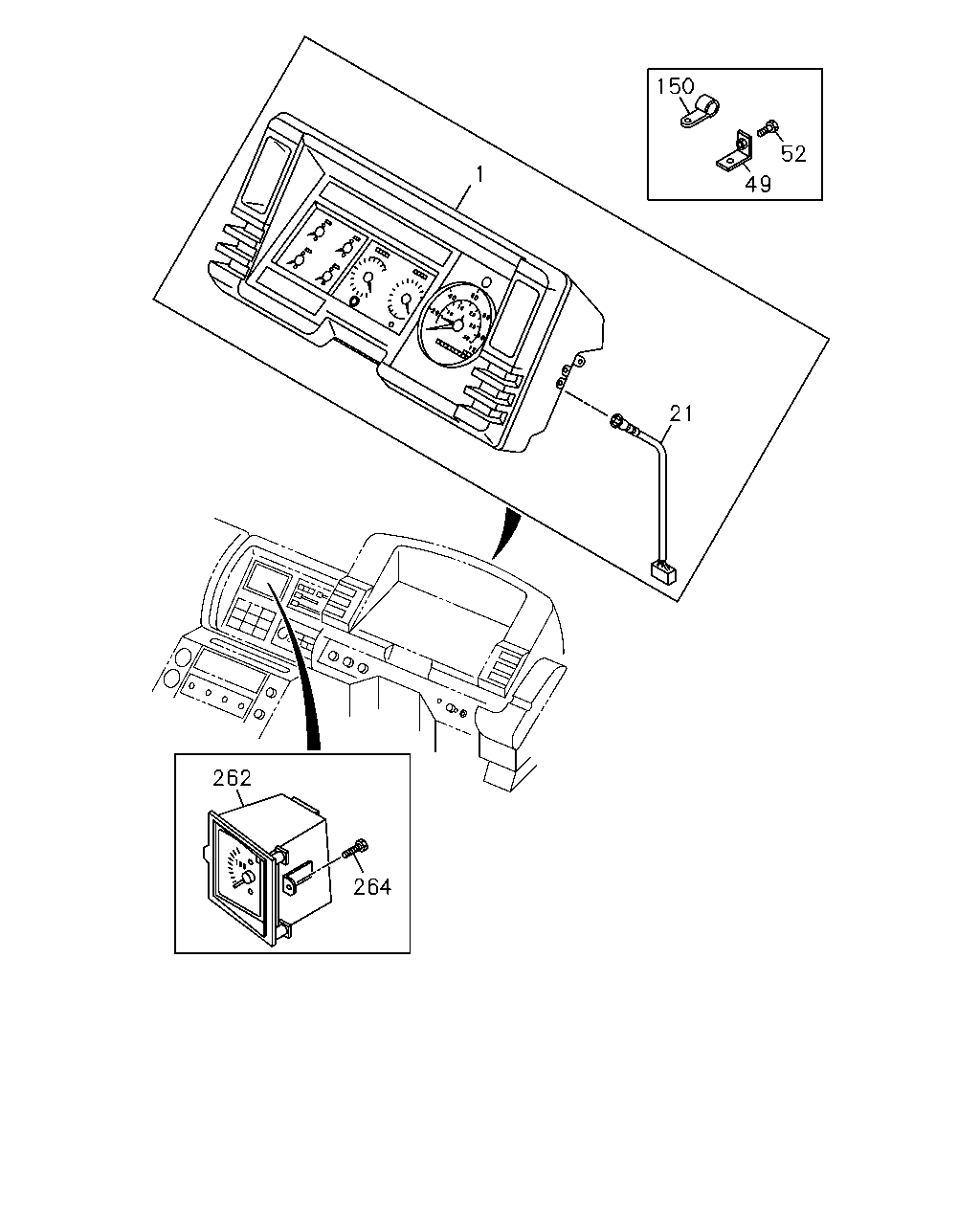

çizim 29499
264 262 21 1 150 52 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> 		1-83114-094-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> 		1-83114-586-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-101-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-593-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-096-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-588-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-090-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-582-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-092-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-584-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> 		1-83114-126-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2> 		1-83114-121-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-111-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-603-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-116-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-118-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-608-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-610-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-106-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-598-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2> 		1-83114-573-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2> 		1-83114-081-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> 		1-83114-085-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> 		1-83114-577-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-102-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-594-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-097-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-589-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-091-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-583-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-089-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-581-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> 		1-83114-127-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2> 		1-83114-122-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-112-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-604-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-117-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-119-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-609-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-611-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-107-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-599-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2> 		1-83114-574-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2> 		1-83114-082-0 01 1 9002-9306 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> 		1-82621-815-1 01 1 9002- ● ●
49 BRACKET; SENSOR
6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-15419-097-0 01 1 9002- ● ●
52 BOLT; SENSOR
6RA1TC ENG(19L),6RB1TC ENG(30L) M8X12 		9-01910-812-0 01 1 9002-9005 ● ●
52 BOLT; SENSOR
6RA1TC ENG(19L),6RB1TC ENG(30L) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9006- ● ●
150 CLIP; TACHO SENSOR
6RA1TC ENG(19L),6RB1TC ENG(30L) 		9-09524-515-0 01 1 9002- ● ●
262 METER; OIL THERMO
FIRE TRUCK<RA9> 		1-83160-072-0 01 1 9002- ●
264 SCREW; OIL THERMOMETER
FIRE TRUCK<RA9> M5X14 W/PL WASHER 		5-09981-050-0 03 1 9002- ●
çizim 95063
43 43 45 42
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE
V TYPE ENG<91L> ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002- ● ●
43 CLIP; SHAFT TO TACHOMETER
FULLER M/T<X9B> V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 01 1 9002-9306 ● ●
43 CLIP; SHAFT TO TACHOMETER
L TYPE ENG<90L> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 9002- ● ●
43 CLIP; SHAFT TO TACHOMETER
V TYPE ENG<91L> (A) ID=11 L=16 		9-09525-025-0 01 1 9307- ● ●
43 CLIP; SHAFT TO TACHOMETER
V TYPE ENG<91L> ISUZU M/T<X9A> (A) ID=11 L=16 		9-09525-025-0 01 1 9002-9306 ● ●
45 BOLT; FLEX SHAFT CLIP
M8X25 W/LK&PL WASHER 		9-01960-825-0 01 1 9002-9204 ● ●
45 BOLT; FLEX SHAFT CLIP
M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9205- ● ●

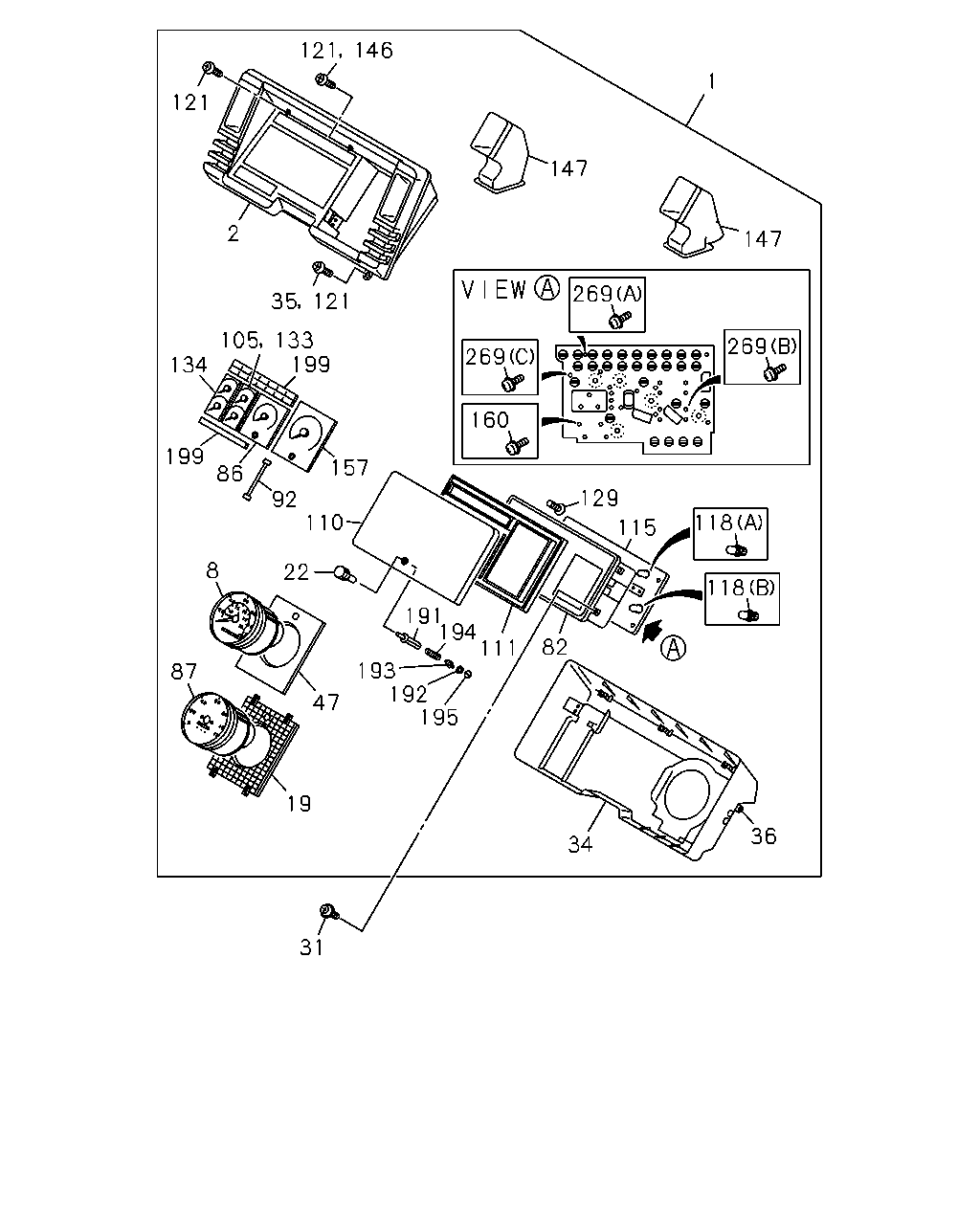

çizim 95903
36 34 31 19 47 195 192 193 82 111 194 191 118 118 115 129 22 110 157 8 87 92 86 199 134 105 133 19 160 269 269 269 147 1 147 146 121 121 2 35 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> 		1-83114-094-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> 		1-83114-586-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-101-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-593-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-096-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-588-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-090-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-582-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-092-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-584-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> 		1-83114-126-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2> 		1-83114-121-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-111-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-603-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-116-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-118-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-608-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-610-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-106-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-598-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2> 		1-83114-573-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2> 		1-83114-081-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> 		1-83114-085-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> 		1-83114-577-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-102-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83114-594-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-097-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83114-589-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-091-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83114-583-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-089-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> PRESSURE METER KPA<ST4> EXC. TACHOGRAPH 120KM/H<SM8>,DUAL AIR GAUGE<UG2> 		1-83114-581-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> 		1-83114-127-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2> 		1-83114-122-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-112-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83114-604-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-117-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-119-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83114-609-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83114-611-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-107-0 01 1 9002-9306 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8> EXC. PRESSURE METER KPA<ST4>,DUAL AIR GAUGE<UG2> 		1-83114-599-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2> 		1-83114-574-0 01 1 9307- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. TACHOGRAPH 120KM/H<SM8>,PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2> 		1-83114-082-0 01 1 9002-9306 ● ●
2 PANEL; CLUSTER 1-83117-439-0 01 1 9002- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH MILES/HOUR<UC5> 		1-83120-249-0 01 1 9002-9306 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 120KM/H 		1-83120-250-0 01 1 9002- ● ●
19 COVER; SPEEDOMETER,CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83129-081-0 01 1 9002- ● ●
22 RHEOSTAT; CLUSTER METER 1-82380-075-0 01 1 9002- ● ●
31 SCREW; METER,INST PANEL
M4X14 TAPPING 		1-09140-009-0 03 1 9002- ● ●
31 SCREW; METER,INST PANEL
M6X20 W/PL WASHER 		5-09981-023-0 04 1 9002- ● ●
34 HOOD; CLUSTER METER 1-83117-440-0 01 1 9002-9306 ● ●
34 HOOD; CLUSTER METER 1-83117-454-0 01 1 9307- ● ●
35 SCREW; HOOD FIX,CLUSTER METER
M4 TAPPING 		1-87590-049-0 02 1 9002-9306 ● ●
36 BRACKET; CLUSTER METER 1-83119-118-0 01 1 9307- ● ●
36 BRACKET; CLUSTER METER 1-83119-117-0 01 1 9307- ● ●
47 COVER; TACHOGRAPH,CLUSTER METER
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> 		1-83129-034-1 01 1 9002- ● ●
82 CASE ASM; CLUSTER METER
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> 		1-83180-092-0 01 1 9002- ● ●
82 CASE ASM; CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> 		1-83180-135-0 01 1 9002- ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-434-0 01 1 9002- ● ●
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-419-0 01 1 9002- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 		1-83120-224-0 01 1 9002- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> 120KM/H 		1-83120-233-0 01 1 9002- ● ●
92 RETAINER; CLUSTER METER 1-83119-049-0 02 1 9002- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83180-061-0 01 1 9307- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1> THERMO & FUEL 		1-83180-050-0 01 1 9307- ● ●
110 GLASS; CLUSTER METER 1-83119-046-0 01 1 9002- ● ●
111 RIM; GLASS,CLUSTER METER 1-83119-047-0 01 1 9002- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-150-0 01 1 9002- ● ●
118 BULB; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> (A) 24V 3W 		1-82194-043-0 28 1 9307- ● ●
118 BULB; CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8> (A) 24V 3W 		1-82194-043-0 27 1 9307- ● ●
118 BULB; CLUSTER METER
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) 24V 3W 		1-82258-003-0 28 1 9002-9306 ● ●
118 BULB; CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (B) 24V 3W 		1-82194-022-0 02 1 9002-9306 ● ●
118 BULB; CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> (A) 24V 3W 		1-82258-003-0 27 1 9002-9306 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4X16 TAPPING 		1-83119-033-0 04 1 9307- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-87590-049-0 02 1 9307- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 09 1 9002- ● ●
133 GAUGE; TEMP & FUEL,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83180-061-0 01 1 9002-9306 ● ●
133 GAUGE; TEMP & FUEL,CLUSTER METER
TACHOGRAPH MILES/HOUR<UC5> 		1-83180-061-0 01 1 9002-9306 ● ●
133 GAUGE; TEMP & FUEL,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR<UC5> THERMO & FUEL 		1-83180-050-0 01 1 9002-9306 ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE
MILE SPEEDOMETER<UC1> 		1-83180-134-0 01 1 9002- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE
TACHOGRAPH MILES/HOUR<UC5> 		1-83180-134-0 01 1 9002- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE
PRESSURE METER KPA<ST4> 		1-83180-133-0 01 1 9002- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE
EXC. PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> ,TACHOGRAPH MILES/HOUR<UC5> 		1-83180-122-0 01 1 9002- ● ●
146 SCREW; AIR DUCT FIX,METER FOOD
M4X16 TAPPING 		1-83119-033-0 06 1 9307- ● ●
147 DUCT; AIR,CLUSTER METER 1-83119-043-0 01 1 9002- ● ●
147 DUCT; AIR,CLUSTER METER 1-83119-042-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> ,TACHOGRAPH MILES/HOUR<UC5> 		1-83150-130-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> DUAL AIR GAUGE<UG2> 		1-83150-135-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TACHOGRAPH MILES/HOUR<UC5> DUAL AIR GAUGE<UG2> 		1-83150-135-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> EXC. DUAL AIR GAUGE<UG2> 		1-83150-134-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TACHOGRAPH MILES/HOUR<UC5> EXC. DUAL AIR GAUGE<UG2> 		1-83150-134-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83150-133-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
PRESSURE METER KPA<ST4> EXC. DUAL AIR GAUGE<UG2> 		1-83150-131-0 01 1 9002- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. PRESSURE METER KPA<ST4>,MILE SPEEDOMETER<UC1> ,TACHOGRAPH MILES/HOUR<UC5>,DUAL AIR GAUGE<UG2> 		1-83150-128-0 01 1 9002- ● ●
160 SCREW; RHEOSTAT,CLUSTER METER 1-83119-050-0 03 1 9002- ● ●
191 KNOB; BULB CHECK 1-83119-316-0 01 1 9307- ● ●
192 WASHER; BULB CHECK KNOB 1-83119-317-0 01 1 9307- ● ●
193 PLATE; BULB CHECK 1-83119-318-0 01 1 9307- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-319-0 01 1 9307- ● ●
195 RING; SNAP,KNOB 1-83119-320-0 01 1 9307- ● ●
199 LENS; WARNING LAMP 1-83119-297-0 01 1 9002-9306 ● ●
199 LENS; WARNING LAMP
TACHOGRAPH 120KM/H<SM8> PRESSURE METER KPA<ST4> DUAL AIR GAUGE<UG2> 		1-83119-297-0 01 1 9307- ● ●
199 LENS; WARNING LAMP
TACHOGRAPH 120KM/H<SM8> EXC. DUAL AIR GAUGE<UG2> 		1-83119-297-0 01 1 9307- ● ●
199 LENS; WARNING LAMP
MILE SPEEDOMETER<UC1> 		1-83119-297-0 01 1 9307- ● ●
199 LENS; WARNING LAMP
EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> 		1-83119-297-0 01 1 9307- ● ●
199 LENS; WARNING LAMP
TACHOGRAPH 120KM/H<SM8> DUAL AIR GAUGE<UG2> EXC. PRESSURE METER KPA<ST4> 		1-83119-299-0 01 1 9307- ● ●
269 SCREW; METER CLUSTER
(A) M4X10 		1-83119-051-0 05 1 9002- ● ●
269 SCREW; METER CLUSTER
(B) M3X8 		1-83119-058-0 14 1 9002- ● ●
269 SCREW; METER CLUSTER
(C) M4 TAPPING 		1-83119-059-0 04 1 9002-9306 ● ●
269 SCREW; METER CLUSTER
EXC. TACHOGRAPH 120KM/H<SM8> (C) M3 TAPPING 		1-83119-084-0 04 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
