Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶

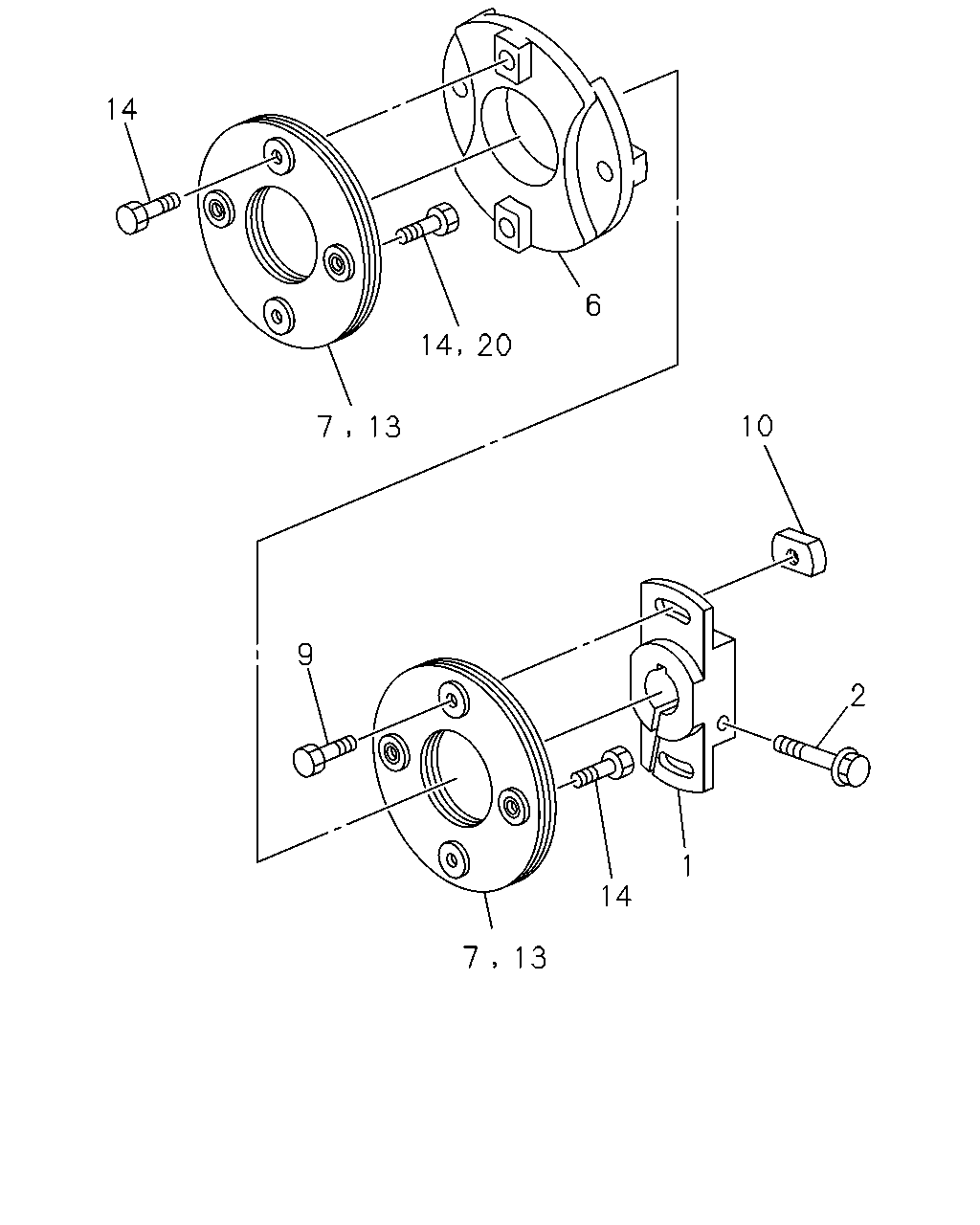

0-87 — COUPLING; INJECTION PUMP
(#29135) — 15 parça
Tümü
A - 6WG1 TC-C
B - 6WF1 TC-C
14
6
20
14
10
7
13
9
2
1
14
7
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COUPLING; INJ PUMP DRIVE
1-15789-217-0
01
1
0407-0511
●
1
COUPLING; INJ PUMP DRIVE
1-15789-207-0
01
1
0512-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-212-0
01
1
0407-0511
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-212-0
01
1
0512-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-218-0
01
1
0407-0511
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-208-0
01
1
0512-
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-209-0
02
1
0512-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-220-0
02
1
0407-0511
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-210-0
02
1
0512-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-213-0
02
1
0407-0511
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-213-0
02
1
0512-
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-219-0
02
1
0407-0511
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-214-0
06
1
0407-0511
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-211-0
04
1
0512-
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-214-0
02
1
0512-
●
●
