Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#29132) — 407 parça

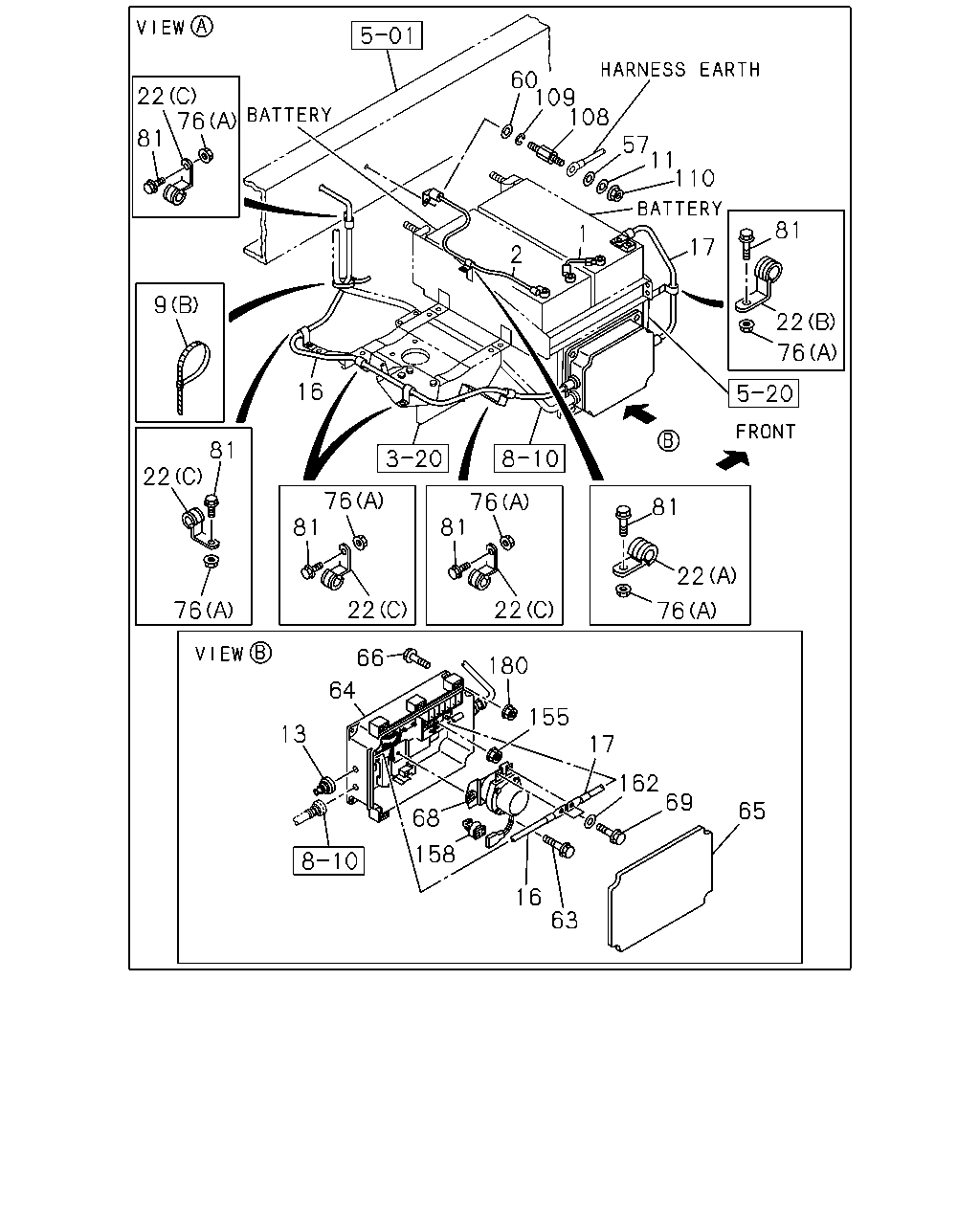

9 18 9 9 9 18 9 18 22 9 22 9 9 18 22 99 99 18 9 9 158 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (H) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	03	1	0512-0606	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	9-09525-856-0	01	1	0607-0608	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	0-95235-856-0	01	1	0609-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (J) ID=18 L=28 H=30	1-09701-110-0	03	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (I) ID=21 L=24	8-94176-807-1	02	1	0512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0512-		●
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-	●	●
9	CLIP; BATTERY CABLE (C) ID=19 L=32	9-09525-866-0	01	1	0407-0407			●
9	CLIP; BATTERY CABLE (E) ID=19 L=20	9-09525-836-0	01	1	0408-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	0-95235-856-0	01	1	0607-0607	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) ID=19 L=20	0-95235-836-0	01	1	0607-	●
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=21 L=24	8-94176-807-1	01	1	0407-0511			●
18	CLIP; BATTERY CABLE MJX16P M/T(Y3Z) (B) ID=21 L=24	8-94176-807-1	01	1	0407-0511			●
18	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (B) ID=21 L=24	8-94176-807-1	01	1	0512-	●	●
18	CLIP; BATTERY CABLE SMOOTHER-G(C1W) (C) ID=20 L=50	1-09700-679-1	01	1	0407-0511			●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) ID=19 L=28	0-95235-856-0	01	1	0607-0607	●
18	CLIP; BATTERY CABLE SMOOTHER-G(C1W) (B) ID=21 L=24	8-94176-807-1	02	1	0407-0511			●
18	CLIP; BATTERY CABLE SMOOTHER-G(C1W) (D) ID=19 L=32	9-09525-866-0	01	1	0407-0511			●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0607-	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0607-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	04	1	0512-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-	●	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-		●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0407-0511			●
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	07	1	0512-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0512-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0407-0511			●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0512-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0407-0511			●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0512-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0407-0511			●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0512-	●	●

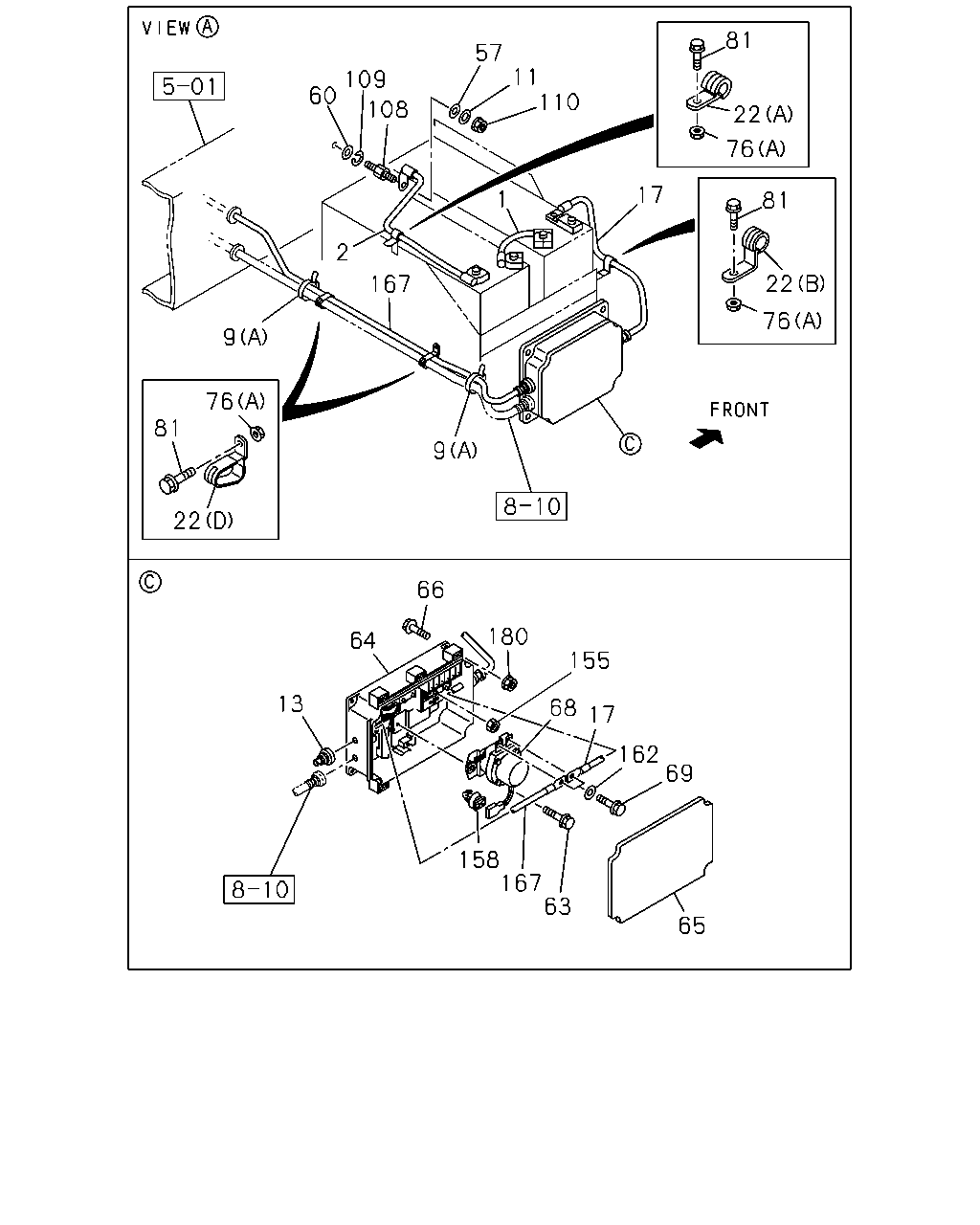

60 109 108 22 76 81 57 11 110 81 1 17 2 9 22 76 16 81 22 76 81 76 81 81 22 22 22 76 76 66 180 64 155 13 17 162 69 65 68 158 16 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-390-1	01	1	0407-0407			●
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0408-0511			●
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0512-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0512-	●
2	CABLE; BATTERY L=680	1-82650-387-0	01	1	0407-0407			●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0408-0511			●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0512-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (H) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	03	1	0512-0606	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	9-09525-856-0	01	1	0607-0608	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	0-95235-856-0	01	1	0609-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (J) ID=18 L=28 H=30	1-09701-110-0	03	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (I) ID=21 L=24	8-94176-807-1	02	1	0512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0512-		●
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-	●	●
9	CLIP; BATTERY CABLE (C) ID=19 L=32	9-09525-866-0	01	1	0407-0407			●
9	CLIP; BATTERY CABLE (E) ID=19 L=20	9-09525-836-0	01	1	0408-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	0-95235-856-0	01	1	0607-0607	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) ID=19 L=20	0-95235-836-0	01	1	0607-	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0407-0511			●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0407-0511			●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0512-	●	●
16	CABLE; STARTER TO RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=4960	1-82652-875-2	01	1	0407-0511			●
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) FULLER M/T<X9B> L=5110	1-82652-937-0	01	1	0512-	●
16	CABLE; STARTER TO RELAY MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=4950	1-82652-874-2	01	1	0407-0511			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-762-3	01	1	0407-0407			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0408-0511			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0512-	●	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	04	1	0512-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-	●	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-		●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0407-0511			●
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	07	1	0512-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0512-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0407-0511			●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0512-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0407-0511			●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0512-0603	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0407-0511			●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●

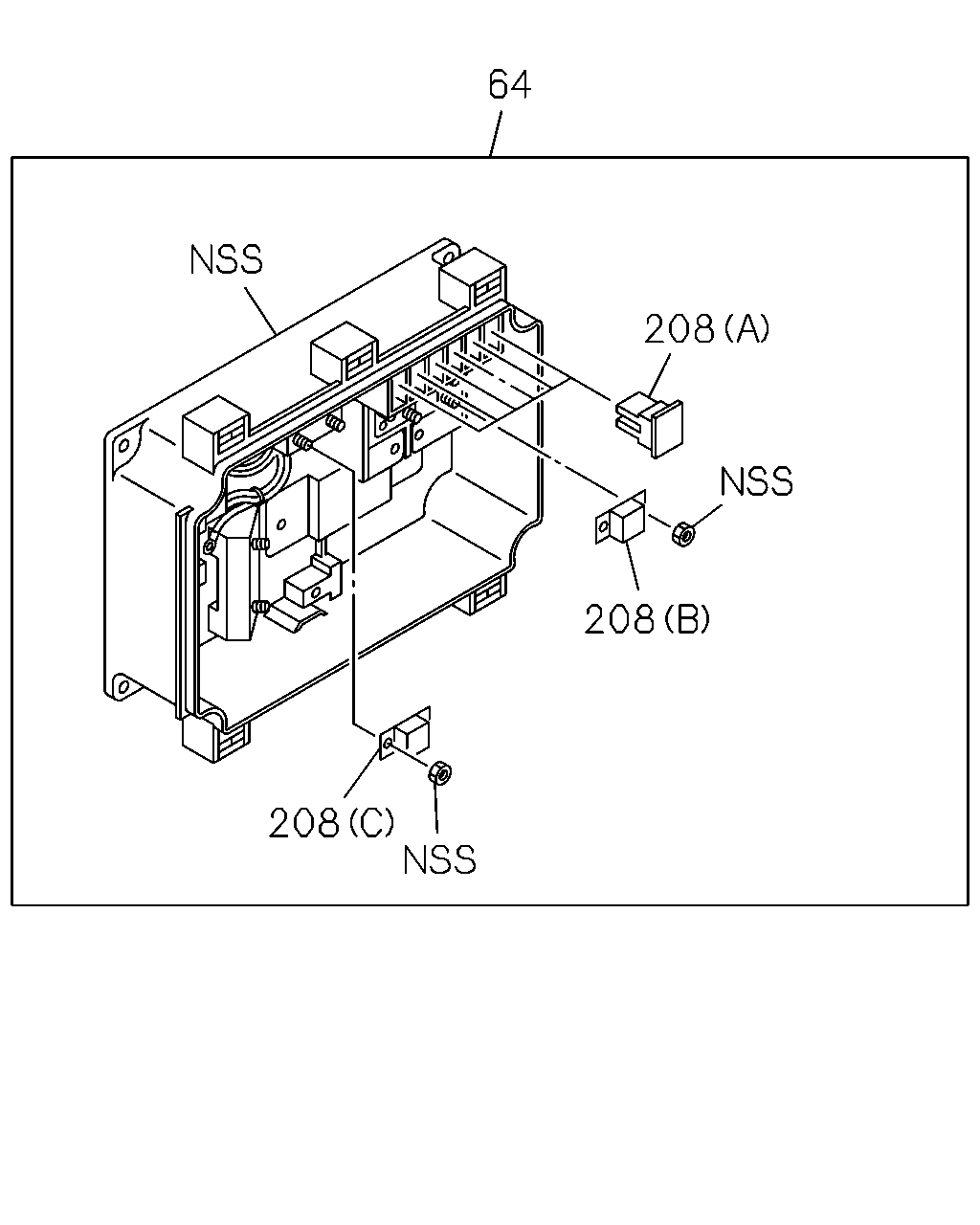

64	BOX; BATTERY RELAY 6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L)	1-82510-650-0	01	1	0512-		●
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0407-0511			●
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0512-	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0407-0511			●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0512-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511			●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0407-0511			●
68	RELAY; BATTERY	1-82550-313-0	01	1	0512-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0512-0512	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-		●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	05	1	0512-0602	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	07	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91150-108-0	07	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
76	NUT; BATTERY CABLE (B) M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	06	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0407-0511			●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	09	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	09	1	0601-	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0407-0511			●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0512-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0407-0511			●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0512-0603	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0407-0511			●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0512-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0407-0511			●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0512-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0407-0511			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0512-0605	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

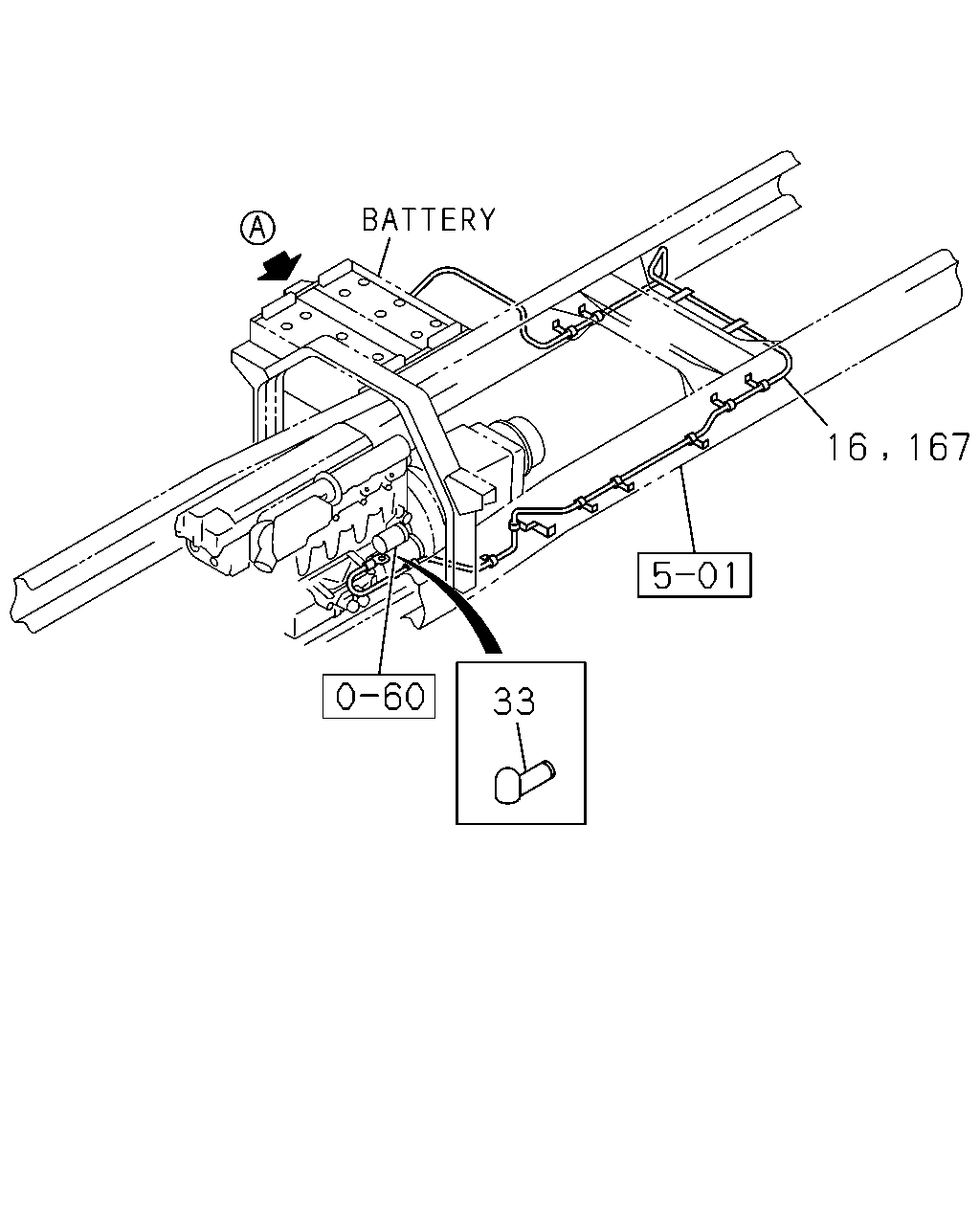

16 167 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CABLE; STARTER TO RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=4960	1-82652-875-2	01	1	0407-0511			●
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) FULLER M/T<X9B> L=5110	1-82652-937-0	01	1	0512-	●
16	CABLE; STARTER TO RELAY MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=4950	1-82652-874-2	01	1	0407-0511			●
33	CAP; INSULATOR 6WG1 TC-C(72L)	8-97181-965-0	01	1	0604-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5550	1-82652-902-7	01	1	0512-0603	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0604-	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=4740	1-82652-903-9	01	1	0512-		●

81 57 11 110 109 60 108 22 76 17 1 81 2 22 167 76 9 76 81 9 22 66 180 64 15 13 68 17 162 69 158 167 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-390-1	01	1	0407-0407			●
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0408-0511			●
1	CABLE; BATTERY BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0512-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0512-	●
2	CABLE; BATTERY L=680	1-82650-387-0	01	1	0407-0407			●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0408-0511			●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0512-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (H) ID=21 L=30 H=40	1-09700-991-1	01	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	03	1	0512-0606	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	9-09525-856-0	01	1	0607-0608	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=19 L=28	0-95235-856-0	01	1	0609-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (J) ID=18 L=28 H=30	1-09701-110-0	03	1	0512-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (I) ID=21 L=24	8-94176-807-1	02	1	0512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (D) ID=18 L=28	1-09701-067-0	02	1	0607-	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0512-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0512-		●
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0407-0511			●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-	●	●
9	CLIP; BATTERY CABLE (C) ID=19 L=32	9-09525-866-0	01	1	0407-0407			●
9	CLIP; BATTERY CABLE (E) ID=19 L=20	9-09525-836-0	01	1	0408-0511			●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (F) ID=19 L=28	0-95235-856-0	01	1	0607-0607	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) ID=19 L=20	0-95235-836-0	01	1	0607-	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0407-0511			●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0407-0511			●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0512-	●	●
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-762-3	01	1	0407-0407			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0408-0511			●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0512-	●	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	04	1	0512-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0512-	●	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-		●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	05	1	0407-0511			●
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	07	1	0512-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0407-0511			●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0512-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0407-0511			●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0512-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0407-0511			●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0512-0603	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0407-0511			●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L)	1-82510-650-0	01	1	0512-		●
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0407-0511			●
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0512-	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0407-0511			●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0512-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511			●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0407-0511			●
68	RELAY; BATTERY	1-82550-313-0	01	1	0512-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0512-0512	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-		●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	05	1	0512-0602	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	07	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91150-108-0	07	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
76	NUT; BATTERY CABLE (B) M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	06	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0407-0511			●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	09	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	09	1	0601-	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0407-0511			●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0512-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0407-0511			●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0512-0603	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0407-0511			●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0512-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0407-0511			●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0512-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0407-0511			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0512-0605	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5550	1-82652-902-7	01	1	0512-0603	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0604-	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=4740	1-82652-903-9	01	1	0512-		●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

23 78 23 23 23 23 23 23 23 23 61 23 78 73 10 100 66 24 108 110 101 57 11 162 60 109 77 20 12 76 14 21 21 75 69 100 10 24 81 10 24 63 15 28 155 180 12 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28680-830-0	03	1	0512-0512	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0407-0511			●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512	●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0407-0511			●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0512-0605	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●	●
12	NUT; BATTERY CABLE CLIP SMOOTHER-G(C1W) (A) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
12	NUT; BATTERY CABLE CLIP (A) M8 FLANGE	0-91150-108-0	03	1	0407-0511			●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP (B) M10 FLANGE	0-91150-210-0	01	1	0407-0511			●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	07	1	0512-0602	●	●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511			●
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
20	NUT; STARTER CABLE 6WG1 TC-C(72L) M10	8-98011-328-0	01	1	0512-	●	●
21	BOLT; CLIP CABLE SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
21	BOLT; CLIP CABLE (B) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
21	BOLT; CLIP CABLE MJX16P M/T(Y3Z) (B) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (I)	1-82698-575-1	01	1	0512-	●	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (J)	1-82698-589-0	01	1	0512-	●	●
23	BRACKET; CABLE CLIP TO FRAME MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) (A) L=95	1-82699-085-0	01	1	0407-0511			●
23	BRACKET; CABLE CLIP TO FRAME MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=95	1-82699-085-0	01	1	0407-0511			●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A) L=95	1-82699-085-0	02	1	0512-	●
23	BRACKET; CABLE CLIP TO FRAME MJX16P M/T(Y3Z) SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=95	1-82699-085-0	02	1	0407-0511			●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (E) L=120 H=35	1-82698-088-0	01	1	0512-	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=112	1-47475-694-1	01	1	0407-0511			●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (F)	1-82698-574-0	01	1	0512-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-47476-658-0	01	1	0407-0410			●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-47476-200-0	01	1	0411-0511			●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (G) L=40	1-47478-410-0	01	1	0512-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	8-97304-944-0	01	1	0407-0511			●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (H) L=95	1-82698-557-0	01	1	0512-	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
24	BOLT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) (A) M8X35 FLANGE	0-28680-835-0	04	1	0407-0511			●
24	BOLT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X35 FLANGE	0-28680-835-0	04	1	0407-0511			●
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512	●
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
24	BOLT; BRKT TO FRAME MJX16P M/T(Y3Z) SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X35 FLANGE	0-28680-835-0	05	1	0407-0511			●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	04	1	0407-0410			●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	04	1	0407-0410			●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0411-0511			●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	03	1	0411-0511			●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-	●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	05	1	0407-0410			●
28	NUT; BRKT TO FRAME MJX16P M/T(Y3Z) SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	04	1	0411-0511			●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0407-0511			●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0512-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0407-0511			●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0512-0603	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-	●	●
61	BRACKET; BATTERY CABLE 6WG1 TC-C(72L)	1-82698-587-0	01	1	0512-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0407-0511			●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0512-0512	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511			●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0512-0512	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
73	BRACKET; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B>	1-82699-104-0	01	1	0512-	●
75	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0512-0512	●	●
75	BOLT; BRKT 6WG1 TC-C(72L) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-		●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91150-108-0	05	1	0512-0602	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91150-108-0	07	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91150-108-0	07	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
76	NUT; BATTERY CABLE (B) M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) FULLER M/T<X9B> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L) ID=10.2	9-09150-610-0	01	1	0512-0603	●	●
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L) ID=10.2	0-91510-610-0	01	1	0604-	●	●
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0407-0511			●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0407-0511			●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	06	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0407-0511			●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	09	1	0512-0512	●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	09	1	0601-	●
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0407-0511			●
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512	●	●
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511			●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0407-0511			●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0512-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0407-0511			●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0512-0603	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0407-0511			●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0512-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0407-0511			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0512-0605	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82510-650-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L)	1-82510-650-0	01	1	0512-		●
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0407-0511			●
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0512-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0512-	●
208	FUSE 6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	06	1	0512-	●
208	FUSE 6WG1 TC-C(72L) (A) 40A GREEN	8-94468-662-0	06	1	0512-		●
208	FUSE (C) 80A	1-82516-031-0	01	1	0407-0511			●
208	FUSE (C) 80A	1-82516-031-0	01	1	0512-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	0407-0511			●
208	FUSE (B) 100A	1-82516-032-0	01	1	0512-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	0407-0511			●
208	FUSE 6WF1 TC-C(1B8) (A) 40A GREEN	8-94468-662-0	05	1	0512-	●
208	FUSE 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	05	1	0512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
