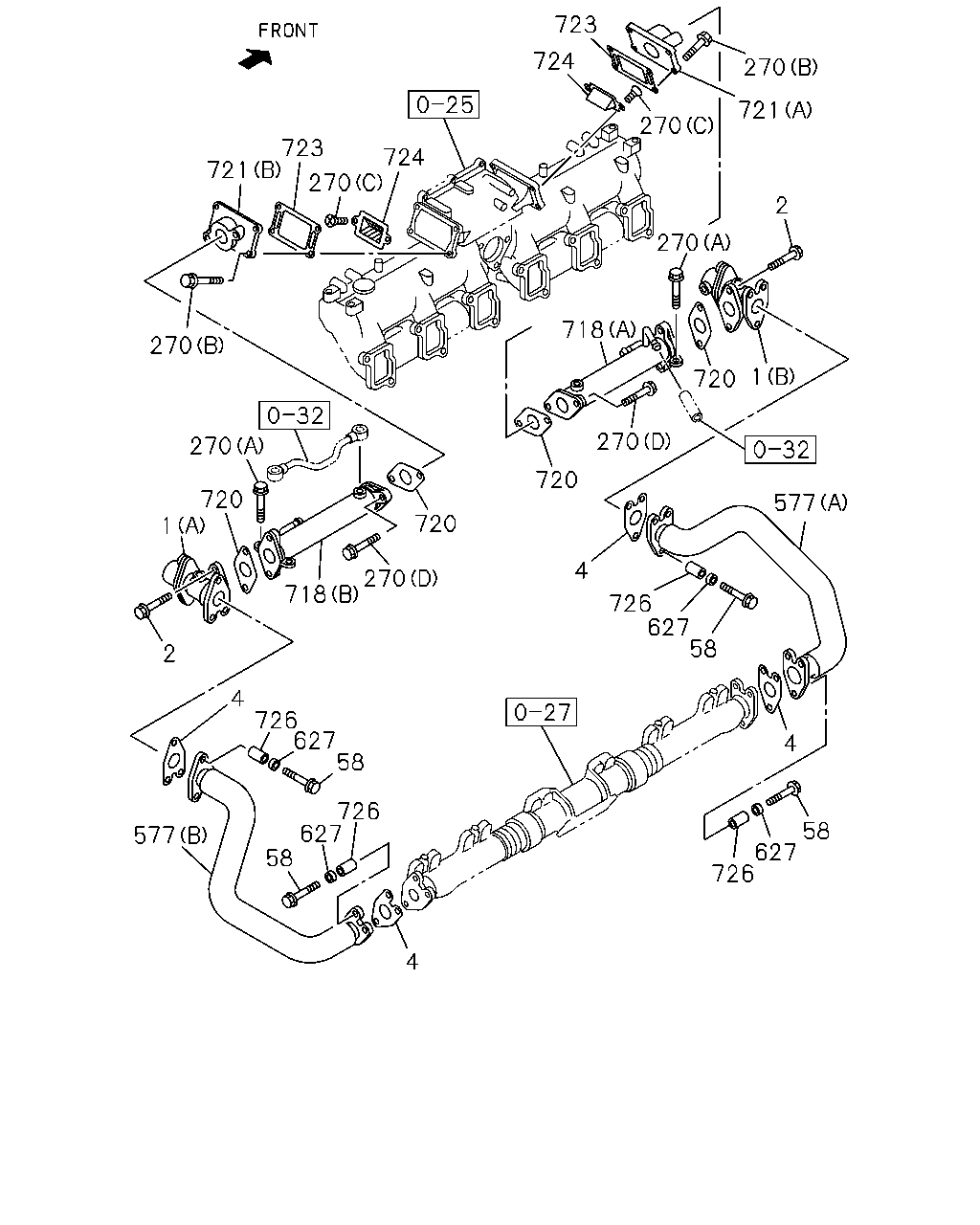

0-57 — EMISSION PIPING (#29130) — 59 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	49	CLIP; HOSE ID=10 & 10	1-09709-277-1	01	1	0407-0511	●
	49	CLIP; HOSE ID=10 & 10	1-09709-277-1	01	1	0512-	●	●

723 724 270 721 270 723 721 724 270 2 270 718 270 1 720 270 270 720 720 577 720 1 4 270 718 726 627 58 2 4 726 627 58 4 726 627 58 58 627 726 577 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR (B)	1-16110-015-1	01	1	0407-0511	●
1	VALVE; EGR (B)	1-16110-015-3	01	1	0512-	●	●
1	VALVE; EGR (A)	1-16110-016-1	01	1	0407-0511	●
1	VALVE; EGR (A)	1-16110-016-3	01	1	0512-	●	●
2	BOLT; EGR VLV M10X20 FLANGE	0-28181-020-0	04	1	0407-0511	●
2	BOLT; EGR VLV M10X20 FLANGE	0-28181-020-0	04	1	0512-0512	●	●
2	BOLT; EGR VLV M10X20 FLANGE	0-28151-020-0	04	1	0601-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-015-0	04	1	0407-0511	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-015-0	04	1	0512-	●	●
58	BOLT; PIPE M10X55 FLANGE	8-94399-863-1	12	1	0407-0511	●
58	BOLT; PIPE M10X55 FLANGE	8-94399-863-1	12	1	0512-0805	●	●
58	BOLT; PIPE M10X55 FLANGE	8-97365-449-0	12	1	0806-	●	●
270	BOLT (D) M10X30 FLANGE	0-28181-030-0	04	1	0407-0511	●
270	BOLT (D) M10X30 FLANGE	0-28181-030-0	04	1	0512-0512	●	●
270	BOLT (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-	●	●
270	BOLT (B) M10X35 FLANGE	0-28181-035-0	08	1	0407-0511	●
270	BOLT (B) M10X35 FLANGE	0-28181-035-0	08	1	0512-0512	●	●
270	BOLT (B) M10X35 FLANGE	0-28151-035-0	08	1	0601-	●	●
270	BOLT (A) M10X20 FLANGE	0-28181-020-0	04	1	0407-0511	●
270	BOLT (A) M10X20 FLANGE	0-28181-020-0	04	1	0512-0512	●	●
270	BOLT (A) M10X20 FLANGE	0-28151-020-0	04	1	0601-	●	●
270	BOLT (C) M6X12 HEX SOCKET	9-05820-612-0	04	1	0407-0511	●
270	BOLT (C) M6X12 HEX SOCKET	9-05820-612-0	04	1	0512-1502	●	●
270	BOLT (C) M6X12 HEX SOCKET	8-98272-417-0	04	1	1503-	●	●
577	PIPE; AIR,EGR (A)	8-97607-492-0	01	1	0512-	●
577	PIPE; AIR,EGR (B)	8-97607-493-0	01	1	0512-	●
577	PIPE; AIR,EGR (A)	1-16181-083-2	01	1	0407-0511	●
577	PIPE; AIR,EGR (A)	1-16181-083-2	01	1	0512-		●
577	PIPE; AIR,EGR (B)	1-16181-084-2	01	1	0407-0511	●
577	PIPE; AIR,EGR (B)	1-16181-084-2	01	1	0512-		●
627	WASHER; LK,EGR PIPE T=2.2	1-09556-015-0	12	1	0407-0511	●
627	WASHER; LK,EGR PIPE T=2.2	1-09556-015-0	12	1	0512-	●	●
718	COOLER; EGR (A)	1-16127-016-2	01	1	0407-0511	●
718	COOLER; EGR (A)	1-16127-016-2	01	1	0512-	●	●
718	COOLER; EGR (B)	1-16127-017-2	01	1	0407-0511	●
718	COOLER; EGR (B)	1-16127-017-2	01	1	0512-	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-016-0	04	1	0407-0511	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-016-0	04	1	0512-	●	●
721	DUCT; COOLER (A)	1-16183-055-2	01	1	0512-1502	●
721	DUCT; COOLER (A)	8-98276-292-0	01	1	1503-	●
721	DUCT; COOLER (B)	1-16183-056-3	01	1	0512-1502	●
721	DUCT; COOLER (B)	8-98276-295-0	01	1	1503-	●
721	DUCT; COOLER (A)	1-16183-064-0	01	1	0407-0511	●
721	DUCT; COOLER (A)	1-16183-064-0	01	1	0512-1502		●
721	DUCT; COOLER (A)	8-98276-293-0	01	1	1503-		●
721	DUCT; COOLER (B)	1-16183-065-0	01	1	0407-0511	●
721	DUCT; COOLER (B)	1-16183-065-1	01	1	0512-1502		●
721	DUCT; COOLER (B)	8-98276-296-0	01	1	1503-		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0407-0511	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0512-1502	●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97648-198-0	02	1	1503-	●	●
724	VALVE; REED	8-98186-738-0	02	1	0407-0511	●
724	VALVE; REED	8-98186-738-0	02	1	0512-1502	●	●
724	VALVE; REED	8-98272-702-0	02	1	1503-1503	●	●
724	VALVE; REED	8-98291-639-0	02	1	1503-	●	●
726	TUBE; DISTANCE L=28	8-97250-073-1	12	1	0407-0511	●
726	TUBE; DISTANCE L=28	8-97250-073-1	12	1	0512-	●	●
