0-52 — OIL AND VACUUM PIPING; ENGINE (#29129) — 242 parça

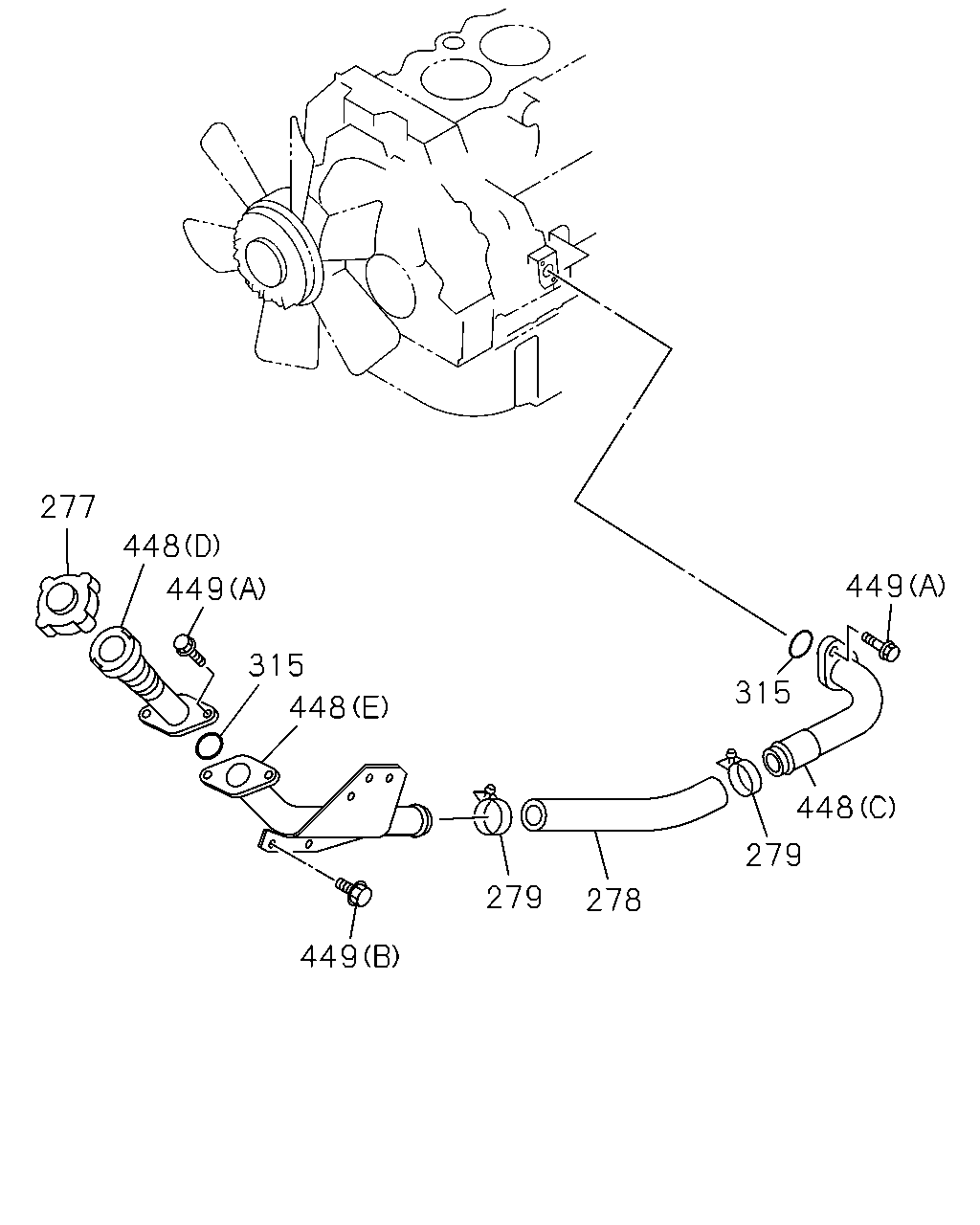

çizim 87022
277 448 449 449 315 315 448 448 279 279 278 449
BalonParca AdiParca NoAdetTipApplied Date A B
277 CAP; OIL FILLER 1-11750-020-0 01 1 0407-0511 ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 0512-0611 ● ●
277 CAP; OIL FILLER 1-11750-028-0 01 1 0612- ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-216-0 01 1 0512- ●
278 HOSE; RUBBER,OIL FILLER 1-11749-205-0 01 1 0407-0511 ●
278 HOSE; RUBBER,OIL FILLER 1-11749-205-0 01 1 0512- ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0407-0511 ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0512- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0407-0511 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0407-0511 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0512- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0512- ● ●
448 FILLER; OIL
(D) 		1-11741-313-0 01 1 0512- ●
448 FILLER; OIL
(E) 		1-11741-314-0 01 1 0512- ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0407-0511 ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0512- ● ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0407-0511 ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0512- ●
448 FILLER; OIL
(B) 		1-11741-304-0 01 1 0407-0511 ●
448 FILLER; OIL
(B) 		1-11741-304-0 01 1 0512- ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●

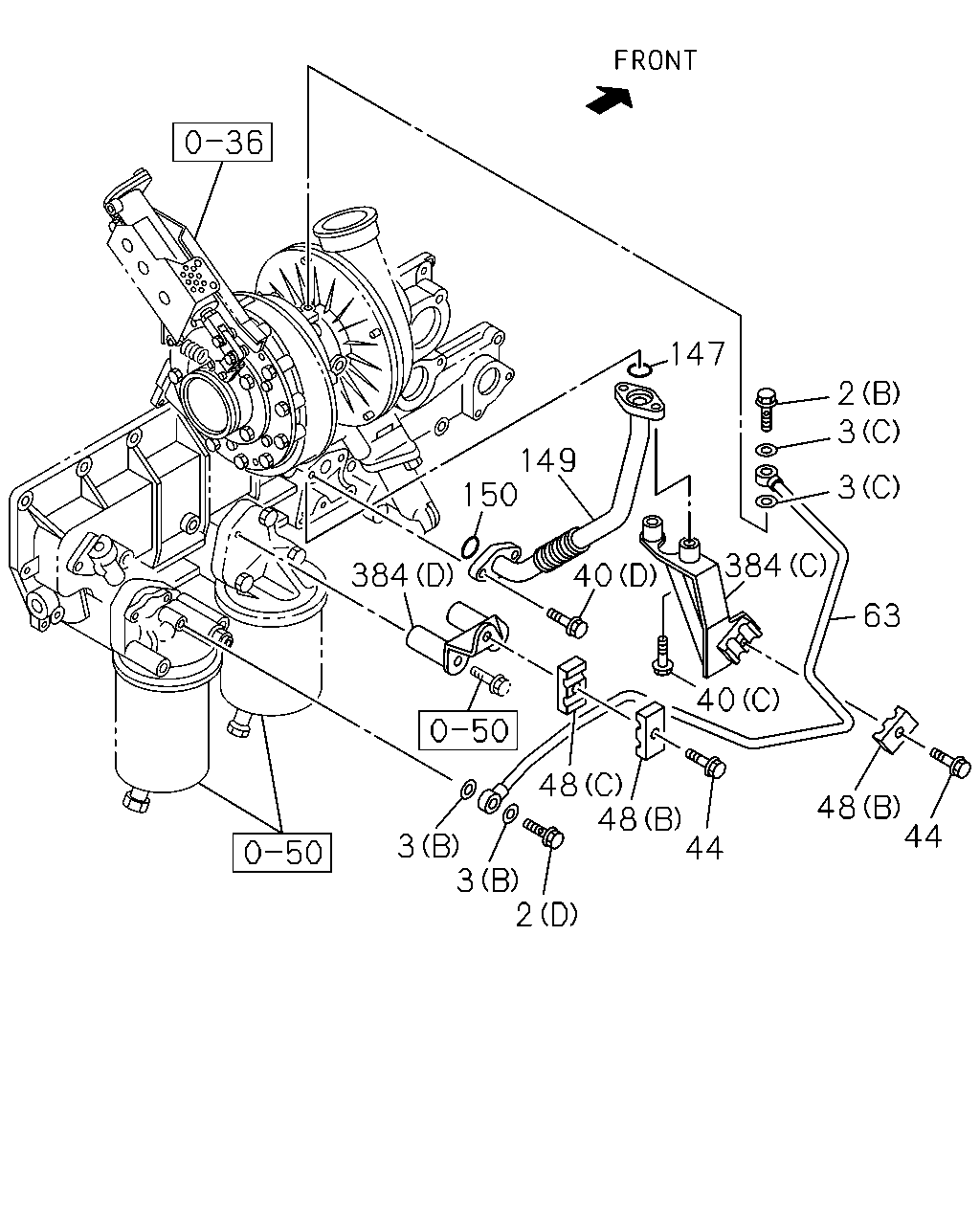

çizim 87066
147 2 3 149 150 3 384 384 40 63 40 48 48 44 48 44 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(B) M12X28 		8-97388-295-0 01 1 0512- ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0512-0710 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 		8-98037-823-0 01 1 0711- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0512-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0512- ●
40 BOLT; OIL PIPE
(C) M8X40 FLANGE 		0-28080-840-0 02 1 0512-0512 ●
40 BOLT; OIL PIPE
(C) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28181-025-0 02 1 0407-0511 ●
40 BOLT; OIL PIPE
(E) M10X30 FLANGE 		0-28181-030-0 02 1 0512-0512 ●
40 BOLT; OIL PIPE
(E) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
40 BOLT; OIL PIPE
(A) M10X50 FLANGE 		0-28181-050-0 02 1 0407-0511 ●
40 BOLT; OIL PIPE
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512 ● ●
40 BOLT; OIL PIPE
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28080-635-0 02 1 0512-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28050-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0407-0511 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0512-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28050-630-0 02 1 0601- ●
48 CLIP; OIL PIPE
(C) ID=7 & 11 L=28 		1-09701-231-1 01 1 0512- ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0407-0511 ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0512- ●
48 CLIP; OIL PIPE
(B) ID=9 & 11 L=28 		1-09701-265-1 01 1 0407-0511 ●
48 CLIP; OIL PIPE
(B) ID=9 & 11 L=28 		1-09701-265-1 02 1 0512- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97609-509-0 01 1 0512- ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-734-0 01 1 0407-0511 ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-734-0 01 1 0512- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0407-0511 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0512- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13314-024-1 01 1 0512- ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-735-1 01 1 0407-0511 ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-735-2 01 1 0512- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0407-0511 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0512- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(C) 		1-13345-216-0 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(D) 		1-13345-225-1 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0407-0511 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-210-0 01 1 0407-0511 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-201-0 01 1 0512- ●

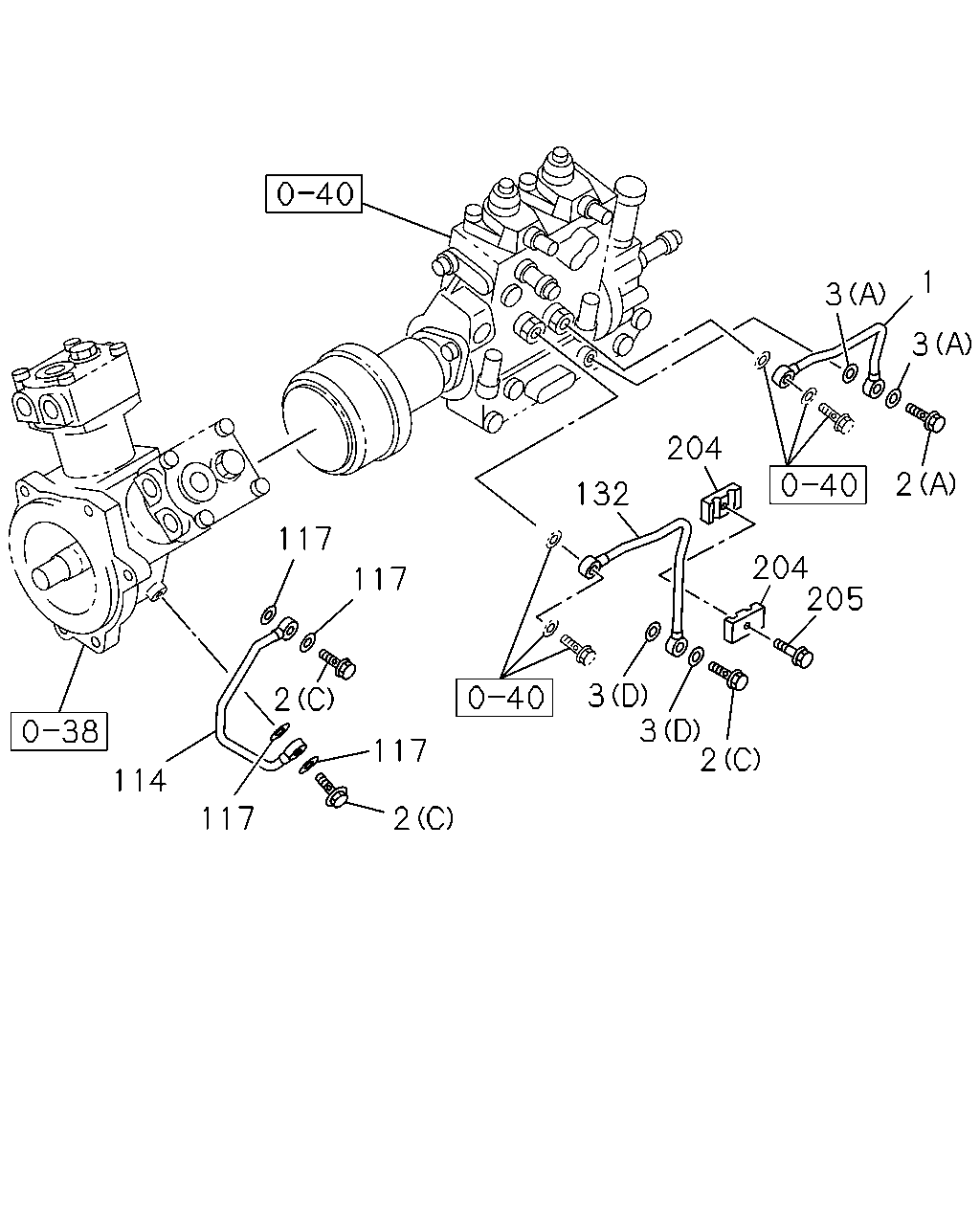

çizim 87084
1 3 3 204 2 132 117 204 205 117 3 3 2 2 117 114 117 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13313-765-0 01 1 0407-0511 ●
1 PIPE; OIL,INJ PUMP TO C/BL 1-13314-022-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X28 		8-97388-295-0 01 1 0512- ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0512-0710 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 		8-98037-823-0 01 1 0711- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0512-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0512- ●
114 PIPE ASM; OIL,BODY 1-13314-040-0 01 1 0407-0511 ●
114 PIPE ASM; OIL,BODY 1-13314-040-0 01 1 0512- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0407-0511 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-895-0 01 1 0407-0511 ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13314-021-0 01 1 0512- ● ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0407-0511 ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0512-1210 ● ●
204 CLIP; OIL PIPE 1-09701-240-0 02 1 1211- ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0407-0511 ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0601- ● ●

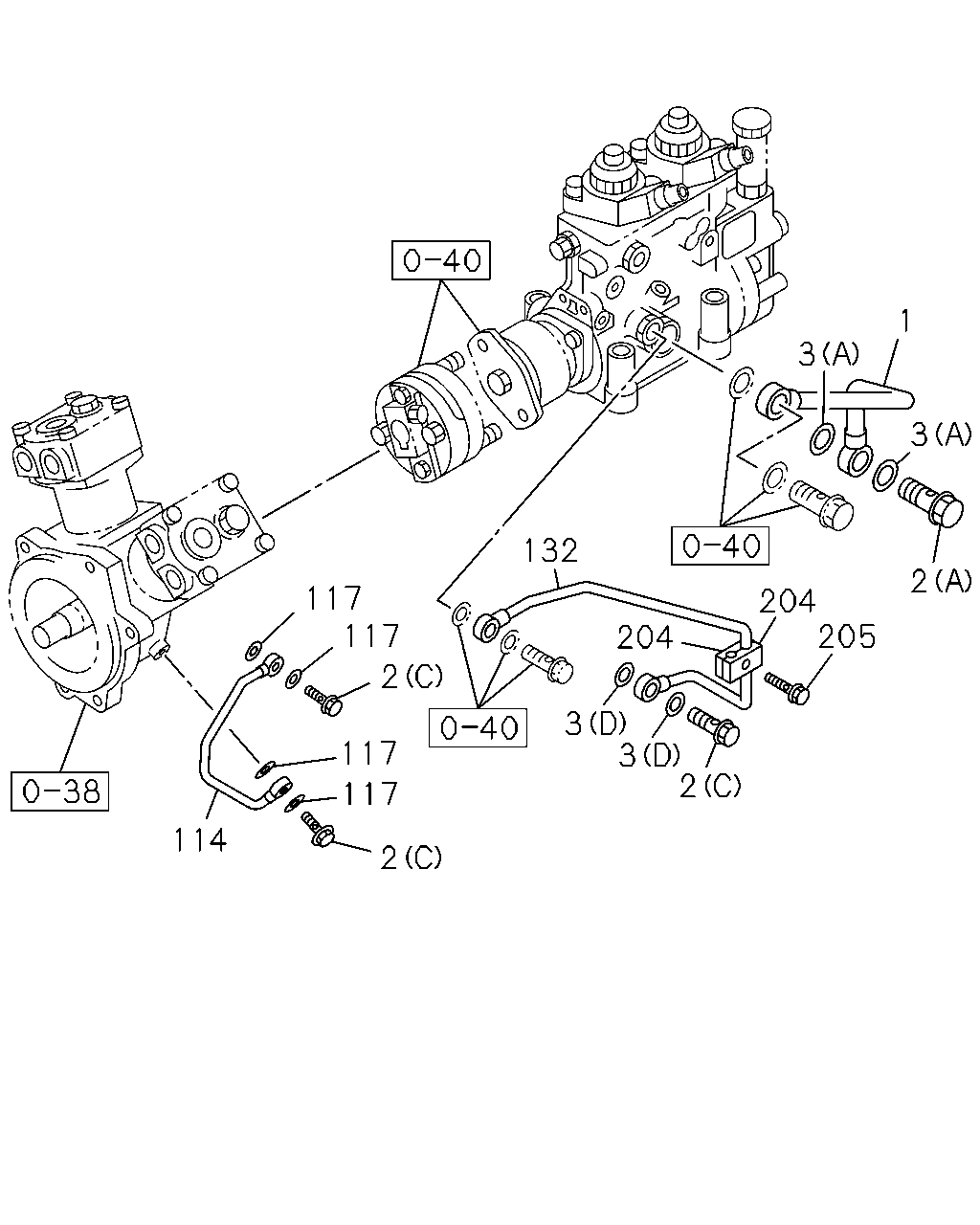

çizim 87228
1 3 3 132 2 117 117 204 205 204 2 3 3 2 117 117 114 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13313-765-0 01 1 0407-0511 ●
1 PIPE; OIL,INJ PUMP TO C/BL 1-13314-022-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X28 		8-97388-295-0 01 1 0512- ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0512-0710 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 		8-98037-823-0 01 1 0711- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0512-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0512- ●
114 PIPE ASM; OIL,BODY 1-13314-040-0 01 1 0407-0511 ●
114 PIPE ASM; OIL,BODY 1-13314-040-0 01 1 0512- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0407-0511 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-895-0 01 1 0407-0511 ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13314-021-0 01 1 0512- ● ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0407-0511 ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0512-1210 ● ●
204 CLIP; OIL PIPE 1-09701-240-0 02 1 1211- ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0407-0511 ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0601- ● ●

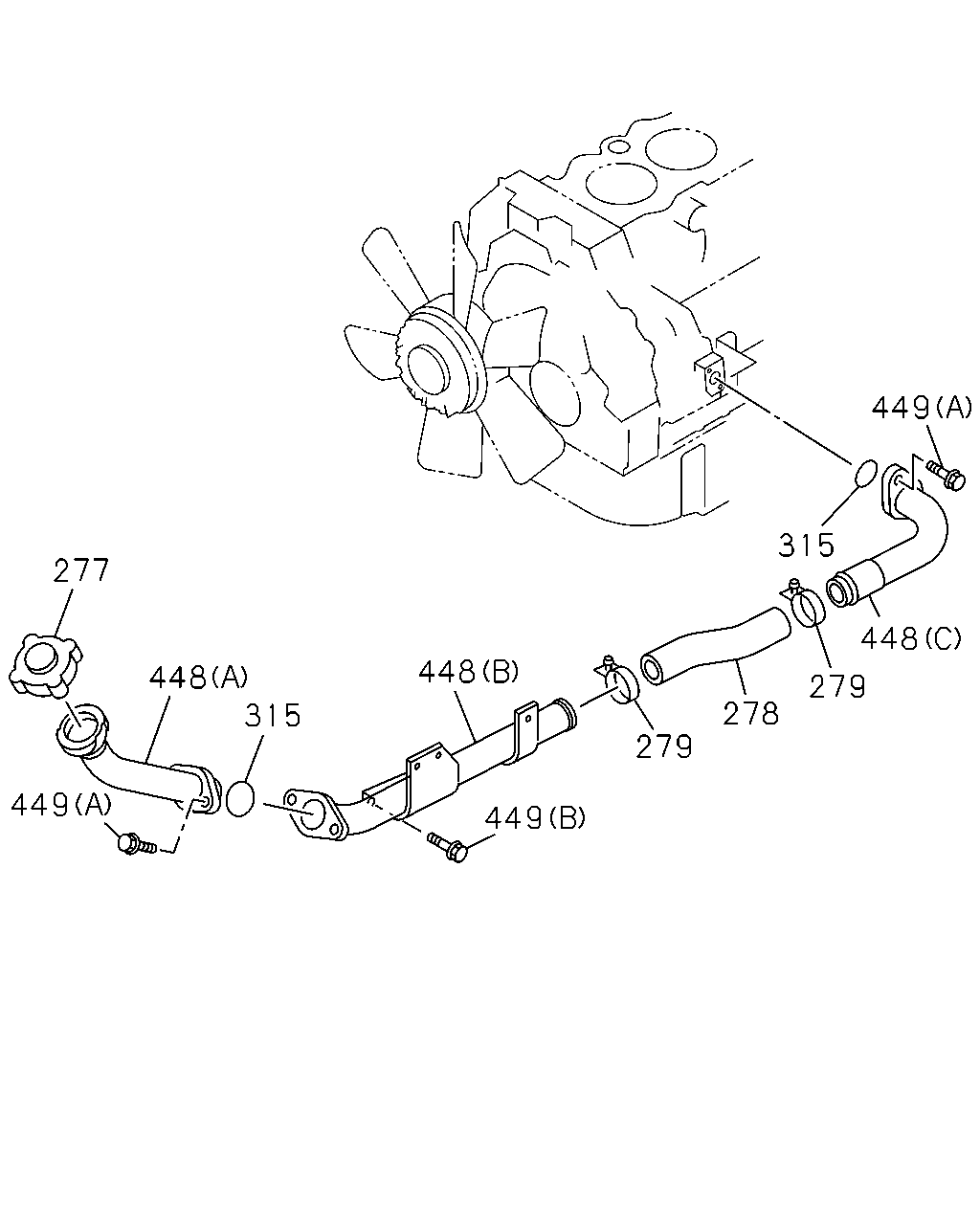

çizim 87367
449 315 277 448 448 448 315 279 278 279 449 449
BalonParca AdiParca NoAdetTipApplied Date A B
277 CAP; OIL FILLER 1-11750-020-0 01 1 0407-0511 ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 0512-0611 ● ●
277 CAP; OIL FILLER 1-11750-028-0 01 1 0612- ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-216-0 01 1 0512- ●
278 HOSE; RUBBER,OIL FILLER 1-11749-205-0 01 1 0407-0511 ●
278 HOSE; RUBBER,OIL FILLER 1-11749-205-0 01 1 0512- ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0407-0511 ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0512- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0407-0511 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0407-0511 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0512- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0512- ● ●
448 FILLER; OIL
(D) 		1-11741-313-0 01 1 0512- ●
448 FILLER; OIL
(E) 		1-11741-314-0 01 1 0512- ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0407-0511 ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0512- ● ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0407-0511 ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0512- ●
448 FILLER; OIL
(B) 		1-11741-304-0 01 1 0407-0511 ●
448 FILLER; OIL
(B) 		1-11741-304-0 01 1 0512- ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
449 BOLT; OIL FILLER
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●

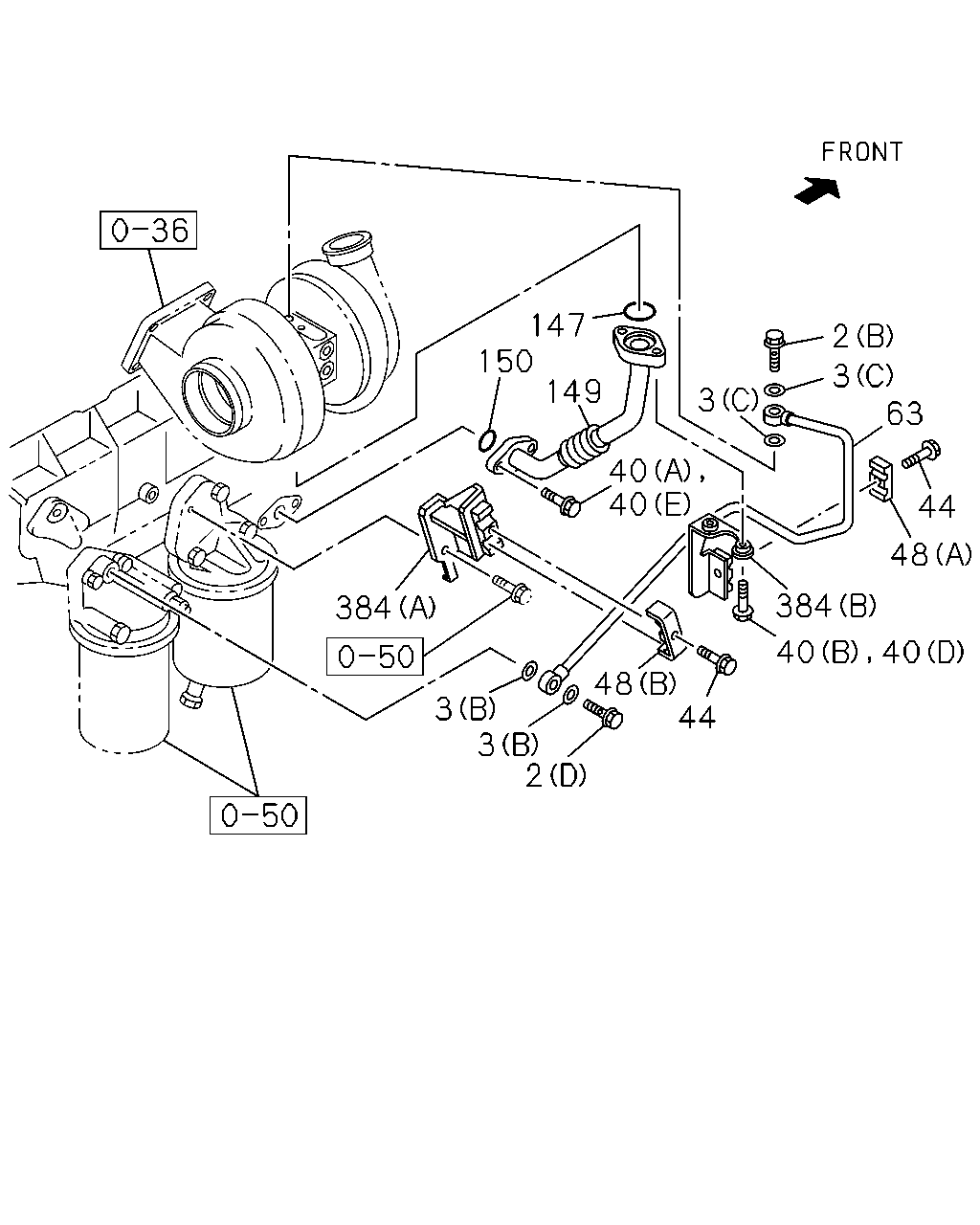

çizim 87634
147 150 2 3 63 149 3 40 40 44 48 384 384 3 3 2 48 44 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(B) M12X28 		8-97388-295-0 01 1 0512- ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		1-09675-077-0 03 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0407-0511 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 0512-0710 ●
2 BOLT; EYE,OIL PIPE
(B) M10X28 		8-98037-823-0 01 1 0711- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 02 1 0512- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0512-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		8-98251-344-0 02 1 1401- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0512- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0407-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0512- ●
40 BOLT; OIL PIPE
(C) M8X40 FLANGE 		0-28080-840-0 02 1 0512-0512 ●
40 BOLT; OIL PIPE
(C) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28181-025-0 02 1 0407-0511 ●
40 BOLT; OIL PIPE
(E) M10X30 FLANGE 		0-28181-030-0 02 1 0512-0512 ●
40 BOLT; OIL PIPE
(E) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
40 BOLT; OIL PIPE
(A) M10X50 FLANGE 		0-28181-050-0 02 1 0407-0511 ●
40 BOLT; OIL PIPE
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512 ● ●
40 BOLT; OIL PIPE
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28080-635-0 02 1 0512-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28050-635-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0407-0511 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0512-0512 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28050-630-0 02 1 0601- ●
48 CLIP; OIL PIPE
(C) ID=7 & 11 L=28 		1-09701-231-1 01 1 0512- ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0407-0511 ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0512- ●
48 CLIP; OIL PIPE
(B) ID=9 & 11 L=28 		1-09701-265-1 01 1 0407-0511 ●
48 CLIP; OIL PIPE
(B) ID=9 & 11 L=28 		1-09701-265-1 02 1 0512- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97609-509-0 01 1 0512- ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-734-0 01 1 0407-0511 ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-734-0 01 1 0512- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0407-0511 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0512- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13314-024-1 01 1 0512- ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-735-1 01 1 0407-0511 ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-735-2 01 1 0512- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0407-0511 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0512- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(C) 		1-13345-216-0 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(D) 		1-13345-225-1 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0407-0511 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0512- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-210-0 01 1 0407-0511 ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-201-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
