Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#29127) — 278 parça

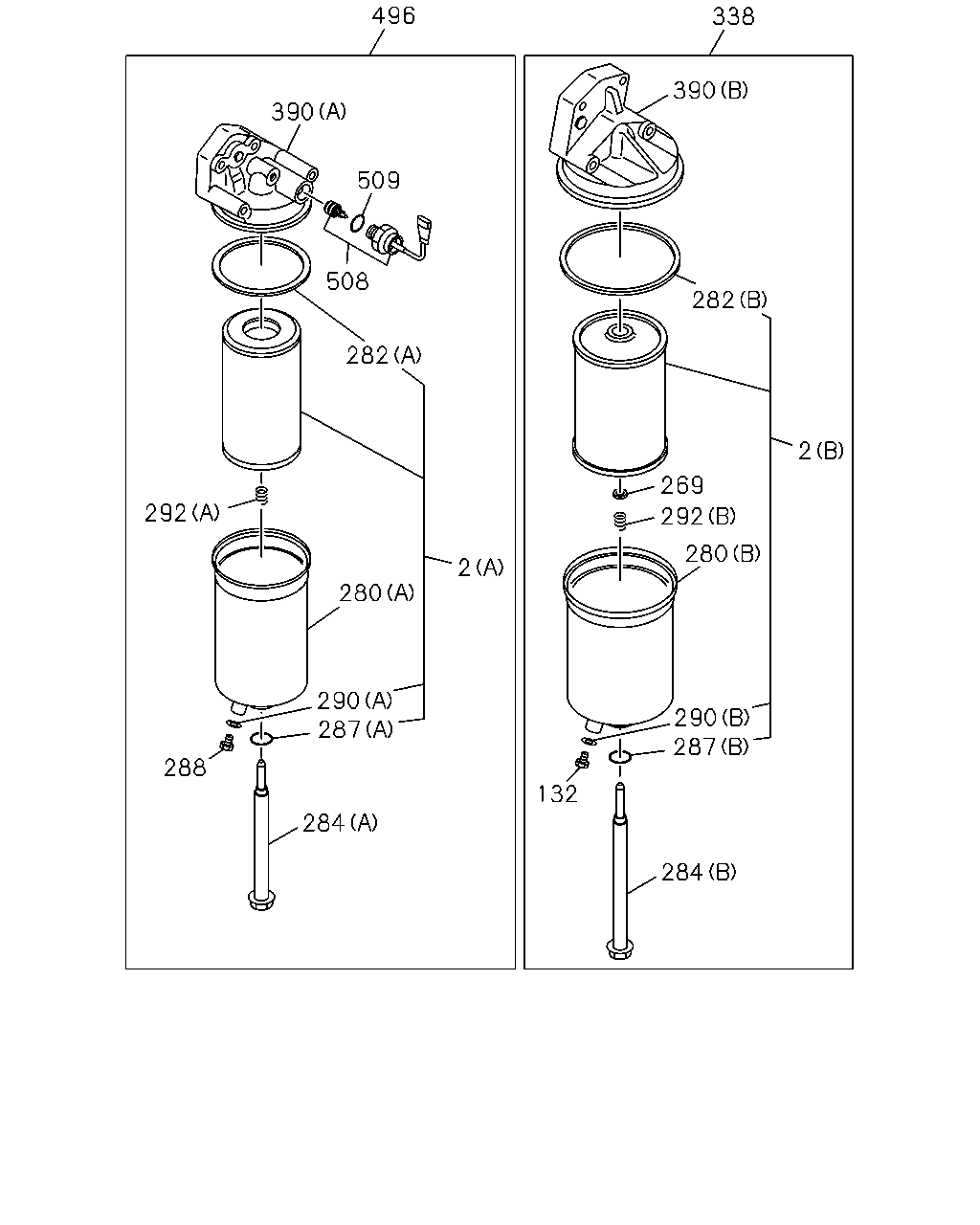

496 338 390 390 509 508 282 282 2 269 292 292 280 2 280 290 287 290 287 288 132 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0407-0511	●
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0512-	●	●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0407-0511	●
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0512-	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0407-0511	●
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0512-	●	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0407-0511	●
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0512-1109	●	●
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0407-0511	●
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0512-	●	●
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0407-0511	●
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0512-	●	●
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0407-0511	●
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0512-	●	●
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0407-0511	●
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0512-	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0407-0511	●
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0512-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0407-0511	●
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0512-1108	●	●
284	BOLT; CENTER,OIL FILTER (A)	8-98193-184-0	01	1	1109-	●	●
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0407-0511	●
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0512-	●	●
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0407-0511	●
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0512-	●	●
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0407-0511	●
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0512-	●	●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0407-0511	●
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0512-	●	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0407-0511	●
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0512-	●	●
292	SPRING; ELEMENT (B)	1-09580-563-0	01	1	0407-0511	●
292	SPRING; ELEMENT (B)	1-09580-563-0	01	1	0512-	●	●
292	SPRING; ELEMENT (A)	1-09580-562-0	01	1	0407-0511	●
292	SPRING; ELEMENT (A)	1-09580-562-0	01	1	0512-	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0407-0511	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0512-	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-285-0	01	1	0407-0511	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-285-0	01	1	0512-	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-2	01	1	0407-0511	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-3	01	1	0512-	●	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0407-0511	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0512-1108	●	●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-	●	●
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0407-0410	●
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-0511	●
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0512-	●	●
509	GASKET; SW	8-98013-480-0	01	1	0407-0511	●
509	GASKET; SW	8-98013-480-0	01	1	0512-	●	●

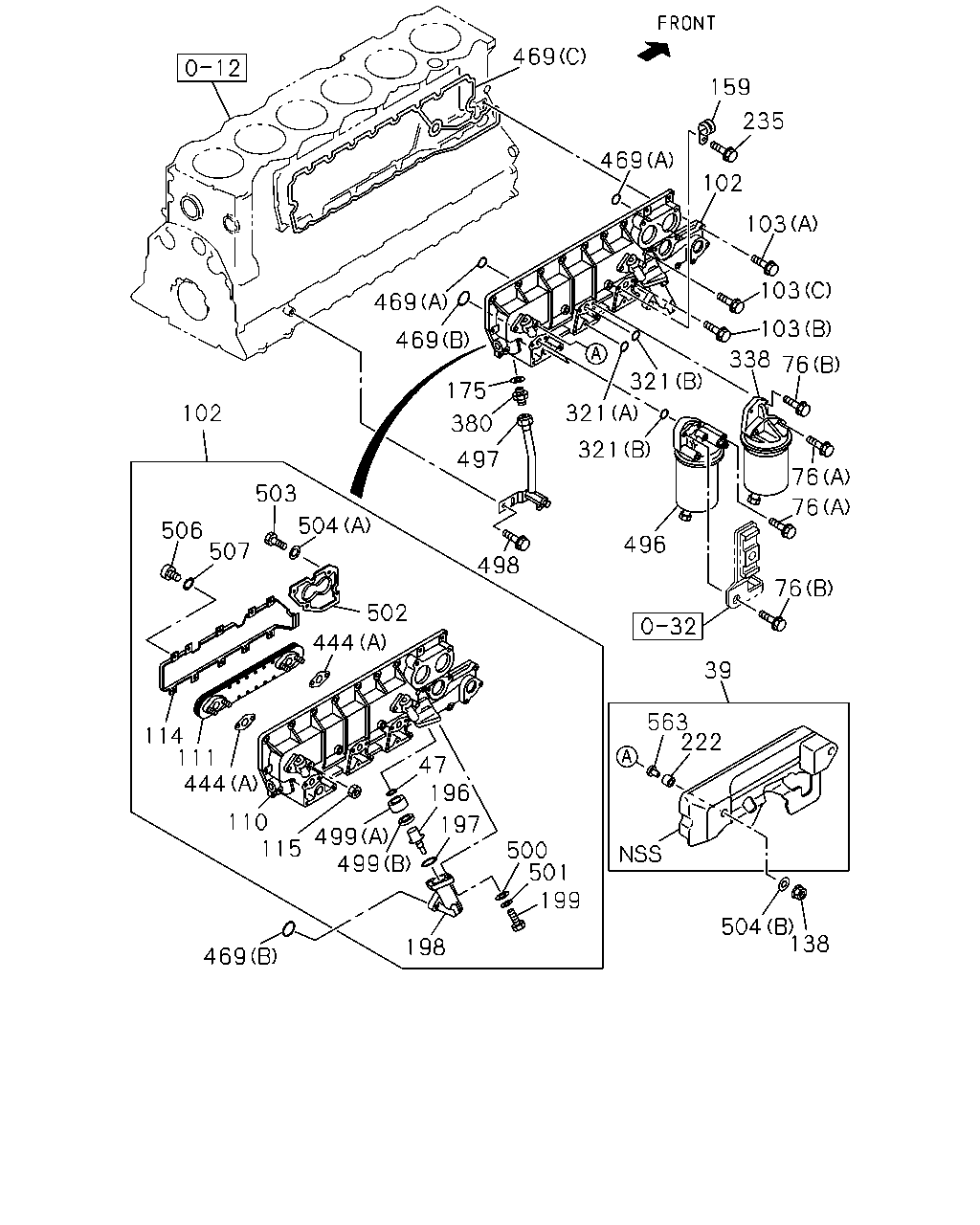

469 469 102 103 103 103 338 76 235 159 76 76 76 39 563 222 504 138 496 498 321 321 321 175 380 497 469 469 102 503 507 506 504 502 444 114 111 444 110 115 499 499 47 196 197 500 501 199 198 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	COVER; OIL COOLER	1-19380-151-1	01	1	0407-0511	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0407-0511	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0602-	●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0512-0601	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0407-0511	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0512-0512	●	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0407-0511	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0512-0512		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-		●
102	COOLER ASM; OIL	8-97604-714-5	01	1	0512-		●
102	COOLER ASM; OIL	1-21700-325-1	01	1	0407-0504	●
102	COOLER ASM; OIL	8-97604-715-5	01	1	0505-	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0407-0511	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0512-0512	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-	●	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28186-011-0	01	1	0407-0511	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28186-011-0	01	1	0512-0512	●	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●
103	BOLT; OIL COOLER (C) M10X65 FLANGE	8-94344-540-1	08	1	0407-0511	●
103	BOLT; OIL COOLER (C) M10X65 FLANGE	8-94344-540-1	08	1	0512-	●	●
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0407-0511	●
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0602-	●	●
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0512-0601	●	●
111	CORE; OIL COOLER	8-97606-642-1	01	1	0602-		●
111	CORE; OIL COOLER	1-21723-053-1	01	1	0407-0504	●
111	CORE; OIL COOLER	8-97606-643-1	01	1	0505-	●
111	CORE; OIL COOLER	8-97606-642-0	01	1	0512-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0407-0511	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0602-	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0512-0601	●	●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0602-0602		●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-	●	●
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0407-0504	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0511	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0512-	●	●
138	NUT M10 FLANGE	0-91150-110-0	02	1	0407-0511	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0407-0511	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0512-	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0407-0511	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0512-	●	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0407-0511	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0602-	●	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0512-	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0407-0511	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0602-	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0512-0601	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0407-0511	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0602-	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0512-0601	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0407-0504	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0511	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-0601	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0602-	●	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0512-	●	●
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	0407-0511	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0407-0511	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0512-0512	●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0407-0511	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0512-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0407-0511	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0512-	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0407-0511	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0512-	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0407-0511	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0512-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-0511	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0602-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0512-0601	●	●
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	0407-0504	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-0511	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0602-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0512-0601	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0512-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0512-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0512-	●	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0407-0511	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0512-1108	●	●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0407-0511	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0512-	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0407-0511	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0512-0512	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0407-0511	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0602-	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0512-0601	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0407-0511	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0602-	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0512-0601	●	●
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	0407-0504	●
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	0407-0504	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0407-0511	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0602-	●	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0512-0601	●	●
503	BOLT; COVER	1-21729-089-0	04	1	0407-0504	●
503	BOLT; COVER	8-98014-763-0	04	1	0505-0511	●
503	BOLT; COVER	8-98014-763-0	04	1	0602-1112	●	●
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-	●	●
503	BOLT; COVER	8-98014-763-0	04	1	0512-0601	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	0407-0504	●
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	0407-0511	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0407-0504	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-0511	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0602-1112	●	●
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-	●	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0512-0601	●	●
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	0407-0504	●
563	TUBE; DISTANCE	1-19389-329-0	02	1	0407-0511	●

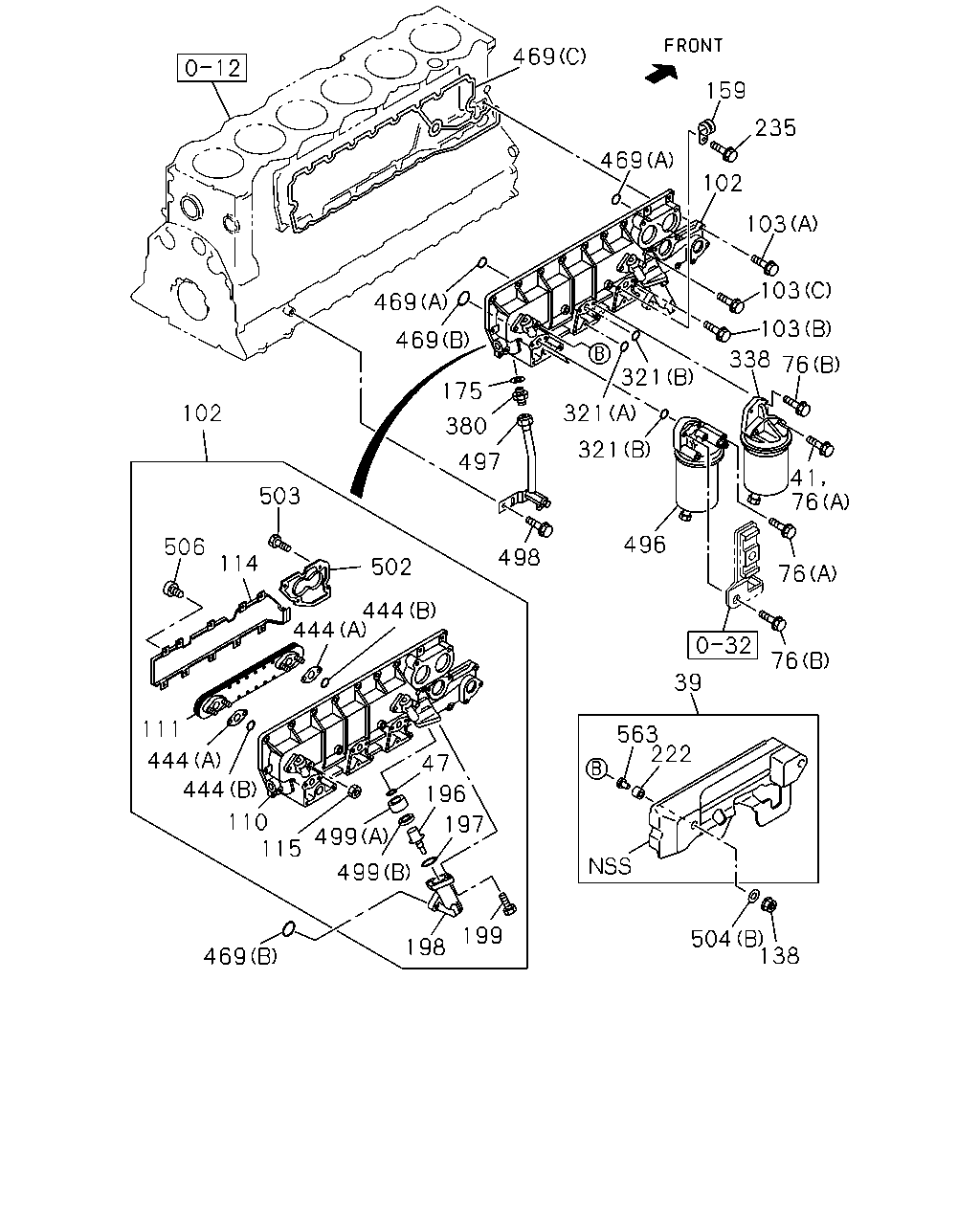

469 469 159 235 102 103 103 103 338 76 41 76 76 76 39 563 222 504 138 199 198 469 499 499 197 196 115 110 444 444 111 47 444 444 502 114 503 506 102 498 496 321 321 321 497 380 175 469 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	COVER; OIL COOLER	1-19380-151-1	01	1	0407-0511	●
41	BOLT; COVER FIX M10X77 FLANGE	8-97250-419-0	02	1	0512-0805	●
41	BOLT; COVER FIX M10X77 FLANGE	8-98038-705-0	02	1	0806-	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0407-0511	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0602-	●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0512-0601	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0407-0511	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0512-0512	●	●
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0407-0511	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0512-0512		●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-		●
102	COOLER ASM; OIL	8-97604-714-5	01	1	0512-		●
102	COOLER ASM; OIL	1-21700-325-1	01	1	0407-0504	●
102	COOLER ASM; OIL	8-97604-715-5	01	1	0505-	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0407-0511	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0512-0512	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-	●	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28186-011-0	01	1	0407-0511	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28186-011-0	01	1	0512-0512	●	●
103	BOLT; OIL COOLER (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●
103	BOLT; OIL COOLER (C) M10X65 FLANGE	8-94344-540-1	08	1	0407-0511	●
103	BOLT; OIL COOLER (C) M10X65 FLANGE	8-94344-540-1	08	1	0512-	●	●
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0407-0511	●
110	BODY; CASE,OIL COOLER	1-21721-091-7	01	1	0602-	●	●
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0512-0601	●	●
111	CORE; OIL COOLER	8-97606-642-1	01	1	0602-		●
111	CORE; OIL COOLER	1-21723-053-1	01	1	0407-0504	●
111	CORE; OIL COOLER	8-97606-643-1	01	1	0505-	●
111	CORE; OIL COOLER	8-97606-642-0	01	1	0512-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0407-0511	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0602-	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0512-0601	●	●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0602-0602		●
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-	●	●
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0407-0504	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0511	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0512-	●	●
138	NUT M10 FLANGE	0-91150-110-0	02	1	0407-0511	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0407-0511	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0512-	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0407-0511	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0512-	●	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0407-0511	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0602-	●	●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0512-	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0407-0511	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0602-	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0512-0601	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0407-0511	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0602-	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0512-0601	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0407-0504	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0511	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-0601	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0602-	●	●
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0512-	●	●
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	0407-0511	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0407-0511	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0512-0512	●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0407-0511	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0512-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0407-0511	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0512-	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0407-0511	●
338	FILTER ASM; OIL PARTIAL	1-13200-990-3	01	1	0512-	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0407-0511	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	0512-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-0511	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0602-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0512-0601	●	●
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	0407-0504	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-0511	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0602-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0512-0601	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0512-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0512-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0407-0511	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0512-	●	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0407-0511	●
496	FILTER ASM; OIL	1-13200-989-4	01	1	0512-1108	●	●
496	FILTER ASM; OIL	8-98193-182-2	01	1	1109-	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0407-0511	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0512-	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0407-0511	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0512-0512	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0407-0511	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0602-	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0512-0601	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0407-0511	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0602-	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0512-0601	●	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0407-0511	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0602-	●	●
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0512-0601	●	●
503	BOLT; COVER	1-21729-089-0	04	1	0407-0504	●
503	BOLT; COVER	8-98014-763-0	04	1	0505-0511	●
503	BOLT; COVER	8-98014-763-0	04	1	0602-1112	●	●
503	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1201-	●	●
503	BOLT; COVER	8-98014-763-0	04	1	0512-0601	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	0407-0504	●
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	0407-0511	●
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0407-0504	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-0511	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0602-1112	●	●
506	SCREW; BAFFLE	8-98197-829-0	10	1	1201-	●	●
506	SCREW; BAFFLE	1-09030-036-0	10	1	0512-0601	●	●
563	TUBE; DISTANCE	1-19389-329-0	02	1	0407-0511	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
