0-40 — FUEL INJECTION SYSTEM (#29124) — 455 parça

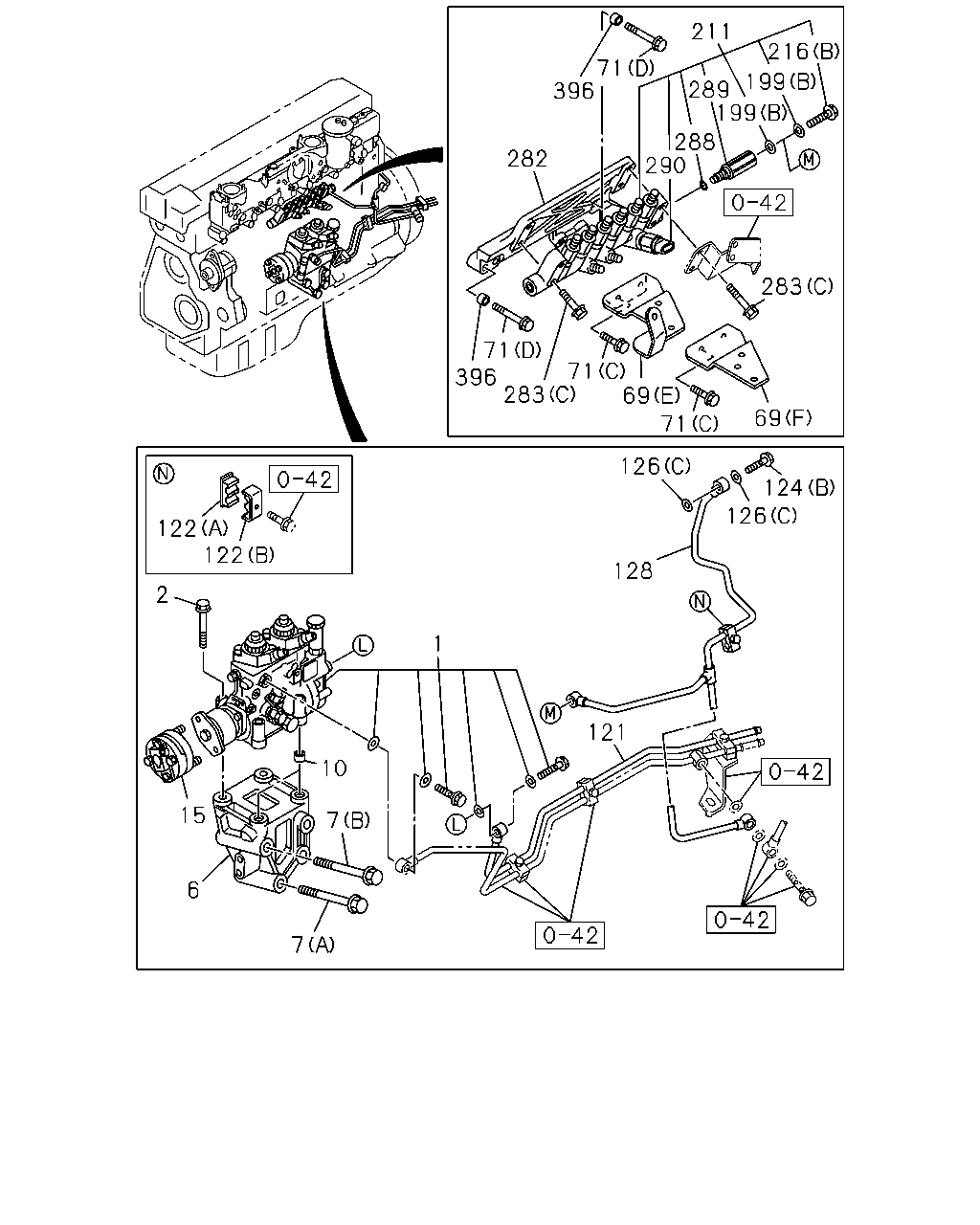

çizim 87094
7 7 10 6 15 1 2 122 122 121 128 126 126 124 69 71 69 71 283 396 71 283 216 199 289 199 288 290 211 71 396 282
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 1-15603-267-5 01 1 0407-0511 ●
1 PUMP ASM; INJ 8-97603-414-4 01 1 0512- ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0407-0511 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0512-0512 ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-177-0 01 1 0407-0511 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-179-0 01 1 0512- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(C) M14X140 FLANGE 		0-28986-414-0 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0512- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-200-0 01 1 0407-0511 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0512- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		1-15419-662-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(F) 		1-15419-720-1 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		1-15419-664-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-97605-219-0 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(C) 		1-15419-665-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(D) 		1-15419-666-0 01 1 0407-0511 ●
71 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
71 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0407-0511 ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-257-0 01 1 0407-0511 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97607-212-0 01 1 0512- ● ●
122 CLIP; LEAK OFF PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 01 1 1206- ● ●
122 CLIP; LEAK OFF PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 03 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0512-1205 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0407- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0512-0702 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 01 1 0703- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 06 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 04 1 0512-1205 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=12.6 		8-98065-993-0 01 1 0512- ● ●
128 PIPE ASM; INJ 1-15416-588-0 01 1 0407-0511 ●
128 PIPE ASM; INJ 1-15416-818-0 01 1 0512-1205 ● ●
128 PIPE ASM; INJ 8-98218-279-0 01 1 1206- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0407-0511 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0512- ● ●
211 RAIL ASM; COMMON 1-15651-008-2 01 1 0407-0511 ●
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0512- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0512- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0407-0511 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0512- ● ●
282 BRACKET; COMMON RAIL 1-15659-001-0 01 1 0407-0511 ●
282 BRACKET; COMMON RAIL 8-97603-122-2 01 1 0512- ● ●
283 BOLT; COMMON RAIL
(A) M8X50 FLANGE 		0-28080-850-0 02 1 0407-0511 ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28181-040-0 04 1 0512-0512 ● ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28151-040-0 04 1 0601- ● ●
283 BOLT; COMMON RAIL
(B) M8X70 FLANGE 		0-28080-870-0 02 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 1-15641-047-1 01 1 0407-0511 ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0407-0511 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0512-1102 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0512- ● ●

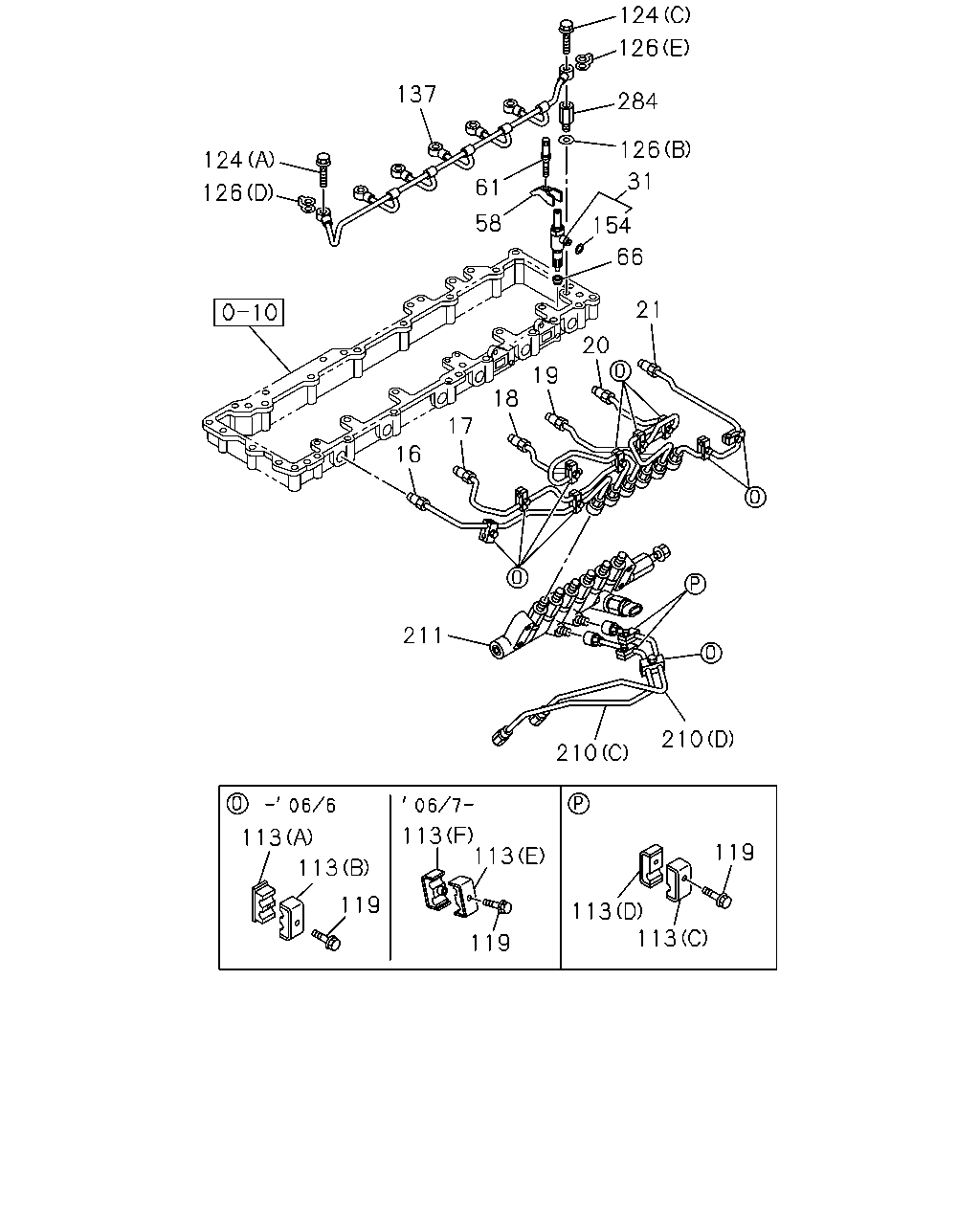

çizim 87095
119 113 113 119 113 113 119 113 113 211 210 210 21 20 19 18 17 16 66 154 31 126 284 126 124 61 58 137 126 124
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 1-15416-251-3 01 1 0407-0511 ●
16 PIPE; INJ NO.1 1-15416-842-2 01 1 0512- ● ●
17 PIPE; INJ NO.2 1-15416-252-3 01 1 0407-0511 ●
17 PIPE; INJ NO.2 1-15416-843-3 01 1 0512- ● ●
18 PIPE; INJ NO.3 1-15416-253-3 01 1 0407-0511 ●
18 PIPE; INJ NO.3 1-15416-844-2 01 1 0512- ● ●
19 PIPE; INJ NO.4 1-15416-254-3 01 1 0407-0511 ●
19 PIPE; INJ NO.4 1-15416-845-2 01 1 0512- ● ●
20 PIPE; INJ NO.5 1-15416-255-3 01 1 0407-0511 ●
20 PIPE; INJ NO.5 1-15416-846-3 01 1 0512- ● ●
21 PIPE; INJ NO.6 1-15416-256-3 01 1 0407-0511 ●
21 PIPE; INJ NO.6 1-15416-847-2 01 1 0512- ● ●
31 NOZZLE ASM; INJ 1-15300-367-3 06 1 0407-0511 ●
31 NOZZLE ASM; INJ 8-97603-415-7 06 1 0512- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 1-15337-021-0 06 1 0407-0511 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 0512- ● ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0407-0511 ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0512- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-021-1 06 1 0407-0511 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 0512- ● ●
113 CLIP; INJ PIPE
(D) 		1-09701-269-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-371-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 11 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 11 1 0607- ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 10 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 10 1 0607- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 13 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 13 1 0601- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 12 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 0601- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 03 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0512-1205 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0407- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0512-0702 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 01 1 0703- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 06 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 04 1 0512-1205 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=12.6 		8-98065-993-0 01 1 0512- ● ●
137 PIPE ASM; LEAK OFF 1-15416-435-2 01 1 0407-0511 ●
137 PIPE ASM; LEAK OFF 1-15416-851-0 01 1 0512-0702 ● ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 0703- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0407-0511 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0512-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
210 PIPE; INJ,C/R
(B) 		1-15416-683-1 01 1 0407-0511 ●
210 PIPE; INJ,C/R
(C) 		1-15416-811-1 01 1 0512- ● ●
210 PIPE; INJ,C/R
(A) 		1-15416-697-1 01 1 0407-0511 ●
210 PIPE; INJ,C/R
(D) 		1-15416-812-1 01 1 0512- ● ●
211 RAIL ASM; COMMON 1-15651-008-2 01 1 0407-0511 ●
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0512- ● ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0407-0511 ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0512- ● ●

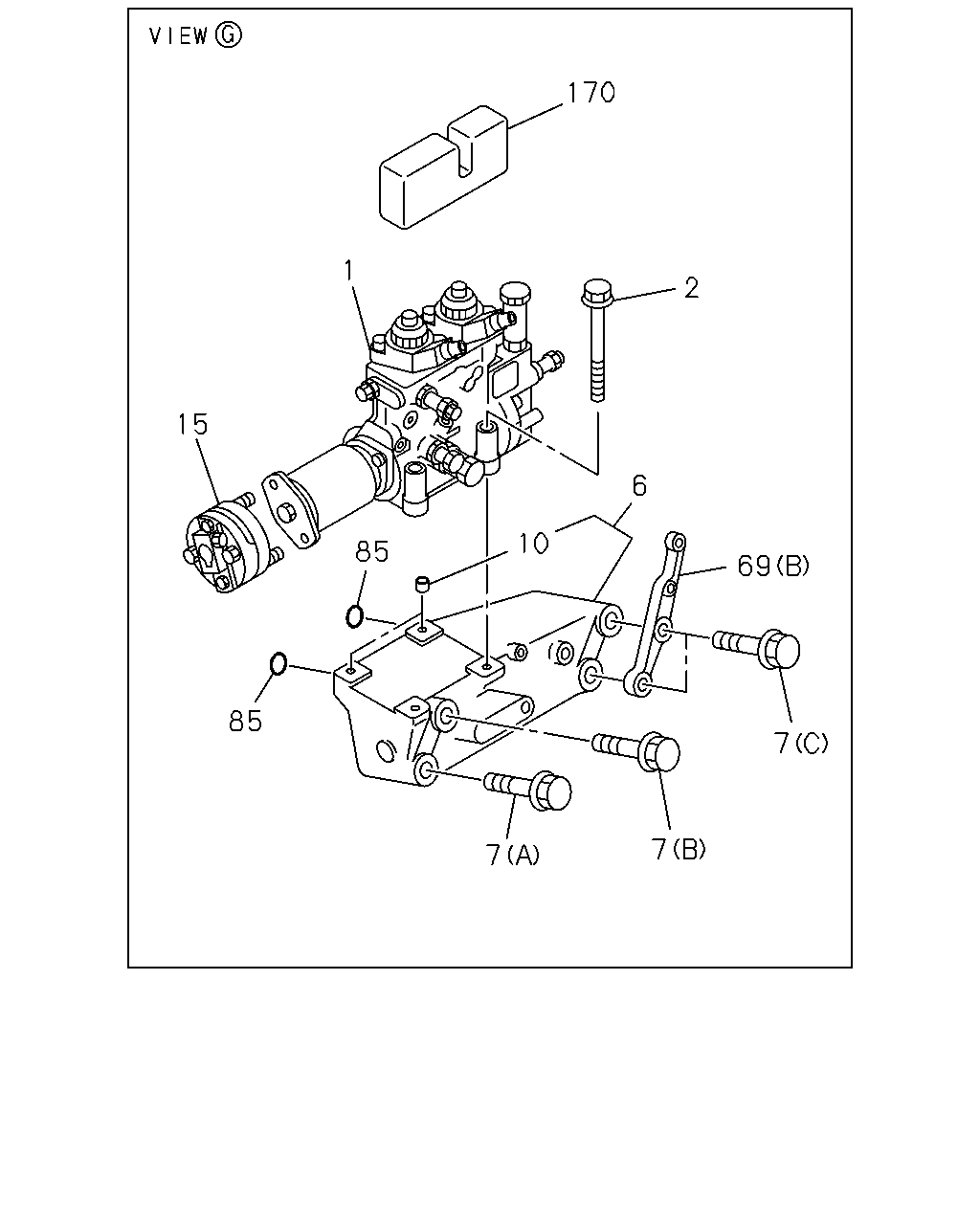

çizim 87194
170 1 2 15 6 10 85 69 85 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 1-15603-267-5 01 1 0407-0511 ●
1 PUMP ASM; INJ 8-97603-414-4 01 1 0512- ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0407-0511 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0512-0512 ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-177-0 01 1 0407-0511 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-179-0 01 1 0512- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(C) M14X140 FLANGE 		0-28986-414-0 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0512- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-200-0 01 1 0407-0511 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0512- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		1-15419-662-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(F) 		1-15419-720-1 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		1-15419-664-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-97605-219-0 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(C) 		1-15419-665-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(D) 		1-15419-666-0 01 1 0407-0511 ●
85 GASKET; BRKT,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8 		1-09623-478-0 02 1 0407-0511 ●
170 INSULATOR; INJ PUMP 1-19389-160-0 01 1 0407-0511 ●

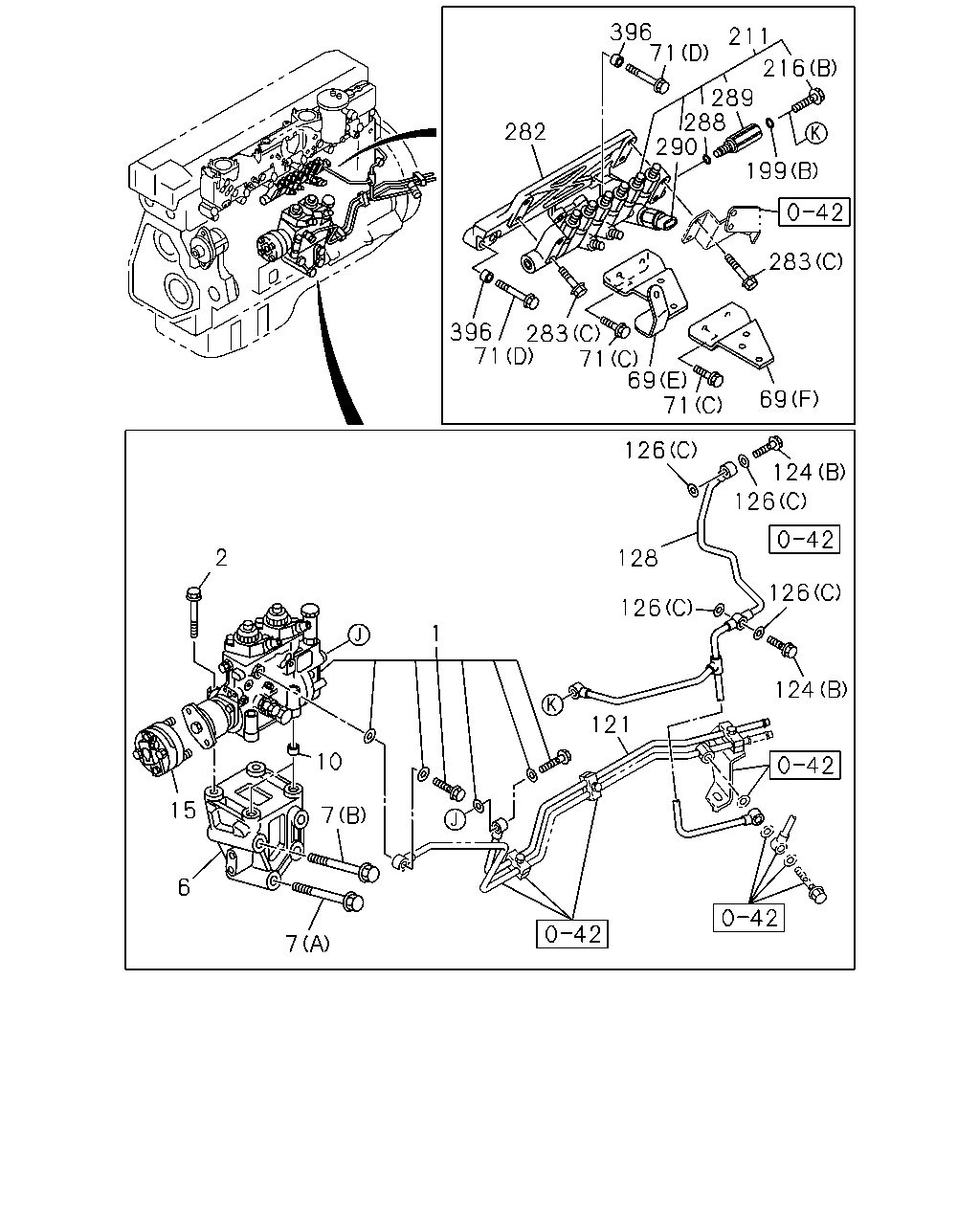

çizim 87205
7 7 6 15 10 1 2 121 124 126 128 126 124 126 69 71 69 71 283 71 396 283 199 216 211 289 288 290 71 396 282 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 1-15603-267-5 01 1 0407-0511 ●
1 PUMP ASM; INJ 8-97603-414-4 01 1 0512- ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0407-0511 ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28090-890-0 04 1 0512-0512 ● ●
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0601- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-177-0 01 1 0407-0511 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-179-0 01 1 0512- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28981-490-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 01 1 0407-0511 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28986-412-0 02 1 0512-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(C) M14X140 FLANGE 		0-28986-414-0 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0407-0511 ●
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0512- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-200-0 01 1 0407-0511 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-192-0 01 1 0512- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		1-15419-662-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(F) 		1-15419-720-1 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		1-15419-664-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-97605-219-0 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(C) 		1-15419-665-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(D) 		1-15419-666-0 01 1 0407-0511 ●
71 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
71 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0407-0511 ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-257-0 01 1 0407-0511 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97607-212-0 01 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 03 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0512-1205 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0407- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0512-0702 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 01 1 0703- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 06 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 04 1 0512-1205 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=12.6 		8-98065-993-0 01 1 0512- ● ●
128 PIPE ASM; INJ 1-15416-588-0 01 1 0407-0511 ●
128 PIPE ASM; INJ 1-15416-818-0 01 1 0512-1205 ● ●
128 PIPE ASM; INJ 8-98218-279-0 01 1 1206- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0407-0511 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0512- ● ●
211 RAIL ASM; COMMON 1-15651-008-2 01 1 0407-0511 ●
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0512- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0512- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0407-0511 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0512- ● ●
282 BRACKET; COMMON RAIL 1-15659-001-0 01 1 0407-0511 ●
282 BRACKET; COMMON RAIL 8-97603-122-2 01 1 0512- ● ●
283 BOLT; COMMON RAIL
(A) M8X50 FLANGE 		0-28080-850-0 02 1 0407-0511 ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28181-040-0 04 1 0512-0512 ● ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28151-040-0 04 1 0601- ● ●
283 BOLT; COMMON RAIL
(B) M8X70 FLANGE 		0-28080-870-0 02 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 1-15641-047-1 01 1 0407-0511 ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0407-0511 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0512-1102 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0512- ● ●

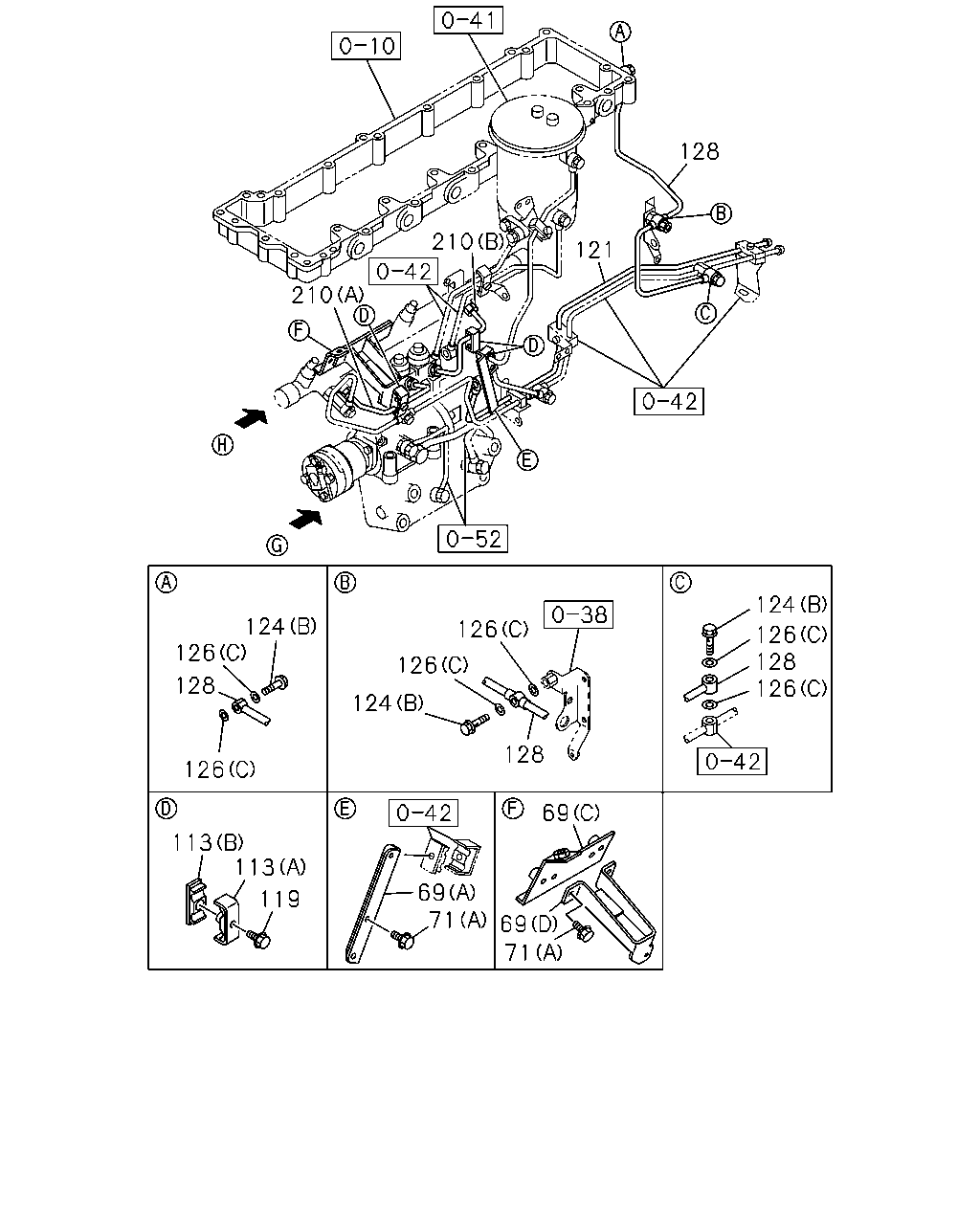

çizim 87631
128 210 121 210 124 124 126 126 126 128 126 126 128 124 128 126 69 113 113 69 71 119 69 71
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
(A) 		1-15419-662-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(F) 		1-15419-720-1 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		1-15419-664-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-97605-219-0 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(C) 		1-15419-665-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(D) 		1-15419-666-0 01 1 0407-0511 ●
71 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
71 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0407-0511 ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ● ●
113 CLIP; INJ PIPE
(D) 		1-09701-269-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-371-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 11 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 11 1 0607- ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 10 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 10 1 0607- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 13 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 13 1 0601- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 12 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 0601- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15416-257-0 01 1 0407-0511 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97607-212-0 01 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 03 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0512-1205 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0407- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0512-0702 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 01 1 0703- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 06 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 04 1 0512-1205 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=12.6 		8-98065-993-0 01 1 0512- ● ●
128 PIPE ASM; INJ 1-15416-588-0 01 1 0407-0511 ●
128 PIPE ASM; INJ 1-15416-818-0 01 1 0512-1205 ● ●
128 PIPE ASM; INJ 8-98218-279-0 01 1 1206- ● ●
210 PIPE; INJ,C/R
(B) 		1-15416-683-1 01 1 0407-0511 ●
210 PIPE; INJ,C/R
(C) 		1-15416-811-1 01 1 0512- ● ●
210 PIPE; INJ,C/R
(A) 		1-15416-697-1 01 1 0407-0511 ●
210 PIPE; INJ,C/R
(D) 		1-15416-812-1 01 1 0512- ● ●

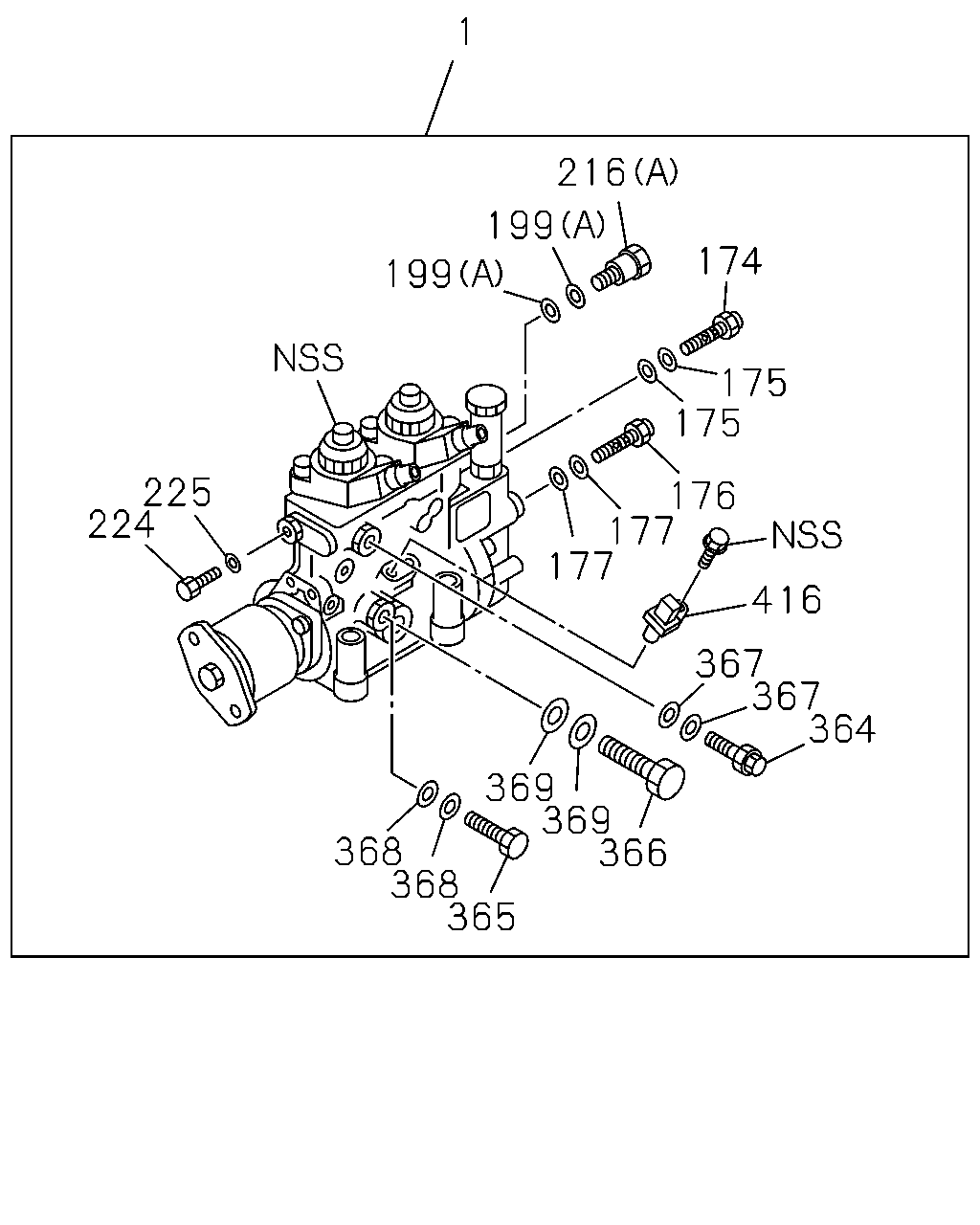

çizim 87632

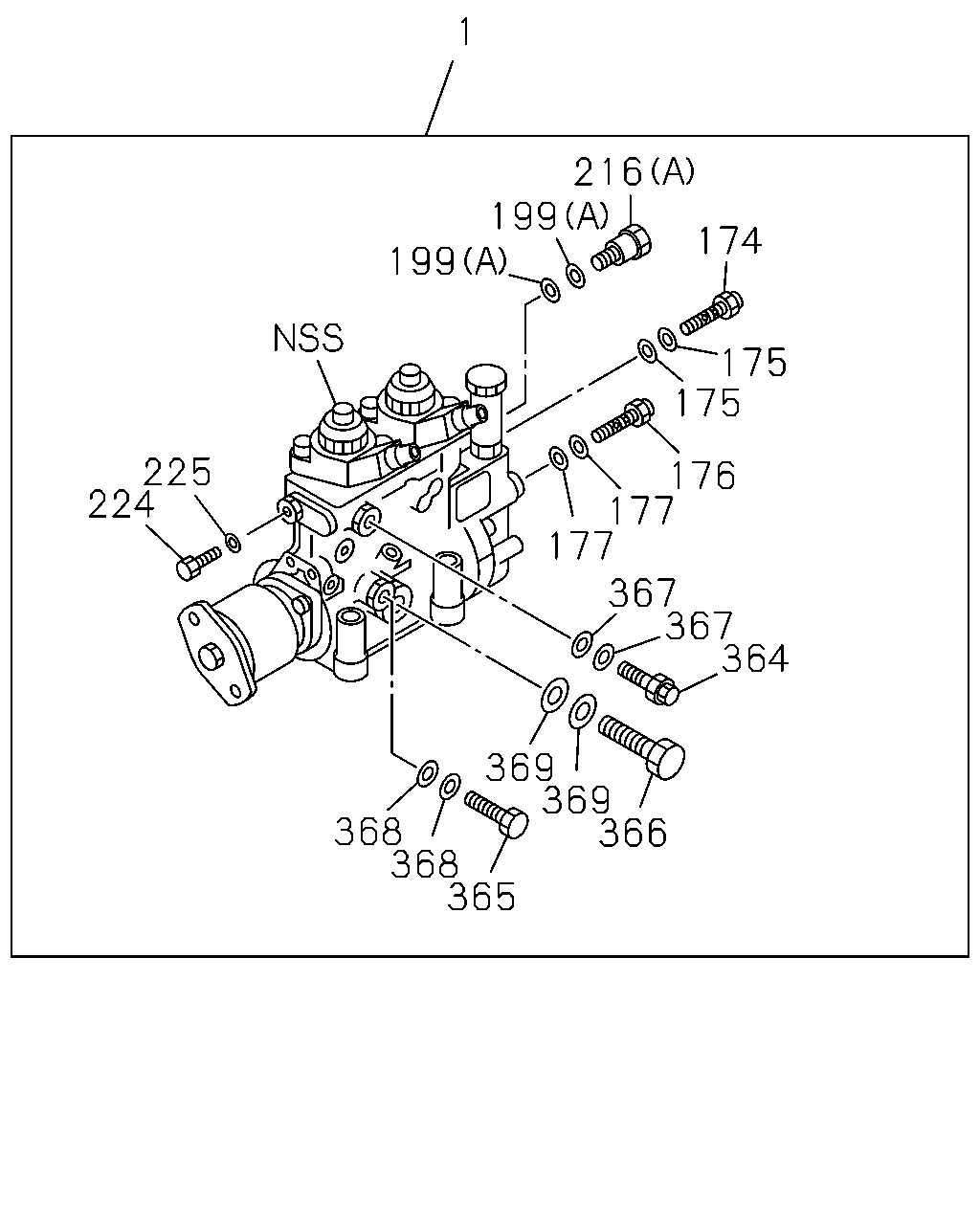

1 216 199 174 199 175 175 225 224 176 177 177 416 367 367 364 369 369 366 368 368 365
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 1-15603-267-5 01 1 0407-0511 ●
1 PUMP ASM; INJ 8-97603-414-4 01 1 0512- ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0407-0511 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0512- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0407-0511 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0512- ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0407-0511 ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0512- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0407-0511 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0407-0511 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0512- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0512- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0407-0511 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0512- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0407-0511 ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0512- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0407-0511 ●
225 GASKET; PLUG 1-15619-502-0 01 1 0512- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0407-0511 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0512- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0407-0511 ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0512- ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0407-0511 ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0512- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0407-0511 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0512- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0407-0511 ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0512- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0407-0511 ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0512- ● ●
416 SENSOR; POSITION,PUMP 8-97174-899-0 01 1 0407-0511 ●

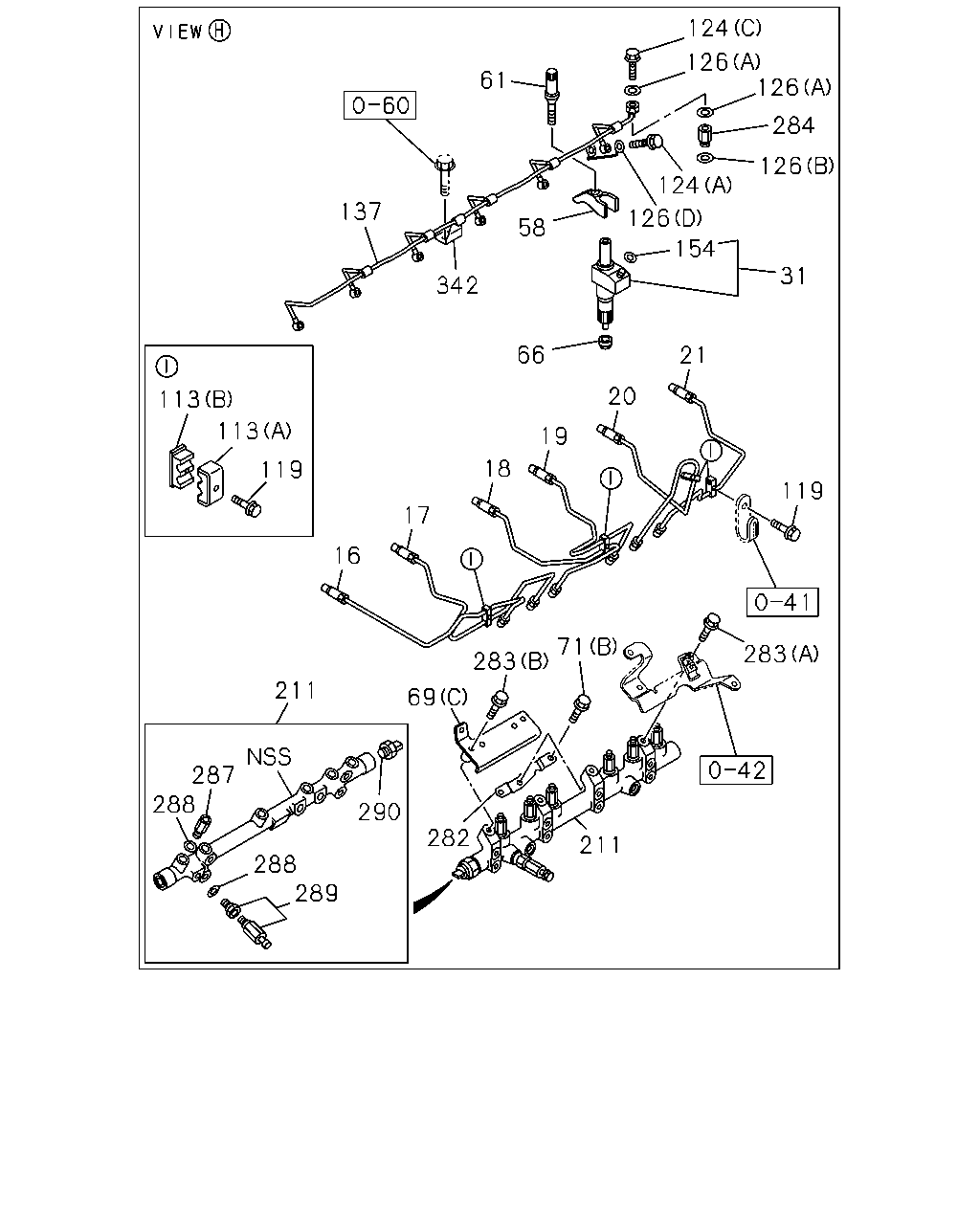

çizim 103648
124 126 126 61 284 126 124 137 126 58 154 31 342 66 21 20 113 113 19 18 119 119 17 16 71 283 283 211 69 287 288 290 282 211 288 289
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 1-15416-251-3 01 1 0407-0511 ●
16 PIPE; INJ NO.1 1-15416-842-2 01 1 0512- ● ●
17 PIPE; INJ NO.2 1-15416-252-3 01 1 0407-0511 ●
17 PIPE; INJ NO.2 1-15416-843-3 01 1 0512- ● ●
18 PIPE; INJ NO.3 1-15416-253-3 01 1 0407-0511 ●
18 PIPE; INJ NO.3 1-15416-844-2 01 1 0512- ● ●
19 PIPE; INJ NO.4 1-15416-254-3 01 1 0407-0511 ●
19 PIPE; INJ NO.4 1-15416-845-2 01 1 0512- ● ●
20 PIPE; INJ NO.5 1-15416-255-3 01 1 0407-0511 ●
20 PIPE; INJ NO.5 1-15416-846-3 01 1 0512- ● ●
21 PIPE; INJ NO.6 1-15416-256-3 01 1 0407-0511 ●
21 PIPE; INJ NO.6 1-15416-847-2 01 1 0512- ● ●
31 NOZZLE ASM; INJ 1-15300-367-3 06 1 0407-0511 ●
31 NOZZLE ASM; INJ 8-97603-415-7 06 1 0512- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 1-15337-021-0 06 1 0407-0511 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 0512- ● ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0407-0511 ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0512- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-021-1 06 1 0407-0511 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 0512- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		1-15419-662-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(F) 		1-15419-720-1 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(B) 		1-15419-664-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-97605-219-0 01 1 0512- ●
69 BRACKET; INJ PIPE CLIP
(C) 		1-15419-665-0 01 1 0407-0511 ●
69 BRACKET; INJ PIPE CLIP
(D) 		1-15419-666-0 01 1 0407-0511 ●
71 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
71 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0407-0511 ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ● ●
113 CLIP; INJ PIPE
(D) 		1-09701-269-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-371-0 02 1 0512- ● ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 11 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 11 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 11 1 0607- ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(A) 		1-09701-172-2 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(E) 		8-97330-118-3 10 1 0607- ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 06 1 0407-0511 ●
113 CLIP; INJ PIPE
(B) 		1-09701-173-1 10 1 0512-0606 ●
113 CLIP; INJ PIPE
(F) 		8-97330-119-3 10 1 0607- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 13 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 13 1 0601- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28080-630-0 12 1 0512-0512 ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 0601- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0512- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 03 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0512-1205 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0511 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 FLANGE 		1-09675-160-0 01 1 0512-0805 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.2 		1-09630-084-0 02 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0407- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0512-0702 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20 		8-98065-990-0 01 1 0703- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 06 1 0407-0511 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 04 1 0512-1205 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=12.6 		8-98065-993-0 01 1 0512- ● ●
137 PIPE ASM; LEAK OFF 1-15416-435-2 01 1 0407-0511 ●
137 PIPE ASM; LEAK OFF 1-15416-851-0 01 1 0512-0702 ● ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 0703- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0407-0511 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0512-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
211 RAIL ASM; COMMON 1-15651-008-2 01 1 0407-0511 ●
211 RAIL ASM; COMMON 8-97603-121-2 01 1 0512- ● ●
282 BRACKET; COMMON RAIL 1-15659-001-0 01 1 0407-0511 ●
282 BRACKET; COMMON RAIL 8-97603-122-2 01 1 0512- ● ●
283 BOLT; COMMON RAIL
(A) M8X50 FLANGE 		0-28080-850-0 02 1 0407-0511 ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28181-040-0 04 1 0512-0512 ● ●
283 BOLT; COMMON RAIL
(C) M10X40 FLANGE 		0-28151-040-0 04 1 0601- ● ●
283 BOLT; COMMON RAIL
(B) M8X70 FLANGE 		0-28080-870-0 02 1 0407-0511 ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0407-0511 ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0512- ● ●
287 DAMPER; FUEL FLOW 1-15641-048-0 06 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0407-0511 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0512- ● ●
289 LIMITER; FUEL PRESS 1-15641-047-1 01 1 0407-0511 ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0407-0511 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0512-1102 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ● ●
342 BRACKET; CLIP,LEAK OFF 1-15419-673-0 01 1 0407-0511 ●
çizim 321124
366 369 369 365 368 368 364 367 367 177 177 176 175 175 174 216 199 199 225 224 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 1-15603-267-5 01 1 0407-0511 ●
1 PUMP ASM; INJ 8-97603-414-4 01 1 0512- ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0407-0511 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0512- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0407-0511 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0512- ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0407-0511 ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0512- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0407-0511 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0512- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0407-0511 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0512- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0512- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0407-0511 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0512- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0407-0511 ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0512- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0407-0511 ●
225 GASKET; PLUG 1-15619-502-0 01 1 0512- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0407-0511 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0512- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0407-0511 ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0512- ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0407-0511 ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0512- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0407-0511 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0512- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0407-0511 ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0512- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0407-0511 ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
