◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#2912) — 1552 parça

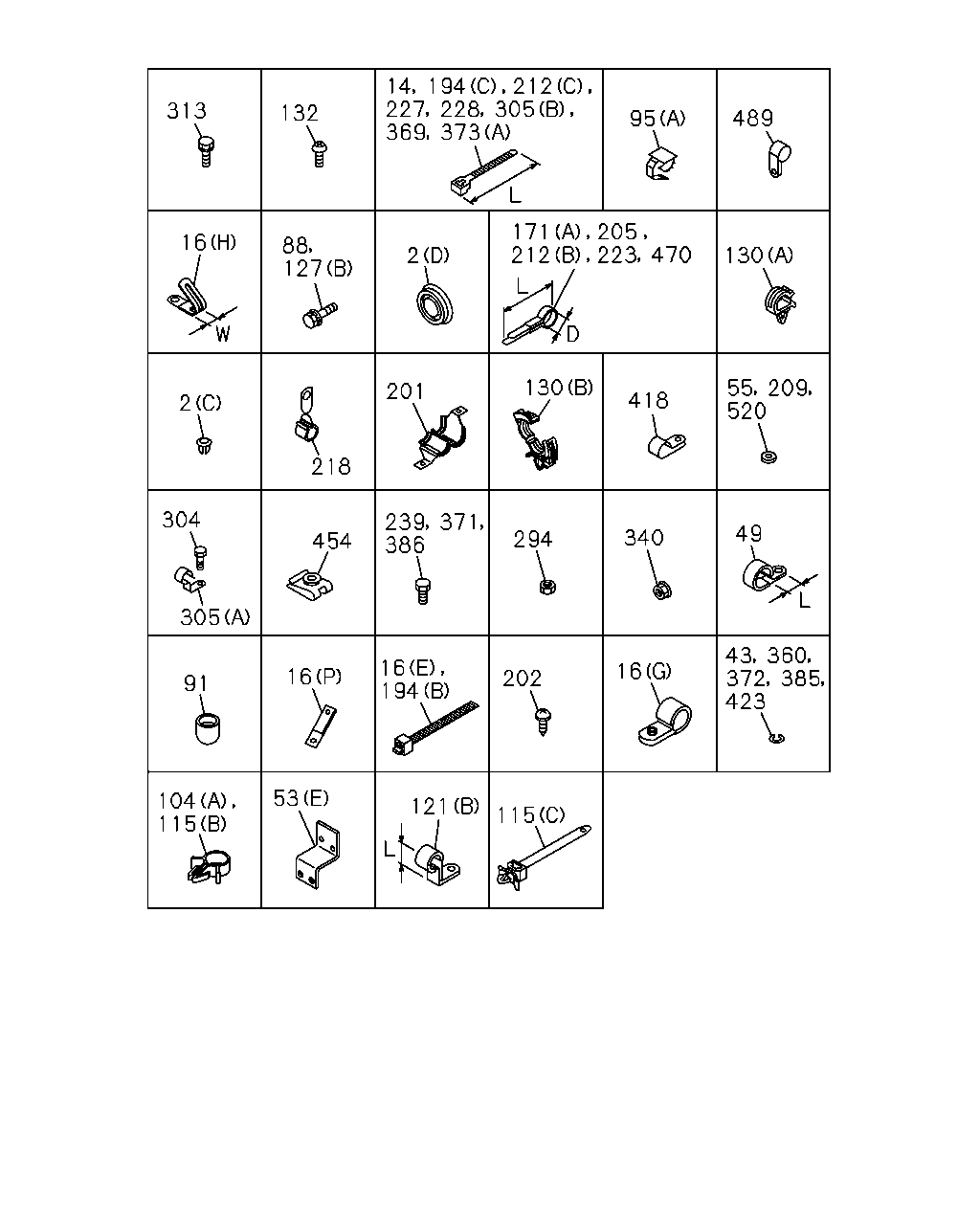

çizim 27196
27 231 171 38 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=50 		9-09917-430-0 16 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=70 		1-09700-485-0 16 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 04 1 9207-9306 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9012-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> EXC. INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9307- ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9309- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-9308 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9309- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9012-9202 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9207-9306 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9205 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 02 1 9012-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9403-9502 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9503- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (D) ID=11 L=30 		1-09700-511-0 01 1 9002-9312 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (0) ID=11 L=30 		1-09700-511-0 01 1 9401-9404 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9405- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9307 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=70 		1-09700-485-0 21 1 9308- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9308-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=50 		9-09917-430-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ●
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 9002- ● ●
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-9502 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206- ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206- ● ●
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-1 02 1 9002- ● ●
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 05 1 9002- ● ●
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 9002- ● ●
çizim 29402
115 121 53 115 104 91 16 194 16 202 16 423 43 372 385 360 49 340 294 371 386 239 454 305 304 2 218 201 130 418 55 209 520 130 470 223 205 212 171 2 127 88 16 313 132 489 95 212 305 373 228 194 14 369 227
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ● ●
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 9307- ● ●
14 CLIP; BAND,HARNESS
FULLER M/T<X9B> L=140 		5-09707-031-1 02 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●

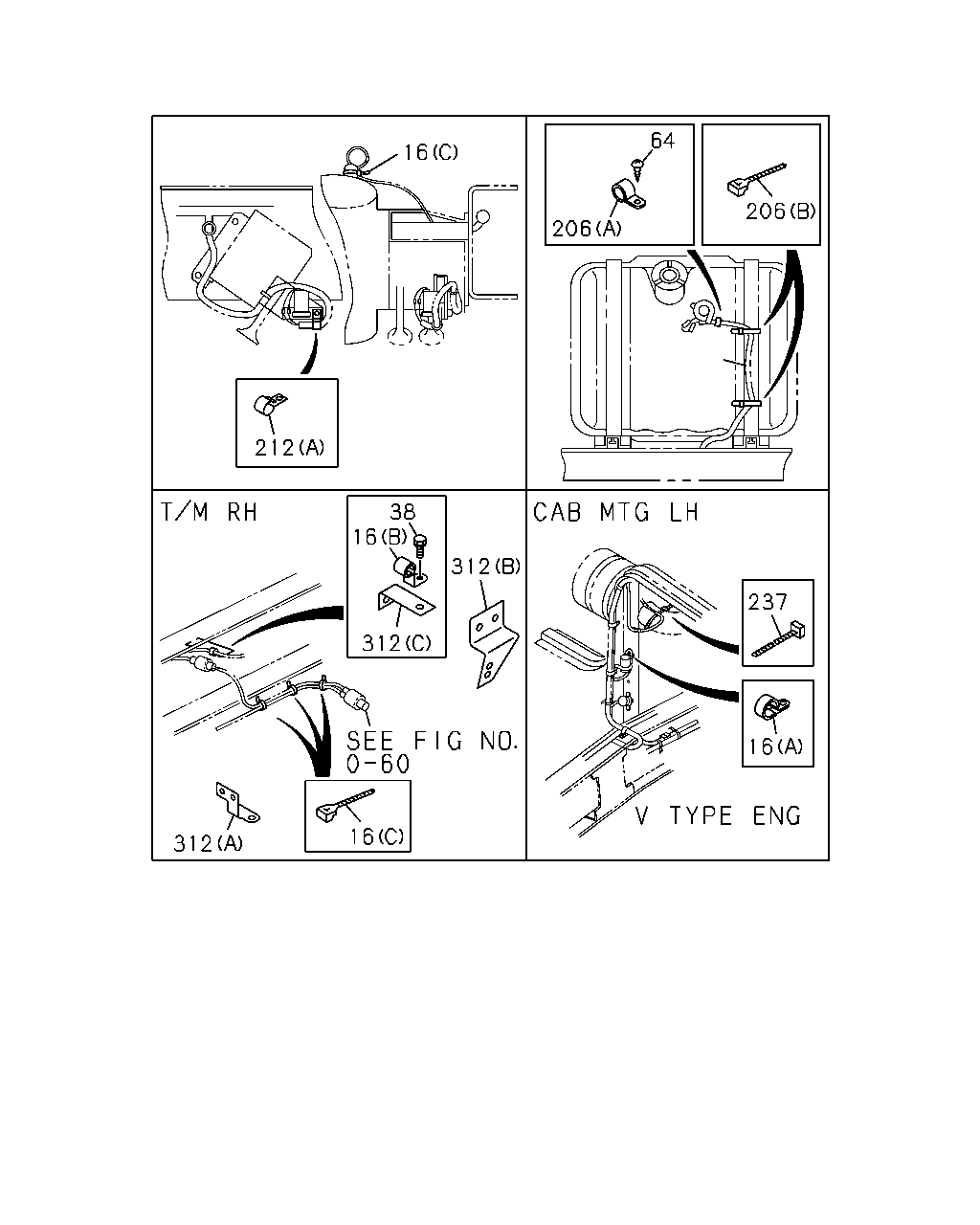

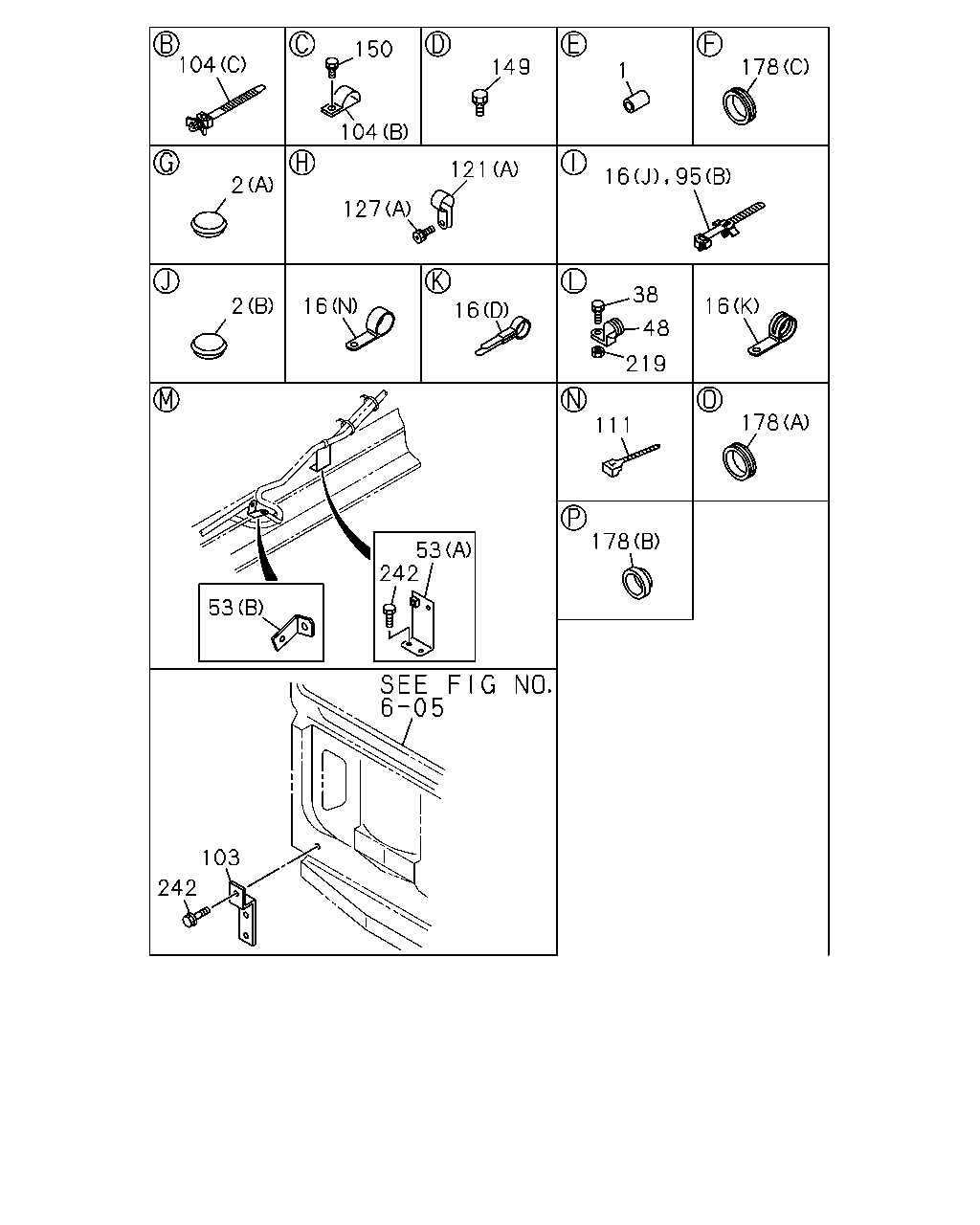

16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=50 		9-09917-430-0 16 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=70 		1-09700-485-0 16 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 04 1 9207-9306 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9012-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> EXC. INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9307- ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9309- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-9308 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9309- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9012-9202 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9207-9306 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9205 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 02 1 9012-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9403-9502 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9503- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (D) ID=11 L=30 		1-09700-511-0 01 1 9002-9312 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (0) ID=11 L=30 		1-09700-511-0 01 1 9401-9404 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9405- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9307 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=70 		1-09700-485-0 21 1 9308- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9308-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=50 		9-09917-430-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ●
43 WASHER; LK,HARNESS
L TYPE ENG<90L> ID=5.1 		9-09150-505-0 01 1 9002- ● ●
49 CLIP; GEN HARNESS
L TYPE ENG<90L> ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
49 CLIP; GEN HARNESS
10PD1 STD ENG(40L) ID=19 L=20 		9-09525-832-0 01 1 9002-9306 ● ●
49 CLIP; GEN HARNESS
ID=19 L=20 		9-09525-832-0 01 1 9307- ● ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307- ● ●
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> CAB UP 110MM(W60) (E) 		1-82699-295-0 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308- ● ●
53 BRACKET; HARNESS
CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
EXC. CAB UP 110MM(W60) (A) 		1-82699-390-2 01 1 9002-9306 ● ●
55 WASHER; PL,CLIP
L TYPE ENG<90L> ID=5.3 		9-09160-505-0 01 1 9002- ● ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
91 CAP; BOLT,HARNESS 1-82699-340-0 02 1 9004- ● ●
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201 ● ●
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205 ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206- ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002-9202 ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9203- ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ● ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> (B) ID=9 		5-09707-027-0 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-9306 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=15 		1-09987-115-0 01 1 9205-9208 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9207- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ● ●
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 01 1 9002-9202 ● ●
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 01 1 9203-9301 ● ●
132 SCREW; HARNESS
NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211- ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206- ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206- ● ●
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-1 02 1 9002- ● ●
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 05 1 9002- ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9002-9103 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-0 01 1 9002-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-1 01 1 9307-9502 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9307-9502 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9503- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-1 01 1 9503- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-0 01 1 9002-9309 ● ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-0 01 1 9002-9309 ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-1 01 1 9310- ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9002-9103 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 03 1 9307- ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-1 03 1 9307- ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9008-9103 ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
MAF5D M/T(X4G) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ●
194 CLIP; BAND
6RB1 STD ENG(07L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 02 1 9307-9309 ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 02 1 9310-9502 ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-1 02 1 9310-9502 ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 02 1 9503- ● ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-1 02 1 9503- ●
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9002- ● ●
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9002- ● ●
205 CLIP; BACK LAMP HARNESS
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9002-9304 ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305- ● ●
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 9002- ● ●
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 9002- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 02 1 9002- ● ●
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 9002- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 05 1 9002- ● ●
239 BOLT; GRAND
M5X8 		9-92040-508-0 01 1 9002-9204 ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9205- ● ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ●
294 NUT
M8 		9-09110-408-0 01 1 9002- ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		9-01931-016-0 04 1 9002-9004 ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		1-09033-012-0 04 1 9005- ● ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) (A) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 9002- ● ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) (B) L=140 		5-09707-031-0 02 1 9002-9306 ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 9307- ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204 ● ●
313 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302 ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9303-9306 ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ●
313 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9307-9411 ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9412- ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204 ● ●
313 BOLT; BRKT
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9002- ● ●
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 9002- ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 9002- ● ●
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		9-92040-508-0 01 1 9002-9204 ● ●
371 BOLT; GEN HARNESS
EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		9-92040-508-0 01 1 9002-9204 ● ●
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		0-20800-508-0 01 1 9205- ● ●
371 BOLT; GEN HARNESS
EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) M5X8 		0-20800-508-0 01 1 9205- ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9002-9204 ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9302 ● ●
371 BOLT; GEN HARNESS
10PD1 STD ENG(40L) M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306 ● ●
371 BOLT; GEN HARNESS
M6X16 FLANGE 		0-28080-616-0 01 1 9307- ● ●
372 WASHER; LK GEN HARNESS
EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) ID=5.1 		9-09150-505-0 01 1 9002- ● ●
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-1 01 1 9002- ● ●
373 CLIP; BAND,GEN HARNESS
10PD1 STD ENG(40L) (B) L=300 		1-09707-001-0 02 1 9002-9306 ● ●
373 CLIP; BAND,GEN HARNESS
(B) L=300 		1-09707-001-0 02 1 9307- ● ●
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212 ● ●
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 9002-9204 ● ●
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212 ● ●
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301- ● ●
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=6 		9-09524-532-0 04 1 9002-9202 ● ●
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=6 		9-09524-532-0 02 1 9211- ● ●
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301- ● ●
454 NUT
M6 FLANGE 		1-09466-001-0 02 1 9002- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ●
489 CLIP; HARNESS,OIL PRESS SW
10PD1 STD ENG(40L) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
489 CLIP; HARNESS,OIL PRESS SW
ID=11 L=20 		9-09525-035-0 01 1 9307- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-9404 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9405- ● ●
çizim 93925
103 242 53 242 53 178 111 178 219 48 38 16 95 16 178 1 149 121 16 16 2 2 104 150 104 127
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=50 		9-09917-430-0 16 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=70 		1-09700-485-0 16 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 04 1 9207-9306 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9012-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> EXC. INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9307- ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9309- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-9308 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9309- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9012-9202 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9207-9306 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9205 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 02 1 9012-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9403-9502 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9503- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (D) ID=11 L=30 		1-09700-511-0 01 1 9002-9312 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (0) ID=11 L=30 		1-09700-511-0 01 1 9401-9404 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9405- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9307 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=70 		1-09700-485-0 21 1 9308- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9308-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=50 		9-09917-430-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-9502 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ●
48 CLIP; FRAME HARNESS
ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) EXC. MIXER TRUCK<RA2> ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9307- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9307- ●
48 CLIP; FRAME HARNESS
ID=20 L=27 		1-09700-861-0 04 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
ID=20 L=27 		1-09700-861-0 05 1 9002- ● ●
48 CLIP; FRAME HARNESS
ID=24.5 L=25 		1-09700-862-0 02 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
ID=24.5 L=25 		1-09700-862-0 14 1 9002- ● ●
48 CLIP; FRAME HARNESS
ID=24.5 L=25 		1-09700-862-0 02 1 9307- ● ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307- ● ●
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> CAB UP 110MM(W60) (E) 		1-82699-295-0 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308- ● ●
53 BRACKET; HARNESS
CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
EXC. CAB UP 110MM(W60) (A) 		1-82699-390-2 01 1 9002-9306 ● ●
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201 ● ●
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205 ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206- ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 9002-9202 ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9203- ● ●
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307- ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9207- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9004-9306 ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002-9002 ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 02 1 9002- ● ●
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9003- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002-9003 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9004-9205 ● ●
178 GROMMET; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9004-9205 ● ●
178 GROMMET; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9206-9302 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306 ● ●
178 GROMMET; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 		1-09332-127-0 01 1 9206-9306 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 9307- ● ●
178 GROMMET; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9002-9302 ● ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9302 ● ●
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9302 ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002- ● ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9004-9205 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9206-9306 ● ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9206-9306 ● ●
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> (A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9303- ● ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9307- ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 10 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 13 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9002- ● ●
219 NUT
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8 		9-09110-408-0 02 1 9002- ●
219 NUT
M8 		9-09110-408-0 02 1 9002- ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002- ● ●
219 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 01 1 9002- ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 01 1 9002- ●
219 NUT
10PD1 STD ENG(40L) M8 		9-09110-408-0 04 1 9205- ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302 ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ● ●
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307- ● ●
çizim 93926
16 53 53 104 16 334 428 208 37 212 16 16 421 16 455 194 37 38 16 373 212
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=50 		9-09917-430-0 16 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=70 		1-09700-485-0 16 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 04 1 9207-9306 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9012-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> EXC. INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9307- ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9309- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-9308 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9309- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9012-9202 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9207-9306 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9205 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 02 1 9012-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9403-9502 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9503- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (D) ID=11 L=30 		1-09700-511-0 01 1 9002-9312 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (0) ID=11 L=30 		1-09700-511-0 01 1 9401-9404 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9405- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9307 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=70 		1-09700-485-0 21 1 9308- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9308-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=50 		9-09917-430-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
37 CLIP; HARNESS,POWER TILT
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-1 01 1 9307-9502 ●
37 CLIP; HARNESS,POWER TILT
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-1 01 1 9503- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-9502 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307- ● ●
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> CAB UP 110MM(W60) (E) 		1-82699-295-0 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307 ● ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308- ● ●
53 BRACKET; HARNESS
CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9002-9306 ● ●
53 BRACKET; HARNESS
EXC. CAB UP 110MM(W60) (A) 		1-82699-390-2 01 1 9002-9306 ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302 ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303- ● ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307- ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9002-9103 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9104-9205 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9207-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-0 01 1 9002-9306 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-1 01 1 9307-9502 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9307-9502 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9503- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (B) L=180 		1-09707-162-1 01 1 9503- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-0 01 1 9002-9309 ● ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-0 01 1 9002-9309 ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-1 01 1 9310- ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9002-9103 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9104-9206 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 03 1 9307- ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (C) L=250 		5-09707-030-1 03 1 9307- ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-0 01 1 9002-9007 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9008-9103 ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 01 1 9307-9308 ● ●
194 CLIP; BAND
10PD1 STD ENG(40L) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
MAF5D M/T(X4G) (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=140 		5-09707-031-1 01 1 9309- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ●
194 CLIP; BAND
6RB1 STD ENG(07L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 01 1 9309- ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 02 1 9307-9309 ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 02 1 9310-9502 ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-1 02 1 9310-9502 ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 02 1 9503- ● ●
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C) L=250 		5-09707-030-1 02 1 9503- ●
208 CLIP; HARNESS,MAG VLV
ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9002-9304 ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305- ● ●
334 BRACKET
AUTO CAB TILT<WV2> L=55 		1-47475-304-0 01 1 9206-9306 ● ●
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-1 01 1 9002- ● ●
373 CLIP; BAND,GEN HARNESS
10PD1 STD ENG(40L) (B) L=300 		1-09707-001-0 02 1 9002-9306 ● ●
373 CLIP; BAND,GEN HARNESS
(B) L=300 		1-09707-001-0 02 1 9307- ● ●
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> ID=7 		1-09987-055-0 01 1 9002-9003 ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> ID=7 		1-09987-055-0 01 1 9002-9003 ● ●
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ● ●
428 BRACKET 1-82699-109-0 01 1 9002- ● ●
455 BRACKET; POWER TILT HARNESS
AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9002-9302 ● ●
455 BRACKET; POWER TILT HARNESS
FULL TRACTOR TRUCK<RD6> AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9303- ●
çizim 93945
16 237 16 312 312 312 16 38 212 16 64 206 206
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=50 		9-09917-430-0 12 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=20 L=70 		1-09700-485-0 15 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=50 		9-09917-430-0 16 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (D) ID=20 L=70 		1-09700-485-0 16 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 04 1 9207-9306 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9307- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 9002-9011 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9012-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> EXC. INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9011 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9012-9306 ●
16 CLIP; HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 9307- ●
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9002- ● ●
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 05 1 9002-9306 ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9307-9308 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9309- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307- ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9307- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-9308 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9309- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306 ● ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9012-9202 ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) WHEEL BASE 5000MM(50W) (D) ID=11 L=61 		1-09700-484-0 03 1 9203-9206 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 03 1 9207-9306 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (B) 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-9011 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9012-9212 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. PARTIAL OIL FILTER<KC1> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9301-9306 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 02 1 9009-9204 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 03 1 9205-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9002-9205 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 02 1 9012-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=45 		1-09700-402-0 01 1 9307- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-9309 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9310- ● ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=41 		1-09700-403-0 03 1 9310- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9307- ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9307-9402 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9403-9502 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-9502 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-1 01 1 9503- ● ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9503- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (A) ID=11 L=40 		9-09525-075-0 02 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (D) ID=11 L=30 		1-09700-511-0 01 1 9002-9312 ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L) (0) ID=11 L=30 		1-09700-511-0 01 1 9401-9404 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9405- ● ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=11 L=61 		1-09700-484-0 02 1 9002-9011 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=15 L=65 		1-09700-466-0 01 1 9012- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-9307 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=70 		1-09700-485-0 21 1 9308- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 20 1 9308-9511 ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=70 		1-09700-485-0 23 1 9512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 20 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (D) ID=20 L=70 		1-09700-485-0 25 1 9307- ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=65 		1-09700-978-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (D) ID=20 L=50 		9-09917-430-0 25 1 9002-9306 ●
16 CLIP; HARNESS
WHEEL BASE 6400MM(64W) (D) ID=20 L=50 		9-09917-430-0 26 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-9502 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=16 		9-09525-022-0 01 1 9002-9002 ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9002-9304 ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305- ● ●
237 CLIP; BAND,ACL
L=600 		1-09707-107-0 01 1 9002- ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-1 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
(C) L=95 		1-82699-085-0 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (A) 		1-82699-348-0 01 1 9002- ● ●
çizim 96260
119 115 2 59 139 38 58 57
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 13 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 07 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9002-9202 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-9502 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9503- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 13 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9102 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9202 ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9003 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9004-9011 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306 ● ●
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 9002- ● ●
58 CLIP; INST HARNESS,SW ACCEL
ID=7-10 		8-94472-578-0 01 1 9302- ● ●
59 BRACKET; FRAME HARNESS 1-82699-264-0 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> (B) ID=9 		5-09707-027-0 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-9306 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=15 		1-09987-115-0 01 1 9205-9208 ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 05 1 9307- ● ●
119 SCREW; DOOR HARNESS EARTH
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9002- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9205- ● ●
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 9002- ● ●
139 BOLT; BRKT
10PD1 STD ENG(40L) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9002- ● ●
139 BOLT; BRKT
8PD1 STD ENG(38L) M10X18 FLANGE 		0-28181-018-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
