0-27 — EXHAUST MANIFOLD (#29113) — 33 parça

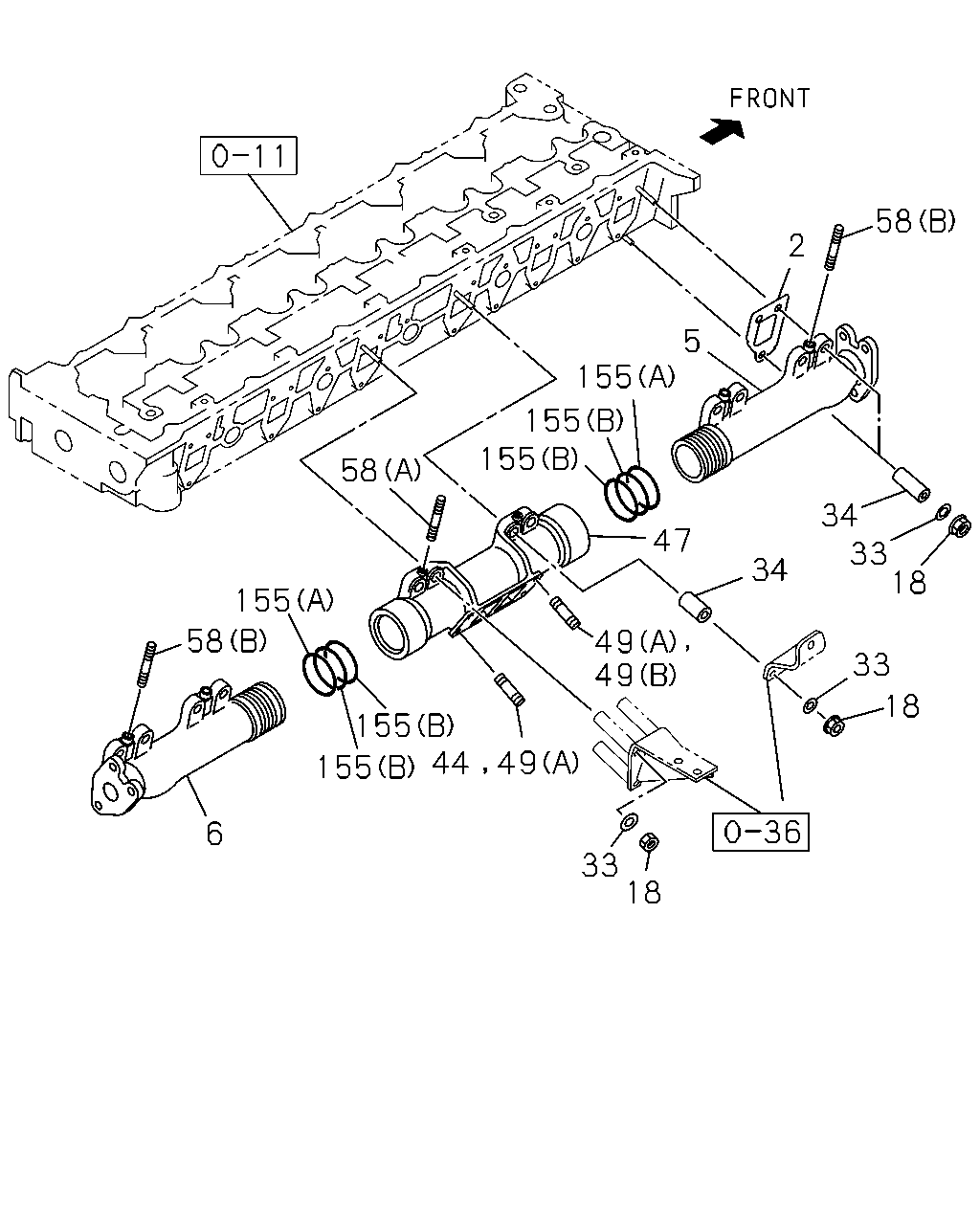

çizim 87348
58 2 5 155 155 155 58 34 33 18 47 34 155 58 49 49 33 18 155 155 6 33 18 44 49
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-1 06 1 0407-0511 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-3 06 1 0512- ● ●
5 MANIFOLD; EXH,FRT 1-14141-934-0 01 1 0407-0511 ●
5 MANIFOLD; EXH,FRT 1-14141-934-1 01 1 0512- ● ●
6 MANIFOLD; EXH,RR 1-14141-935-0 01 1 0407-0511 ●
6 MANIFOLD; EXH,RR 1-14141-935-1 01 1 0512- ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 18 1 0407-0511 ●
18 NUT; EXH MANIF
M10 FLANGE 		8-97096-192-1 18 1 0512- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 18 1 0407-0511 ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 13 1 0512- ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 14 1 0512- ●
34 COLLAR; DIST,EXH MANIF
L=47 		1-14149-263-0 15 1 0407-0511 ●
34 COLLAR; DIST,EXH MANIF
L=47 		1-14149-263-0 02 1 0512- ●
44 STUD; TURBOCHARGER
M10X25 L=47 		8-97378-071-0 02 1 0512- ●
47 MANIFOLD; EXH,CENTER 8-97604-878-1 01 1 0512- ●
47 MANIFOLD; EXH,CENTER 1-14141-937-0 01 1 0407-0511 ●
47 MANIFOLD; EXH,CENTER 1-14141-936-0 01 1 0512- ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(A) M10X25 L=47 		1-09302-167-1 03 1 0407-0408 ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(A) M10X25 L=47 		8-97378-071-0 03 1 0409-0511 ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(A) M10X25 L=47 		8-97378-071-0 04 1 0512- ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(B) M10X30 L=42 		1-09302-180-2 01 1 0407-0408 ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(B) M10X30 L=42 		8-97378-070-0 01 1 0409-0511 ●
49 STUD; CENTER MANIF TO TURBOCHARGER
(B) M10X25 L=47 		8-97378-071-0 02 1 0512- ●
58 STUD; HEAT PROTECTOR
(A) M8X20 L=32 		9-04110-820-0 02 1 0407-0511 ●
58 STUD; HEAT PROTECTOR
(A) M8X20 L=32 		9-04110-820-0 02 1 0512-0604 ●
58 STUD; HEAT PROTECTOR
(A) M8X20 L=32 		0-41010-820-0 02 1 0605- ●
58 STUD; HEAT PROTECTOR
(B) M8X25 L=37 		9-04110-825-0 04 1 0407-0511 ●
58 STUD; HEAT PROTECTOR
(B) M8X25 L=37 		9-04110-825-0 04 1 0512-0604 ● ●
58 STUD; HEAT PROTECTOR
(B) M8X25 L=37 		0-41010-825-0 04 1 0605- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 0407-0511 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 0512- ● ●
155 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 0407-0511 ●
155 RING; SEAL,EXH MANIF
(B) 		9-14149-026-1 04 1 0512- ● ●
