Sayfa 2-07A - Isuzu EPC

2-07A — CLUTCH BOOSTER; MINIPACK (#29110) — 318 parça

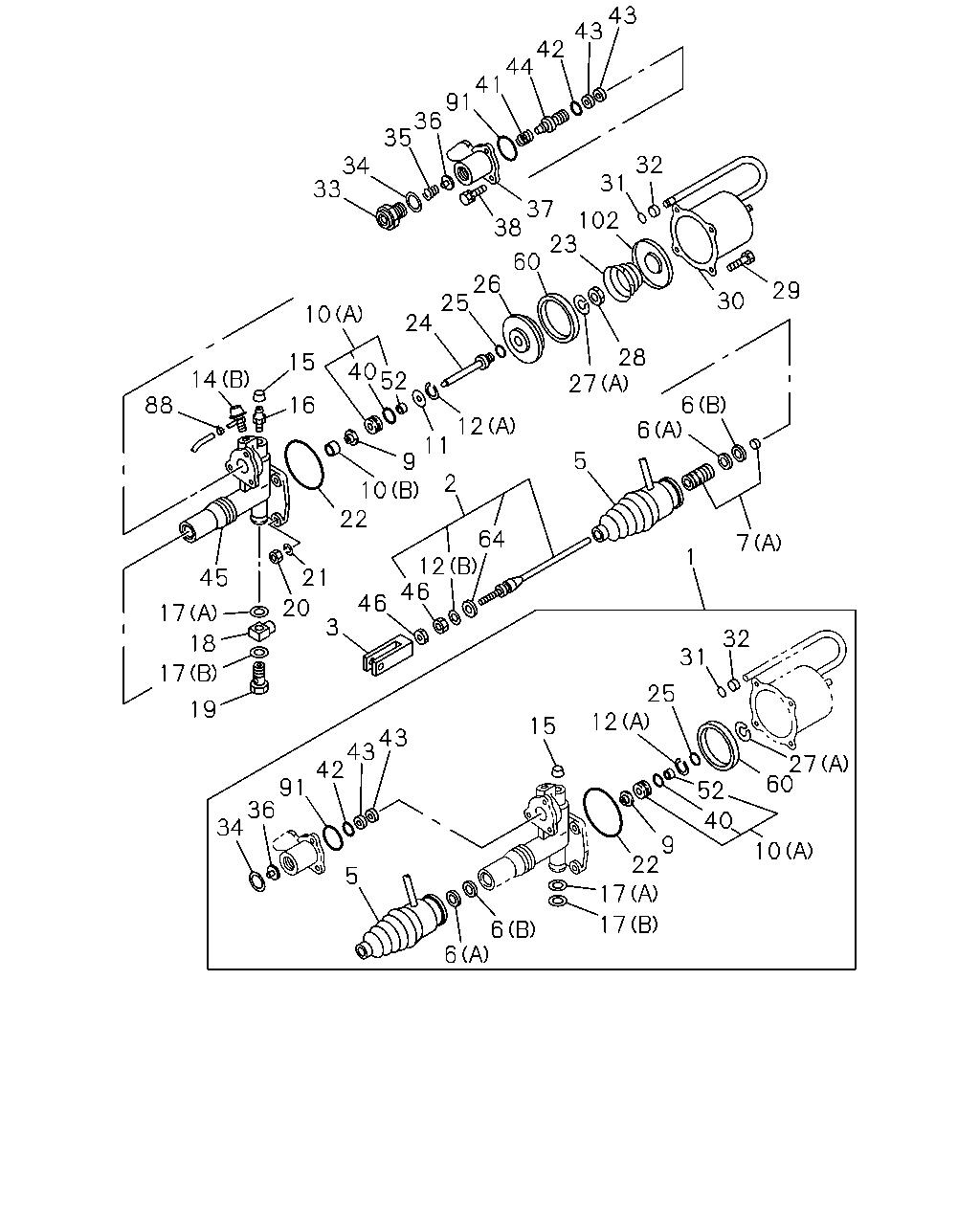

34 33 35 36 91 41 44 42 43 43 14 88 16 15 10 24 25 26 60 23 102 31 32 37 38 10 22 15 25 12 31 27 60 52 32 40 10 22 17 17 9 6 6 5 43 43 42 91 36 34 19 17 17 18 45 21 12 46 46 3 20 2 9 11 40 12 52 27 5 6 6 28 7 29 30 64 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0512-
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0512-
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-287-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0512-0704
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0705-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0512-0704
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0705-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	0512-
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0512-0704
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0705-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0511
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0512-0704
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0705-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0512-0704
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0705-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0512-0704
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0705-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0511
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0512-0704
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0705-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0512-0704
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0705-
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0512-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0512-0704
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0705-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0511
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0512-0704
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0705-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0511
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0512-0704
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0705-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0512-0704
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0705-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0512-0704
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0705-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0511
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0512-0704
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0705-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0511
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0512-0704
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0705-
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	04	1	1106-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0512-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0407-0511
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0512-
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0512-
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0512-
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0512-
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0511
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0512-0704
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0705-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0511
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0512-0704
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0705-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0511
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0512-0704
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0705-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0511
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0512-0704
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0705-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0407-0511
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-037-0	01	1	0512-0704
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-037-0	01	1	0705-
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0512-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0512-
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0512-
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0512-0704
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0705-1105
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0407-0511
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	0407-0511
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-47819-027-0	01	1	0705-
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0512-
64	WASHER; PUSH ROD ID=10.5 OD=22	9-09164-610-0	01	1	0407-0511
64	WASHER; PUSH ROD TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22	9-09164-610-0	01	1	0512-
88	CLAMP; HOSE,CLU BOOSTER	1-31829-063-0	01	1	0407-0511
88	CLAMP; HOSE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-063-0	01	1	0512-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0512-0704
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0705-
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0512-
102	PLATE; BOOSTER	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0512-

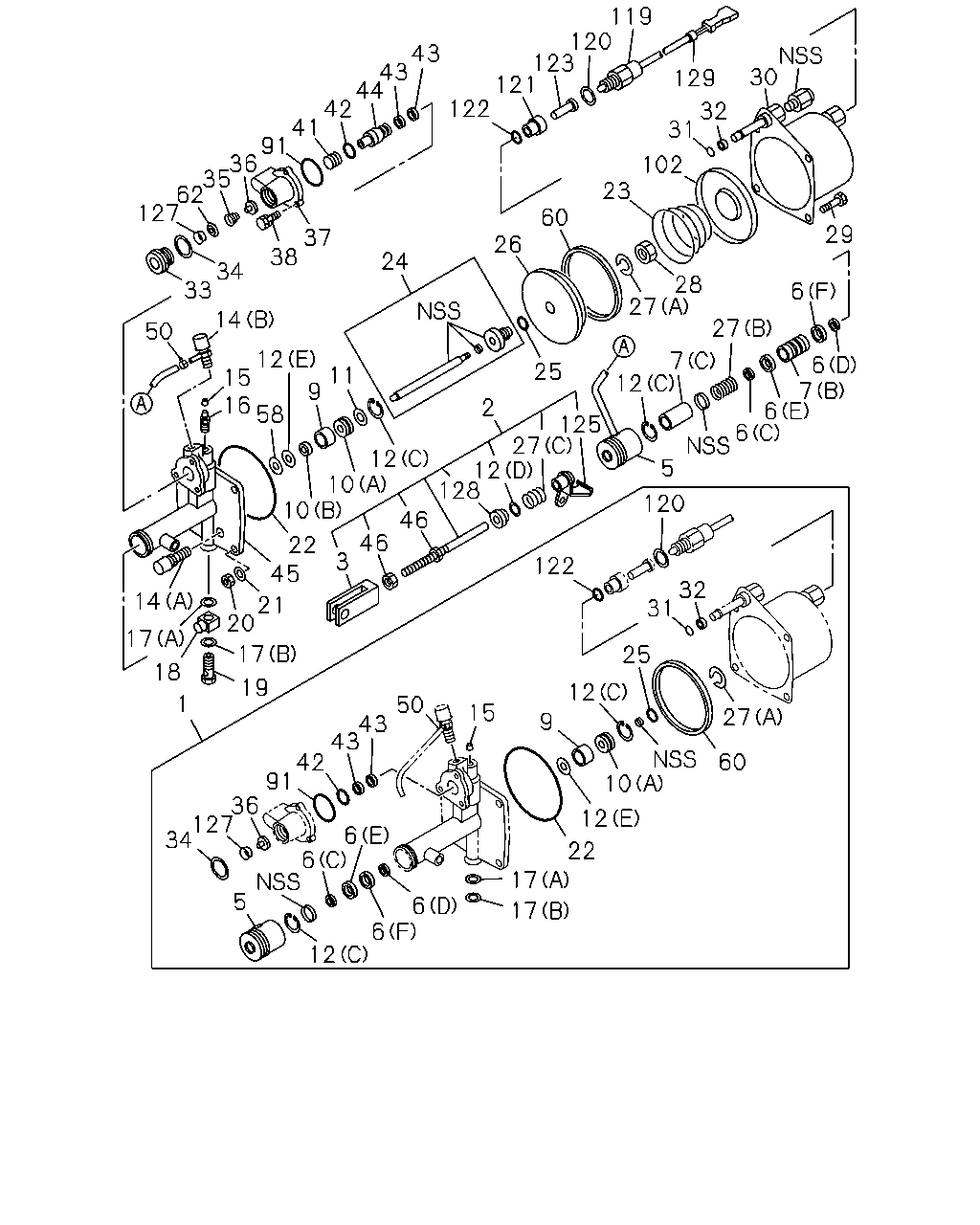

43 43 44 42 41 91 36 35 62 127 37 38 34 33 50 24 26 60 23 102 31 32 30 119 120 123 121 122 6 29 28 27 27 7 6 7 6 6 12 125 27 25 2 12 10 10 46 46 3 22 45 21 20 17 19 18 1 17 16 15 12 14 11 9 58 14 128 12 5 129 122 120 32 31 25 12 27 60 10 12 17 17 6 6 6 50 15 43 43 42 91 36 127 34 5 12 22 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0512-
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0512-
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-287-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0512-0704
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0705-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0512-0704
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0705-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	0512-
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0512-0704
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0705-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0511
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0512-0704
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0705-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0512-0704
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0705-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0511
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0512-0704
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0705-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0511
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0512-0704
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0705-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0512-0704
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0705-
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0512-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0512-0704
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0705-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0511
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0512-0704
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0705-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0511
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0512-0704
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0705-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0512-0704
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0705-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0511
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0512-0704
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0705-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0511
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0512-0704
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0705-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0511
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0512-0704
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0705-
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	04	1	1106-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0512-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0407-0511
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0512-
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0512-
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0512-
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0512-
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0511
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0512-0704
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0705-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0511
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0512-0704
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0705-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0511
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0512-0704
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0705-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0511
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0512-0704
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0705-
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0512-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0512-
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0512-
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0512-0704
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0705-1105
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0407-0511
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-063-0	01	1	0512-
58	WASHER; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-294-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0512-
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	0512-0704
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	0705-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0512-0704
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0705-
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0512-
102	PLATE; BOOSTER	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0512-
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W)	1-31824-178-0	01	1	0512-
120	GASKET; SWITCH SMOOTHER-G(C1W)	1-31829-361-0	01	1	0512-
121	GUIDE; ROD SMOOTHER-G(C1W)	1-31824-165-0	01	1	0512-
122	GASKET; ROD SMOOTHER-G(C1W)	1-31829-360-0	01	1	0512-
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	AR	1	1106-
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-512-0	01	1	0512-1105
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-622-0	01	1	1106-
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	0512-
128	COLLAR; ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-509-0	01	1	0512-1105
129	CONNECTOR ASM; CLU BOOSTER SMOOTHER-G(C1W)	1-09656-753-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
