2-05 — CLUTCH PIPING (#29109) — 394 parça

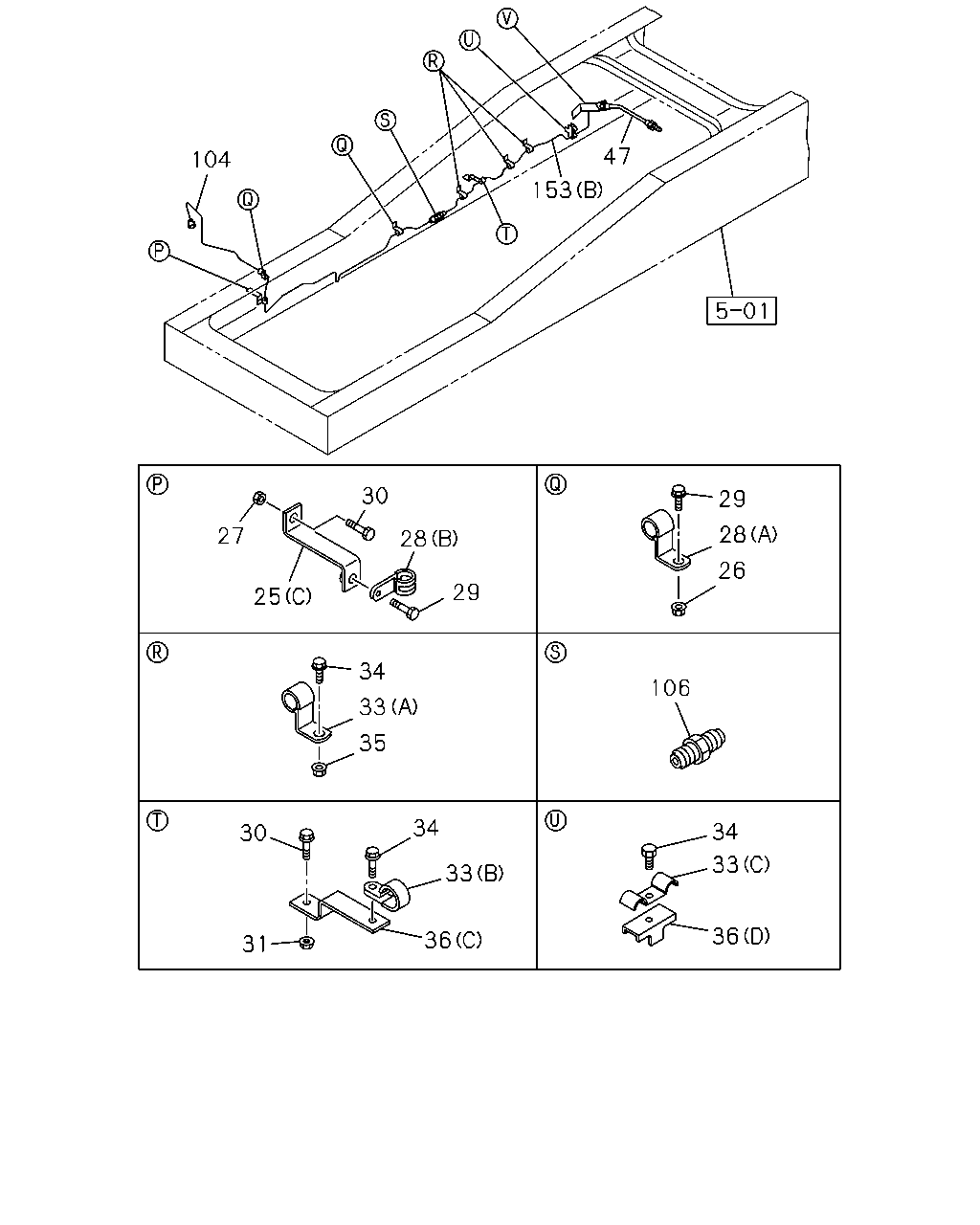

47 104 153 30 29 28 27 28 26 29 25 34 106 33 35 34 34 30 33 33 36 36 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0407-0511	●
25	BRACKET; OIL PIPE (C)	1-46147-101-0	01	1	0512-		●
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0407-0511	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-		●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0512-		●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0407-0511	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0512-		●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0407-0511	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606		●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0511	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0603-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0512-0704		●
33	CLIP; OIL PIPE FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0705-		●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0512-		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0407-0511	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0512-0704		●
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0705-		●
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0407-0511	●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606		●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0607-		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28080-845-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28050-845-0	01	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0705-		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	03	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0407-0511	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0705-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (D)	1-47475-427-1	01	1	0512-0704		●
36	BRACKET; CLIP FULLER M/T<X9B> (D)	1-47475-427-1	01	1	0705-		●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-0511	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0512-		●
36	BRACKET; CLIP (C) L=80 H=20	1-82699-304-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0512-		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) L=445	1-09364-478-0	01	1	0512-0704		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=445	1-09364-478-0	01	1	0705-		●
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0512-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-		●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0407-0511	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0512-0607		●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0512-0702		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0802		●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	0512-		●

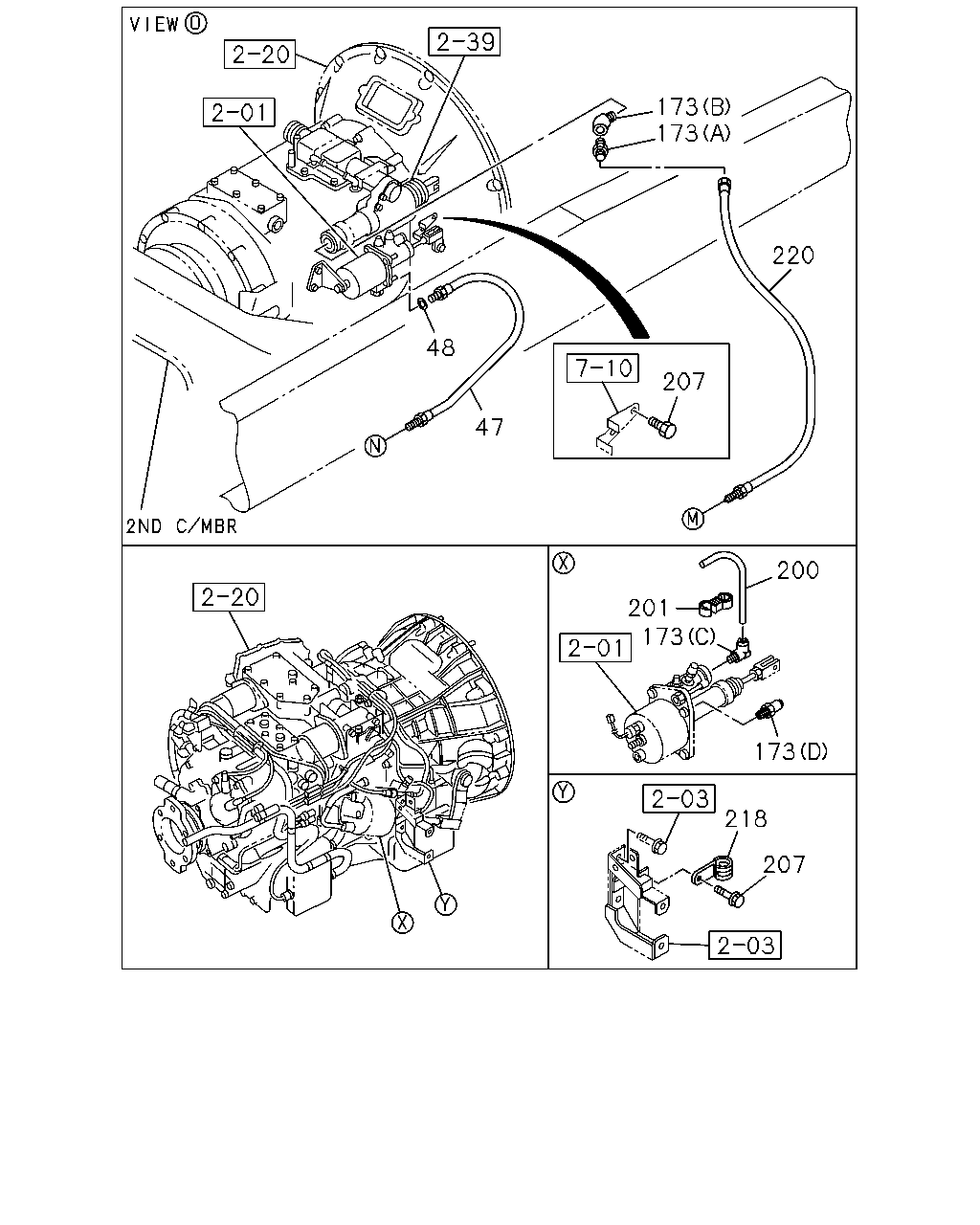

173 173 220 48 207 47 200 201 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) L=445	1-09364-478-0	01	1	0512-0704		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=445	1-09364-478-0	01	1	0705-		●
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0512-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0407-0511	●
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	0512-		●
173	CONNECTOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0512-		●
173	CONNECTOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0512-		●
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0407-0511	●
173	CONNECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-		●
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0407-0511	●
173	CONNECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0512-		●
200	TUBE; NYLON MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0512-		●
201	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=6.35 & 12	1-09709-275-1	01	1	0512-		●
207	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512		●
207	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
207	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	02	1	0407-0511	●
207	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10X16 FLANGE	0-28181-016-0	02	1	0512-0512		●
207	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
218	CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=11 L=20	9-09525-035-0	01	1	0512-0606		●
218	CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=11 L=20	0-95235-035-0	01	1	0607-		●
220	HOSE; FLEX,POWER ASSIST L=320	1-09363-656-0	01	1	0407-0511	●
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=320	1-09363-656-0	01	1	0512-		●

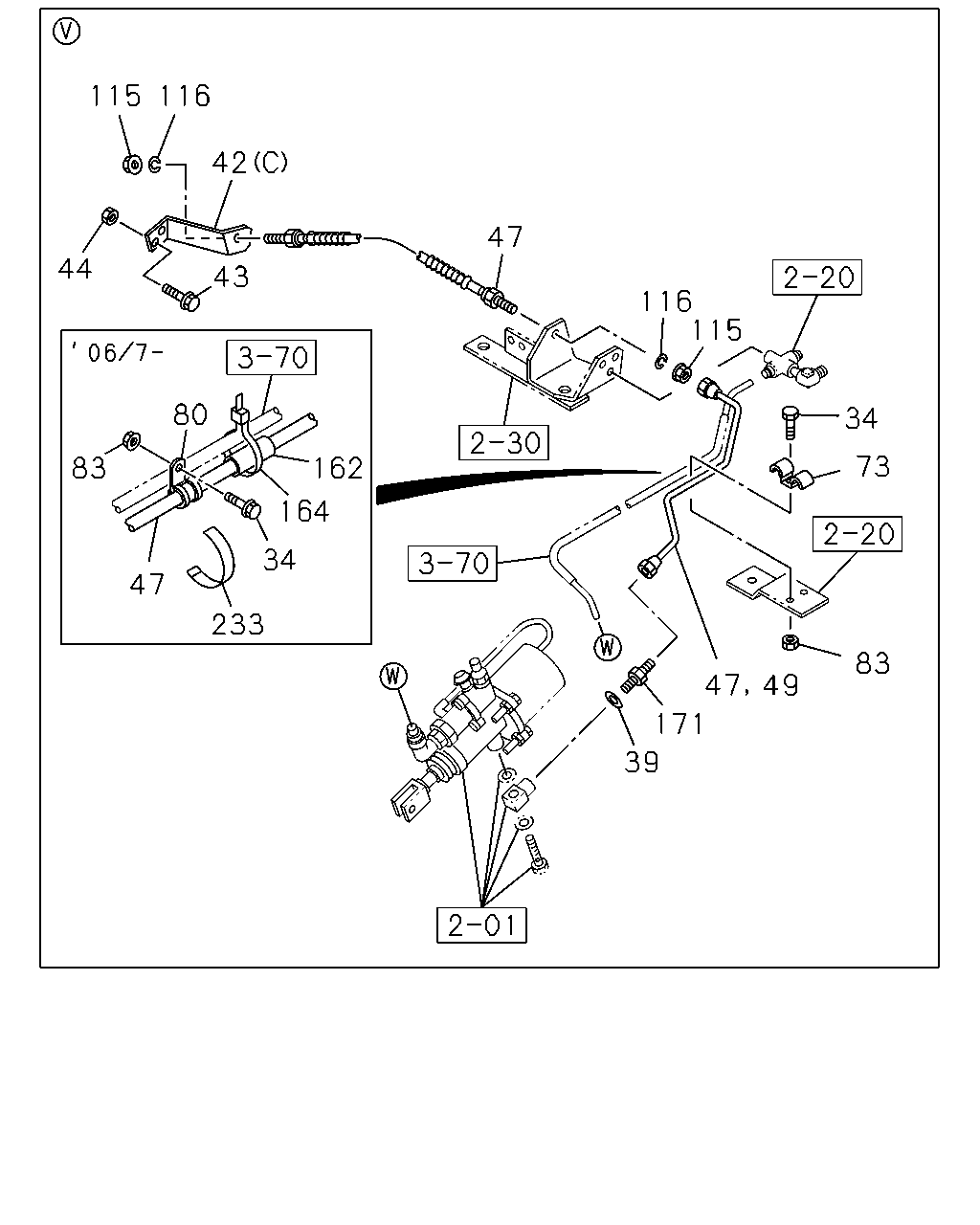

115 116 42 47 44 43 116 115 80 34 73 83 162 164 34 47 233 83 47 171 39 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28080-845-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28050-845-0	01	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0705-		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	03	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0407-0511	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0705-		●
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0512-		●
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-47479-626-0	01	1	0512-		●
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	0512-0704		●
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	0705-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47479-831-0	01	1	0407-0511	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C)	1-47478-511-0	01	1	0512-0704		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B> (C)	1-47478-511-0	01	1	0705-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	0601-0704		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0705-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) L=445	1-09364-478-0	01	1	0512-0704		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=445	1-09364-478-0	01	1	0705-		●
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0512-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0512-0606		●
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0512-		●
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0607-		●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	0512-0512		●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	01	1	0601-0606		●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0607-		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0511	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0512-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0511	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0512-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-		●
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0607-		●
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0512-		●
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0607-		●

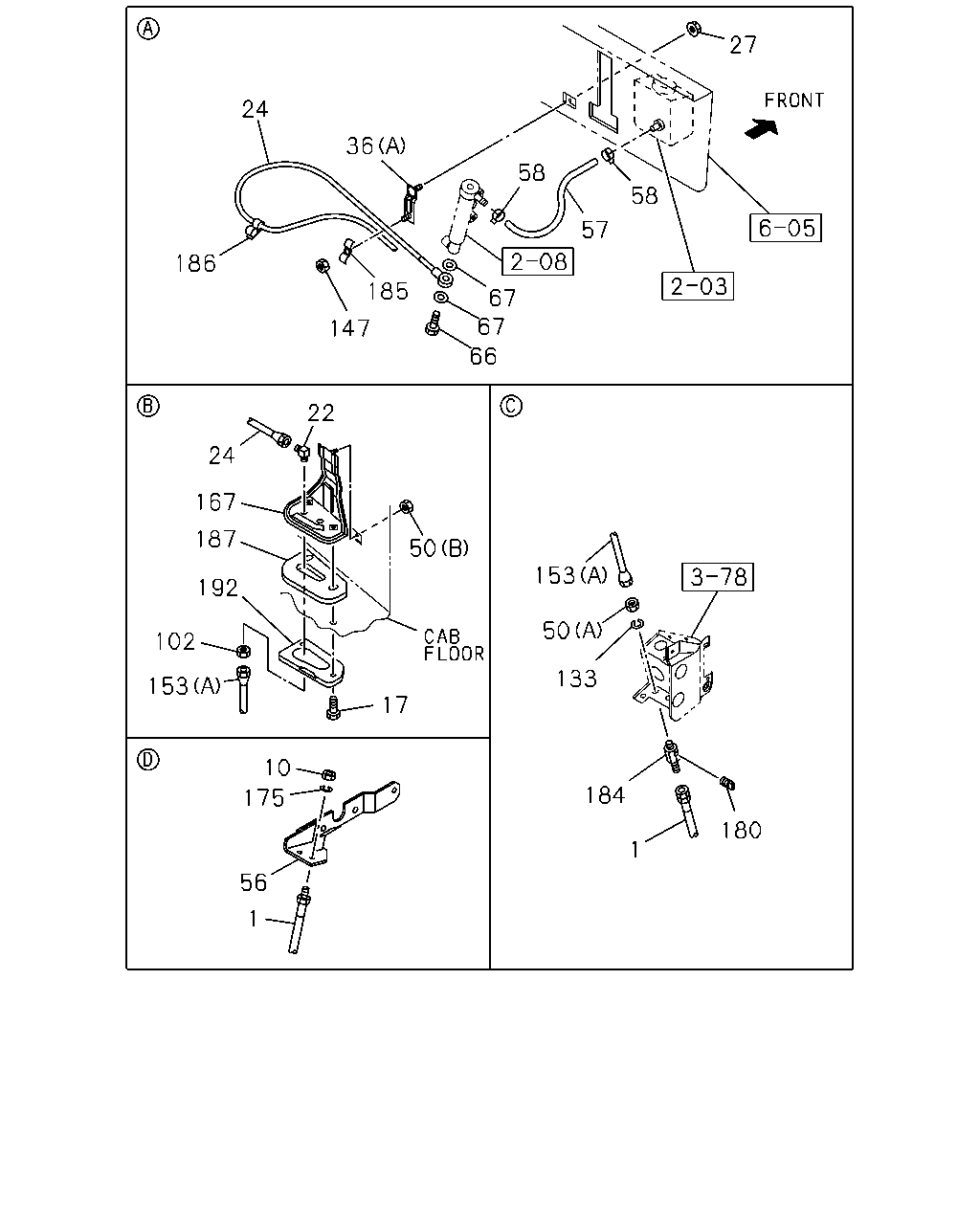

27 24 36 58 58 57 186 185 67 67 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0511	●
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0512-0703		●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-		●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0511	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0512-0512		●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0407-0511	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0512-		●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0407-0511	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0512-0607		●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-		●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-0511	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0512-		●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0512-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (D)	1-47475-427-1	01	1	0512-0704		●
36	BRACKET; CLIP FULLER M/T<X9B> (D)	1-47475-427-1	01	1	0705-		●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-0511	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0512-		●
36	BRACKET; CLIP (C) L=80 H=20	1-82699-304-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0512-		●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-0511	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0512-		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0407-0511	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0512-0512		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-0511	●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0512-		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0407-0511	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0512-		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0407-0511	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0512-		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0407-0511	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0512-0805		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-0511	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0512-1312		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0511	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0512-0512		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0407-0511	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0512-0603		●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-		●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0407-0511	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0512-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0512-0702		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0802		●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	0512-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0407-0511	●
167	BRACKET; UNION	1-71117-183-3	01	1	0512-		●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0511	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0512-0603		●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
180	PLUG; PIPE	9-09204-510-0	01	1	0407-0511	●
180	PLUG; PIPE	9-09204-510-0	01	1	0512-0804		●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0407-0511	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0512-0804		●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-		●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0407-0511	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0512-0606		●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-		●
186	HOLDER; CLIP	8-94107-710-0	02	1	0407-0511	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0512-		●
187	SEAL; BRKT	1-71117-222-0	01	1	0407-0511	●
187	SEAL; BRKT	1-71117-222-0	01	1	0512-		●
192	PLATE	1-71117-221-0	01	1	0407-0511	●
192	PLATE	1-71117-221-0	01	1	0512-		●

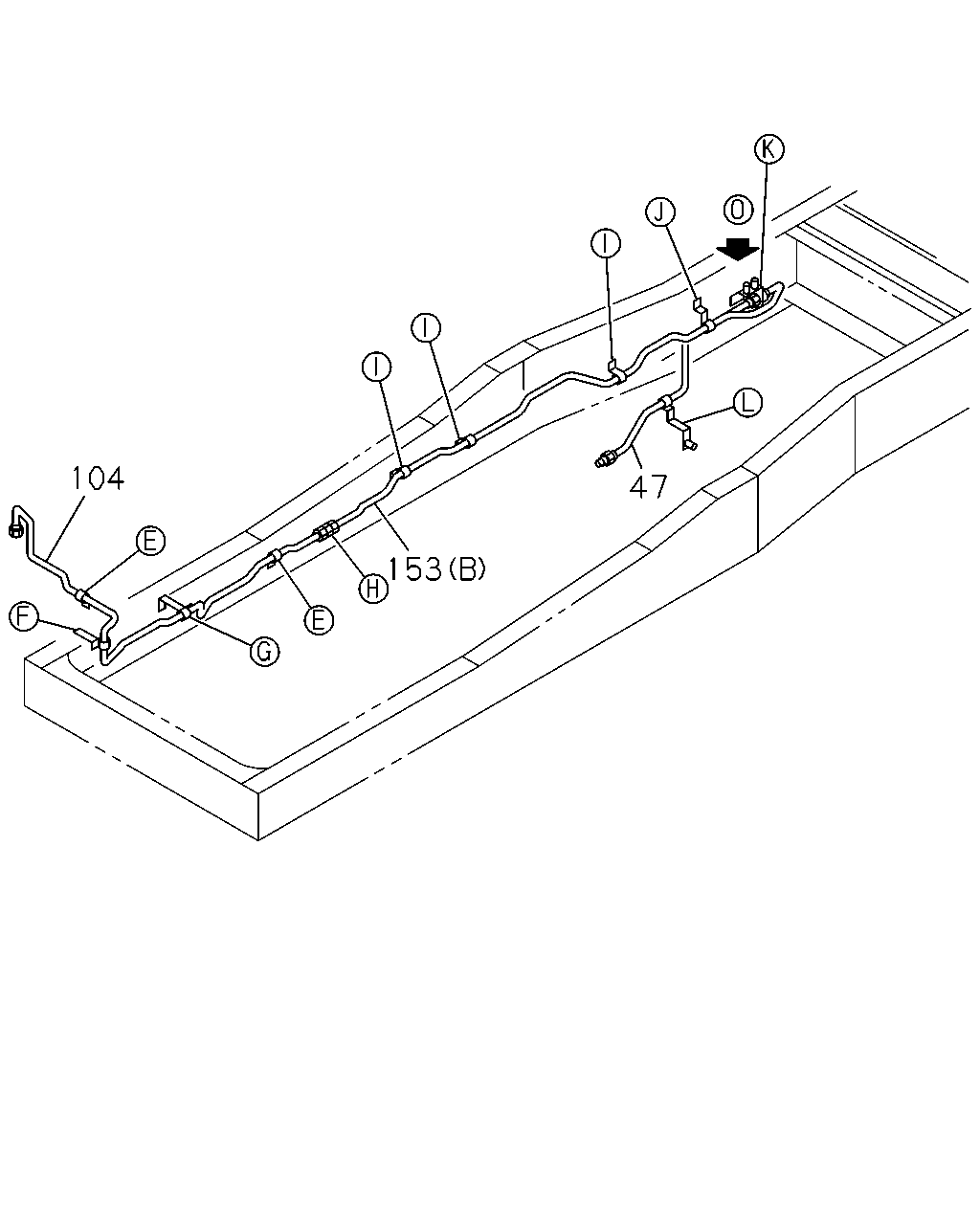

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) L=445	1-09364-478-0	01	1	0512-0704		●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=445	1-09364-478-0	01	1	0705-		●
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0512-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0512-0702		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0802		●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	0512-		●

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0511	●
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0512-0703		●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-		●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-0511	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0512-		●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-0511	●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0512-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0704		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2047 SERVICED BY L=2150	1-47428-770-0	01	1	0705-		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0512-0702		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0802		●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2040 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511	●
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	0512-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0407-0511	●
167	BRACKET; UNION	1-71117-183-3	01	1	0512-		●

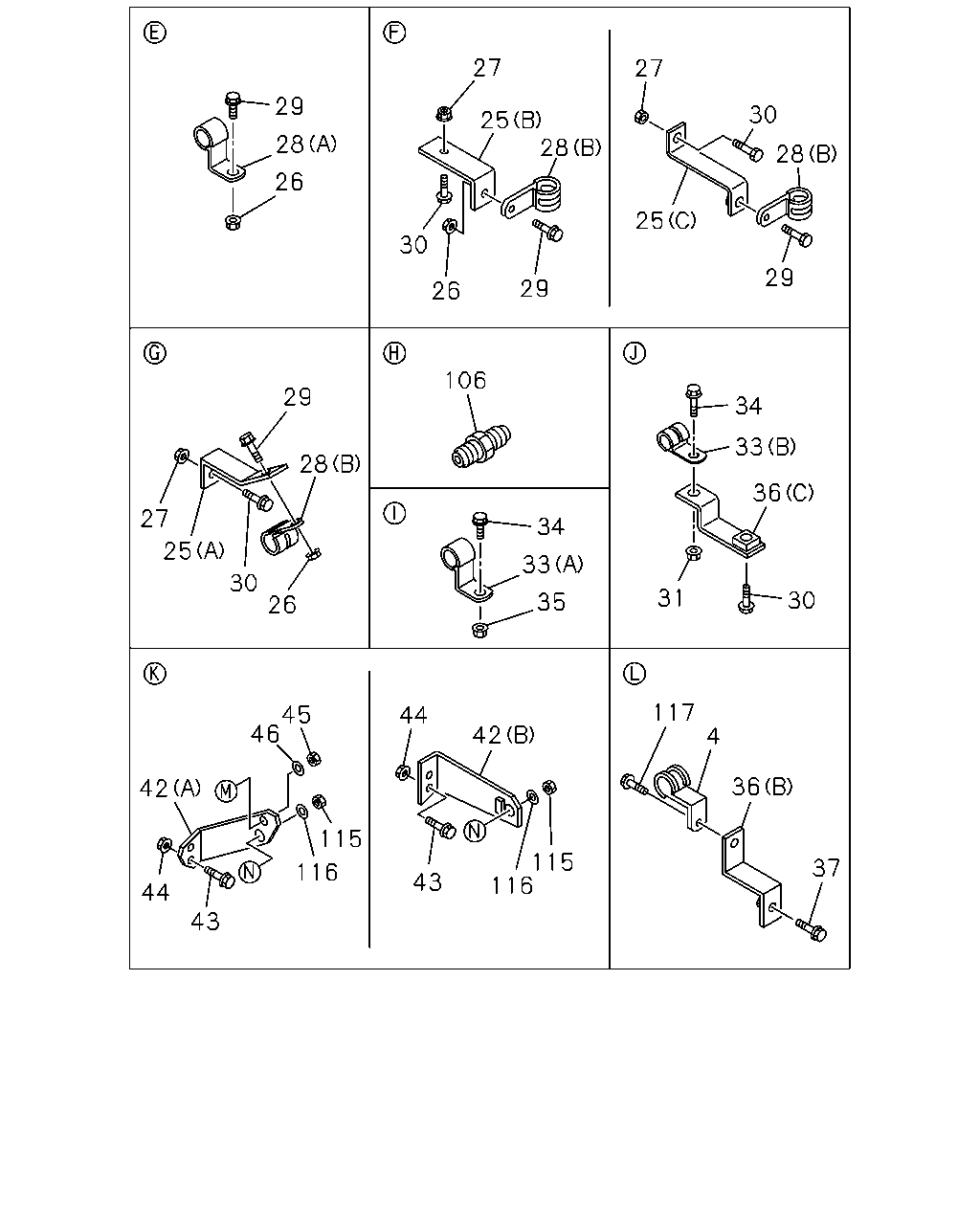

27 27 29 30 25 28 28 28 26 25 30 29 29 26 106 29 34 33 28 36 27 34 25 33 30 26 31 30 35 117 45 46 44 42 4 36 42 115 115 116 37 116 43 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0407-0511	●
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	0512-		●
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0407-0511	●
25	BRACKET; OIL PIPE (C)	1-46147-101-0	01	1	0512-		●
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0407-0511	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-		●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-0511	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0512-		●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0407-0511	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0512-		●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0407-0511	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606		●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0511	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0603-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0512-0704		●
33	CLIP; OIL PIPE FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0705-		●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0512-		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0407-0511	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0512-0704		●
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0705-		●
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0407-0511	●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606		●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0607-		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28080-845-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X45 FLANGE	0-28050-845-0	01	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28050-845-0	01	1	0705-		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	03	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0407-0511	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	0601-0704		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0705-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (D)	1-47475-427-1	01	1	0512-0704		●
36	BRACKET; CLIP FULLER M/T<X9B> (D)	1-47475-427-1	01	1	0705-		●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-0511	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0512-		●
36	BRACKET; CLIP (C) L=80 H=20	1-82699-304-0	01	1	0407-0511	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0512-		●
37	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	01	1	0407-0511	●
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	01	1	0512-0512		●
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-47479-626-0	01	1	0512-		●
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	0512-0704		●
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	0705-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47479-831-0	01	1	0407-0511	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C)	1-47478-511-0	01	1	0512-0704		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B> (C)	1-47478-511-0	01	1	0705-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	0601-0704		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0705-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0407-0511	●
45	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M12	9-09840-280-0	01	1	0512-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0407-0511	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	9-09150-512-0	01	1	0512-0603		●
46	WASHER; LK,FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	0-91510-512-0	01	1	0604-		●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0407-0511	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0512-0607		●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0511	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0512-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0511	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0512-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0407-0511	●
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512		●
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
