◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#29108) — 190 parça

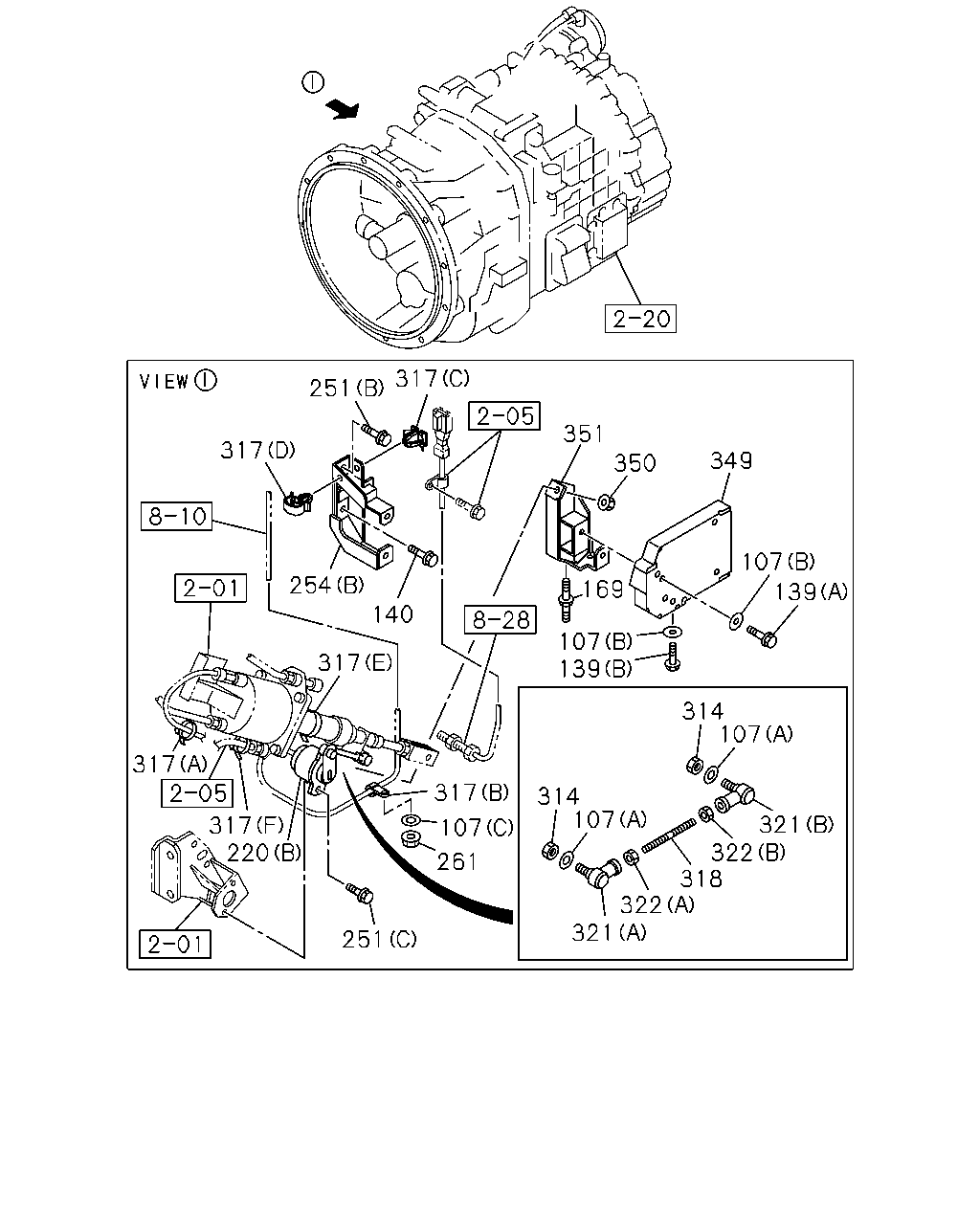

çizim 86725
317 251 351 317 349 350 169 107 254 139 140 107 139 317 314 107 317 317 314 107 321 322 318 322 321 317 220 107 261 251
BalonParca AdiParca NoAdetTipApplied Date A B
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 0512- ●
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		9-09160-708-0 06 1 0512-0605 ●
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 0606- ●
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		9-09164-705-0 02 1 0512-0605 ●
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 0606- ●
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512 ●
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0601- ●
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0512-0512 ●
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
140 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512 ●
140 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE 		0-28751-030-0 01 1 0601- ●
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-97320-627-0 01 1 0512-0805 ●
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806- ●
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 0512- ●
220 SENSOR; CLUTCH
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0512-0704 ●
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0705-1502 ●
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		8-98297-150-0 01 1 1503- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28781-025-0 01 1 0512-0512 ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0601- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28680-616-0 02 1 0512-0512 ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511 ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512- ●
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-208-0 01 1 0512-0602 ●
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-208-0 01 1 0603-0811 ●
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
314 NUT; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 02 1 0512-0512 ●
314 NUT; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 0601- ●
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 0512- ●
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=250 		5-09707-030-1 01 1 0512- ●
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) L=140 		5-09707-031-1 01 1 0512- ●
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0512-0704 ●
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0705- ●
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-0704 ●
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0705- ●
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		9-09525-065-0 01 1 0512-0606 ●
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0607-0704 ●
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0705- ●
318 ROD; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		9-08410-506-0 01 1 0512-0606 ●
318 ROD; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		0-84100-506-0 01 1 0607- ●
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 0512- ●
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 0512- ●
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5 		9-99110-405-0 01 1 0512-0512 ●
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 0601- ●
349 COVER; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-075-0 01 1 0512- ●
350 NUT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
350 NUT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
351 BRACKET; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-079-0 01 1 0512- ●

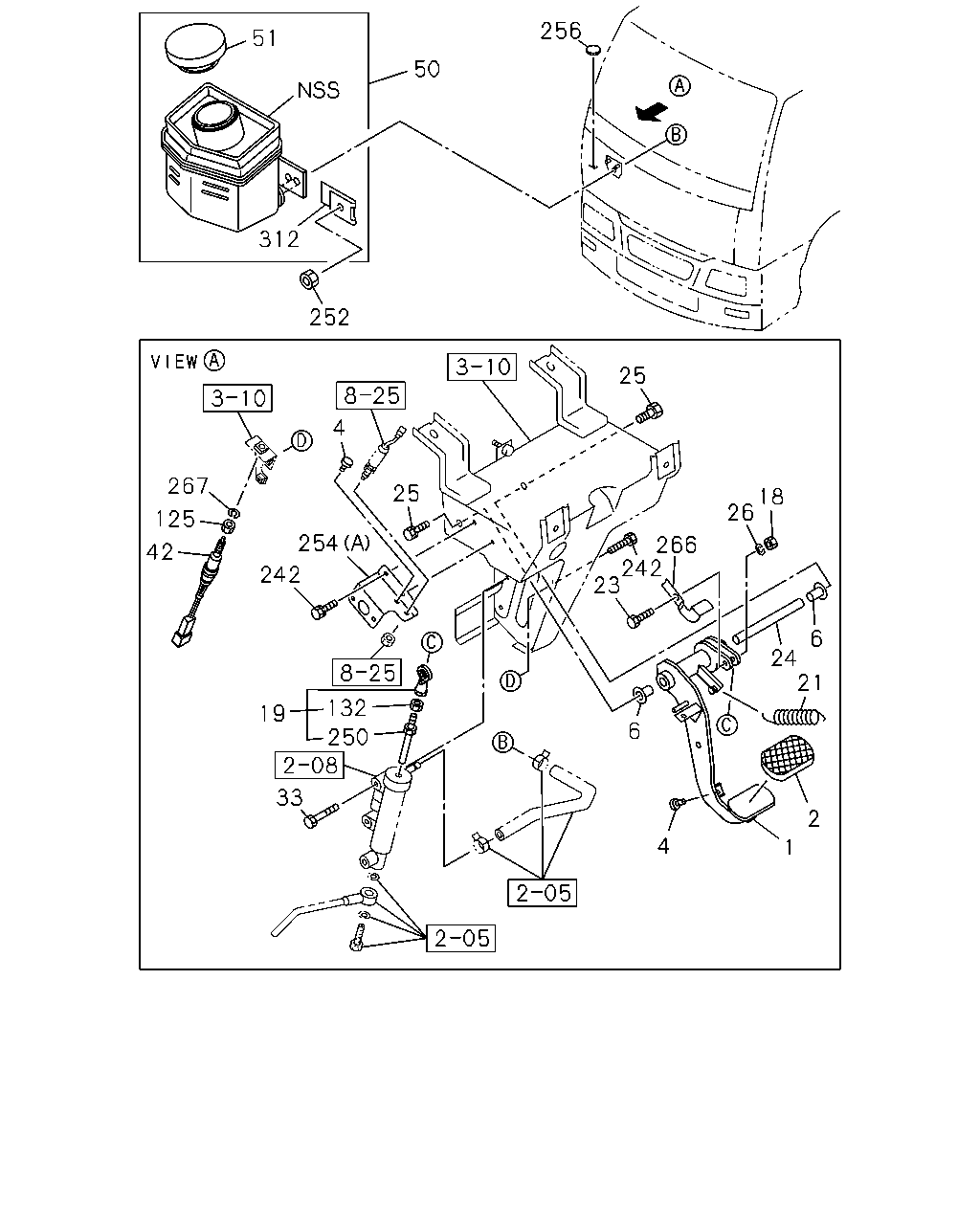

çizim 87037
256 51 50 312 252 25 4 267 25 18 26 125 254 266 242 23 42 242 6 24 21 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-73907-474-1 01 1 0512-0703 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0512-0703 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0704- ●
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-474-1 01 1 0704- ●
1 PEDAL; CLU 1-73907-510-1 01 1 0407-0511 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) 		1-73907-510-1 01 1 0512-0704 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-510-1 01 1 0705- ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0407-0511 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0512- ●
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0407-0511 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0512- ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0407-0511 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0512- ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0407-0511 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0512- ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0407-0511 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0512- ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-73908-265-0 01 1 0512-0703 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0512-0703 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0704- ●
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0704- ●
21 SPRING; RETURN,CLU PEDAL 1-73907-445-0 01 1 0407-0511 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) 		1-73907-445-0 01 1 0512-0704 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-445-0 01 1 0705- ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0407-0511 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0512- ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0407-0511 ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0512- ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0407-0511 ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0512- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0407-0511 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0512- ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0511 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0512-0512 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
42 SWITCH; CLU 1-82380-114-2 01 1 0407-0511 ●
42 SWITCH; CLU
MJX16P M/T(Y3Z) 		1-82380-114-2 01 1 0512-0704 ●
42 SWITCH; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82380-114-2 01 1 0705- ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0407-0511 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0512- ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0407-0511 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0512- ●
125 NUT; CLU SWITCH
M10 		9-09110-510-0 01 1 0407-0511 ●
125 NUT; CLU SWITCH
MJX16P M/T(Y3Z) M10 		9-09110-510-0 01 1 0512-0704 ●
125 NUT; CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 		9-09110-510-0 01 1 0705- ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0407-0511 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0512- ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0512-0704 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0705- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 06 1 0407-0511 ●
242 BOLT; BRKT,CLUTCH
TRANSMISSION-FULLER RTLO169 18(Y3S) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704- ●
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704- ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0407-0511 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0512- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-0511 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0512- ●
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511 ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512- ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
266 BRACKET; CLU SWITCH 1-73907-395-1 01 1 0407-0511 ●
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) 		1-73907-395-1 01 1 0512-0704 ●
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-395-1 01 1 0705- ●
267 WASHER; LK,CLU SWITCH
ID=10.2 		9-09150-510-0 01 1 0407-0511 ●
267 WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) ID=10.2 		9-09150-510-0 01 1 0512-0704 ●
267 WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		9-09150-510-0 01 1 0705- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0407-0511 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0512- ●

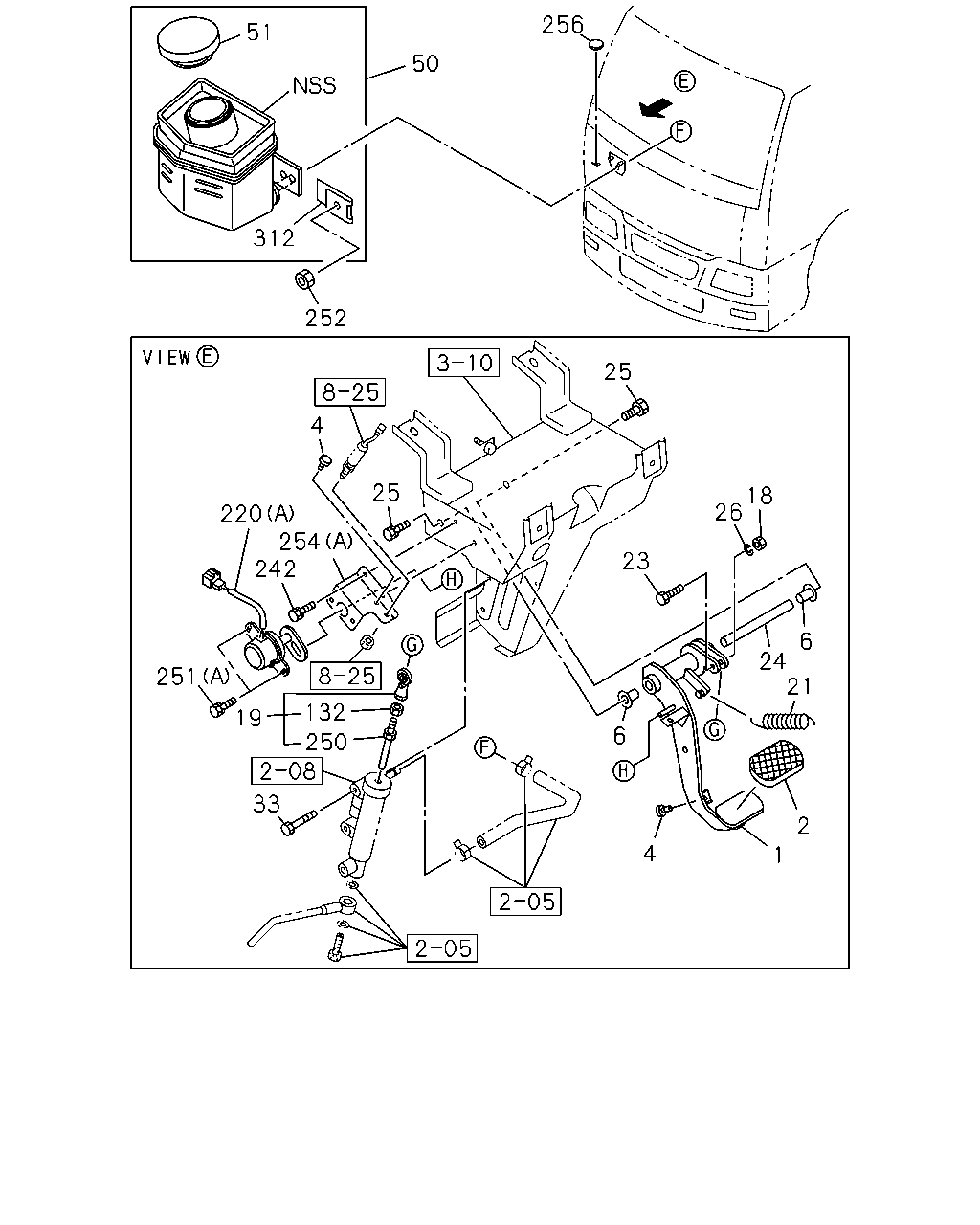

çizim 87117
256 51 50 312 252 25 4 25 18 26 220 254 242 23 6 24 21 251 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-73907-474-1 01 1 0512-0703 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0512-0703 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0704- ●
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-474-1 01 1 0704- ●
1 PEDAL; CLU 1-73907-510-1 01 1 0407-0511 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) 		1-73907-510-1 01 1 0512-0704 ●
1 PEDAL; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-510-1 01 1 0705- ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0407-0511 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0512- ●
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0407-0511 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0512- ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0407-0511 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0512- ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0407-0511 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0512- ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0407-0511 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0512- ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-73908-265-0 01 1 0512-0703 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0512-0703 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0704- ●
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0704- ●
21 SPRING; RETURN,CLU PEDAL 1-73907-445-0 01 1 0407-0511 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) 		1-73907-445-0 01 1 0512-0704 ●
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-445-0 01 1 0705- ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0407-0511 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0512- ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0407-0511 ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0512- ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0407-0511 ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0512- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0407-0511 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0512- ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0511 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0512-0512 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0407-0511 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0512- ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0407-0511 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0512- ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0407-0511 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0512- ●
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 0512- ●
220 SENSOR; CLUTCH
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0512-0704 ●
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0705-1502 ●
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		8-98297-150-0 01 1 1503- ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0512-0704 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0705- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 06 1 0407-0511 ●
242 BOLT; BRKT,CLUTCH
TRANSMISSION-FULLER RTLO169 18(Y3S) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703 ●
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704- ●
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704- ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0407-0511 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0512- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28781-025-0 01 1 0512-0512 ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0601- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28680-616-0 02 1 0512-0512 ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-0511 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0512- ●
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511 ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512- ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0407-0511 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
