2-01B — CLUTCH (#29107) — 66 parça

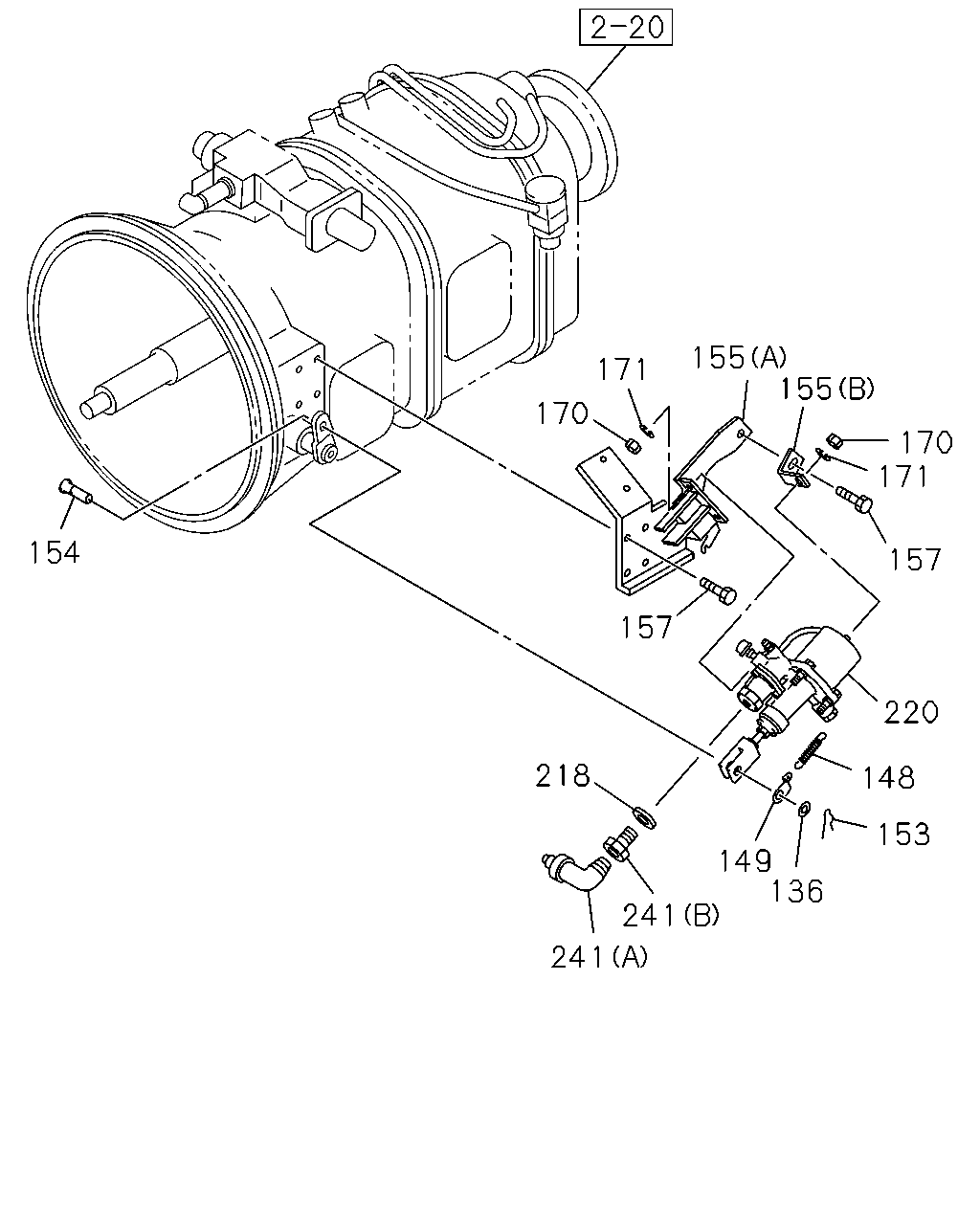

çizim 86724
155 155 171 170 170 171 154 157 157 220 218 148 153 149 136 241 241
BalonParca AdiParca NoAdetTipApplied Date A B
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 0512-0605 ●
136 WASHER; PL
ID=15 		0-91610-514-0 01 1 0606-0704 ●
136 WASHER; PL
ID=15 		0-91610-514-0 01 1 0705- ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 0512-0704 ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 0705- ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 0512-0704 ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 0705- ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 0512-0704 ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 0705- ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 0512-0704 ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 0705- ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 0512-0704 ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 0705- ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0512-0704 ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0705- ● ●
157 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0512-0512 ●
157 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0601-0704 ●
157 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0705- ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0512-0704 ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0705-0906 ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907- ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 0512-0512 ●
170 NUT; BOOSTER FIX
M8 		0-91110-508-0 03 1 0601-0704 ●
170 NUT; BOOSTER FIX
M8 		0-91110-508-0 03 1 0705- ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 0512-0603 ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		0-91510-508-0 03 1 0604-0704 ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		0-91510-508-0 03 1 0705- ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0512-0704 ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0705- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-1 01 1 0512-0704 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-1 01 1 0705- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-085-0 01 1 0512-0704 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-085-0 01 1 0705- ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0512-0704 ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0705- ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 0512-0704 ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 0705- ● ●

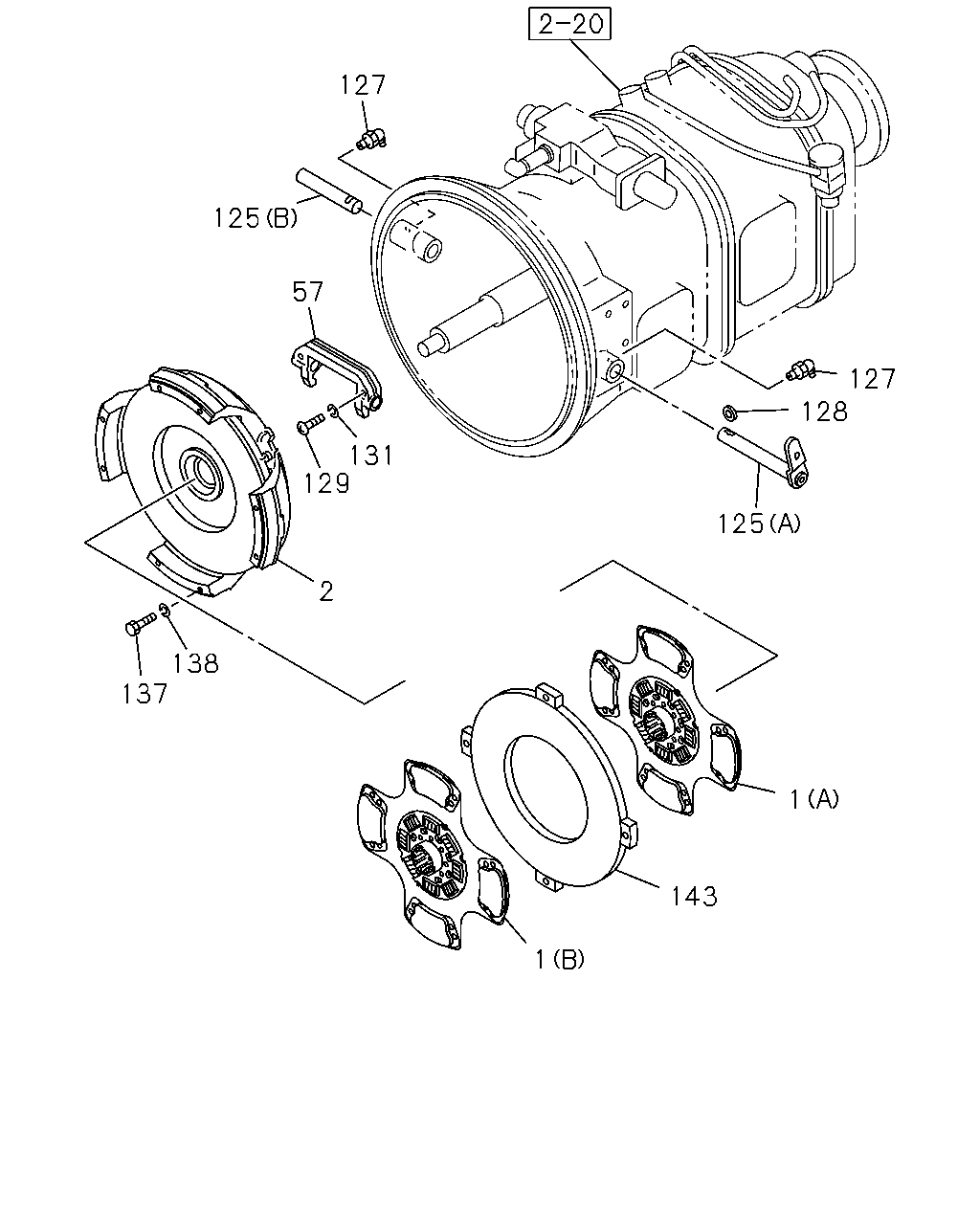

çizim 86761
127 57 127 128 131 129 125 2 138 137 1 143 1 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
(A) 15.5" 		1-31240-792-0 01 1 0512-0704 ●
1 DISC; CLUTCH
(A) 15.5" 		1-31240-792-0 01 1 0705- ● ●
1 DISC; CLUTCH
(B) 15.5" 		1-31240-793-0 01 1 0512-0704 ●
1 DISC; CLUTCH
(B) 15.5" 		1-31240-793-0 01 1 0705- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-347-0 01 1 0512-0704 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-347-0 01 1 0705- ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 0512-0704 ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 0705- ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 0512-0704 ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 0705- ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 0512-0704 ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 0705- ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0512-0512 ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-0704 ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0705- ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 0512-0704 ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 0705- ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 0512-0704 ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 0705-1206 ● ●
129 BOLT; SHIFT FORK 8-98224-040-0 02 1 1207- ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 0512-0704 ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 0705- ● ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 0512-0704 ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 0705- ● ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 0512-0704 ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 0705- ● ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 0512-0704 ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 0705-1509 ● ●
143 PLATE; INTERMEDIATE 8-98305-946-0 01 1 1510- ●
