1-50 — EXHAUST PIPE AND SILENCER (#29103) — 150 parça

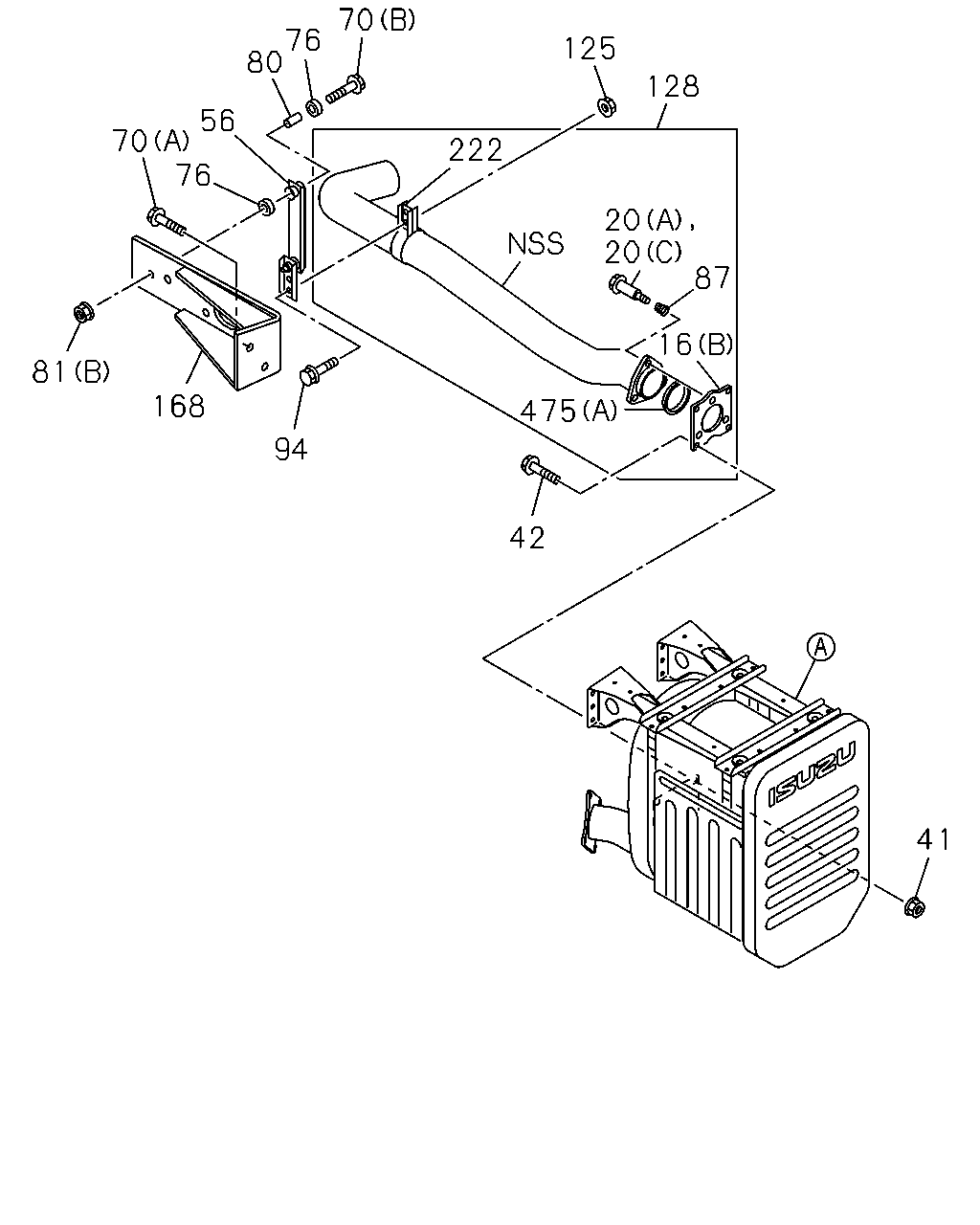

70 76 80 125 128 56 70 76 222 20 20 87 16 81 168 475 94 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0407-0511	●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0512-		●
16	FLANGE; EXH PIPE (A)	1-22115-217-0	01	1	0407-0511	●
16	FLANGE; EXH PIPE (A)	1-22115-217-0	01	1	0512-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0501-0511	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0407-0412	●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0501-0511	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) M10X51.4	1-09009-167-0	03	1	0512-0701		●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) M10X51.4	8-94436-943-0	03	1	0702-0704		●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	8-94436-943-0	03	1	0705-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0407-0511	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0512-0512		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0407-0511	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0512-		●
56	BRACKET; CLAMP,EXH PIPE	1-22152-070-0	01	1	0407-0511	●
56	BRACKET; CLAMP,EXH PIPE	1-22152-070-0	01	1	0512-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0407-0511	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0512-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	05	1	0601-		●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28681-020-0	04	1	0407-0511	●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28681-020-0	04	1	0512-0512		●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28651-020-0	04	1	0601-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0407-0511	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28081-030-0	02	1	0512-0512		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28051-030-0	02	1	0601-		●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0407-0511	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0512-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0407-0511	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0512-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0407-0511	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0407-0511	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0512-0602		●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0603-		●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0407-0511	●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0512-		●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0407-0511	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0512-0512		●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0603-		●
128	PIPE; EXH,RR	1-22126-524-0	01	1	0407-0511	●
128	PIPE; EXH,RR	1-22126-524-1	01	1	0512-		●
168	BRACKET; EXH PIPE,FRT	1-22131-995-1	01	1	0407-0511	●
168	BRACKET; EXH PIPE,FRT	1-22131-995-1	01	1	0512-		●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0407-0511	●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0512-		●

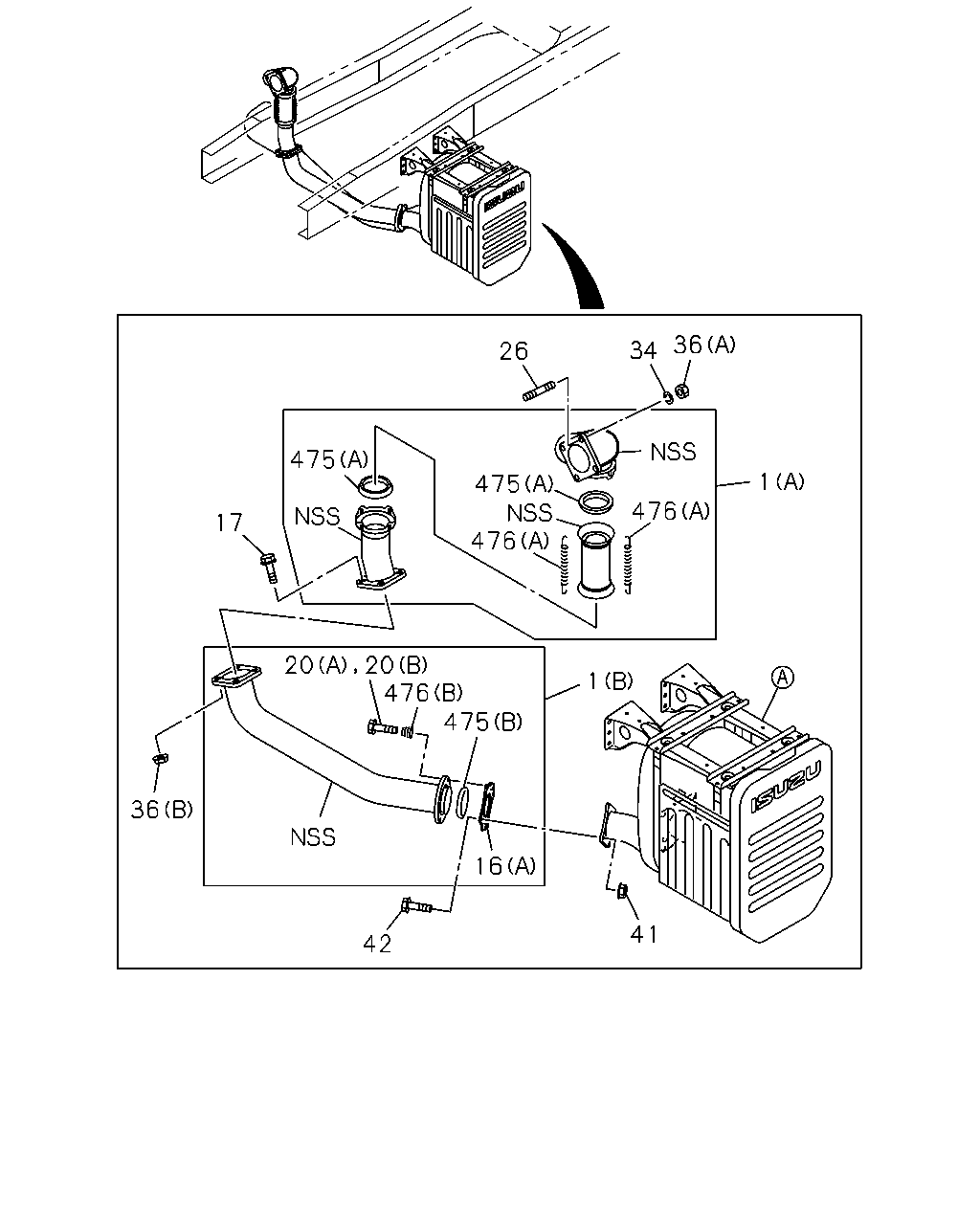

36 34 26 475 1 475 476 476 17 20 20 476 475 1 36 16 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (B)	1-22123-683-1	01	1	0512-		●
1	PIPE; EXH (B)	1-22123-573-1	01	1	0407-0511	●
1	PIPE; EXH 6WG1 TC-S(97L) (A)	1-22123-731-2	01	1	0512-0606		●
1	PIPE; EXH 6WG1 TC-S(97L) (A)	1-22124-029-0	01	1	0607-0704		●
1	PIPE; EXH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-22124-029-0	01	1	0705-		●
1	PIPE; EXH (A)	1-22123-646-2	01	1	0407-0511	●
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-646-2	01	1	0512-0606		●
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22124-027-0	01	1	0607-		●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0407-0511	●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0512-		●
16	FLANGE; EXH PIPE (A)	1-22115-217-0	01	1	0407-0511	●
16	FLANGE; EXH PIPE (A)	1-22115-217-0	01	1	0512-		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0407-0511	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0512-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0501-0511	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0407-0412	●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	1-09009-167-0	03	1	0501-0511	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) M10X51.4	1-09009-167-0	03	1	0512-0701		●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) M10X51.4	8-94436-943-0	03	1	0702-0704		●
20	BOLT; FLANGE,EXH PIPE (C) M10X51.4	8-94436-943-0	03	1	0705-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0407-0511	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0512-		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0407-0511	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0512-		●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0407-0511	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0512-		●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0407-0511	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0512-0512		●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0407-0511	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0512-0512		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0407-0511	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0407-0511	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0512-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0407-0511	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0512-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0407-0511	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0512-		●

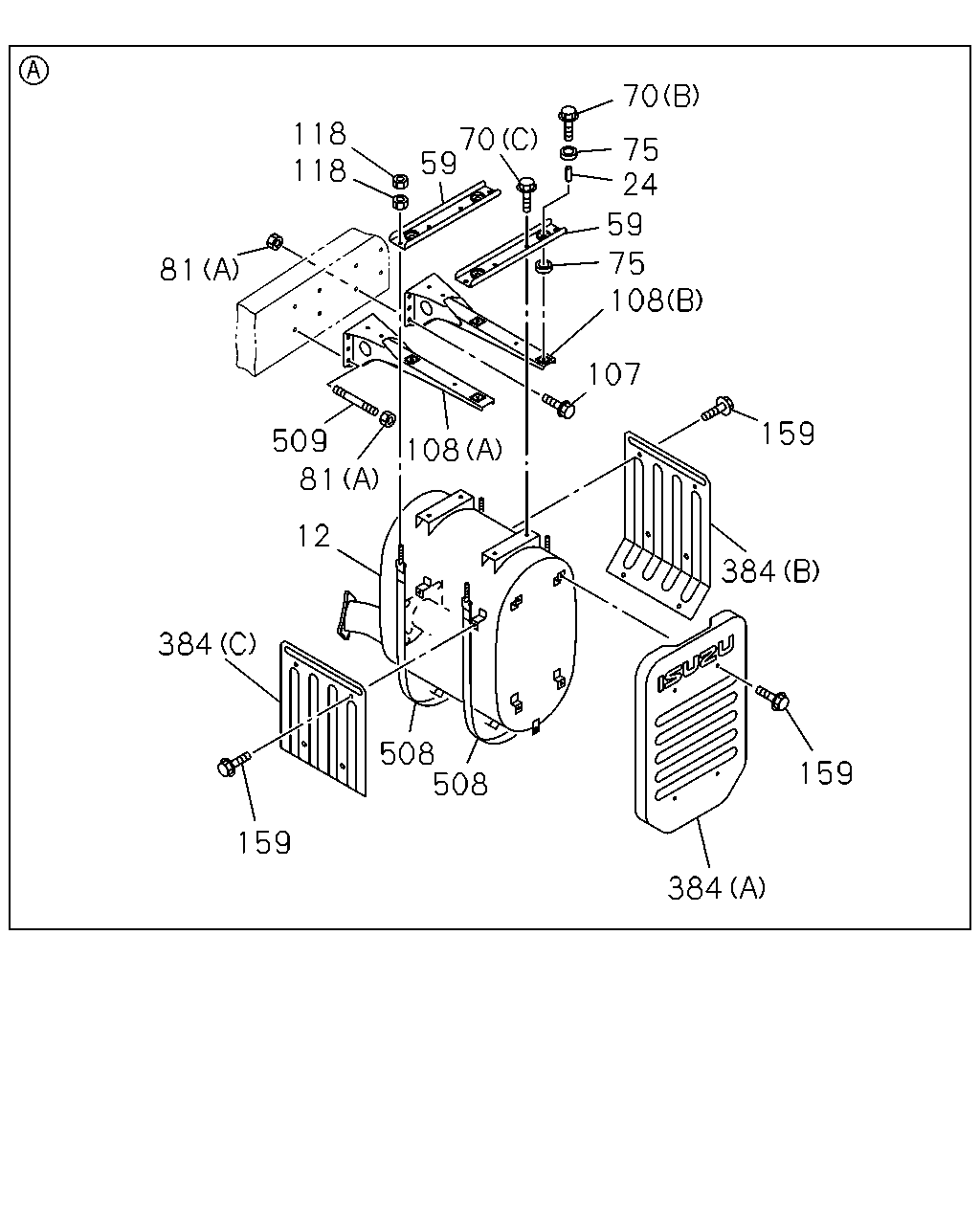

70 118 118 70 59 75 24 59 75 108 81 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 6WG1 TC-C(72L)	1-22141-156-0	01	1	0705-		●
12	SILENCER ASM; EXH 6WG1 TC-S(97L)	1-22141-157-0	01	1	0512-		●
12	SILENCER ASM; EXH	1-22141-048-3	01	1	0407-0511	●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8)	1-22141-048-3	01	1	0512-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0407-0511	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0512-		●
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0407-0511	●
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0512-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0407-0511	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	05	1	0512-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	05	1	0601-		●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28681-020-0	04	1	0407-0511	●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28681-020-0	04	1	0512-0512		●
70	BOLT; BRKT (C) M10X20 FLANGE	0-28651-020-0	04	1	0601-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0407-0511	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28081-030-0	02	1	0512-0512		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28051-030-0	02	1	0601-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0407-0511	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0512-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0407-0511	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0407-0511	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0512-0602		●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0603-		●
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0407-0511	●
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0512-0512		●
107	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0407-0511	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0512-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0407-0511	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0512-		●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0407-0511	●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0512-0512		●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0601-		●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0407-0511	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0512-		●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0407-0511	●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0512-		●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-3	01	1	0407-0511	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-4	01	1	0512-		●
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0407-0511	●
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0512-		●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0407-0408	●
508	BAND; EXHAUST SILENCER	1-22159-382-0	02	1	0409-0511	●
508	BAND; EXHAUST SILENCER	1-22159-382-0	02	1	0512-		●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0407-0511	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0512-		●
