1-41 — FUEL PIPING; CHASSIS (#29101) — 139 parça

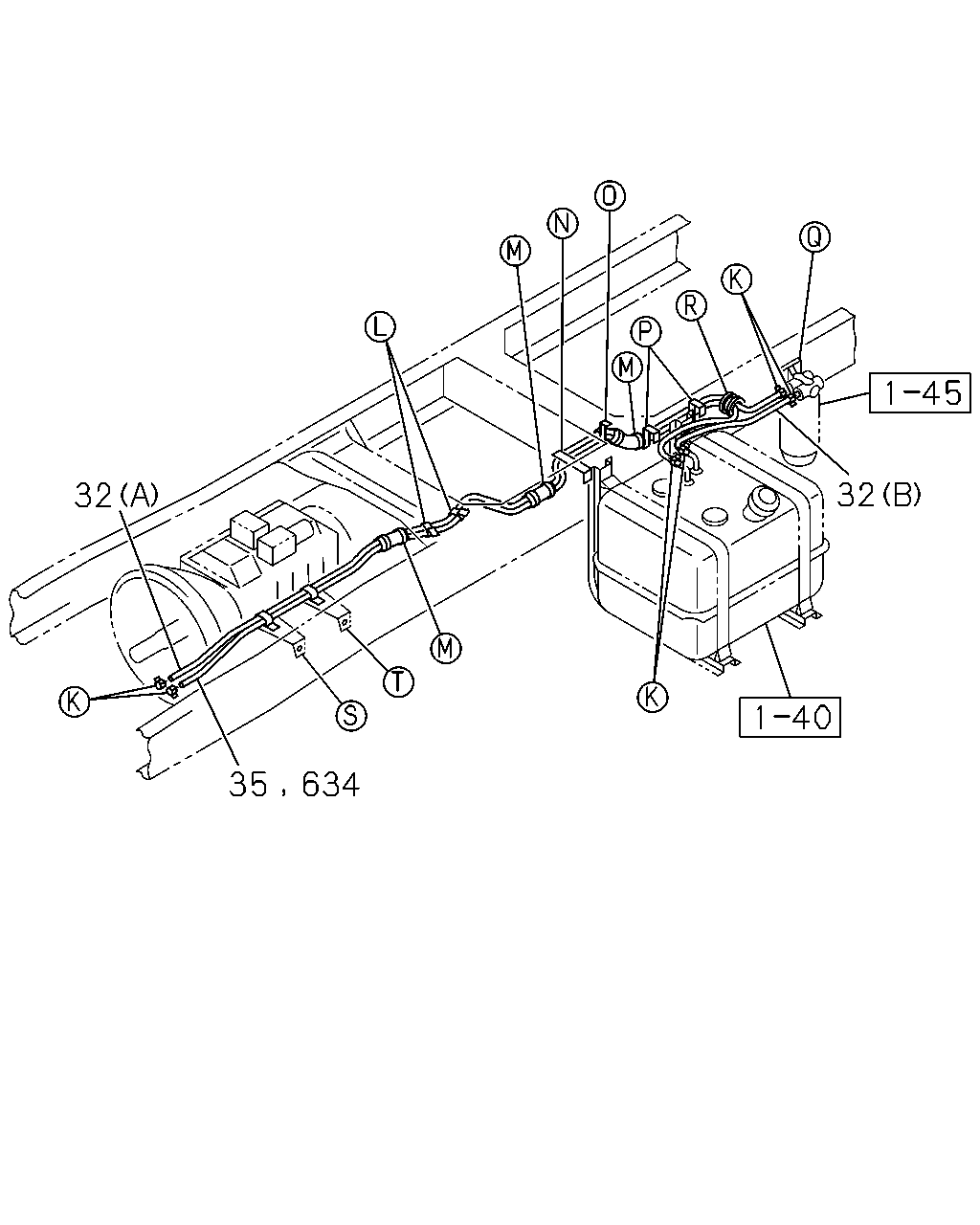

çizim 87017
32 634 35 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 0407-0511 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0512- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=3850 SERVICED BY L=8000 		0-01260-800-0 01 1 0407-0511 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350 		0-01262-535-0 01 1 0512- ●
35 PIPE; FUEL TANK,RETURN
L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0407-0511 ●
634 HOSE; RUBBER RETURN
L=3250 SERVICED BY L=8000 		0-01260-800-0 01 1 0512- ●

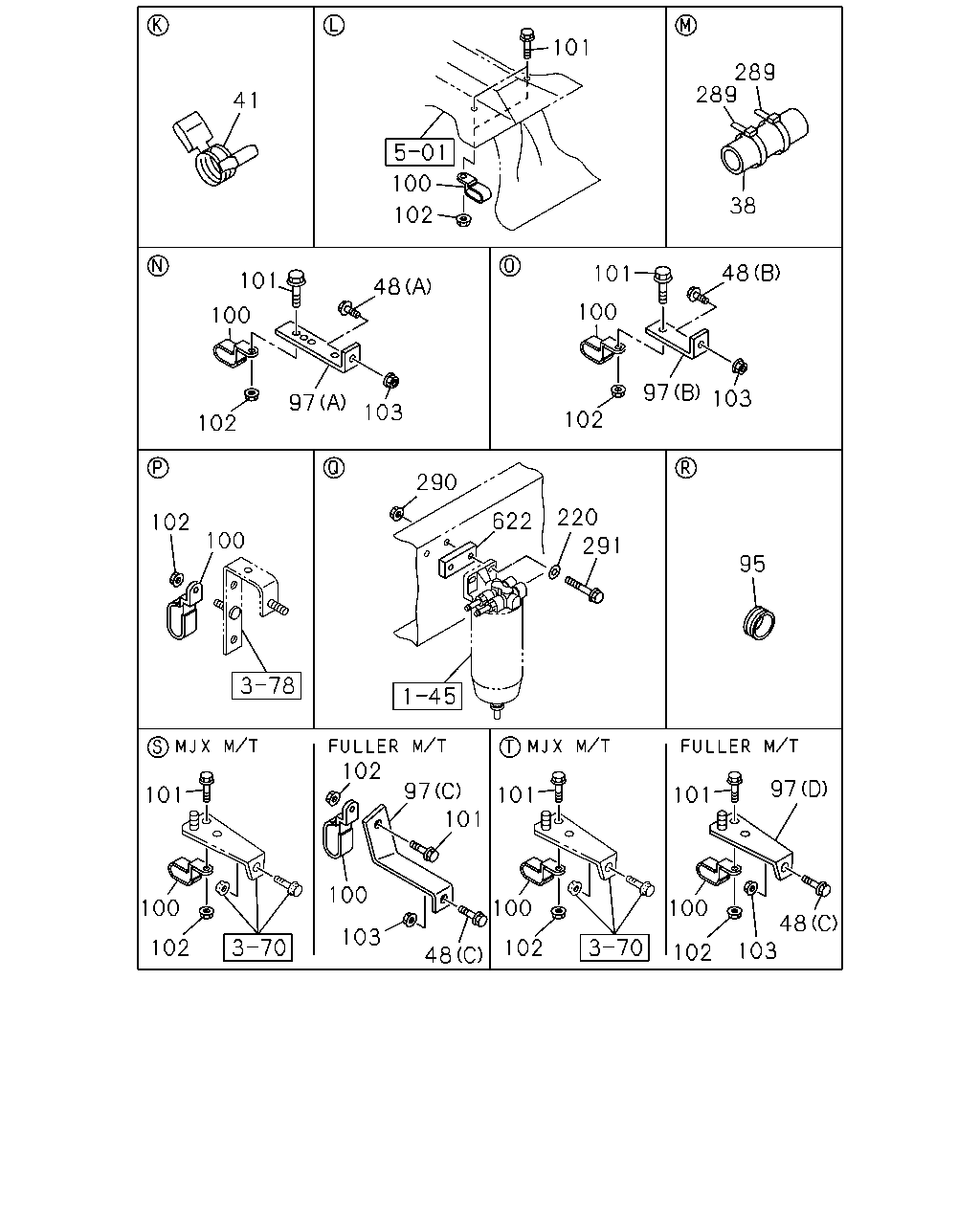

çizim 104567
101 289 289 41 100 38 102 48 101 101 48 100 100 97 103 97 103 102 102 290 220 291 622 102 100 95 102 97 97 101 101 101 101 100 100 100 100 48 103 103 102 102 102 48
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=150 SERVICED BY L=1300 		1-09360-677-1 04 1 0705- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 04 1 0407-0511 ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0512-0704 ●
38 SLEEVE; RUBBER,RUBBER HOSE
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0705- ●
38 SLEEVE; RUBBER,RUBBER HOSE
MJX16P M/T(Y3Z) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0705- ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=19 		8-94238-569-0 02 1 0512- ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0407-0511 ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 04 1 0512- ●
48 BOLT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
48 BOLT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0704 ●
48 BOLT; BRKT
FULLER M/T<X9B> (C) M8X30 FLANGE 		0-28650-830-0 02 1 0705- ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0511 ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0512-0512 ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-0511 ●
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0512- ●
97 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) 		1-47479-646-0 01 1 0512-0704 ●
97 BRACKET; CLIP
FULLER M/T<X9B> (C) 		1-47479-646-0 01 1 0705- ●
97 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) (D) 		1-47479-723-0 01 1 0512-0704 ●
97 BRACKET; CLIP
FULLER M/T<X9B> (D) 		1-47479-723-0 01 1 0705- ●
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0407-0511 ●
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0512- ●
97 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 0407-0511 ●
97 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 0512- ●
100 CLIP; FUEL PIPE
ID=14X29 H=15 L=20 		1-09700-744-0 08 1 0407-0511 ●
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 09 1 0512- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 08 1 0407-0511 ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 09 1 0512-0602 ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 09 1 0603- ●
103 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
103 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
103 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
103 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0705- ●
103 NUT; BRKT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0705- ●
220 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 02 1 0407-0511 ●
220 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 02 1 0512-0605 ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0606- ●
289 CLIP; BAND,HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=250 		5-09707-030-1 08 1 0705- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 08 1 0407-0511 ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 06 1 0512-0704 ●
289 CLIP; BAND,HOSE
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) L=250 		5-09707-030-1 06 1 0705- ●
289 CLIP; BAND,HOSE
MJX16P M/T(Y3Z) L=250 		5-09707-030-1 06 1 0705- ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0511 ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0512-0512 ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
622 SPACER; BRKT 1-53168-492-0 01 1 0407-0511 ●
622 SPACER; BRKT 1-53168-492-0 01 1 0512-0909 ●
622 SPACER; BRKT 8-98124-944-0 01 1 0910- ●

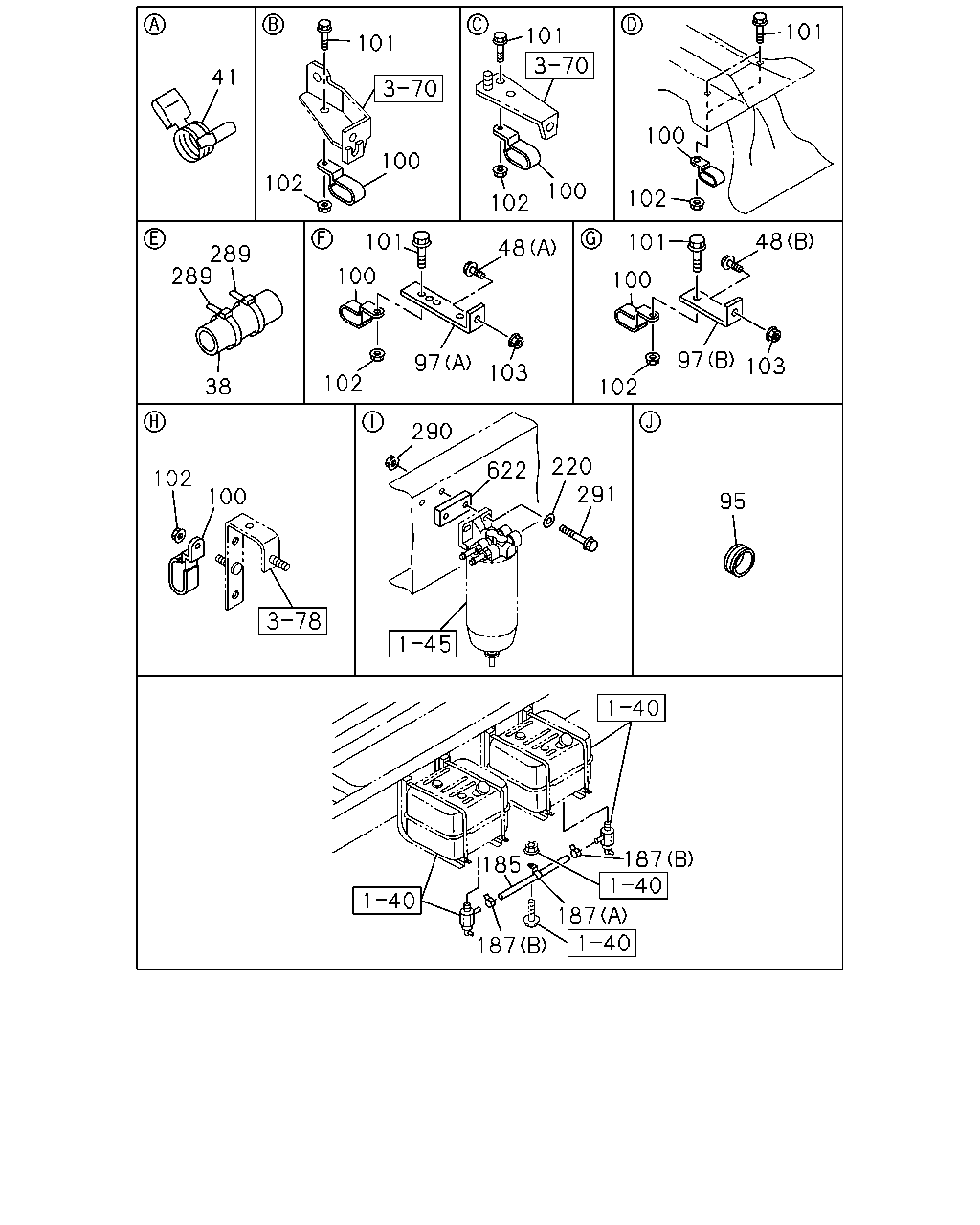

çizim 105253
101 101 101 41 100 100 102 100 102 102 48 101 101 48 289 289 100 100 97 97 103 103 102 38 102 290 220 622 102 291 100 95 185 187 187 187
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=150 SERVICED BY L=1300 		1-09360-677-1 04 1 0705- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 04 1 0407-0511 ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0512-0704 ●
38 SLEEVE; RUBBER,RUBBER HOSE
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0705- ●
38 SLEEVE; RUBBER,RUBBER HOSE
MJX16P M/T(Y3Z) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0705- ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=19 		8-94238-569-0 02 1 0512- ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0407-0511 ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 04 1 0512- ●
48 BOLT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
48 BOLT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0704 ●
48 BOLT; BRKT
FULLER M/T<X9B> (C) M8X30 FLANGE 		0-28650-830-0 02 1 0705- ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0511 ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0512-0512 ●
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407-0511 ●
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0512- ●
97 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) 		1-47479-646-0 01 1 0512-0704 ●
97 BRACKET; CLIP
FULLER M/T<X9B> (C) 		1-47479-646-0 01 1 0705- ●
97 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) (D) 		1-47479-723-0 01 1 0512-0704 ●
97 BRACKET; CLIP
FULLER M/T<X9B> (D) 		1-47479-723-0 01 1 0705- ●
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0407-0511 ●
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0512- ●
97 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 0407-0511 ●
97 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 0512- ●
100 CLIP; FUEL PIPE
ID=14X29 H=15 L=20 		1-09700-744-0 08 1 0407-0511 ●
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 09 1 0512- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 08 1 0407-0511 ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 09 1 0512-0602 ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 09 1 0603- ●
103 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
103 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
103 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
103 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0705- ●
103 NUT; BRKT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0705- ●
185 PIPE; FUEL TANK TO TANK
L=900 SERVICED BY L=3000 		0-01262-300-0 01 1 0407-0511 ●
187 CLIP; FUEL PIPE TANK TO TANK
(B) ID=17.1 		8-94122-679-0 02 1 0407-0511 ●
187 CLIP; FUEL PIPE TANK TO TANK
(A) ID=19 H=25 L=25 		9-09917-035-0 02 1 0407-0511 ●
220 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 02 1 0407-0511 ●
220 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 02 1 0512-0605 ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0606- ●
289 CLIP; BAND,HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=250 		5-09707-030-1 08 1 0705- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 08 1 0407-0511 ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 06 1 0512-0704 ●
289 CLIP; BAND,HOSE
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) L=250 		5-09707-030-1 06 1 0705- ●
289 CLIP; BAND,HOSE
MJX16P M/T(Y3Z) L=250 		5-09707-030-1 06 1 0705- ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0511 ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0512-0512 ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ●
622 SPACER; BRKT 1-53168-492-0 01 1 0407-0511 ●
622 SPACER; BRKT 1-53168-492-0 01 1 0512-0909 ●
622 SPACER; BRKT 8-98124-944-0 01 1 0910- ●

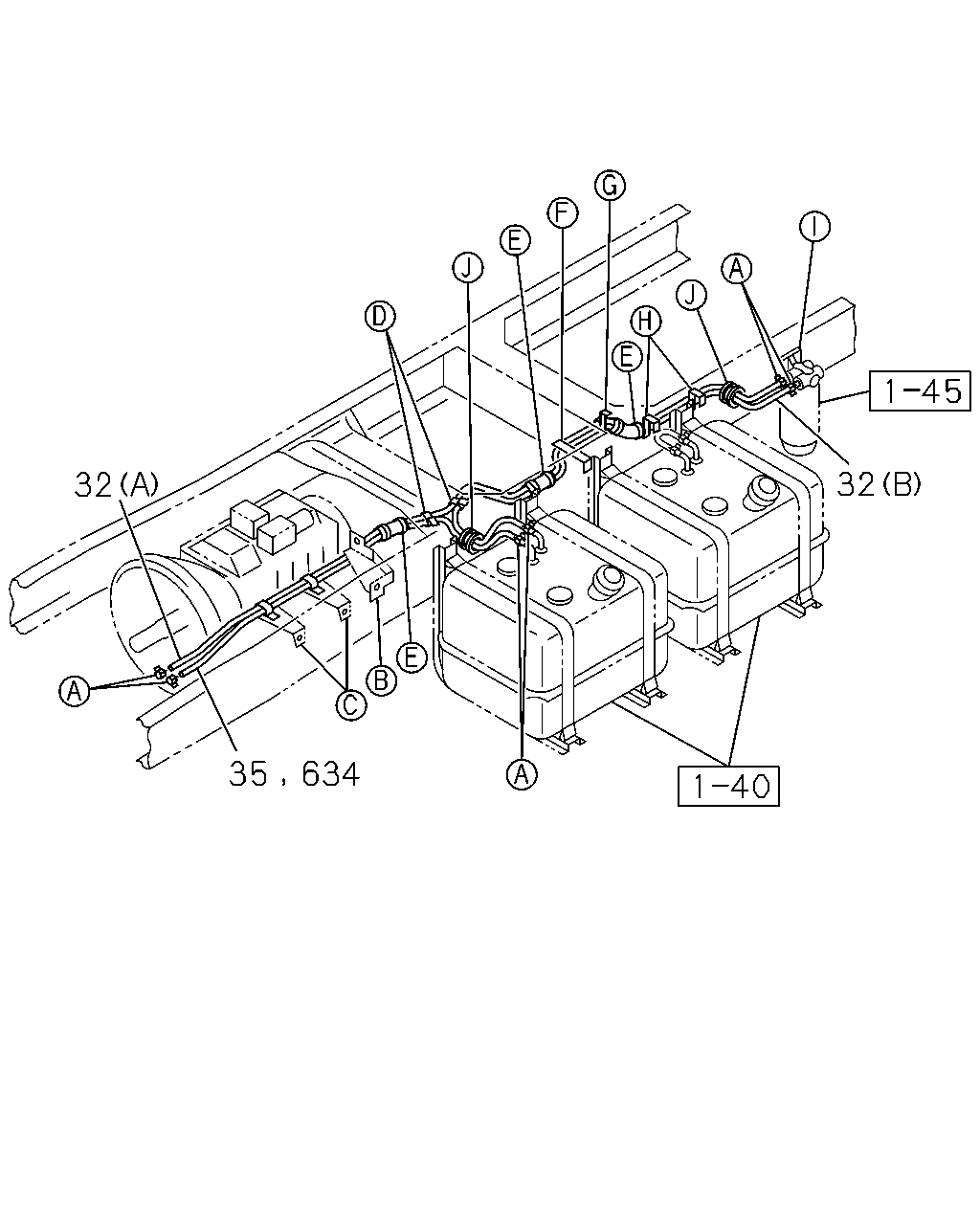

çizim 105254
32 35 634 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 0407-0511 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0512- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=3850 SERVICED BY L=8000 		0-01260-800-0 01 1 0407-0511 ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350 		0-01262-535-0 01 1 0512- ●
35 PIPE; FUEL TANK,RETURN
L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0407-0511 ●
634 HOSE; RUBBER RETURN
L=3250 SERVICED BY L=8000 		0-01260-800-0 01 1 0512- ●
