1-10 — RADIATOR (#29095) — 132 parça
çizim 86750
1 528 526 529 232 267 89 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-918-4 01 1 0512-0704 ●
1 RADIATOR ASM 1-21410-918-4 01 1 0705- ● ●
1 RADIATOR ASM 1-21410-881-0 01 1 0407-0511 ●
1 RADIATOR ASM 1-21410-921-4 01 1 0512- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0512- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0512- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0512- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0512- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0512- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0512- ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-0 01 1 0407-0511 ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0512-0704 ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0705- ● ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-0 01 1 0407-0511 ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 0512-0704 ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 0705- ● ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-121-1 01 1 0512-0704 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-121-1 01 1 0705- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-122-1 01 1 0512-0704 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-122-1 01 1 0705- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-104-0 01 1 0407-0511 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-125-0 01 1 0512- ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-105-0 01 1 0407-0511 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-126-0 01 1 0512- ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0407-0511 ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0512-0704 ● ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0705- ● ● ●

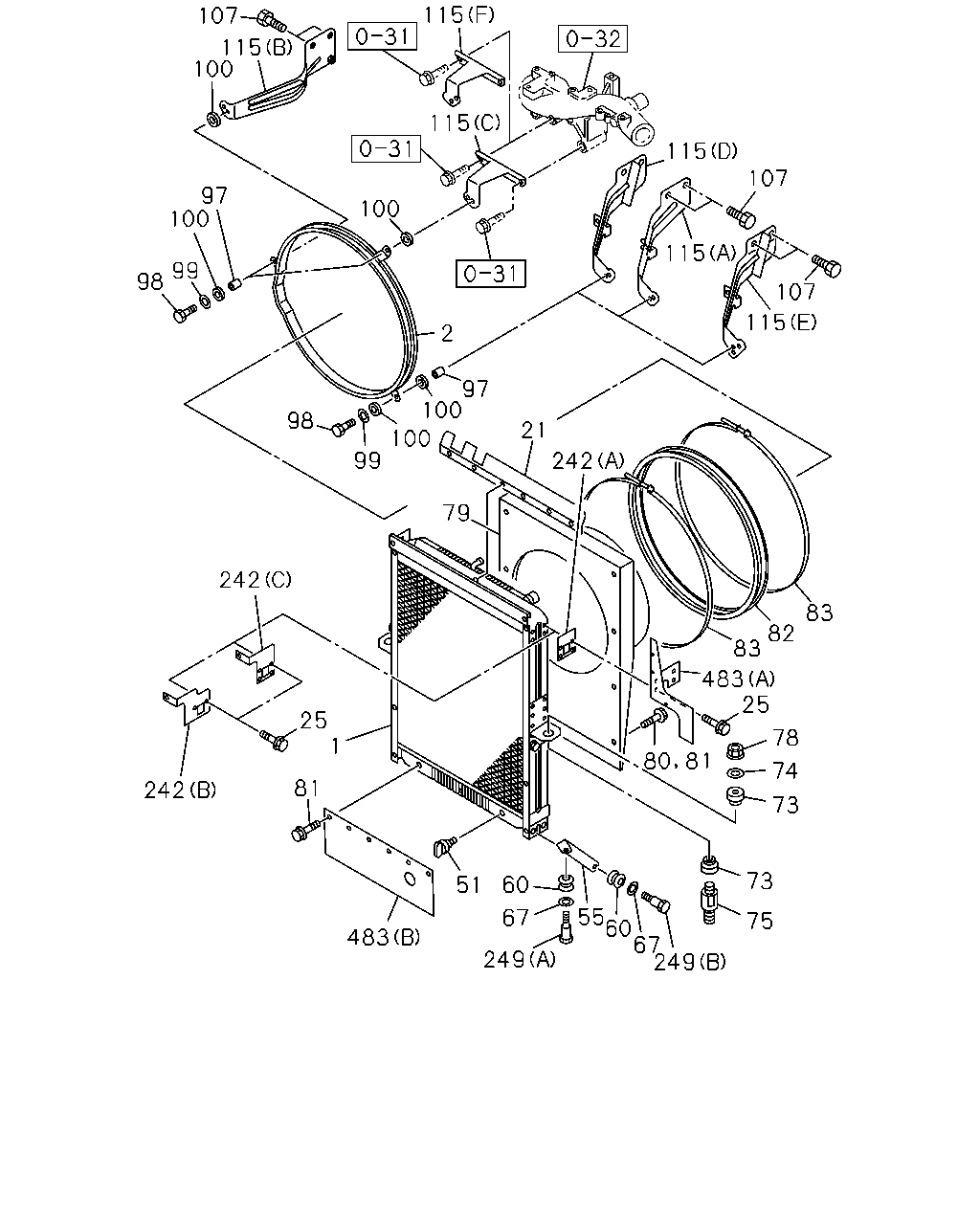

çizim 105251
107 115 100 115 115 115 107 115 107 115 100 97 100 99 98 2 97 100 100 99 98 21 79 242 83 82 83 483 25 78 74 73 81 80 73 75 249 67 60 55 60 67 249 51 483 81 1 25 242 242
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-918-4 01 1 0512-0704 ●
1 RADIATOR ASM 1-21410-918-4 01 1 0705- ● ●
1 RADIATOR ASM 1-21410-881-0 01 1 0407-0511 ●
1 RADIATOR ASM 1-21410-921-4 01 1 0512- ●
2 GUIDE; FAN 1-21551-500-0 01 1 0407-0407 ●
2 GUIDE; FAN 1-21551-445-0 01 1 0408-0511 ●
2 GUIDE; FAN 1-21551-445-0 01 1 0512-0606 ● ●
2 GUIDE; FAN 8-97615-750-0 01 1 0607-0704 ● ●
2 GUIDE; FAN 8-97615-750-0 01 1 0705-1006 ● ● ●
2 GUIDE; FAN 8-98171-163-0 01 1 1007- ● ●
21 SEAL; RAD 1-21460-132-0 01 1 0407-0511 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0512- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 08 1 0407-0511 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0512- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0407-0511 ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 0512-0704 ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 0705- ● ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 0512-0704 ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 0705- ● ●
55 STAY; RAD TO UPR MBR
CAB UP +110MM<TGG> 		1-21464-740-0 01 1 0407-0511 ●
55 STAY; RAD TO UPR MBR 1-21464-766-0 01 1 0512- ●
55 STAY; RAD TO UPR MBR
CAB UP +110MM<TGG> 		1-21464-741-0 01 1 0407-0511 ●
55 STAY; RAD TO UPR MBR 1-21464-767-0 01 1 0512- ●
60 GROMMET 1-09332-117-0 04 1 0407-0511 ●
60 GROMMET 1-09332-117-0 04 1 0512-0704 ● ●
60 GROMMET 1-09332-117-0 04 1 0705- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0407-0511 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0512-0605 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-0704 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0705- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0407-0511 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0512-0704 ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0705- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 0407-0511 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0512-0704 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0705- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0407-0511 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0512-0704 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0705- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603-0704 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0705- ● ● ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 0512-0704 ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 0705- ● ●
79 GUIDE; FAN,RAD 1-21551-536-0 01 1 0407-0511 ●
79 GUIDE; FAN,RAD 1-21551-548-0 01 1 0512-0908 ●
79 GUIDE; FAN,RAD 1-21551-558-0 01 1 0909- ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 0512- ● ●
81 SCREW; FAN GUIDE,RAD
M8X16 FLANGE 		0-28080-816-0 06 1 0407-0511 ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 0512-0704 ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 0705- ● ●
82 COVER; FAN,RAD 1-21559-465-0 01 1 0407-0511 ●
82 COVER; FAN,RAD 1-21559-465-0 01 1 0512- ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0407-0511 ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0512- ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0407-0511 ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0512-0704 ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0705- ● ● ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 0804- ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28081-045-0 03 1 0407-0511 ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28081-045-0 03 1 0512-0512 ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 0601-0704 ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 0705-0803 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 0407-0511 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 0512-0605 ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0606-0704 ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0705- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0407-0511 ●
100 RUBBER; MTG 1-09337-017-0 06 1 0512-0704 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0705- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 04 1 0407-0511 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 04 1 0512-0512 ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 0601-0704 ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 0705- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-420-1 01 1 0407-0511 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-420-1 01 1 0512-0602 ● ●
115 BRACKET; FAN GUIDE
(D) 		8-97612-230-0 01 1 0603-0704 ● ●
115 BRACKET; FAN GUIDE
(D) 		8-97612-230-0 01 1 0705-1301 ● ● ●
115 BRACKET; FAN GUIDE
(E) 		8-97643-212-0 01 1 1302- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 0407-0511 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 0512-0704 ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 0705- ● ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 0407-0511 ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 0512-0704 ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 0705-1301 ● ● ●
115 BRACKET; FAN GUIDE
(F) 		8-97643-211-0 01 1 1302- ● ● ●
242 BRACKET; RAD
(B) 		1-21464-790-0 01 1 0512-0704 ●
242 BRACKET; RAD
(B) 		1-21464-790-0 01 1 0705- ● ●
242 BRACKET; RAD
(B) 		1-21464-791-0 01 1 0512-0704 ●
242 BRACKET; RAD
(B) 		1-21464-791-0 01 1 0705- ● ●
242 BRACKET; RAD
(A) 		1-21464-747-0 01 1 0407-0511 ●
242 BRACKET; RAD
(C) 		1-21464-801-0 01 1 0512- ●
242 BRACKET; RAD
(A) 		1-21464-748-0 01 1 0407-0511 ●
242 BRACKET; RAD
(C) 		1-21464-802-0 01 1 0512- ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0407-0511 ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0512-0704 ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0705- ● ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0407-0511 ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0512-0704 ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0705- ● ● ●
483 BRACKET; SEAL
(A) 		1-21464-751-0 01 1 0407-0511 ●
483 BRACKET; SEAL
(A) 		1-21464-752-0 01 1 0407-0511 ●
483 BRACKET; SEAL
(B) 		1-21464-753-0 01 1 0407-0511 ●
