0-87 — COUPLING; INJECTION PUMP (#29093) — 23 parça

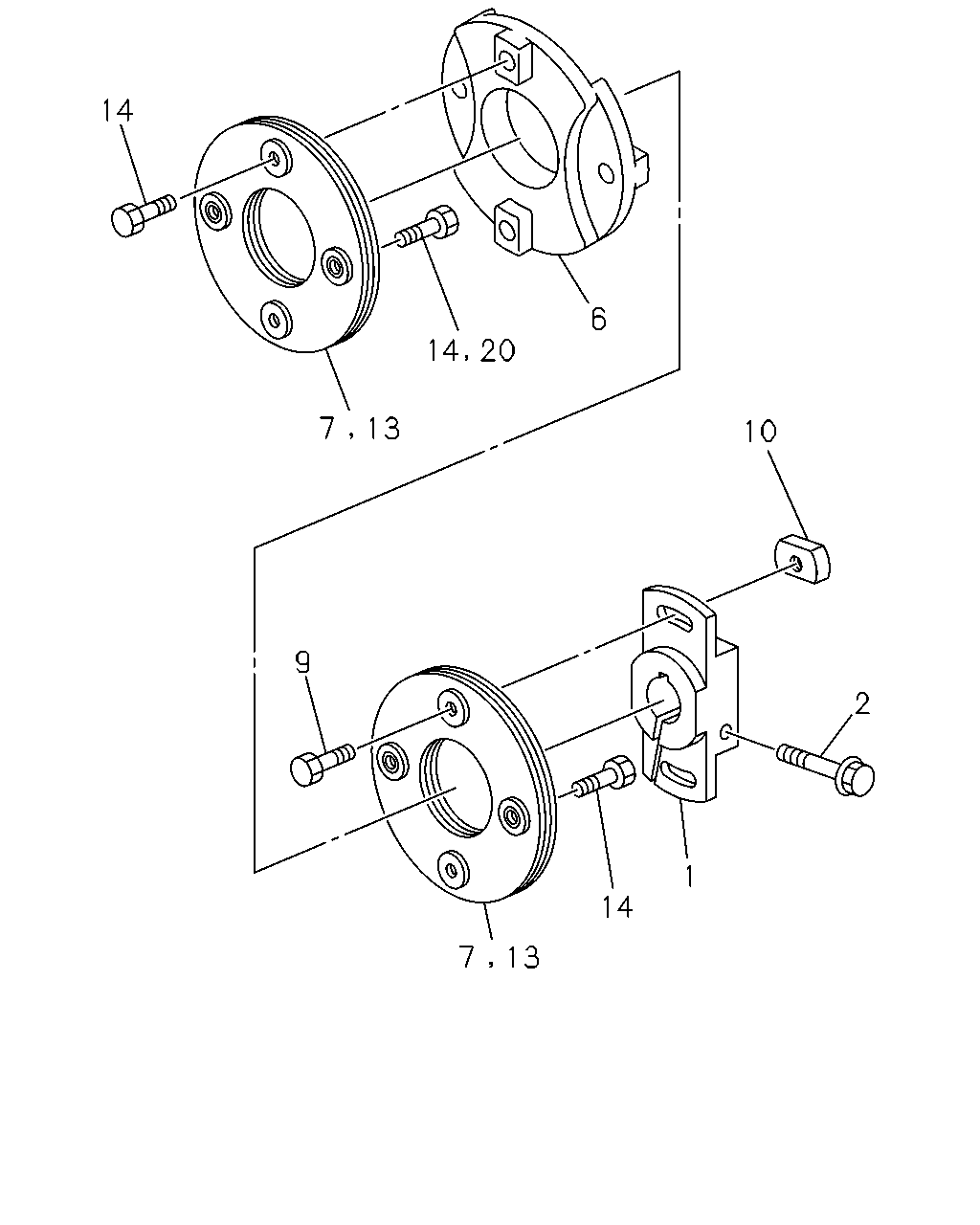

çizim 86778
14 6 14 7 13 10 9 2 1 14 7 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15789-217-0 01 1 0407-0511 ●
1 COUPLING; INJ PUMP DRIVE 1-15789-207-0 01 1 0512-0704 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15789-207-0 01 1 0705- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0407-0511 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0512-0704 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0705- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-218-0 01 1 0407-0511 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0512-0704 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0705- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0512-0704 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0705- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-220-0 02 1 0407-0511 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0512-0704 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0705- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0407-0511 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0512-0704 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0705- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-219-0 02 1 0407-0511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-214-0 06 1 0407-0511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0512-0704 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0705- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0512-0704 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0705- ● ● ●
