8-01 — LAMP; FRONT AND FRONT SIDE (#2908) — 227 parça

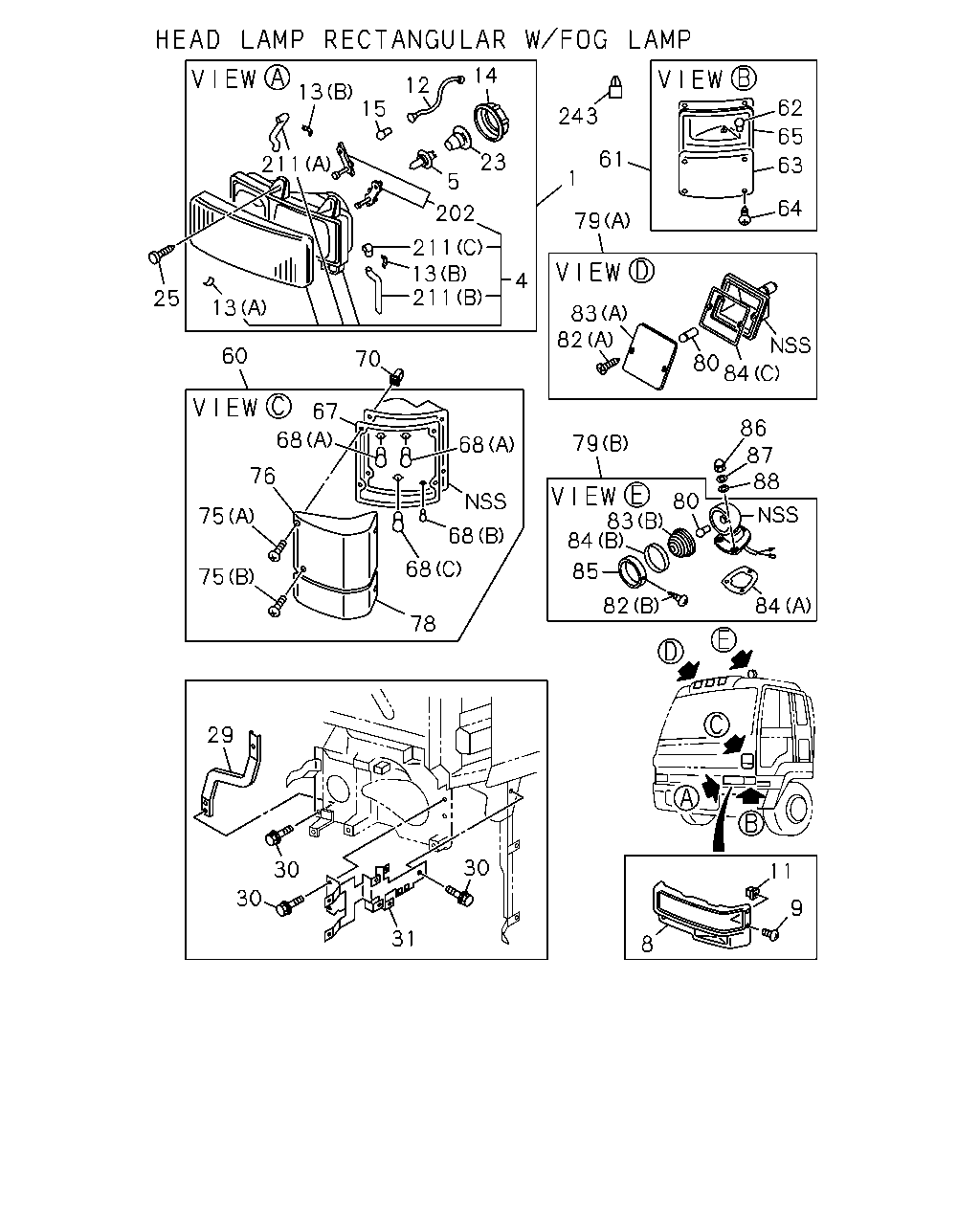

9 8 11 84 82 85 84 83 80 88 87 86 79 82 83 84 80 64 63 65 62 61 1 243 79 4 23 5 14 12 15 13 211 202 211 211 13 13 25 60 70 68 67 68 76 75 75 68 68 78 30 31 30 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-260-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-258-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82110-301-3	01	1	9307-	●	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82110-300-3	01	1	9307-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-4	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-4	01	1	9002-	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82191-031-0	02	1	9002-	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9002-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-107-0	01	1	9307-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-108-0	01	1	9307-	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82193-006-0	02	1	9002-	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82193-007-0	02	1	9002-	●	●
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82194-063-0	02	1	9307-	●	●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> EXC. CAB UP 110MM(W60)	1-71117-148-0	01	1	9002-	●	●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> EXC. CAB UP 110MM(W60)	1-71117-147-0	01	1	9002-	●	●
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,CAB UP 110MM(W60)	1-71117-124-2	01	1	9002-	●	●
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,CAB UP 110MM(W60)	1-71117-123-2	01	1	9002-	●	●
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-178-1	01	1	9307-	●	●
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-177-1	01	1	9307-	●	●
8	RIM; HEADLAMP CAB UP 110MM(W60) EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-128-1	01	1	9002-		●
8	RIM; HEADLAMP CAB UP 110MM(W60) EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-127-1	01	1	9002-		●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> CAB UP 110MM(W60)	1-71117-152-0	01	1	9002-		●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> CAB UP 110MM(W60)	1-71117-151-0	01	1	9002-		●
9	SCREW; HEADLAMP RIM M5X20	1-09164-019-0	08	1	9002-	●	●
11	GROMMET; SCREW,HEADLAMP RIM	1-09983-081-0	08	1	9002-	●	●
12	HARNESS; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82118-011-0	02	1	9307-	●	●
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-074-0	10	1	9307-	●	●
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-084-0	04	1	9307-	●	●
14	CAP; BULB,LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-070-0	02	1	9307-	●	●
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 55W	1-82194-079-0	02	1	9307-	●	●
15	BULB; FOG LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 40W	1-82194-024-0	02	1	9002-	●	●
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9307-	●	●
23	COVER; BULB,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5>	1-82119-013-0	04	1	9002-	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9307-9401	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	07	1	9402-	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X28 W/LK&PL WASHER	1-09980-543-0	01	1	9402-	●	●
25	SCREW; LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X12 W/LK&PL WASHER	1-09981-464-0	16	1	9002-	●	●
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-407-1	01	1	9307-	●	●
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-406-1	01	1	9307-	●	●
29	STAY ASM; HD LAMP PANEL FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-005-0	02	1	9002-	●	●
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	10	1	9307-9307	●	●
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	10	1	9308-	●	●
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9002-	●	●
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-383-0	01	1	9307-	●	●
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-382-0	01	1	9307-	●	●
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-731-2	01	1	9002-	●	●
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-730-2	01	1	9002-	●	●
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM>	1-82210-201-0	01	1	9307-	●	●
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM>	1-82210-200-0	01	1	9307-	●	●
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-166-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-165-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-163-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-164-0	01	1	9002-	●	●
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-179-1	01	1	9307-	●	●
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-178-1	01	1	9307-	●	●
62	BULB; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 30W	8-97010-179-0	02	1	9307-	●	●
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-062-0	01	1	9307-	●	●
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-061-0	01	1	9307-	●	●
64	SCREW; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82219-025-0	08	1	9307-	●	●
65	GASKET; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-031-0	02	1	9307-	●	●
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-030-0	01	1	9307-	●	●
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-029-0	01	1	9307-	●	●
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-010-0	01	1	9002-	●	●
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-009-0	01	1	9002-	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (A) 24V 21W	1-82194-036-0	04	1	9002-9306	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (A) 24V 21W	1-82194-036-0	04	1	9307-	●	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 24V 21W	1-82194-036-0	04	1	9307-	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (C) 24V 5W	1-82194-039-0	02	1	9002-9306	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (C) 24V 5W	1-82194-039-0	02	1	9307-	●	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) 24V 5W	1-82194-039-0	02	1	9307-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (A) 24V 25W	9-82691-347-0	04	1	9002-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (B) 24V 3W	9-82691-603-0	02	1	9002-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (C) 24V 10/4W	9-82691-607-0	02	1	9002-	●	●
70	GROMMET; SCREW,FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	8-94279-039-0	08	1	9002-	●	●
75	SCREW; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-82219-001-0	08	1	9002-	●	●
75	SCREW; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-82219-002-0	04	1	9002-	●	●
76	LENS; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82215-038-0	01	1	9002-	●	●
76	LENS; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82215-037-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-035-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-034-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-028-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-029-0	01	1	9002-	●	●
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (B)	1-82210-122-0	02	1	9002-	●	●
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (A)	1-82210-123-0	02	1	9002-	●	●
80	BULB; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 12W	1-82194-004-0	04	1	9002-	●	●
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82219-003-0	04	1	9002-	●	●
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82259-004-0	04	1	9002-	●	●
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82215-031-0	02	1	9002-	●	●
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82215-036-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82216-012-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (C)	1-82256-002-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	9-82611-717-0	02	1	9002-	●	●
85	RIM; FRT COMB NEW ZEALAND EQUIPMENT(PK5)	1-82219-004-0	02	1	9002-	●	●
86	NUT; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-09984-072-0	06	1	9002-	●	●
87	WASHER; PL,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8.4	1-09985-106-0	06	1	9002-	●	●
88	WASHER; LK,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8 OD=15	1-09985-115-0	06	1	9002-	●	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-076-0	01	1	9307-	●	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30.0	1-82119-078-0	01	1	9307-	●	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-075-0	01	1	9307-	●	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30.0	1-82119-077-0	01	1	9307-	●	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-82119-081-0	02	1	9307-	●	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-080-1	01	1	9307-	●	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-083-0	01	1	9307-	●	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-079-1	01	1	9307-	●	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-082-0	01	1	9307-	●	●
243	GROMMET; SCREW,CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09983-081-0	08	1	9307-	●	●

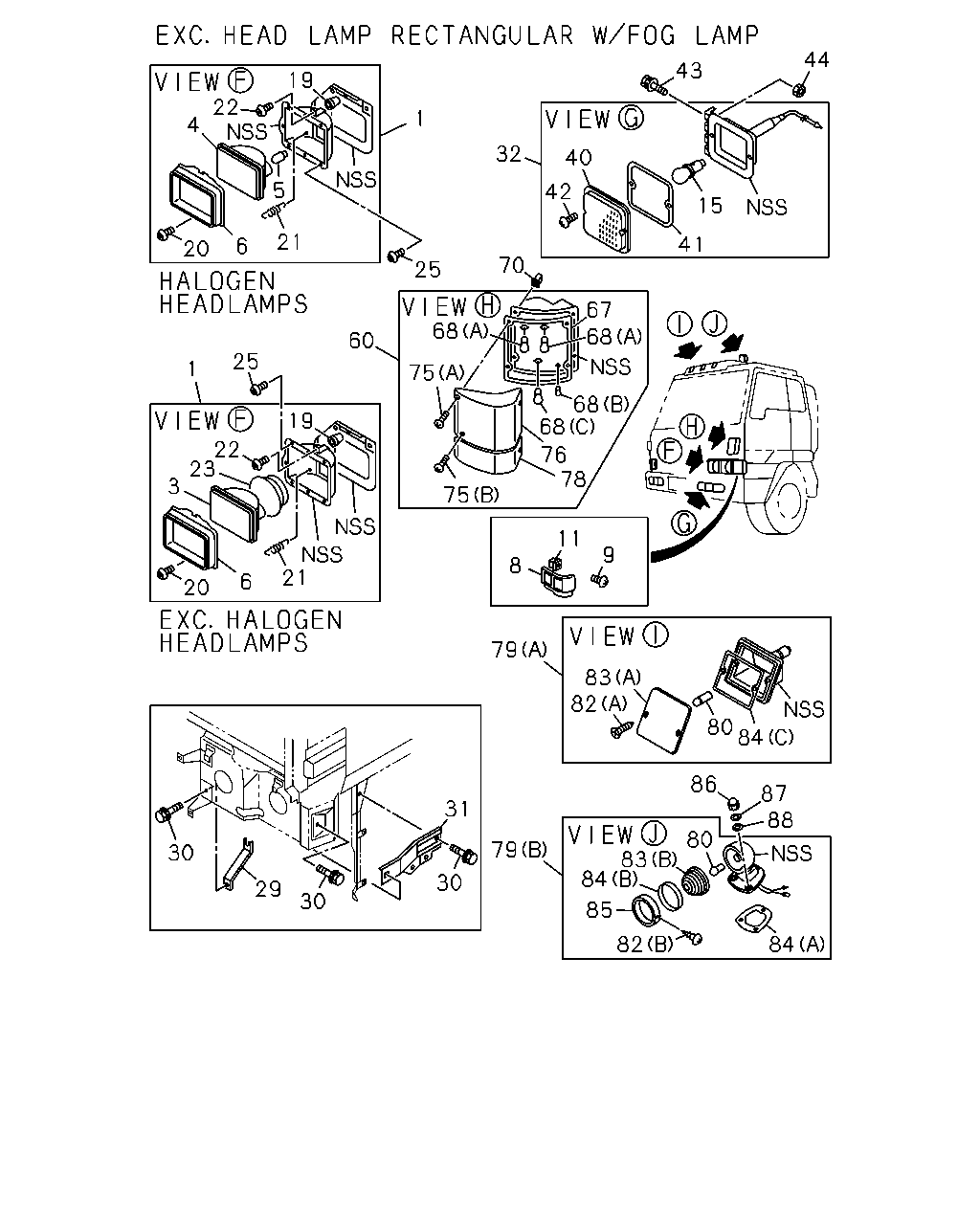

84 82 85 84 88 80 83 87 86 80 84 82 79 83 9 11 8 75 78 76 68 68 68 67 68 75 60 41 15 70 25 32 40 42 44 43 1 19 22 4 5 21 6 20 1 25 22 23 3 19 21 6 20 30 29 30 30 31 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-260-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-258-2	01	1	9002-	●	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82110-301-3	01	1	9307-	●	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82110-300-3	01	1	9307-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-4	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9002-	●	●
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-4	01	1	9002-	●	●
3	SEALED BEAM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> INNER 24V 55W	1-82191-023-0	02	1	9002-	●	●
3	SEALED BEAM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5> 0UTER 24V50/65W 24V 65/50W	1-82191-042-0	02	1	9002-	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82191-031-0	02	1	9002-	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9002-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-107-0	01	1	9307-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-108-0	01	1	9307-	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82193-006-0	02	1	9002-	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82193-007-0	02	1	9002-	●	●
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82194-063-0	02	1	9307-	●	●
6	RIM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82114-018-0	02	1	9002-	●	●
6	RIM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82114-019-0	02	1	9002-	●	●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> EXC. CAB UP 110MM(W60)	1-71117-148-0	01	1	9002-	●	●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> EXC. CAB UP 110MM(W60)	1-71117-147-0	01	1	9002-	●	●
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,CAB UP 110MM(W60)	1-71117-124-2	01	1	9002-	●	●
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,CAB UP 110MM(W60)	1-71117-123-2	01	1	9002-	●	●
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-178-1	01	1	9307-	●	●
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-177-1	01	1	9307-	●	●
8	RIM; HEADLAMP CAB UP 110MM(W60) EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-128-1	01	1	9002-		●
8	RIM; HEADLAMP CAB UP 110MM(W60) EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-127-1	01	1	9002-		●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> CAB UP 110MM(W60)	1-71117-152-0	01	1	9002-		●
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC> CAB UP 110MM(W60)	1-71117-151-0	01	1	9002-		●
9	SCREW; HEADLAMP RIM M5X20	1-09164-019-0	08	1	9002-	●	●
11	GROMMET; SCREW,HEADLAMP RIM	1-09983-081-0	08	1	9002-	●	●
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 55W	1-82194-079-0	02	1	9307-	●	●
15	BULB; FOG LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 40W	1-82194-024-0	02	1	9002-	●	●
19	NUT; HEADLAMP	1-82119-056-0	04	1	9002-9306	●	●
19	NUT; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-056-0	08	1	9307-	●	●
20	SCREW; HEADLAMP	1-82119-090-0	08	1	9002-9205	●	●
20	SCREW; HEADLAMP	1-82119-104-0	08	1	9206-9306	●	●
20	SCREW; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-104-0	16	1	9307-	●	●
21	SPRING; ADJ HEADLAMP	1-82119-021-0	02	1	9002-9306	●	●
21	SPRING; ADJ HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-021-0	04	1	9307-	●	●
22	SCREW; ADJ,HEADLAMP	1-82119-030-0	04	1	9002-9205	●	●
22	SCREW; ADJ,HEADLAMP	1-82119-095-0	04	1	9206-9306	●	●
22	SCREW; ADJ,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-095-0	08	1	9307-	●	●
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9307-	●	●
23	COVER; BULB,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, HALOGENHEADLAMPS<TT5>	1-82119-013-0	04	1	9002-	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9307-9401	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	07	1	9402-	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X28 W/LK&PL WASHER	1-09980-543-0	01	1	9402-	●	●
25	SCREW; LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X12 W/LK&PL WASHER	1-09981-464-0	16	1	9002-	●	●
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-407-1	01	1	9307-	●	●
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-406-1	01	1	9307-	●	●
29	STAY ASM; HD LAMP PANEL FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-005-0	02	1	9002-	●	●
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	10	1	9307-9307	●	●
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	10	1	9308-	●	●
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9002-	●	●
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-383-0	01	1	9307-	●	●
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-382-0	01	1	9307-	●	●
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-731-2	01	1	9002-	●	●
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-730-2	01	1	9002-	●	●
32	LAMP ASM; FOG 24V 40W	1-82110-290-0	01	1	9002-9306	●	●
32	LAMP ASM; FOG 24V 40W	1-82110-289-0	01	1	9002-9306	●	●
32	LAMP ASM; FOG EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 24V 40W	1-82110-298-0	01	1	9307-	●	●
32	LAMP ASM; FOG EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 24V 40W	1-82110-297-0	01	1	9307-	●	●
40	LENS; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82235-007-0	02	1	9002-	●	●
41	GASKET; LENS,FOG LAMP	1-82236-006-0	02	1	9002-9306	●	●
41	GASKET; LENS,FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82236-006-0	02	1	9307-	●	●
42	SCREW; LENS,FOG LAMP	1-82119-058-0	04	1	9002-9306	●	●
42	SCREW; LENS,FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82119-058-0	04	1	9307-	●	●
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204	●	●
43	BOLT; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-	●	●
44	NUT; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	5-09440-005-0	04	1	9002-	●	●
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM>	1-82210-201-0	01	1	9307-	●	●
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM>	1-82210-200-0	01	1	9307-	●	●
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-166-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-165-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-163-0	01	1	9002-	●	●
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-164-0	01	1	9002-	●	●
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-030-0	01	1	9307-	●	●
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-029-0	01	1	9307-	●	●
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-010-0	01	1	9002-	●	●
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-009-0	01	1	9002-	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (A) 24V 21W	1-82194-036-0	04	1	9002-9306	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (A) 24V 21W	1-82194-036-0	04	1	9307-	●	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 24V 21W	1-82194-036-0	04	1	9307-	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (C) 24V 5W	1-82194-039-0	02	1	9002-9306	●	●
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM> (C) 24V 5W	1-82194-039-0	02	1	9307-	●	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) 24V 5W	1-82194-039-0	02	1	9307-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (A) 24V 25W	9-82691-347-0	04	1	9002-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (B) 24V 3W	9-82691-603-0	02	1	9002-	●	●
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM> (C) 24V 10/4W	9-82691-607-0	02	1	9002-	●	●
70	GROMMET; SCREW,FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	8-94279-039-0	08	1	9002-	●	●
75	SCREW; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-82219-001-0	08	1	9002-	●	●
75	SCREW; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-82219-002-0	04	1	9002-	●	●
76	LENS; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82215-038-0	01	1	9002-	●	●
76	LENS; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82215-037-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-035-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-034-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-028-0	01	1	9002-	●	●
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-029-0	01	1	9002-	●	●
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (B)	1-82210-122-0	02	1	9002-	●	●
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (A)	1-82210-123-0	02	1	9002-	●	●
80	BULB; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 12W	1-82194-004-0	04	1	9002-	●	●
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82219-003-0	04	1	9002-	●	●
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82259-004-0	04	1	9002-	●	●
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82215-031-0	02	1	9002-	●	●
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82215-036-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82216-012-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (C)	1-82256-002-0	02	1	9002-	●	●
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	9-82611-717-0	02	1	9002-	●	●
85	RIM; FRT COMB NEW ZEALAND EQUIPMENT(PK5)	1-82219-004-0	02	1	9002-	●	●
86	NUT; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-09984-072-0	06	1	9002-	●	●
87	WASHER; PL,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8.4	1-09985-106-0	06	1	9002-	●	●
88	WASHER; LK,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8 OD=15	1-09985-115-0	06	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
