0-36 — TURBOCHARGER SYSTEM (#29078) — 183 parça

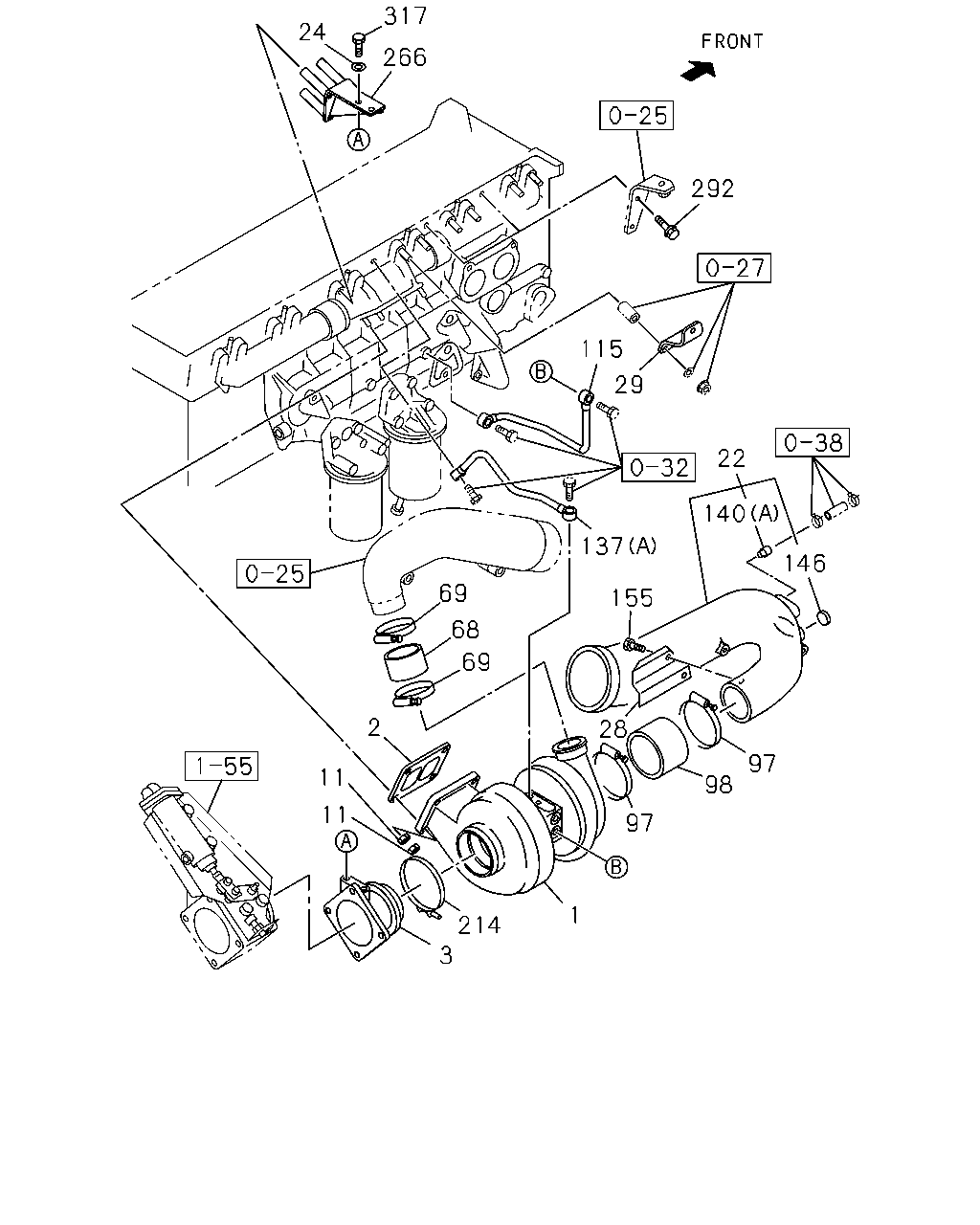

çizim 87004
3 1 214 97 97 98 28 155 69 68 69 2 11 11 137 140 22 146 29 115 292 266 317 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 1-14400-425-2 01 1 0512-0704 ●
1 TURBOCHARGER ASM 1-14400-425-5 01 1 0705- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-391-2 01 1 0407-0511 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-374-3 01 1 0512- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0512-0704 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0705-0804 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0805-1001 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-0 01 1 0407-0511 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0512- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0512-0704 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0705- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-3 01 1 0407-0511 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-4 01 1 0512- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0407-0511 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0512-0704 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0705- ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-478-3 01 1 0512-0704 ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-478-3 01 1 0705- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-445-1 01 1 0407-0511 ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-484-3 01 1 0512- ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0407-0511 ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0512-0704 ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0705- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0407-0511 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0512-0704 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0705- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0512-0704 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0705- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0407-0511 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0512- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0512-0704 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0705-1007 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0407-0511 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0512- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0512-0704 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0705-1007 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0407-0511 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0512-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=65-85 		8-98133-350-0 02 1 0809-0902 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 0903-1007 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0512-0704 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0705-0809 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=120-140 		8-98133-367-0 02 1 0901-0902 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0903- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0407-0511 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0512-0704 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0705- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 0407-0511 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 0512- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0512-0704 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0705- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 0407-0511 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 0512- ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		1-13722-041-1 01 1 0512-0704 ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		1-13722-041-2 01 1 0705-1412 ● ●
137 PIPE; WATER,TURBOCHARGER IN
(C) 		8-98300-237-0 01 1 1501- ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 0407-0511 ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 0512- ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0512-0704 ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0705- ● ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0407-0511 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0512-0704 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0705- ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0407-0511 ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0512-0704 ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0705-1205 ● ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 1206- ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512 ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0704 ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0705- ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0407-0511 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28080-610-0 04 1 0512-0512 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 0601-0704 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 0705- ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 0512-0704 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 0705- ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0407-0511 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0512-0609 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 0610- ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0512-0704 ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0705- ● ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0407-0511 ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0512- ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0407-0511 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0407-0511 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0512-0704 ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0705- ● ● ●

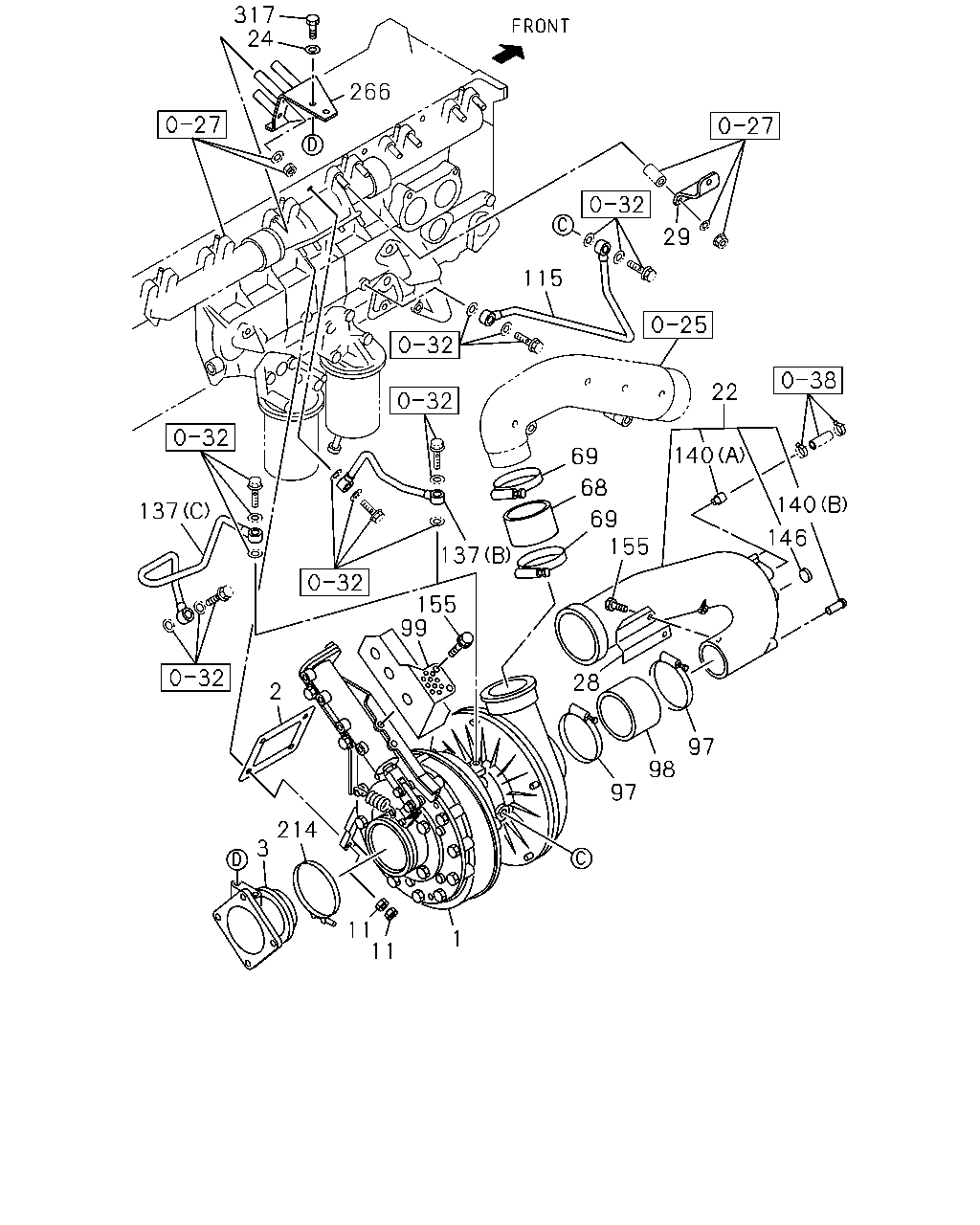

çizim 87343
1 11 11 97 28 97 98 2 214 3 99 137 155 137 69 69 68 155 140 146 140 22 29 115 266 24 317
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 1-14400-425-2 01 1 0512-0704 ●
1 TURBOCHARGER ASM 1-14400-425-5 01 1 0705- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-391-2 01 1 0407-0511 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-374-3 01 1 0512- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0512-0704 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-208-1 01 1 0705-0804 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0805-1001 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-0 01 1 0407-0511 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0512- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0512-0704 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0705- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-3 01 1 0407-0511 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-4 01 1 0512- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0407-0511 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0512-0704 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0705- ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-478-3 01 1 0512-0704 ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-478-3 01 1 0705- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-445-1 01 1 0407-0511 ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-484-3 01 1 0512- ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0407-0511 ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0512-0704 ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0705- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0407-0511 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0512-0704 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0705- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0512-0704 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0705- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0407-0511 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0512- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0512-0704 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0705-1007 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0407-0511 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0512- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0512-0704 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0705-1007 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0407-0511 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0512-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=65-85 		8-98133-350-0 02 1 0809-0902 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 0903-1007 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0512-0704 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0705-0809 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=120-140 		8-98133-367-0 02 1 0901-0902 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0903- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0407-0511 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0512-0704 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0705- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 0407-0511 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 0512- ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 0512-0704 ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 0705- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0512-0704 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0705- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 0407-0511 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 0512- ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		1-13722-041-1 01 1 0512-0704 ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		1-13722-041-2 01 1 0705-1412 ● ●
137 PIPE; WATER,TURBOCHARGER IN
(C) 		8-98300-237-0 01 1 1501- ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 0407-0511 ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 0512- ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0512-0704 ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0705- ● ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0407-0511 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0512-0704 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0705- ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0407-0511 ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0512-0704 ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0705-1205 ● ● ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 1206- ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512 ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0704 ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0705- ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0407-0511 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28080-610-0 04 1 0512-0512 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 0601-0704 ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 0705- ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 0512-0704 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 0705- ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0407-0511 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0512-0609 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 0610- ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0512-0704 ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0705- ● ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0407-0511 ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0512- ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0407-0511 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0512-0704 ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0705- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
