Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#29075) — 340 parça

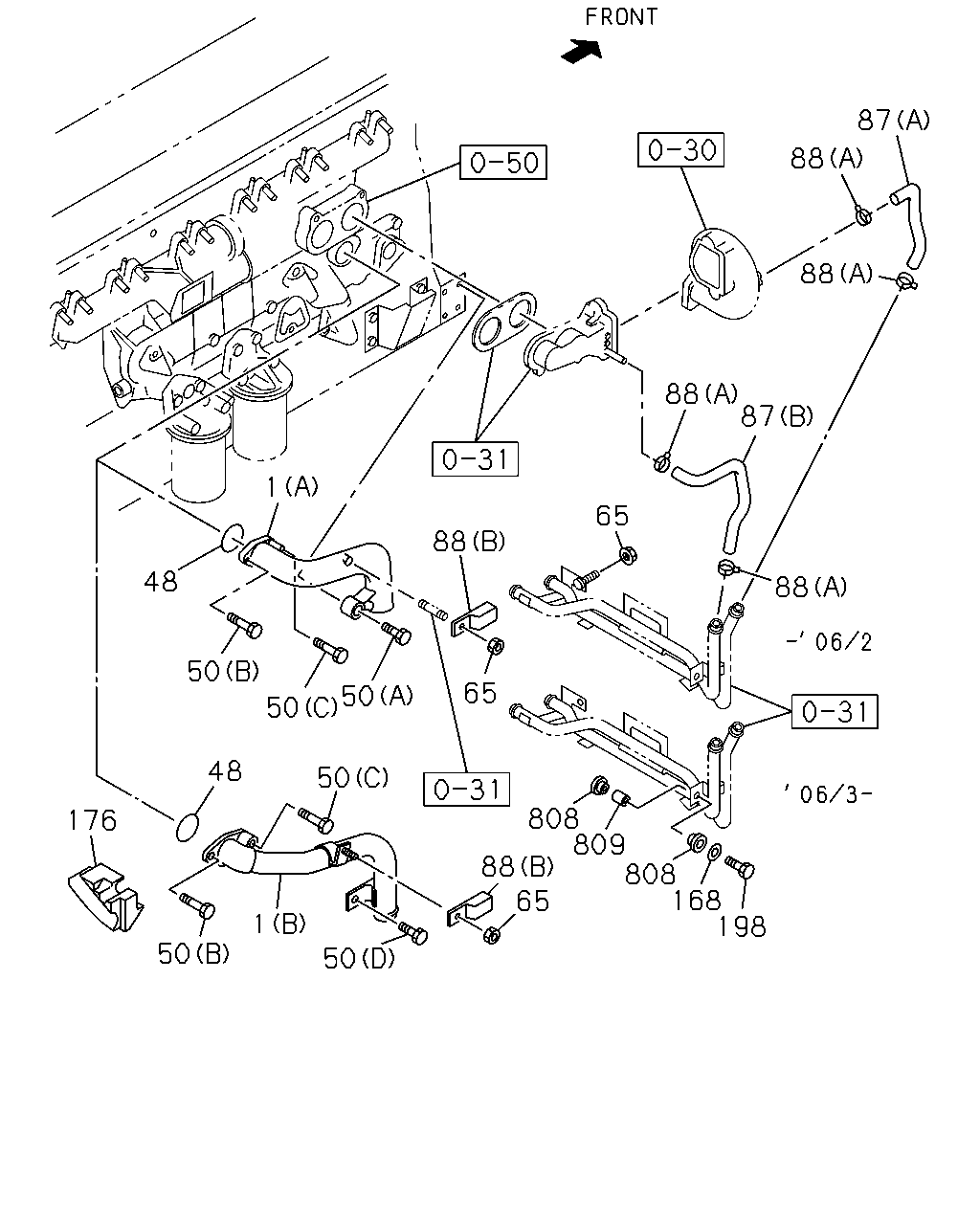

87 88 88 88 87 1 65 88 48 88 50 65 50 50 48 50 808 809 808 168 198 176 88 65 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0407-0511	●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-1	01	1	0512-0704	●	●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-2	01	1	0705-	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0407-0511	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0512-0704	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0705-	●	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0407-0511	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0512-0512	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-0704	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0705-	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0407-0511	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0512-0512	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-0704	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0705-	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0407-0511	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0512-0512	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-0704	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0705-	●	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0603-0704	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0705-	●	●	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0407-0511	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0512-0602	●	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0603-0704	●	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0705-	●	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0407-0511	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0512-0704	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0705-	●	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0407-0511	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0512-0704	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0705-	●	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0407-0511	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0512-0704	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0705-	●	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0407-0511	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0512-0704	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0705-1206	●	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	9-09164-710-0	02	1	0603-0605	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0606-0704	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0705-	●	●	●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	0407-0511	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0603-0704	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0705-	●	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0603-0704	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0705-	●	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	0603-0704	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	0705-	●	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0603-0704	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0705-	●	●	●

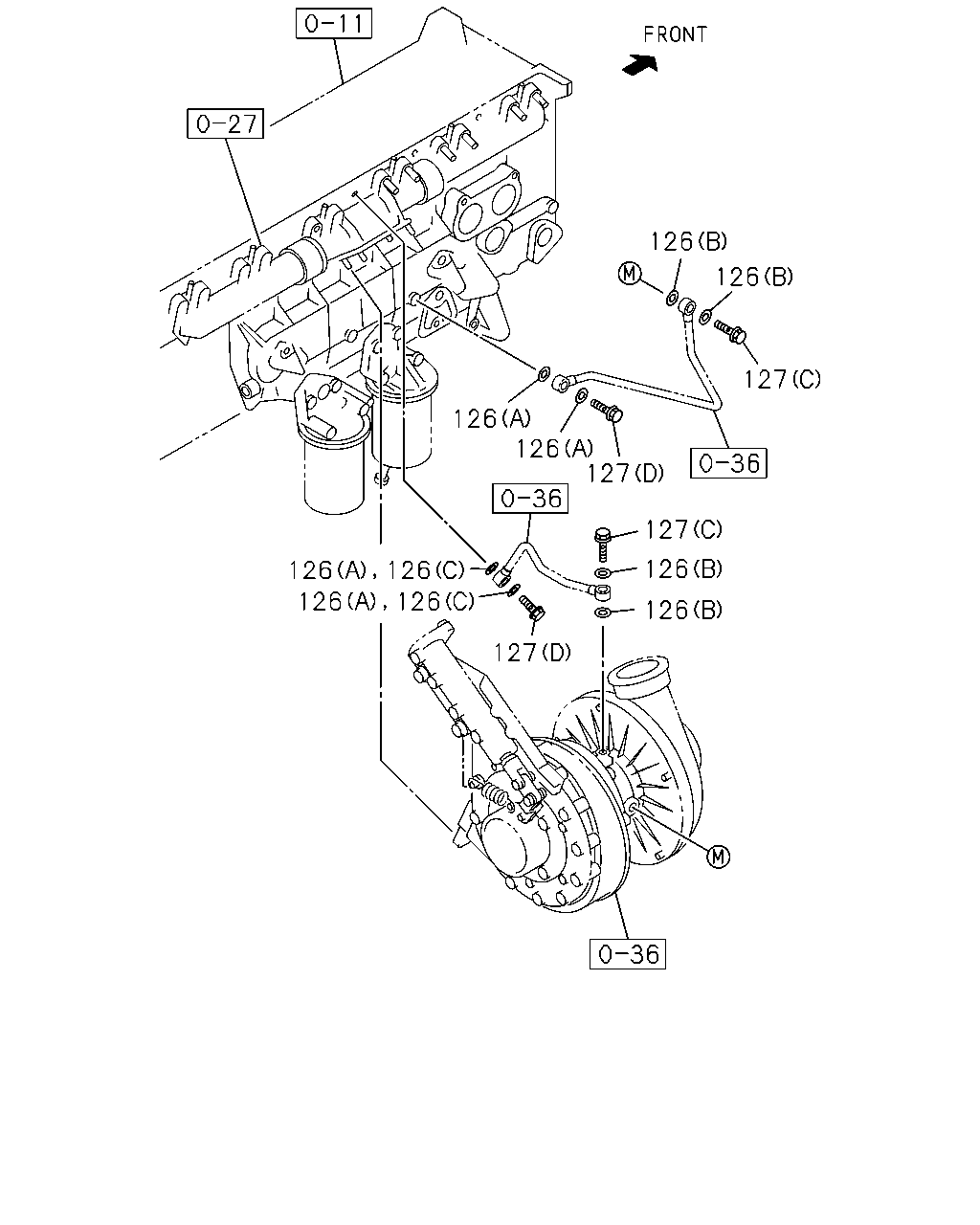

126 126 127 126 126 127 127 126 126 126 126 126 126 127 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0704-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0705-1312	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0512-0608	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0609-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0705-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0512-0703	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0704-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0705-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0407-0511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0512-0703		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0704-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0512-0608	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0609-0704	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0705-	●		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0512-0608	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0609-0704	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0705-	●		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0511	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0512-0704	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0705-0805	●	●	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0407-0511	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0512-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0407-0511	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0512-		●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0407-0511	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0512-0704	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0705-	●	●	●

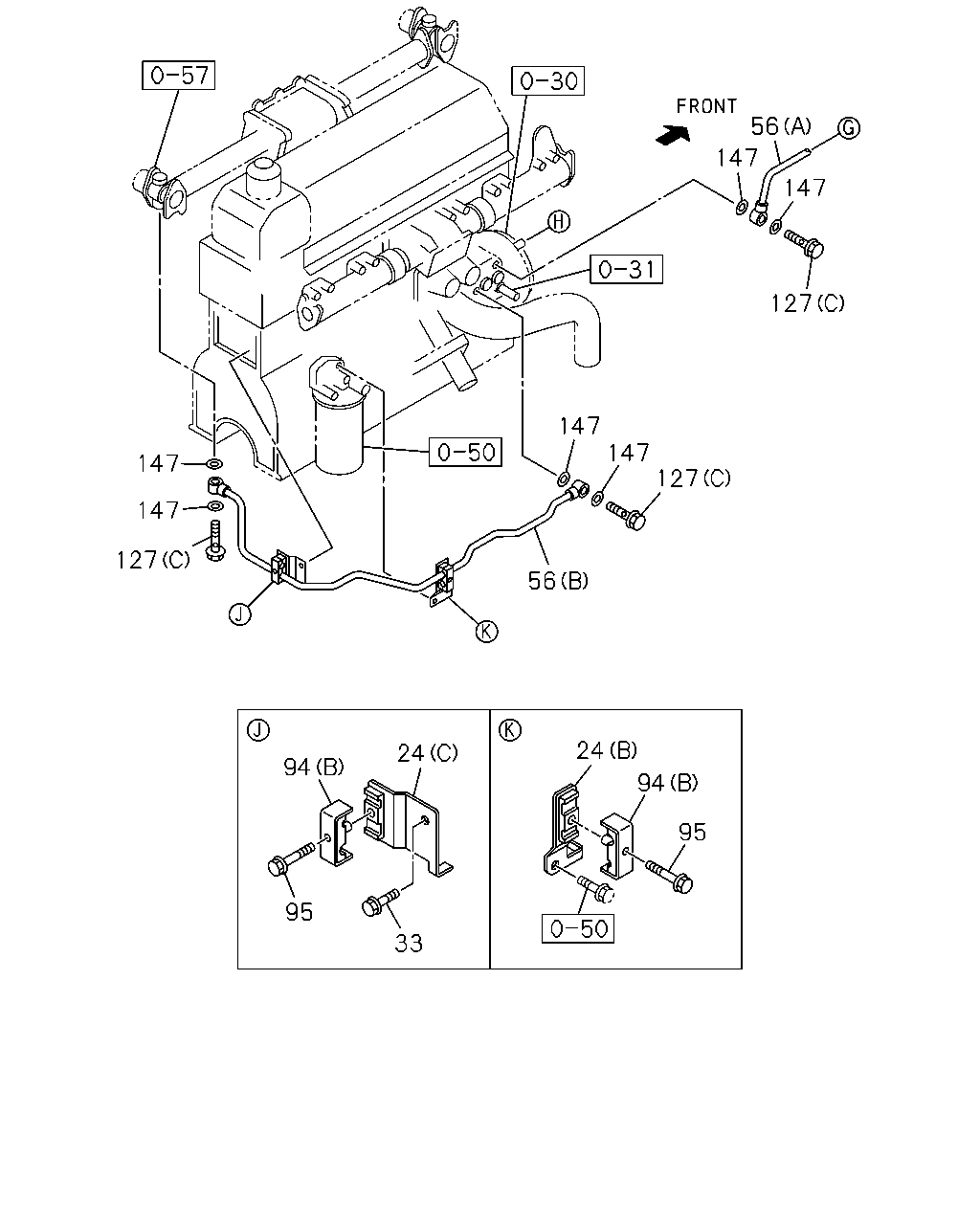

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0705-	●	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0705-	●	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0705-	●	●	●
33	BOLT; BRKT M14X20 FLANGE	0-28981-420-0	01	1	0407-0511	●
33	BOLT; BRKT M14X20 FLANGE	0-28981-420-0	01	1	0512-0512	●	●
33	BOLT; BRKT M14X20 FLANGE	0-28951-420-0	01	1	0601-0704	●	●
33	BOLT; BRKT M14X20 FLANGE	0-28951-420-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0407-0511	●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0512-0606	●	●
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0607-0704	●	●
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0705-	●	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0407-0511	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0512-0704	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0705-	●	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0708-	●	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0407-0511	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0512-0512	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	08	1	0601-0704	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	08	1	0705-0707	●	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	04	1	0708-	●	●	●
95	BOLT; CLIP M6X70 FLANGE	0-28080-670-0	02	1	0407-0407	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0512-0608	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0609-0704	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0705-	●		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0512-0608	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0609-0704	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0705-	●		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0511	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0512-0704	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0705-0805	●	●	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0407-0511	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0512-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0407-0511	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0512-		●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0407-0511	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0512-0704	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0705-	●	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0407-0511	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0512-0704	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0705-	●	●	●

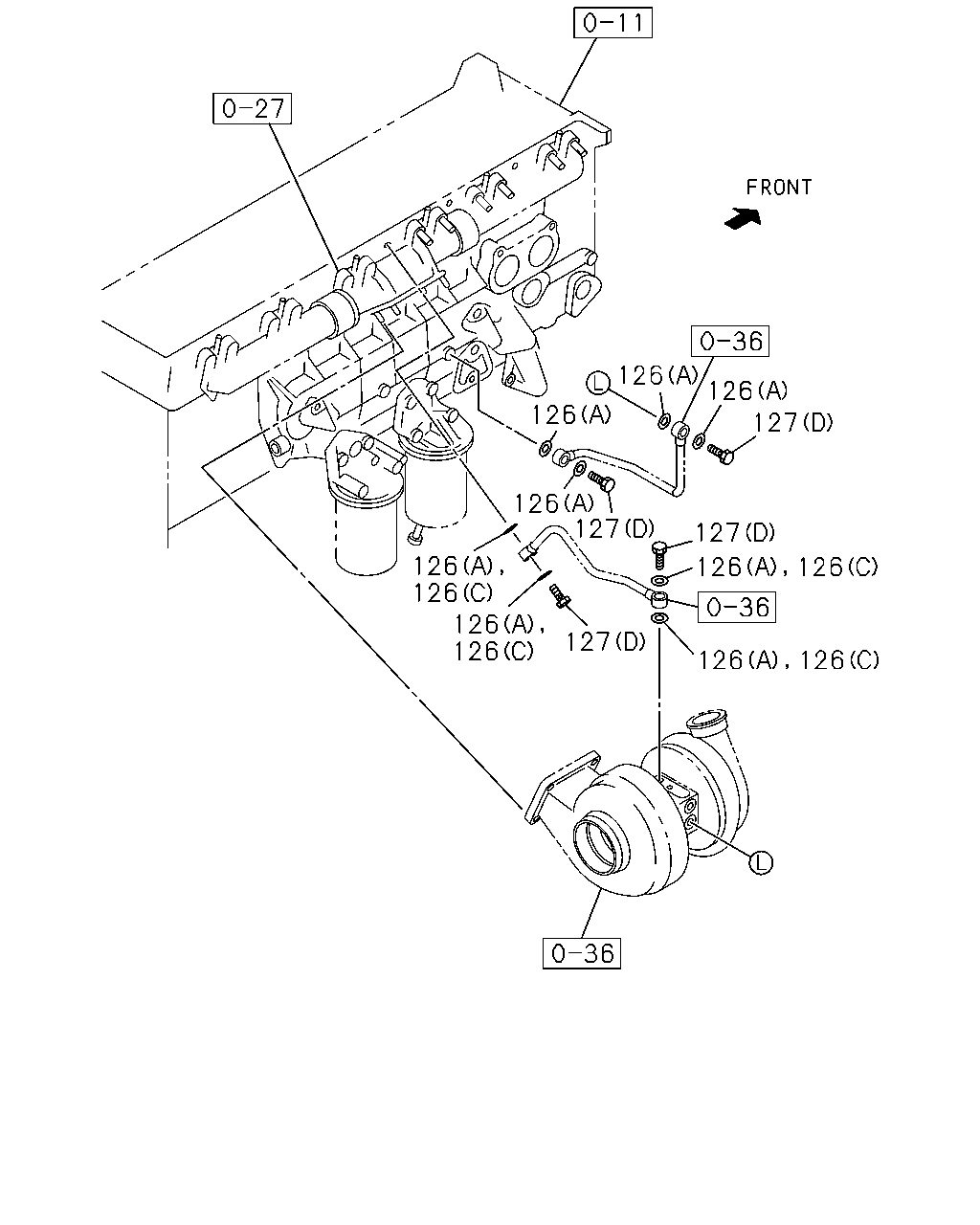

126 126 127 126 126 127 127 126 126 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0704-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0705-1312	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0512-0608	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0609-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0705-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0512-0703	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0704-0704	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0705-	●		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0407-0511	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0512-0703		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	0704-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0512-0608	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0609-0704	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0705-	●		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0512-0608	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0609-0704	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0705-	●		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0511	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0512-0704	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0705-0805	●	●	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0407-0511	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0512-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0407-0511	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0512-		●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0407-0511	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0512-0704	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0705-	●	●	●

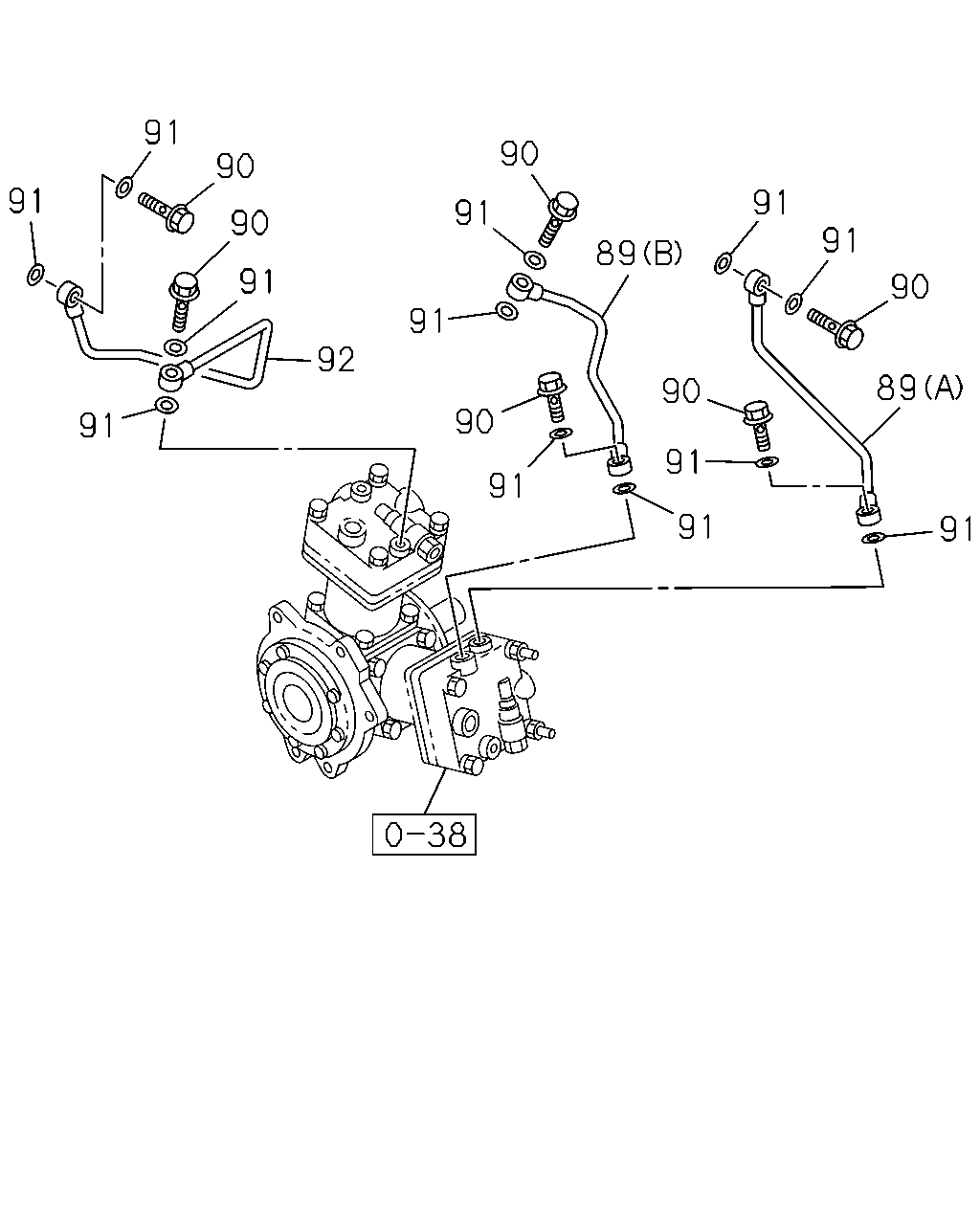

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-007-0	01	1	0407-0511	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-007-0	01	1	0512-0704	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-007-0	01	1	0705-	●	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-008-0	01	1	0407-0511	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-008-0	01	1	0512-0704	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-008-0	01	1	0705-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0407-0511	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0512-0704	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0705-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0407-0511	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0512-0704	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0705-	●	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0407-0511	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0512-0704	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0705-	●	●	●

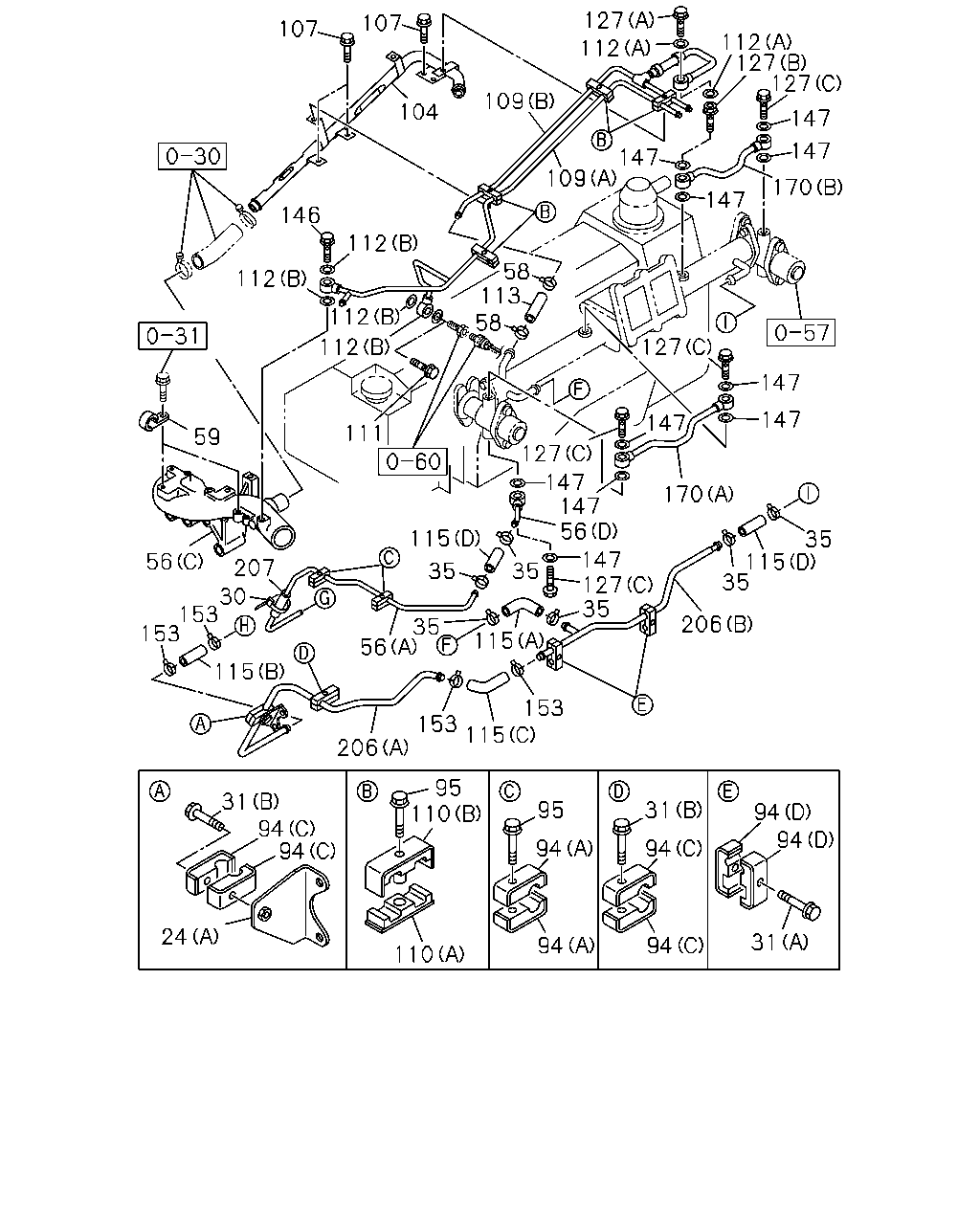

127 112 107 107 112 127 127 109 104 147 147 147 109 170 147 146 112 58 113 58 112 112 127 112 147 147 147 111 59 127 147 147 56 35 170 115 35 115 35 147 127 35 56 207 35 30 153 153 206 35 115 56 115 153 115 153 206 95 110 31 94 94 95 31 94 94 94 94 24 31 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0705-	●	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0705-	●	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0407-0511	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0512-0704	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0705-	●	●	●
30	CLIP; HARNESS L=140	5-09707-031-1	04	1	0407-0407	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0408-0511	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0512-0704	●	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0705-1205	●	●	●
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-	●	●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28080-640-0	02	1	0407-0407	●
31	BOLT; CLIP (A) M6X70 FLANGE	0-28080-670-0	02	1	0407-0511	●
31	BOLT; CLIP (A) M6X70 FLANGE	0-28080-670-0	02	1	0512-0512	●	●
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0601-0704	●	●
31	BOLT; CLIP (A) M6X70 FLANGE	0-28050-670-0	02	1	0705-	●	●	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0407-0511	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0512-0512	●	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-0704	●	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0705-	●	●	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0407-0511	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0512-0704	●	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0705-	●	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0407-0511	●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0512-0606	●	●
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0607-0704	●	●
56	PIPE; WATER OUTLET (C)	8-98039-673-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0705-	●	●	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0407-0511	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0512-0704	●	●
56	PIPE; WATER OUTLET (A)	1-13721-898-0	01	1	0705-	●	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0407-0511	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0512-0704	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0705-	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0407-0511	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0512-0606	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0607-0704	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0705-	●	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0407-0511	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0512-0704	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0705-	●	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0407-0511	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0512-0704	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0705-	●	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0708-	●	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0407-0511	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0512-0512	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	08	1	0601-0704	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	08	1	0705-0707	●	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	04	1	0708-	●	●	●
95	BOLT; CLIP M6X70 FLANGE	0-28080-670-0	02	1	0407-0407	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0407-0511	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0512-0704	●	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0705-1208	●	●	●
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-	●	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0407-0511	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0512-0512	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-0704	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0705-	●	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0512-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-833-1	01	1	0407-0704	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-833-1	01	1	0705-	●		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0407-0511	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0512-0704	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-2	01	1	0705-	●	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0407-0511	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0512-0704	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0705-	●	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-2	04	1	0407-0511	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-2	04	1	0512-0704	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0705-	●	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0512-0704	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0705-	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0407-0511	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0512-0704	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0705-	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0407-0511	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0512-0704	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0705-	●	●	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0407-0511	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0512-0704	●	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0705-	●	●	●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0407-0511	●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0512-0704	●	●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0705-	●	●	●
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0407-0511	●
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0512-0704	●	●
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0705-	●	●	●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0407-0511	●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0512-0704	●	●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0705-	●	●	●
115	HOSE; RUBBER (D) L=60	8-97079-996-0	02	1	0407-0511	●
115	HOSE; RUBBER (D) L=60	1-09361-084-0	02	1	0512-0704	●	●
115	HOSE; RUBBER (D) L=60	1-09361-084-0	02	1	0705-	●	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0512-0608	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0609-0704	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	09	1	0705-	●		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0512-0608	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0609-0704	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	02	1	0705-	●		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0511	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0512-0704	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0705-0805	●	●	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0407-0511	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0512-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0407-0511	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0512-		●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0407-0511	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0512-0704	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0705-	●	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0407-0511	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0512-0704	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0705-	●	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0407-0511	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0512-0704	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0705-	●	●	●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0407-0511	●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0512-0704	●	●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0705-	●	●	●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0407-0511	●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0512-0704	●	●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0705-	●	●	●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0407-0511	●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0512-0704	●	●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0705-	●	●	●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0407-0511	●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0512-0704	●	●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0705-	●	●	●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0407-0511	●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0512-0704	●	●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0705-	●	●	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0407-0511	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0512-0704	●	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0705-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
