◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#29074) — 66 parça

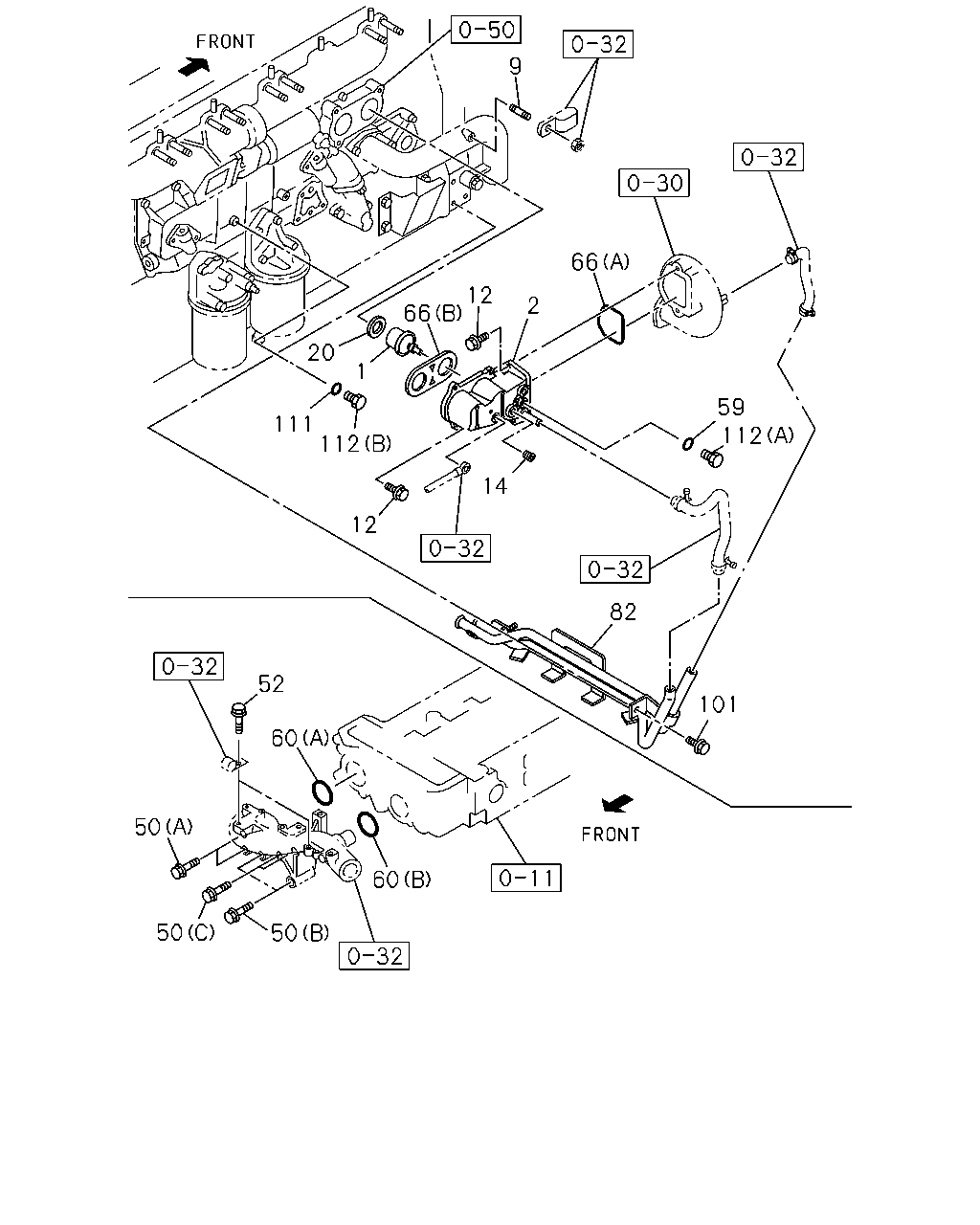

çizim 86714
9 66 12 66 2 20 1 59 112 111 112 14 12 82 52 101 60 50 60 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 0407-0511 ●
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 0512-0704 ● ●
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 0705- ● ● ●
2 HOUSING; THERMOSTAT 1-13710-550-0 01 1 0407-0511 ●
2 HOUSING; THERMOSTAT 1-13710-550-0 01 1 0512-0704 ● ●
2 HOUSING; THERMOSTAT 1-13710-550-1 01 1 0705-1012 ● ● ●
2 HOUSING; THERMOSTAT 8-98173-668-0 01 1 1101- ● ● ●
9 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 01 1 0407-0511 ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0407-0511 ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0512-0512 ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28151-025-0 05 1 0601-0704 ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28151-025-0 05 1 0705- ● ● ●
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0407-0511 ●
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0512-0704 ● ●
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0705- ● ● ●
20 RING; SEAL
ID=59 OD=66.1 		1-13779-011-0 02 1 0407-0511 ●
20 RING; SEAL
ID=59 OD=66.1 		1-13779-011-0 02 1 0512-0704 ● ●
20 RING; SEAL
ID=59 OD=66.1 		1-13779-011-0 02 1 0705- ● ● ●
50 BOLT; OUTLET PIPE
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0407-0511 ●
50 BOLT; OUTLET PIPE
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0512-0512 ● ●
50 BOLT; OUTLET PIPE
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601-0606 ● ●
50 BOLT; OUTLET PIPE
(B) M10X90 FLANGE 		0-28151-090-0 04 1 0607-0704 ● ●
50 BOLT; OUTLET PIPE
(B) M10X90 FLANGE 		0-28151-090-0 04 1 0705- ● ● ●
50 BOLT; OUTLET PIPE
(C) M10X85 FLANGE 		8-94397-359-1 02 1 0407-0511 ●
50 BOLT; OUTLET PIPE
(C) M10X85 FLANGE 		8-94397-359-1 02 1 0512-0606 ● ●
50 BOLT; OUTLET PIPE
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0407-0511 ●
50 BOLT; OUTLET PIPE
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0512-0704 ● ●
50 BOLT; OUTLET PIPE
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0705-0805 ● ● ●
50 BOLT; OUTLET PIPE
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ● ●
52 BOLT; JOINT,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
52 BOLT; JOINT,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0704 ● ●
52 BOLT; JOINT,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0705- ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0407-0511 ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0512-0704 ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0705-1012 ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0407-0511 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0512-0704 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0705- ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0407-0511 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0512-0704 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0705- ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0407-0511 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0512-0704 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0705-1111 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-98205-844-0 01 1 1112- ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0407-0511 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0512-0704 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0705- ● ● ●
82 PIPE; WATER,HTR 1-13721-828-1 01 1 0407-0511 ●
82 PIPE; WATER,HTR 1-13721-828-1 01 1 0512-0602 ● ●
82 PIPE; WATER,HTR 8-97612-229-0 01 1 0603-0704 ● ●
82 PIPE; WATER,HTR 8-97612-229-0 01 1 0705- ● ● ●
101 BOLT; PIPE
M10X20 FLANGE 		0-28081-020-0 01 1 0407-0511 ●
101 BOLT; PIPE
M10X20 FLANGE 		0-28081-020-0 01 1 0512-0512 ● ●
101 BOLT; PIPE
M10X20 FLANGE 		0-28051-020-0 01 1 0601-0602 ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 01 1 0512-0704 ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 01 1 0705- ● ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 01 1 0512-0704 ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 01 1 0705-0805 ● ● ●
112 PLUG
(B) M14X9 		8-98042-944-0 01 1 0806-1009 ● ● ●
112 PLUG
(B) M14X14 		9-09862-156-0 01 1 1010- ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0407-0511 ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0512-0704 ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0705-0805 ● ● ●
112 PLUG
(A) M12X9 		8-98047-054-0 01 1 0806-1012 ● ● ●
