Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#29070) — 274 parça

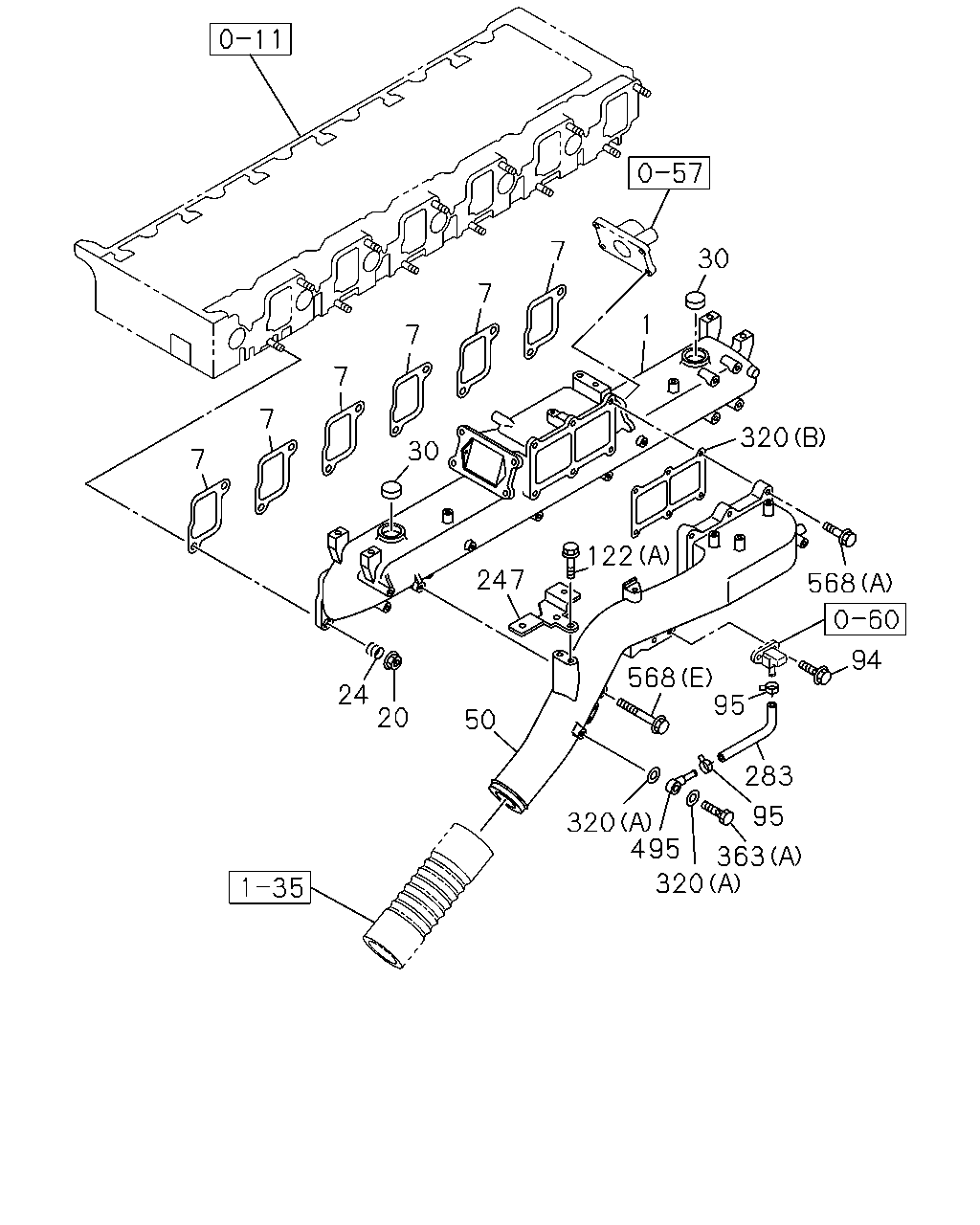

7 30 7 1 7 7 7 30 320 7 122 247 568 94 568 95 24 20 50 283 95 320 495 363 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL	1-14110-612-1	01	1	0512-0609	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0610-0704	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0705-1010	●	●	●
1	MANIFOLD; INL	8-98167-210-0	01	1	1011-	●	●	●
1	MANIFOLD; INL	1-14110-589-4	01	1	0407-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0407-0504		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-0	06	1	0505-0505		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0506-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-1	06	1	0512-0704		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-3	06	1	0705-		●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0512-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0407-0511		●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0512-0602	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-0704	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0705-	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0407-0511		●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0512-0704	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0705-	●	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	04	1	0407-0511		●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0512-0704	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0705-1010	●	●	●
50	PIPE; INL	8-97604-124-1	01	1	0512-0609		●
50	PIPE; INL	8-97616-715-0	01	1	0610-0704		●
50	PIPE; INL	8-97616-715-0	01	1	0705-1208		●	●
50	PIPE; INL	1-14112-668-0	01	1	0407-0511		●
50	PIPE; INL	1-14112-711-4	01	1	0512-0701	●
50	PIPE; INL	8-97617-049-0	01	1	0702-	●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0407-0511		●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0512-0512	●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0407-0511		●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0512-	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0512-0512	●	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-0704	●	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	02	1	0705-	●	●	●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512		●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0704		●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	01	1	0705-		●	●
247	BRACKET; CLIP	1-14319-130-1	01	1	0512-0704	●	●
247	BRACKET; CLIP	1-14319-130-1	01	1	0705-	●	●	●
283	RUBBER	1-14119-416-0	01	1	0407-0511		●
283	RUBBER	1-14119-416-0	01	1	0512-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0407-0511		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0512-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0407-0511		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0512-	●
363	BOLT; EYE (B) M10X21 FLANGE	8-94396-711-0	01	1	0407-0511		●
363	BOLT; EYE (A) M8X24	8-97257-826-0	01	1	0407-0511		●
363	BOLT; EYE (A) M8X24	8-97257-826-0	01	1	0512-	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0407-0511		●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0512-	●
568	BOLT; PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	0407-0511		●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28181-080-0	01	1	0512-0512	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0601-0704	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0705-	●	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	10	1	0407-0407		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0408-0511		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	06	1	0512-0512	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0601-0704	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0705-	●	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28181-080-0	01	1	0407-0407		●
568	BOLT; PIPE (C) M10X120 FLANGE	0-28186-012-0	01	1	0407-0511		●
568	BOLT; PIPE (D) M10X150 FLANGE	0-28186-015-0	02	1	0407-0511		●

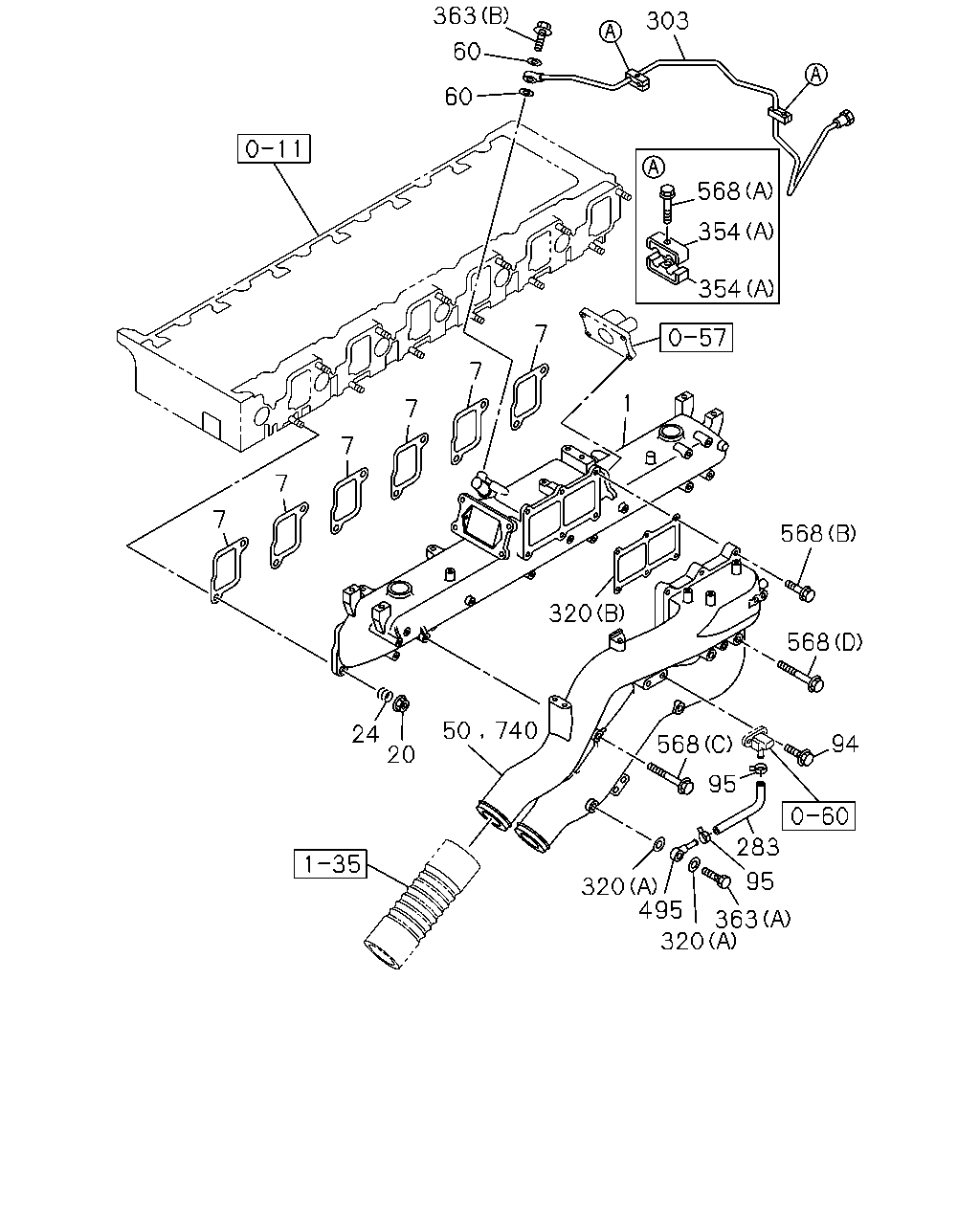

303 363 60 60 568 354 354 568 568 94 568 95 283 95 363 320 495 320 740 50 20 24 320 7 7 7 7 7 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL	1-14110-612-1	01	1	0512-0609	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0610-0704	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0705-1010	●	●	●
1	MANIFOLD; INL	8-98167-210-0	01	1	1011-	●	●	●
1	MANIFOLD; INL	1-14110-589-4	01	1	0407-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0407-0504		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-0	06	1	0505-0505		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0506-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-1	06	1	0512-0704		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-3	06	1	0705-		●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0512-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0407-0511		●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0512-0602	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-0704	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0705-	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0407-0511		●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0512-0704	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0705-	●	●	●
50	PIPE; INL	8-97604-124-1	01	1	0512-0609		●
50	PIPE; INL	8-97616-715-0	01	1	0610-0704		●
50	PIPE; INL	8-97616-715-0	01	1	0705-1208		●	●
50	PIPE; INL	1-14112-668-0	01	1	0407-0511		●
50	PIPE; INL	1-14112-711-4	01	1	0512-0701	●
50	PIPE; INL	8-97617-049-0	01	1	0702-	●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	0407-0511		●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0407-0511		●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0512-0512	●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0407-0511		●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0512-	●
283	RUBBER	1-14119-416-0	01	1	0407-0511		●
283	RUBBER	1-14119-416-0	01	1	0512-	●
303	PIPE; AIR	1-19193-235-0	01	1	0407-0511		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0407-0511		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0512-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0407-0511		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0512-	●
354	CLIP; AIR PIPE (A)	1-09701-132-1	04	1	0407-0511		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0512-0704		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0705-		●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0407-0511		●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0512-0606	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0607-0704	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0705-	●	●	●
363	BOLT; EYE (B) M10X21 FLANGE	8-94396-711-0	01	1	0407-0511		●
363	BOLT; EYE (A) M8X24	8-97257-826-0	01	1	0407-0511		●
363	BOLT; EYE (A) M8X24	8-97257-826-0	01	1	0512-	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0407-0511		●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0512-	●
568	BOLT; PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	0407-0511		●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28181-080-0	01	1	0512-0512	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0601-0704	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0705-	●	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	10	1	0407-0407		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0408-0511		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	06	1	0512-0512	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0601-0704	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0705-	●	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28181-080-0	01	1	0407-0407		●
568	BOLT; PIPE (C) M10X120 FLANGE	0-28186-012-0	01	1	0407-0511		●
568	BOLT; PIPE (D) M10X150 FLANGE	0-28186-015-0	02	1	0407-0511		●
740	PIPE; INTAKE	8-97616-715-0	01	1	1209-		●	●

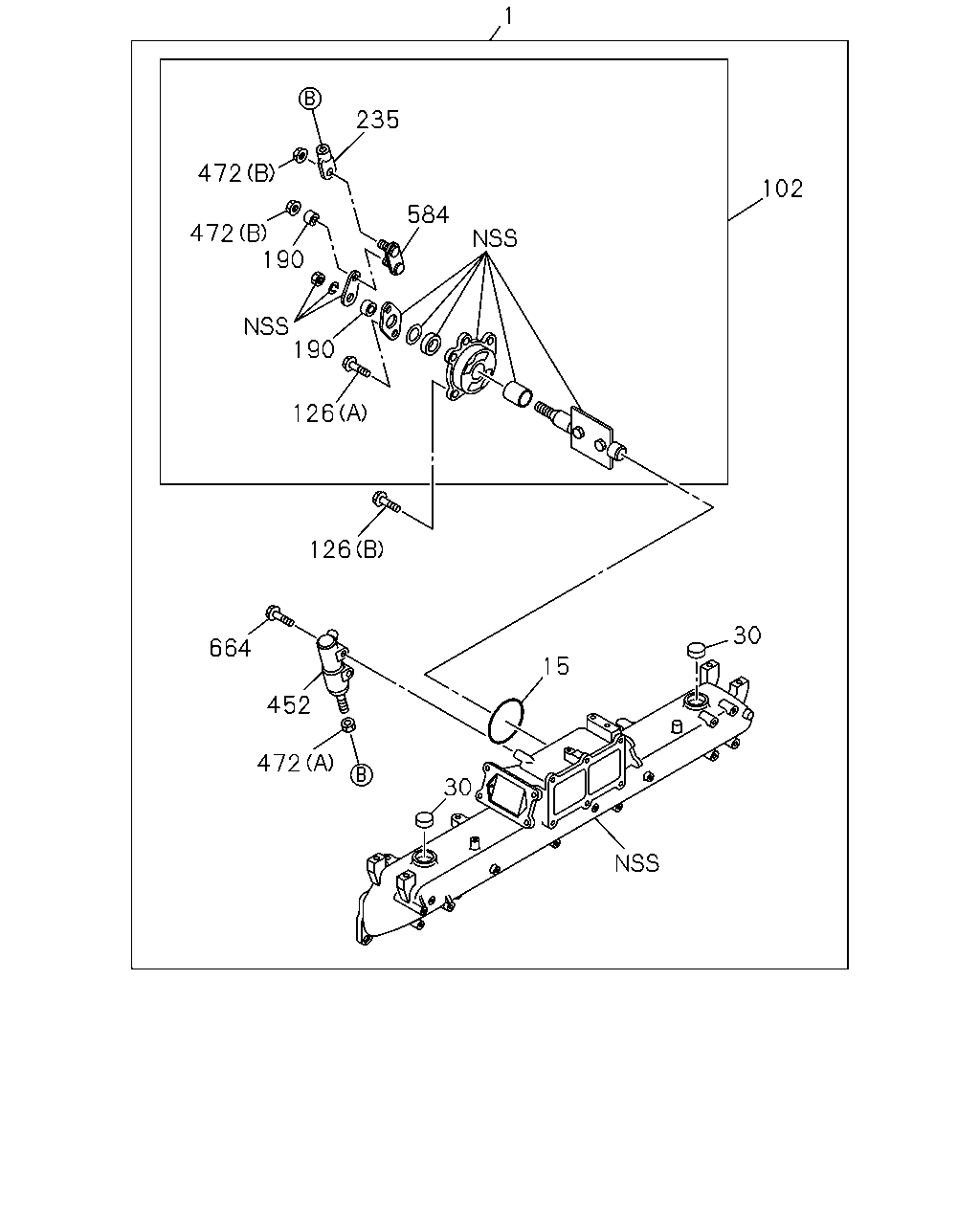

1 235 472 102 584 472 190 190 126 126 30 664 15 452 472 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL	1-14110-612-1	01	1	0512-0609	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0610-0704	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0705-1010	●	●	●
1	MANIFOLD; INL	8-98167-210-0	01	1	1011-	●	●	●
1	MANIFOLD; INL	1-14110-589-4	01	1	0407-0511		●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0407-0511		●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	04	1	0407-0511		●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0512-0704	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0705-1010	●	●	●
102	VALVE ASM; INDUCTION CONT	1-14310-225-0	01	1	0407-0511		●
126	BOLT; COVER (A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511		●
126	BOLT; COVER (B) M10X20 FLANGE	0-28181-020-0	03	1	0407-0511		●
190	COLLAR; INLET MANIFOLD	1-22199-138-0	02	1	0407-0511		●
235	JOINT; INL MANIF	1-22199-137-0	01	1	0407-0511		●
452	CYLINDER ASM; AIR	1-22190-579-1	01	1	0407-0511		●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
472	NUT (A) M8	9-09110-408-0	01	1	0407-0511		●
584	LINK	1-22199-153-0	01	1	0407-0511		●
664	BOLT; AIR CYL M8X40 FLANGE	0-28080-840-0	02	1	0407-0511		●

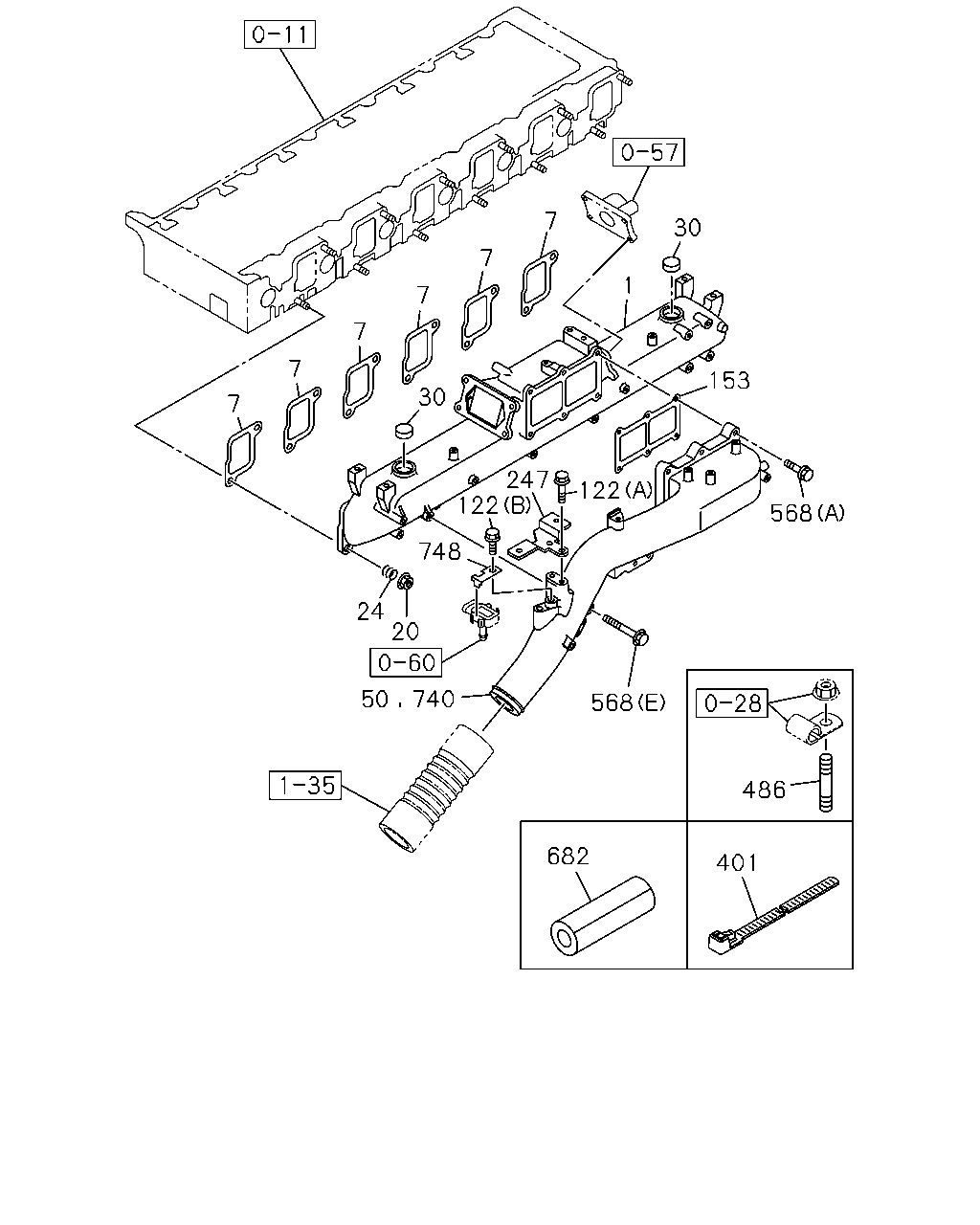

153 30 7 7 7 7 7 7 30 122 748 24 20 50 740 568 682 486 401 568 122 247 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL	1-14110-612-1	01	1	0512-0609	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0610-0704	●	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0705-1010	●	●	●
1	MANIFOLD; INL	8-98167-210-0	01	1	1011-	●	●	●
1	MANIFOLD; INL	1-14110-589-4	01	1	0407-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0407-0504		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-0	06	1	0505-0505		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0506-0511		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-1	06	1	0512-0704		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-3	06	1	0705-		●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0512-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0407-0511		●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0512-0602	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-0704	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0705-	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0407-0511		●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0512-0704	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0705-	●	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	04	1	0407-0511		●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0512-0704	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0705-1010	●	●	●
50	PIPE; INL	8-97604-124-1	01	1	0512-0609		●
50	PIPE; INL	8-97616-715-0	01	1	0610-0704		●
50	PIPE; INL	8-97616-715-0	01	1	0705-1208		●	●
50	PIPE; INL	1-14112-668-0	01	1	0407-0511		●
50	PIPE; INL	1-14112-711-4	01	1	0512-0701	●
50	PIPE; INL	8-97617-049-0	01	1	0702-	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0512-0512	●	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-0704	●	●
122	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	02	1	0705-	●	●	●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512		●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0704		●
122	BOLT; BRKT (B) M6X12 FLANGE	0-28050-612-0	01	1	0705-		●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-094-1	01	1	0512-0704		●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-094-1	01	1	0705-		●	●
247	BRACKET; CLIP	1-14319-130-1	01	1	0512-0704	●	●
247	BRACKET; CLIP	1-14319-130-1	01	1	0705-	●	●	●
401	CLIP; BAND L=250	5-09707-030-1	01	1	0512-0704		●
401	CLIP; BAND L=250	5-09707-030-1	01	1	0705-1205		●	●
401	CLIP; BAND L=250	8-98216-430-0	01	1	1206-		●	●
486	STUD; CLIP M8X25 L=37	0-41010-825-0	01	1	1209-		●	●
568	BOLT; PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	0407-0511		●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28181-080-0	01	1	0512-0512	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0601-0704	●	●
568	BOLT; PIPE (E) M10X80 FLANGE	0-28151-080-0	01	1	0705-	●	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	10	1	0407-0407		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0408-0511		●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	06	1	0512-0512	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0601-0704	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0705-	●	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28181-080-0	01	1	0407-0407		●
568	BOLT; PIPE (C) M10X120 FLANGE	0-28186-012-0	01	1	0407-0511		●
568	BOLT; PIPE (D) M10X150 FLANGE	0-28186-015-0	02	1	0407-0511		●
682	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0512-0704		●
682	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0705-		●	●
740	PIPE; INTAKE	8-97616-715-0	01	1	1209-		●	●
748	BRACKET; BOOST SENSOR	8-97216-216-0	01	1	0512-0704		●
748	BRACKET; BOOST SENSOR	8-97216-216-0	01	1	0705-		●	●

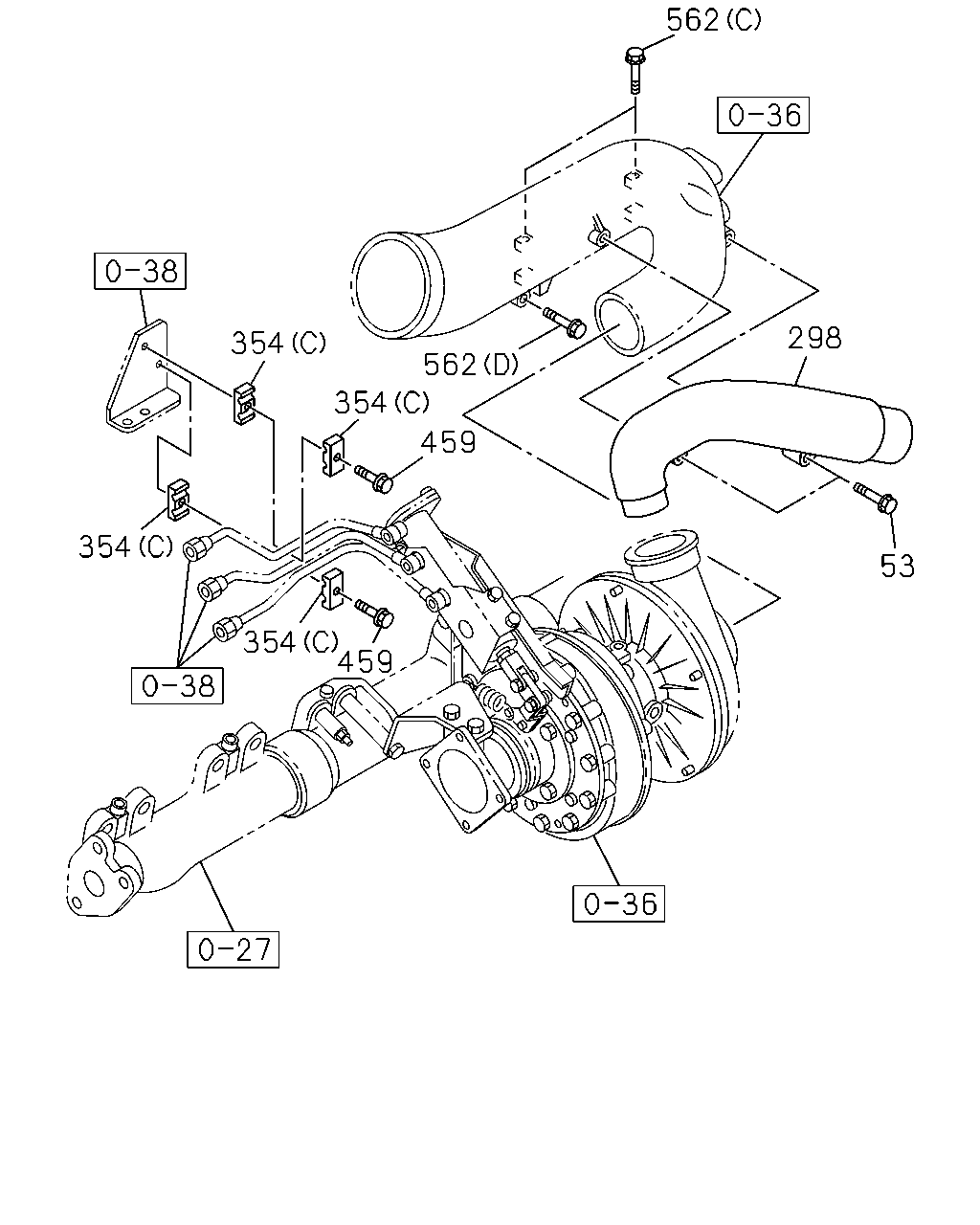

562 298 354 562 354 459 354 53 354 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BOLT; INL PIPE M10X60 FLANGE	0-28181-060-0	02	1	0407-0511		●
53	BOLT; INL PIPE M10X60 FLANGE	0-28181-060-0	02	1	0512-0512	●	●
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0601-0704	●	●
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0705-	●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-773-2	01	1	0512-0704		●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-773-2	01	1	0705-1309		●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	8-98254-536-0	01	1	1310-		●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-0	01	1	0407-0511		●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-1	01	1	0512-	●
354	CLIP; AIR PIPE (A)	1-09701-132-1	04	1	0407-0511		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0512-0704		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0705-		●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0407-0511		●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0512-0606	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0607-0704	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0705-	●	●	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28080-635-0	02	1	0512-0512		●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28050-635-0	02	1	0601-0704		●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28050-635-0	02	1	0705-		●	●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512	●	●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28151-050-0	02	1	0601-0704	●	●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28151-050-0	02	1	0705-	●	●	●
562	BOLT; INL DUCT (A) M10X100 FLANGE	0-28081-000-0	02	1	0407-0511		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28181-070-0	01	1	0512-0512		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28151-070-0	01	1	0601-0704		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28151-070-0	01	1	0705-		●	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28181-040-0	01	1	0407-0511		●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28181-040-0	01	1	0512-0512	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-	●

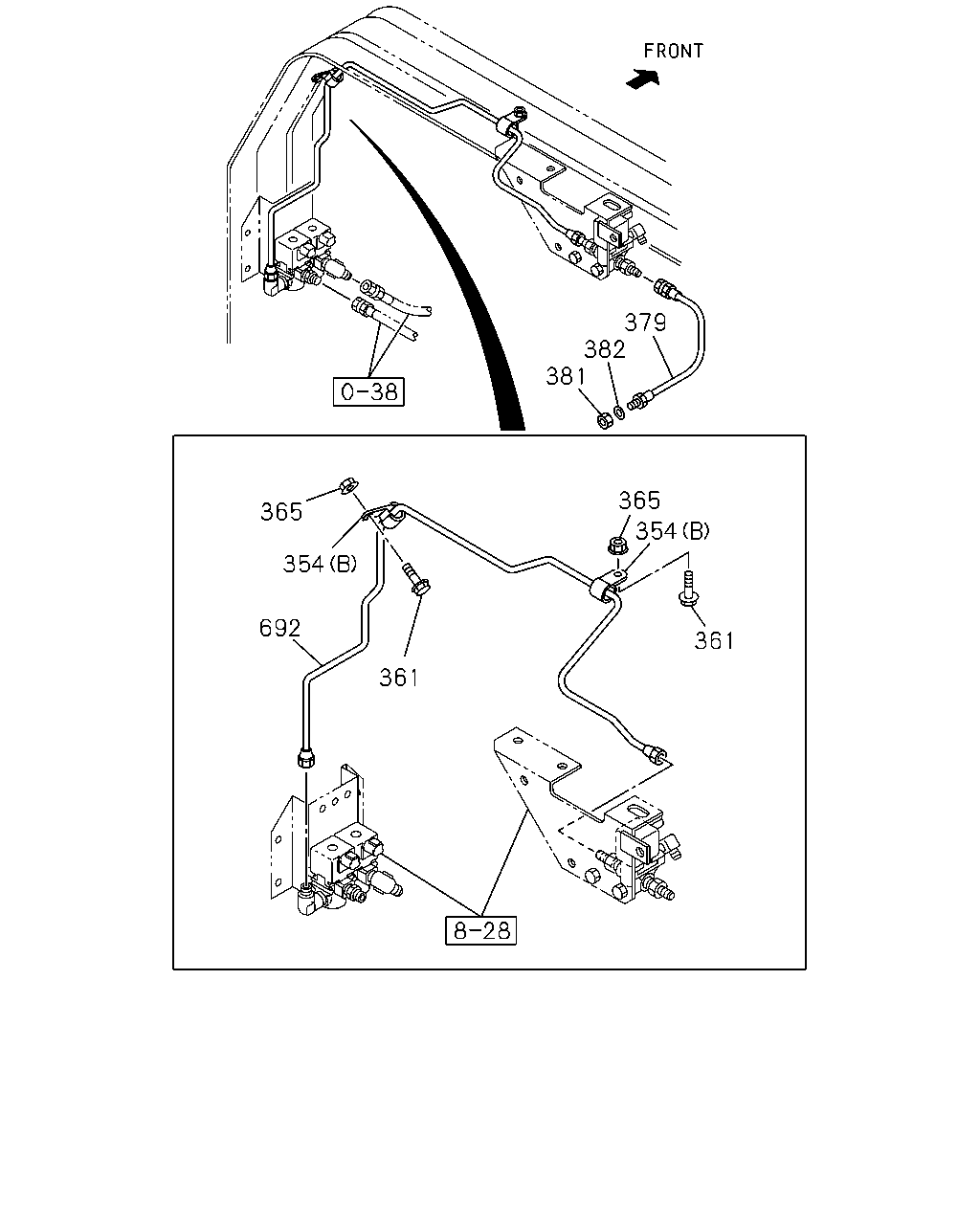

379 382 381 365 365 354 354 692 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
354	CLIP; AIR PIPE (A)	1-09701-132-1	04	1	0407-0511		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0512-0704		●
354	CLIP; AIR PIPE (C)	1-09701-240-0	04	1	0705-		●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0407-0511		●
354	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	02	1	0512-0606	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0607-0704	●	●
354	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	02	1	0705-	●	●	●
361	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511		●
361	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
361	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0704	●	●
361	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0705-	●	●	●
365	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
365	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0704	●	●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0705-	●	●	●
379	HOSE; FLEX L=280	1-09363-610-0	01	1	0407-0511		●
381	NUT; FLEX TUBE M12	9-09840-280-0	01	1	0407-0511		●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0511		●
692	PIPE; AIR,MAG VLV L=1139 SERVICED BY L=1200	1-47428-816-0	01	1	0512-0704		●
692	PIPE; AIR,MAG VLV L=1139 SERVICED BY L=1200	1-47428-816-0	01	1	0705-		●	●
692	PIPE; AIR,MAG VLV L=1241	1-49122-505-0	01	1	0407-0511		●
692	PIPE; AIR,MAG VLV L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0512-	●

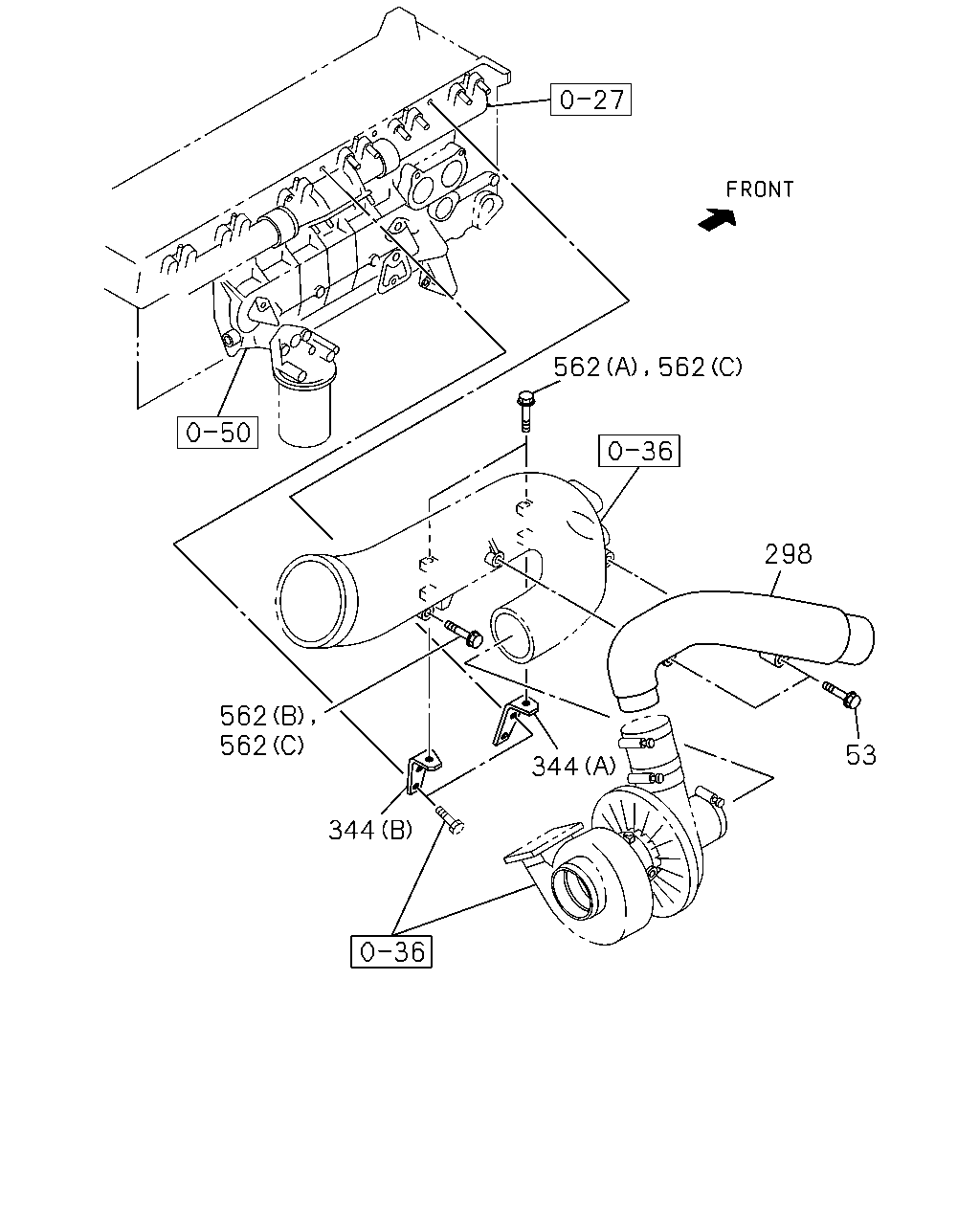

562 298 562 562 53 344 344 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BOLT; INL PIPE M10X60 FLANGE	0-28181-060-0	02	1	0407-0511		●
53	BOLT; INL PIPE M10X60 FLANGE	0-28181-060-0	02	1	0512-0512	●	●
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0601-0704	●	●
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0705-	●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-773-2	01	1	0512-0704		●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-773-2	01	1	0705-1309		●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	8-98254-536-0	01	1	1310-		●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-0	01	1	0407-0511		●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-1	01	1	0512-	●
344	BRACKET; INL PIPE (A)	1-14119-417-1	01	1	0407-0511		●
344	BRACKET; INL PIPE (B)	1-14119-418-1	01	1	0407-0511		●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512	●	●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28151-050-0	02	1	0601-0704	●	●
562	BOLT; INL DUCT (C) M10X50 FLANGE	0-28151-050-0	02	1	0705-	●	●	●
562	BOLT; INL DUCT (A) M10X100 FLANGE	0-28081-000-0	02	1	0407-0511		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28181-070-0	01	1	0512-0512		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28151-070-0	01	1	0601-0704		●
562	BOLT; INL DUCT (D) M10X70 FLANGE	0-28151-070-0	01	1	0705-		●	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28181-040-0	01	1	0407-0511		●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28181-040-0	01	1	0512-0512	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
