◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#2907) — 91 parça

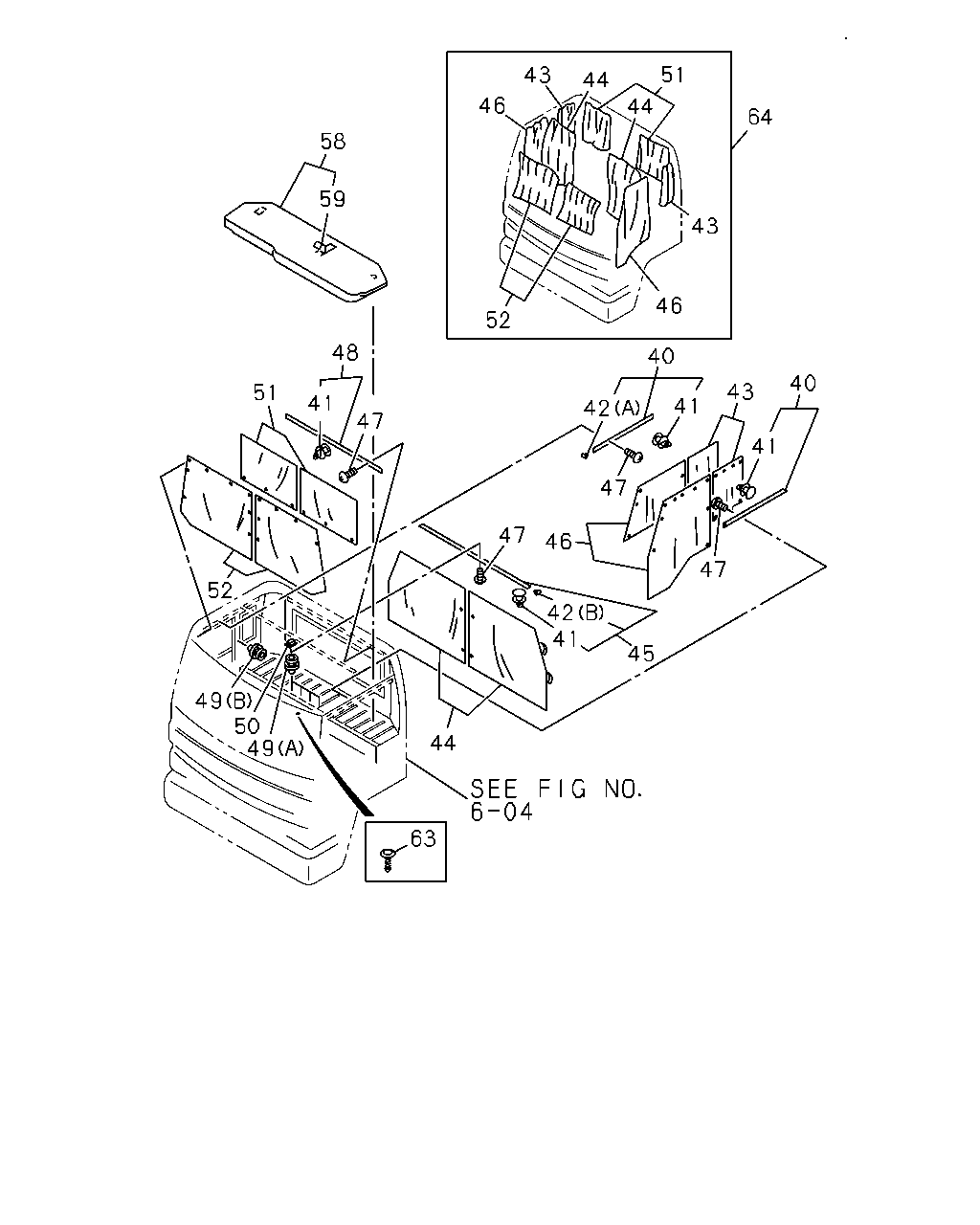

çizim 28729
45 41 46 47 42 47 41 40 43 41 47 42 40 46 43 64 51 44 44 43 46 52 59 58 48 41 51 47 52 49 50 49 44 63
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
CURTAIN WINDOW<BW4> 		1-73907-154-0 01 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
CURTAIN WINDOW<BW4> 		1-73907-334-0 01 1 9307- ● ●
40 RAIL; CURTAIN,SIDE
CURTAIN WINDOW<BW4> 		1-73907-153-0 01 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
CURTAIN WINDOW<BW4> 		1-73907-333-0 01 1 9307- ● ●
40 RAIL; CURTAIN,SIDE
EXC. CURTAIN WINDOW<BW4> 		1-73997-940-0 02 1 9002-9306 ● ●
40 RAIL; CURTAIN,SIDE
EXC. CURTAIN WINDOW<BW4> 		1-73907-182-0 02 1 9307- ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 12 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 12 1 9307- ● ●
41 HOOK; CURTAIN RAIL
GRAY MATT FINISH 		1-73997-980-0 16 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN WINDOW<BW4> GRAY 		1-73907-245-0 07 1 9307- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN WINDOW<BW4> GRAY MATT FINISH 		1-73997-980-0 14 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
GRAY 		1-73907-245-0 14 1 9307- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN WINDOW<BW4> GRAY 		1-73907-245-0 07 1 9307- ● ●
41 HOOK; CURTAIN RAIL
EXC. CURTAIN WINDOW<BW4> GRAY MATT FINISH 		1-73997-980-0 06 1 9002-9306 ● ●
41 HOOK; CURTAIN RAIL
EXC. CURTAIN WINDOW<BW4> GRAY 		1-73907-245-0 06 1 9307- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73997-982-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73907-250-0 01 1 9307- ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73997-981-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73907-249-0 01 1 9307- ● ●
42 STOPPER; CURTAIN RAIL
CURTAIN WINDOW<BW4> (A) 		1-73907-163-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
CURTAIN WINDOW<BW4> (A) 		1-73907-340-0 01 1 9307- ● ●
42 STOPPER; CURTAIN RAIL
CURTAIN WINDOW<BW4> (A) 		1-73907-162-0 01 1 9002-9306 ● ●
42 STOPPER; CURTAIN RAIL
CURTAIN WINDOW<BW4> (A) 		1-73907-339-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-991-0 01 1 9002-9211 ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN WINDOW<BW4> 		1-73997-991-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-991-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-254-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN WINDOW<BW4> 		1-73907-254-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-990-0 01 1 9002-9211 ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN WINDOW<BW4> 		1-73997-990-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-990-0 01 1 9212-9306 ● ●
43 CURTAIN ASM; QUARTER WINDOW
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-253-0 01 1 9307- ● ●
43 CURTAIN ASM; QUARTER WINDOW
CURTAIN WINDOW<BW4> 		1-73907-253-0 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-989-0 01 1 9002-9211 ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN WINDOW<BW4> 		1-73997-989-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-989-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-242-2 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN WINDOW<BW4> 		1-73907-242-2 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-988-0 01 1 9002-9211 ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN WINDOW<BW4> 		1-73997-988-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-988-1 01 1 9212-9306 ● ●
44 CURTAIN ASM; CABIN CENTER
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-240-2 01 1 9307- ● ●
44 CURTAIN ASM; CABIN CENTER
CURTAIN WINDOW<BW4> 		1-73907-240-2 01 1 9307- ● ●
45 RAIL; CURTAIN,FRT 1-73997-939-0 01 1 9002-9306 ● ●
45 RAIL; CURTAIN,FRT 1-73907-180-1 01 1 9307- ● ●
46 CURTAIN ASM; DOOR
CURTAIN WINDOW<BW4> 		1-73907-167-0 01 1 9212-9306 ● ●
46 CURTAIN ASM; DOOR
CURTAIN WINDOW<BW4> 		1-73907-346-0 01 1 9307- ● ●
46 CURTAIN ASM; DOOR
CURTAIN WINDOW<BW4> 		1-73907-166-0 01 1 9212-9306 ● ●
46 CURTAIN ASM; DOOR
CURTAIN WINDOW<BW4> 		1-73907-345-0 01 1 9307- ● ●
47 SCREW; CURTAIN RAIL
CURTAIN WINDOW<BW4> M4X16 TAPPING 		1-09981-475-0 22 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
CURTAIN WINDOW<BW4> M4X16 TAPPING 		1-09981-477-0 22 1 9208- ● ●
47 SCREW; CURTAIN RAIL
EXC. CURTAIN WINDOW<BW4> M4X16 TAPPING 		1-09981-475-0 16 1 9002-9207 ● ●
47 SCREW; CURTAIN RAIL
EXC. CURTAIN WINDOW<BW4> M4X16 TAPPING 		1-09981-477-0 16 1 9208- ● ●
48 RAIL; CURTAIN,BACK 1-73997-941-0 01 1 9002-9306 ● ●
48 RAIL; CURTAIN,BACK 1-73907-181-0 01 1 9307- ● ●
49 HOOK; CURTAIN
CURTAIN WINDOW<BW4> (B) 		1-09981-286-0 04 1 9002-9202 ● ●
49 HOOK; CURTAIN
EXC. CURTAIN WINDOW<BW4> (B) 		1-09981-286-0 02 1 9002- ● ●
49 HOOK; CURTAIN
CURTAIN WINDOW<BW4> (B) 		1-09981-286-0 06 1 9203- ● ●
49 HOOK; CURTAIN
CURTAIN WINDOW<BW4> (A) 		8-94291-778-0 07 1 9203- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
M4 		5-09470-002-0 01 1 9002- ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-993-0 01 1 9002-9211 ● ●
51 CURTAIN; BACK
CURTAIN WINDOW<BW4> 		1-73997-993-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-993-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-256-0 01 1 9307- ● ●
51 CURTAIN; BACK
CURTAIN WINDOW<BW4> 		1-73907-256-0 01 1 9307- ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-992-0 01 1 9002-9211 ● ●
51 CURTAIN; BACK
CURTAIN WINDOW<BW4> 		1-73997-992-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73997-992-0 01 1 9212-9306 ● ●
51 CURTAIN; BACK
MATTRESS SLEEPER CAB<E40> EXC. CURTAIN WINDOW<BW4> 		1-73907-255-0 01 1 9307- ● ●
51 CURTAIN; BACK
CURTAIN WINDOW<BW4> 		1-73907-255-0 01 1 9307- ● ●
52 CURTAIN ASM; FRT WINDOW
CURTAIN WINDOW<BW4> 		1-73907-165-0 01 1 9212-9306 ● ●
52 CURTAIN ASM; FRT WINDOW
CURTAIN WINDOW<BW4> 		1-73907-344-0 01 1 9307- ● ●
52 CURTAIN ASM; FRT WINDOW
CURTAIN WINDOW<BW4> 		1-73907-164-0 01 1 9212-9306 ● ●
52 CURTAIN ASM; FRT WINDOW
CURTAIN WINDOW<BW4> 		1-73907-343-0 01 1 9307- ● ●
58 BED; MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-561-3 01 1 9002-9306 ● ●
58 BED; MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-750-0 01 1 9307- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-615-1 01 1 9002-9306 ● ●
58 BED; MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-615-1 01 1 9002-9306 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-724-1 01 1 9307- ● ●
58 BED; MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-724-1 01 1 9307- ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-565-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75117-769-0 01 1 9307- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-664-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-664-0 01 1 9002-9306 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14) 		1-75117-739-1 01 1 9307- ● ●
59 COVER ASM; TRIM,BED MAT
PASSENGER SEAT MULTI USED(WX9) 		1-75117-739-1 01 1 9307- ● ●
63 PLUG; SUPPORT
D4.7X11 		1-76378-154-0 01 1 9002- ● ●
64 CURTAIN KIT
CURTAIN WINDOW<BW4> 		1-73907-150-1 01 1 9002-9306 ● ●
64 CURTAIN KIT
CURTAIN WINDOW<BW4> 		1-73907-332-1 01 1 9307- ● ●
64 CURTAIN KIT
EXC. CURTAIN WINDOW<BW4> 		1-73997-987-1 01 1 9002-9306 ● ●
64 CURTAIN KIT
EXC. CURTAIN WINDOW<BW4> 		1-73907-238-2 01 1 9307- ● ●
