0-13 — OIL PAN AND LEVEL GAUGE (#29065) — 192 parça

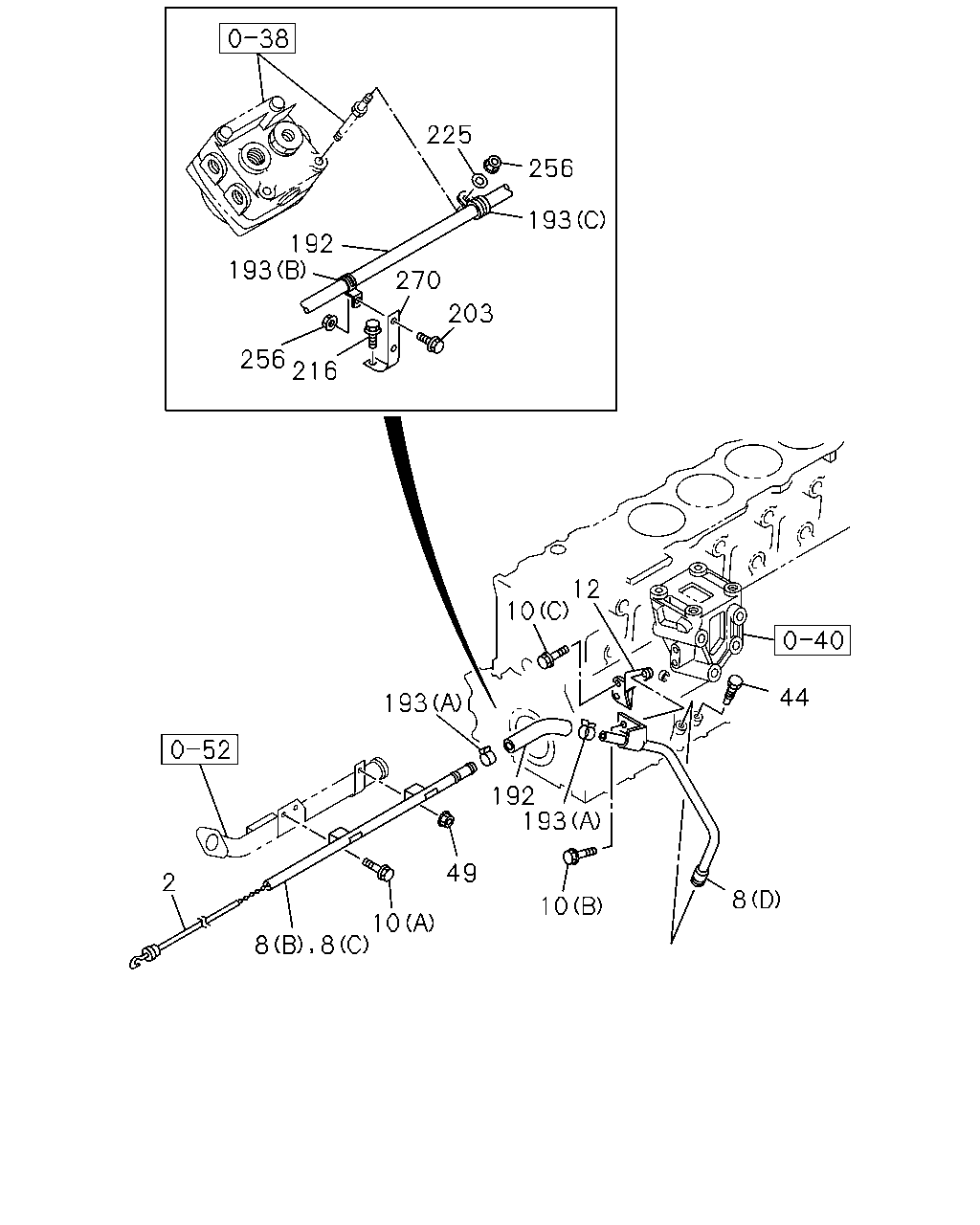

çizim 86600
225 256 193 192 193 270 203 256 216 12 10 44 193 192 193 49 2 8 10 10 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GAUGE; OIL LEVEL 1-11760-442-0 01 1 0407-0704 ●
2 GAUGE; OIL LEVEL 1-11760-442-0 01 1 0705- ● ●
2 GAUGE; OIL LEVEL 1-11760-405-0 01 1 0512-1305 ●
2 GAUGE; OIL LEVEL 1-11760-427-0 01 1 1306- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-634-0 01 1 0512-0608 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-97616-230-0 01 1 0609-0704 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-97616-230-0 01 1 0705- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-97607-366-0 01 1 0512-0704 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-97607-366-0 01 1 0705- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-470-0 01 1 0407-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		1-11766-608-0 01 1 0512- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
CAB UP +110MM<TGG> (B) 		1-11766-604-2 01 1 0407-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-604-2 01 1 0512- ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28081-020-0 01 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28081-020-0 01 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0705- ● ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28181-020-0 02 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0705- ● ● ●
10 BOLT; GUIDE TUBE
CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0705- ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 0407-0511 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0512-0704 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0705- ● ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0407-0511 ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0512-0704 ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0705- ● ● ●
49 NUT; GUIDE TUBE
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0407-0511 ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0512-0704 ● ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0512-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0512-0606 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0512-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0705- ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0704 ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0705- ● ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0704 ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0705- ● ● ●
225 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 01 1 0407-0511 ●
225 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 01 1 0512-0605 ● ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0704 ● ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0705- ● ● ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0705- ● ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0705- ● ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0407-0511 ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0512-0603 ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47471-382-0 01 1 0604-0704 ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47471-382-0 01 1 0705- ● ● ●

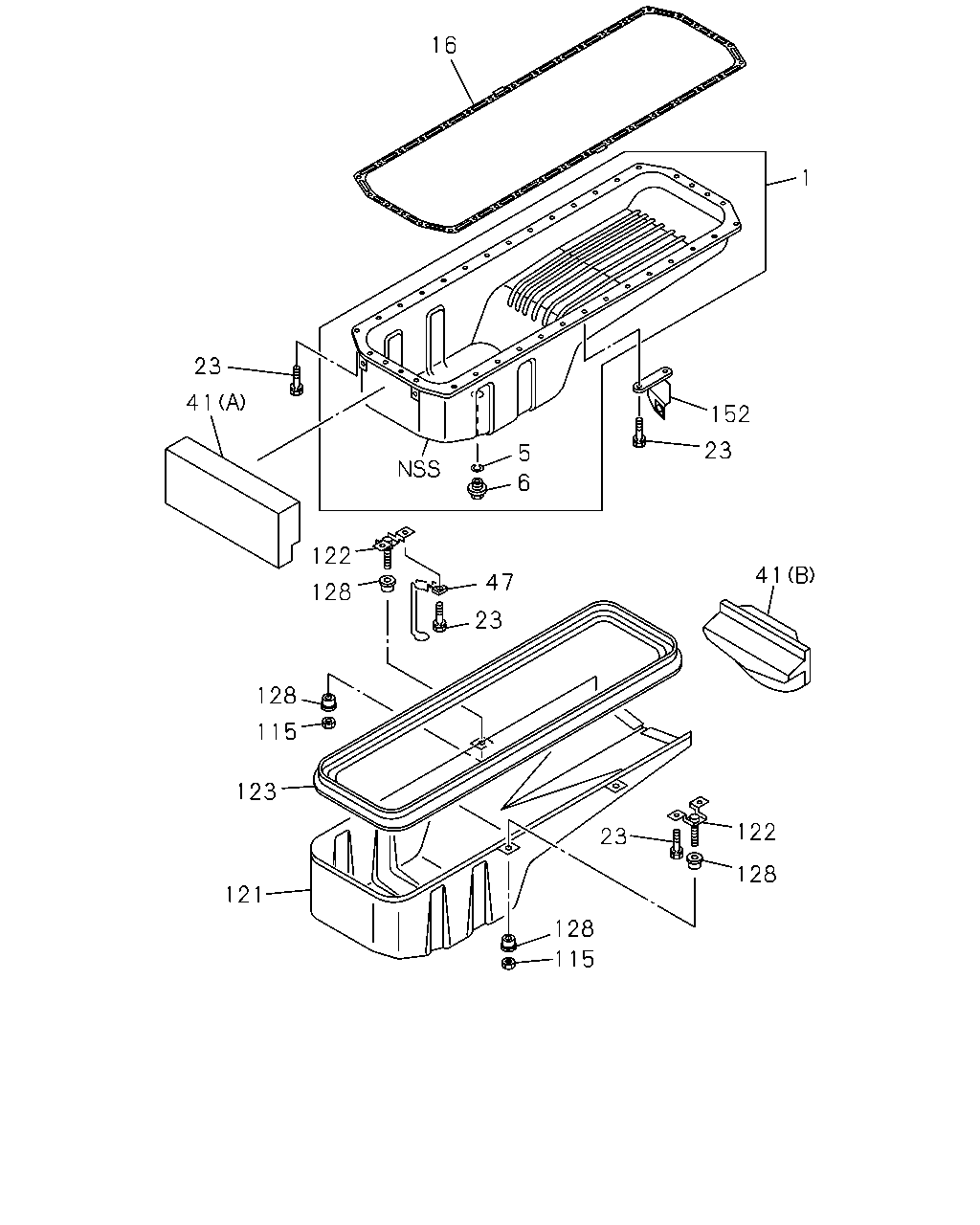

çizim 86689
16 1 23 41 152 23 5 6 122 41 47 128 23 128 115 123 122 23 128 121 128 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL 1-11360-912-0 01 1 0407-0511 ●
1 PAN ASM; OIL 1-11360-912-0 01 1 0512-0704 ● ●
1 PAN ASM; OIL 1-11360-912-0 01 1 0705- ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0407-0511 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0512-0704 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0705- ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0407-0511 ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0512-0704 ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0705- ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0407-0511 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0512-0704 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0705- ● ● ●
23 BOLT; OIL PAN
M10X30 FLANGE 		0-28151-030-0 02 1 1001- ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 28 1 0512-0704 ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 28 1 0705-0906 ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50651-028-0 28 1 0907-0909 ● ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 28 1 0910-0912 ● ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 26 1 1001- ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 28 1 0407-0511 ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0512-0906 ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50651-028-0 36 1 0907-0909 ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 36 1 0910-0912 ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 34 1 1001- ●
23 BOLT; OIL PAN
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 0407-0704 ●
23 BOLT; OIL PAN
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 0705-0906 ● ●
23 BOLT; OIL PAN
M10X32 W/LK&PL WASHER 		0-50651-032-0 08 1 0907-0909 ● ●
23 BOLT; OIL PAN
M10X30 FLANGE 		0-28151-030-0 08 1 0910-0912 ● ●
23 BOLT; OIL PAN
M10X30 FLANGE 		0-28151-030-0 10 1 1001- ● ●
41 RUBBER; SPACE
(A) 		1-19389-209-0 01 1 0512-0704 ● ●
41 RUBBER; SPACE
(A) 		1-19389-209-0 01 1 0705- ● ● ●
41 RUBBER; SPACE
(A) 		1-19389-209-0 01 1 0407-0511 ●
41 RUBBER; SPACE
(B) 		1-19389-327-0 01 1 0407-0704 ●
41 RUBBER; SPACE
(B) 		1-19389-327-0 01 1 0705- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0407-0511 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0512- ●
115 NUT; OIL PAN COVER
M8 FLANGE 		0-91150-108-0 04 1 0407-0602 ●
115 NUT; OIL PAN COVER
M8 FLANGE 		0-91180-108-0 04 1 0603-0704 ●
115 NUT; OIL PAN COVER
M8 FLANGE 		0-91180-108-0 04 1 0705- ● ●
121 COVER; OIL PAN 1-19381-453-3 01 1 0407-0704 ●
121 COVER; OIL PAN 1-19381-453-4 01 1 0705- ● ●
122 BRACKET; OIL PAN COVER 1-19386-033-0 04 1 0407-0704 ●
122 BRACKET; OIL PAN COVER 1-19386-033-0 04 1 0705- ● ●
123 RUBBER; SEAL OIL 1-19387-058-0 01 1 0407-0704 ●
123 RUBBER; SEAL OIL 1-19387-058-1 01 1 0705- ● ●
128 RUBBER; MTG,OIL PAN 1-09337-024-0 08 1 0407-0704 ●
128 RUBBER; MTG,OIL PAN 1-09337-024-0 08 1 0705- ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0407-0511 ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0512-0704 ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0705- ● ● ●

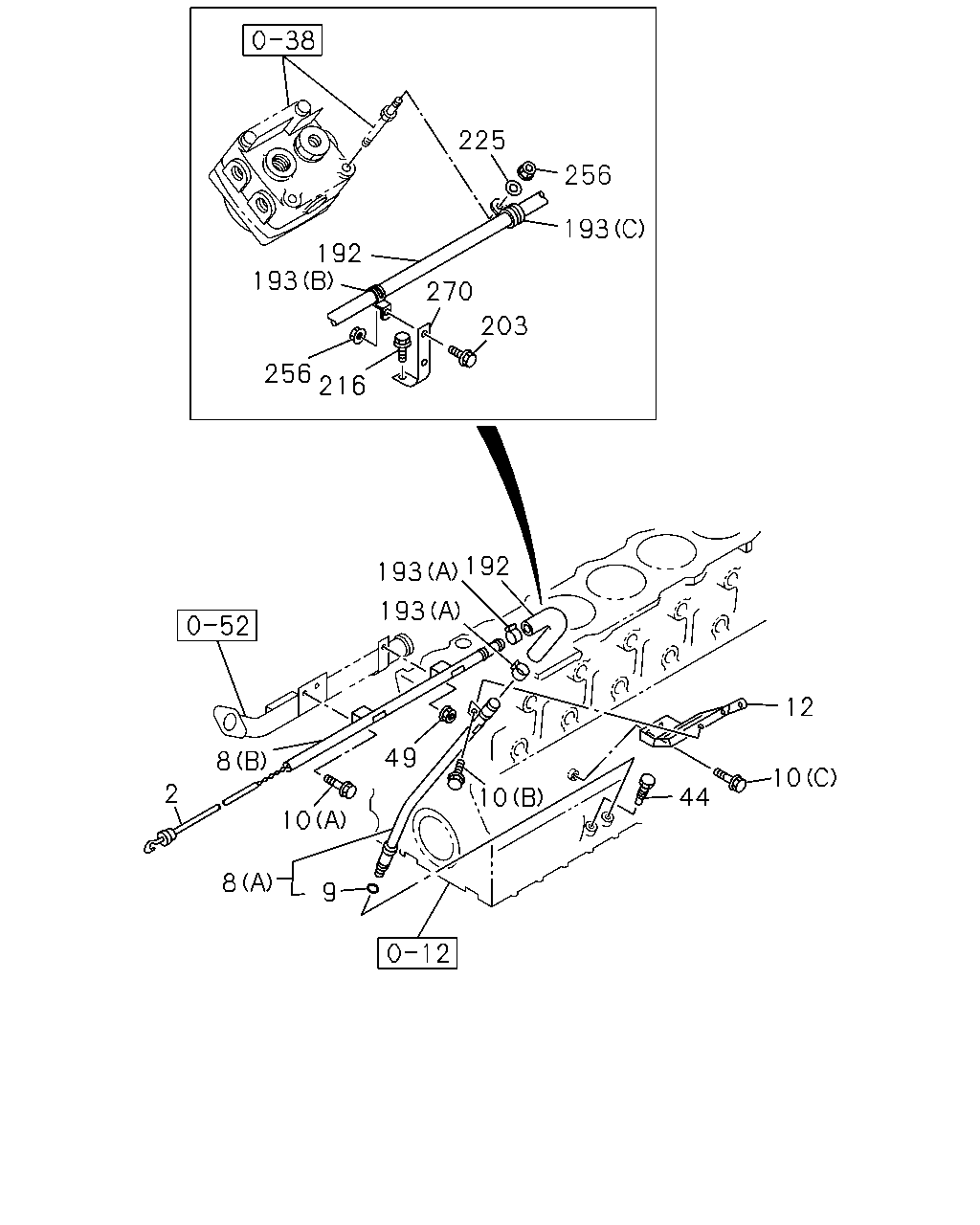

çizim 86813
225 256 193 192 193 270 203 256 216 192 193 193 12 49 8 10 10 2 44 10 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GAUGE; OIL LEVEL 1-11760-442-0 01 1 0407-0704 ●
2 GAUGE; OIL LEVEL 1-11760-442-0 01 1 0705- ● ●
2 GAUGE; OIL LEVEL 1-11760-405-0 01 1 0512-1305 ●
2 GAUGE; OIL LEVEL 1-11760-427-0 01 1 1306- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-634-0 01 1 0512-0608 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-97616-230-0 01 1 0609-0704 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-97616-230-0 01 1 0705- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-97607-366-0 01 1 0512-0704 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-97607-366-0 01 1 0705- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-470-0 01 1 0407-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		1-11766-608-0 01 1 0512- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
CAB UP +110MM<TGG> (B) 		1-11766-604-2 01 1 0407-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-604-2 01 1 0512- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 01 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28081-020-0 01 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28081-020-0 01 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0705- ● ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28181-020-0 02 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0705- ● ● ●
10 BOLT; GUIDE TUBE
CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0705- ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 0407-0511 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0512-0704 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0705- ● ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0407-0511 ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0512-0704 ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0705- ● ● ●
49 NUT; GUIDE TUBE
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0407-0511 ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0512-0704 ● ●
192 HOSE; GUIDE TUBE
L=620 L=430 		0-02361-300-0 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0512-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0512-0606 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0705- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0407-0511 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0512-0704 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0705- ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0704 ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0705- ● ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0704 ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0705- ● ● ●
225 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 01 1 0407-0511 ●
225 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 01 1 0512-0605 ● ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0704 ● ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0705- ● ● ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0705- ● ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0705- ● ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0407-0511 ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0512-0603 ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47471-382-0 01 1 0604-0704 ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47471-382-0 01 1 0705- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
