◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#29059) — 132 parça

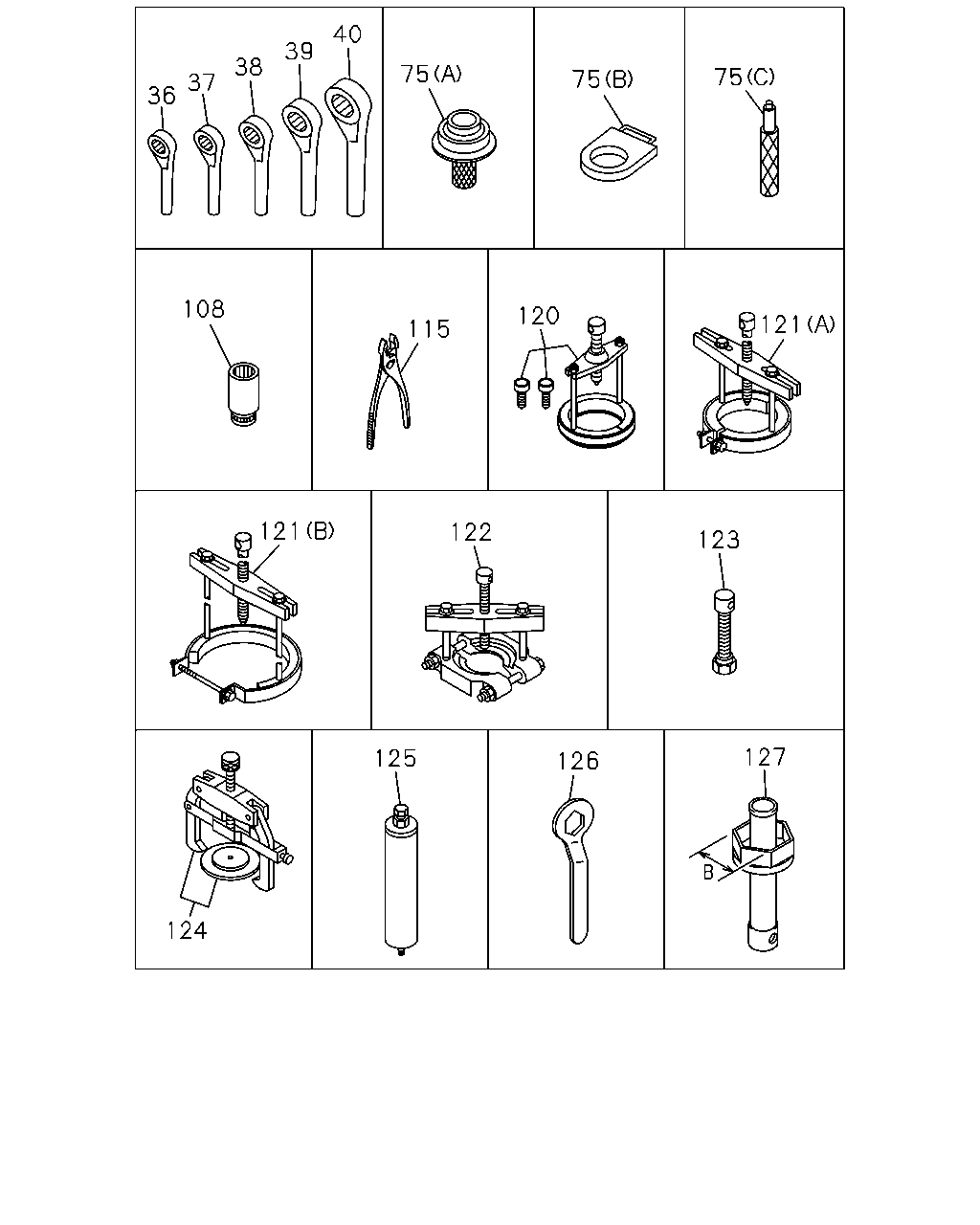

çizim 86286
40 39 38 75 75 75 37 36 108 120 121 115 121 122 123 127 125 126 124
BalonParca AdiParca NoAdetTipApplied Date
36 WRENCH; 24 9-85111-377-0 01 1 0509-
37 WRENCH; 27 9-85111-375-0 01 1 0509-
38 WRENCH; 32 9-85111-358-0 01 1 0509-
39 WRENCH; 36 9-85111-374-0 01 1 0509-
40 WRENCH; 41 9-85111-356-0 01 1 0509-
75 TOOL; SETTING,OIL SEAL
(A) 		1-85221-168-0 01 1 0509-0809
75 TOOL; SETTING,OIL SEAL
(C) 		1-85221-096-0 01 1 0810-
75 TOOL; SETTING,OIL SEAL
(C) 		1-85221-096-0 01 1 0509-0809
75 TOOL; SETTING,OIL SEAL
MJT7 M/T<Y9E> (A) 		1-85221-168-0 01 1 0810-
75 TOOL; SETTING,OIL SEAL
(B) 		1-85221-169-0 01 1 0509-0809
75 TOOL; SETTING,OIL SEAL
MJT7 M/T<Y9E> (B) 		1-85221-169-0 01 1 0810-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0509-
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0509-1410
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411-
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0509-
121 PULLER ASM; COUNTER REAR
(B) 		1-85210-069-0 01 1 0509-0809
121 PULLER ASM; COUNTER REAR
MJT7 M/T<Y9E> (A) OD=146 		1-85210-074-0 01 1 0810-
121 PULLER ASM; COUNTER REAR
(A) OD=146 		1-85210-074-0 01 1 0509-0809
121 PULLER ASM; COUNTER REAR
(B) 		1-85210-069-0 01 1 0810-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0509-
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 0509-0809
123 PULLER; SPEEDOMETER BUSHING
MJT7 M/T<Y9E> 		9-85210-091-0 01 1 0810-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0509-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0509-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0509-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0509-0808
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809-
çizim 86308
130 128 129 145 143 144 135 146 152 153 151 156 158 154 12 141
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0509-1501
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0509-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0509-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0509-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0509-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0509-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0509-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0509-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0509-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 0509-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0509-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0509-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0509-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0509-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0509-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0509-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0509-

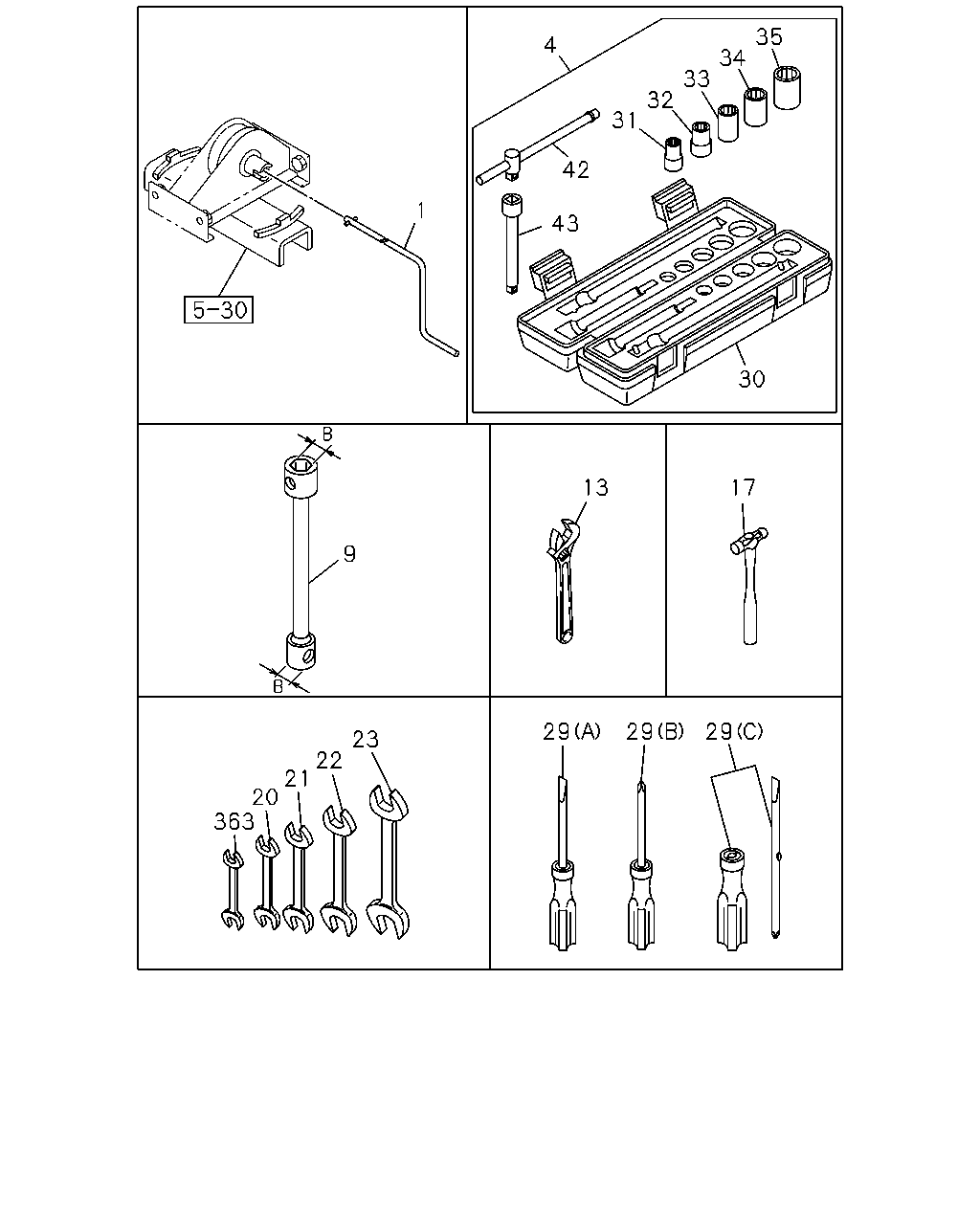

çizim 86354
35 34 33 32 4 31 42 1 43 30 13 17 9 29 29 29 23 22 21 20 363
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0509-
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 0509-
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0509-1601
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0509-0907
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0509-
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0509-0607
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608-
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0509-0607
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0509-0607
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608-
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0509-0607
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0509-
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0509-
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 0509-
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 0509-
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 0509-
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 0509-
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 0509-
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 0509-
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 0509-
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 0509-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-501-0 01 1 0509-
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		9-99592-108-0 01 1 0509-0607
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 0608-
çizim 86564
162 162 161 160 163 163 163 165 169 167 166 171 172
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0509-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0509-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0509-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0509-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 0509-
163 TOOL; SETTING
(C) L=150 		1-85221-163-0 01 1 0509-
163 TOOL; SETTING
(A) OD=150 		1-85221-167-0 01 1 0509-0809
163 TOOL; SETTING
MJT7 M/T<Y9E> (A) OD=150 		1-85221-167-0 01 1 0810-
165 SETTING TOOL; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-85221-177-0 01 1 0810-0810
165 SETTING TOOL; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) MJT7 M/T<Y9E> 		1-85221-177-0 01 1 0810-
166 ALIGNER; CLU RELEASE LEVER
L=550 H=57.5 		1-85253-015-0 01 1 0509-0809
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 0810-1005
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=60.4 		8-98169-696-0 01 1 1006-
167 ALIGNER; CLU PILOT
MJX16P M/T(Y3Z) L=300 OD=52.5 		1-85253-025-0 01 1 0810-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0509-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0509-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0509-
çizim 86871
404 404 388 388 404 405 404 404 407 406 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0509-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0509-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0509-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0509-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0509-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0509-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0509-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0509-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0509-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0509-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0509-
404 TOOL; SETTING,MAIN COUNTER
(A) 		1-85221-257-0 01 1 0509-0809
404 TOOL; SETTING,MAIN COUNTER
(B) 		1-85221-262-0 02 1 0810-
404 TOOL; SETTING,MAIN COUNTER
(B) 		1-85221-262-0 02 1 0509-0809
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (A) 		1-85221-257-0 01 1 0810-
404 TOOL; SETTING,MAIN COUNTER
(E) 		1-85221-258-0 01 1 0509-0809
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (E) 		1-85221-258-0 01 1 0810-
404 TOOL; SETTING,MAIN COUNTER
(C) 		1-85221-259-0 01 1 0509-0809
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (C) 		1-85221-259-0 01 1 0810-
404 TOOL; SETTING,MAIN COUNTER
(D) 		1-85221-260-0 01 1 0509-0809
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (D) 		1-85221-260-0 01 1 0810-
405 GUIDE; COUNTER 1-85221-264-0 01 1 0509-
406 PLATE; SETTING 1-85221-266-0 01 1 0509-0809
406 PLATE; SETTING
MJT7 M/T<Y9E> 		1-85221-266-0 01 1 0810-
407 SOCKET; SW 1-85221-267-1 01 1 0509-
çizim 104449
408 408 417
BalonParca AdiParca NoAdetTipApplied Date
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-268-0 01 1 0509-
408 TOOL; SETTING,SHIFT ASSISTER
(B) 		1-85221-269-0 01 1 0509-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0509-
çizim 104451
180 186 182 191 192 189 193 230 208 227 237
BalonParca AdiParca NoAdetTipApplied Date
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0509-
182 REMOVER ASM 1-85239-008-0 01 1 0509-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0509-
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0509-
191 ADAPTER 1-85216-009-0 01 1 0509-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0509-
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 0509-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0509-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0509-
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0509-
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0509-
