Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#2905) — 233 parça

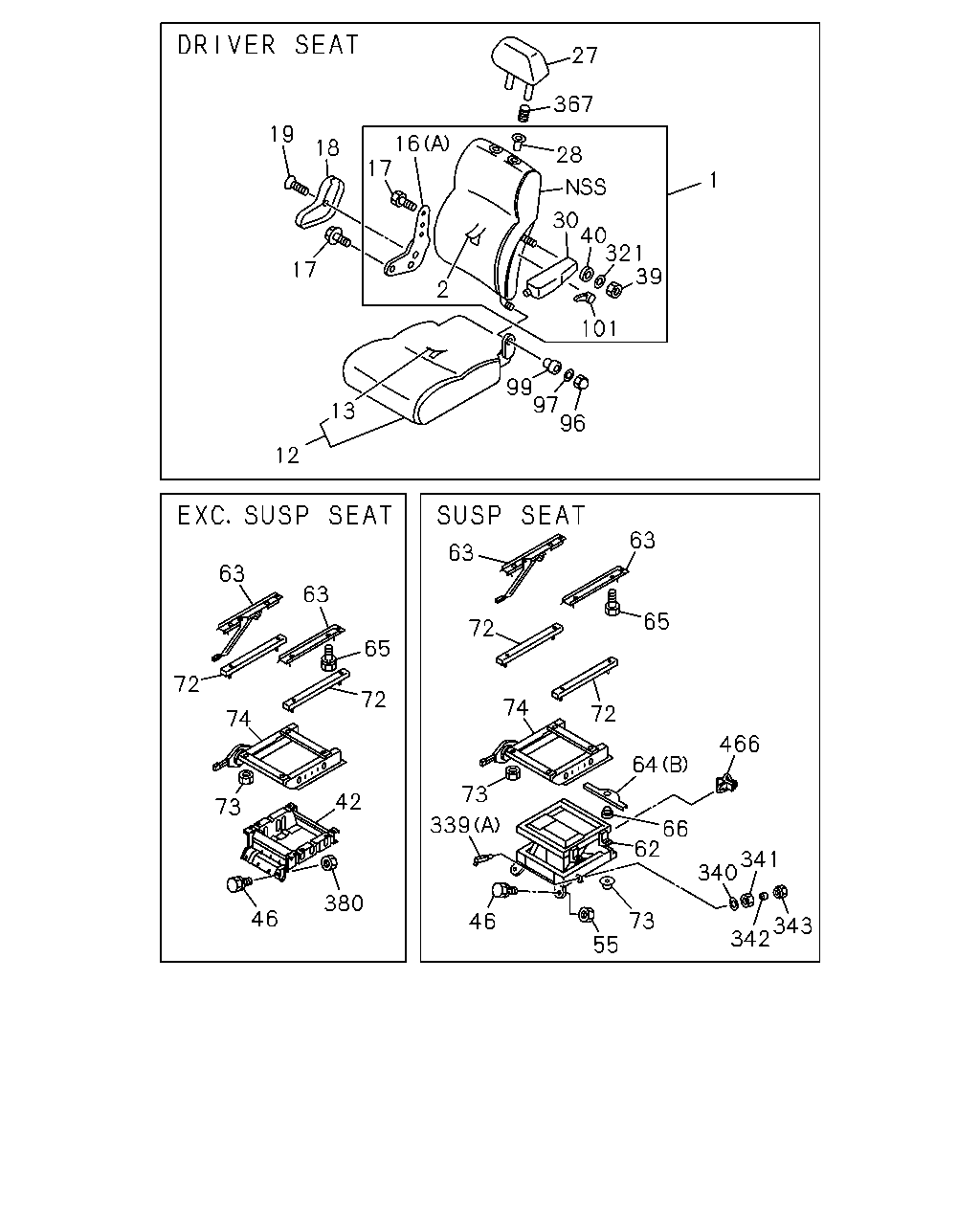

343 342 341 340 73 55 62 46 339 66 64 466 72 74 73 65 63 63 72 65 72 42 63 63 72 74 73 380 46 12 13 2 99 97 96 101 39 321 40 30 1 28 367 27 16 17 18 19 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75027-338-0	01	1	9307-	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-177-0	01	1	9002-9306	●	●
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-330-0	01	1	9307-	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-330-0	01	1	9307-	●	●
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-176-0	01	1	9002-9306	●	●
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-332-0	01	1	9307-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75117-786-0	01	1	9307-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-635-0	01	1	9002-9306	●	●
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-747-0	01	1	9307-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-747-0	01	1	9307-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-634-0	01	1	9002-9306	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8),AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-782-0	01	1	9307-	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-167-0	01	1	9002-9306	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75028-423-0	01	1	9307-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75028-423-0	01	1	9307-	●	●
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75027-166-0	01	1	9002-9306	●	●
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-165-0	01	1	9002-9306	●	●
12	CUSHION; SEAT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-164-0	01	1	9002-9306	●	●
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8),AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75027-327-0	01	1	9307-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-625-0	01	1	9002-9306	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-734-0	01	1	9307-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-734-0	01	1	9307-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-624-0	01	1	9002-9306	●	●
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-623-0	01	1	9002-9306	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-622-0	01	1	9002-9306	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8),AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75117-778-0	01	1	9307-	●	●
16	ADJUSTER ASM; RECLINING (A) DRIVER SEAT	1-75418-014-2	01	1	9002-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B) MULTI SEAT	1-75417-042-4	01	1	9002-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B) MULTI SEAT	1-75417-064-0	01	1	9002-	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-	●	●
18	COVER; RECLINING BLACK	8-94266-789-0	01	1	9002-9306	●	●
18	COVER; RECLINING	1-75418-042-0	01	1	9307-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9002-	●	●
27	REST; HD,FRT SEAT	1-75657-017-0	01	1	9002-9306	●	●
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-	●	●
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-441-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-443-0	02	1	9307-	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-444-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-446-0	02	1	9307-	●	●
30	REST ASM; ARM,FRT SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75117-725-0	01	1	9307-	●	●
39	NUT; ARM REST AIR SUSP DRIVER SEAT W/ARM REST(SGP)	8-94279-521-0	01	1	9307-	●	●
40	SPACER; ARM REST AIR SUSP DRIVER SEAT W/ARM REST(SGP)	8-94285-921-0	01	1	9307-	●	●
42	STAND; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75557-405-0	01	1	9002-9504	●	●
42	STAND; DRIVER SEAT EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75557-405-0	01	1	9505-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9002-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9002-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75537-226-1	01	1	9307-	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-1	01	1	9002-	●	●
63	ADJUSTER; SEAT SLIDE	1-75518-020-1	01	1	9002-	●	●
63	ADJUSTER; SEAT SLIDE	1-75518-019-1	01	1	9002-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	9002-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	9002-	●	●
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-130-0	01	1	9002-	●	●
72	SPACER; SEAT ADJ	1-75537-189-2	02	1	9002-	●	●
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	12	1	9307-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	08	1	9002-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75517-013-7	01	1	9002-	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9002-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9002-	●	●
101	LEVER ASM; LUMBAR DRIVER	1-75508-002-0	01	1	9002-	●	●
321	WASHER; PL,ARM REST AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=8.4 OD=22	9-09164-708-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A)	1-09664-219-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-75537-221-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (C)	1-75537-222-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (D)	1-75537-224-0	01	1	9307-	●	●
340	WASHER; UNION AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	01	1	9307-	●	●
341	NUT; UNION AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-09487-022-0	01	1	9307-	●	●
342	SLEEVE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=6.50 OD=9.12 L=7.49	1-09666-046-0	01	1	9307-	●	●
343	NUT; SLEEVE AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-09660-305-0	01	1	9307-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9307-	●	●
380	NUT; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-504-1	04	1	9002-9504	●	●
466	CLIP; CABLE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=6.5	5-09709-117-0	01	1	9307-	●	●

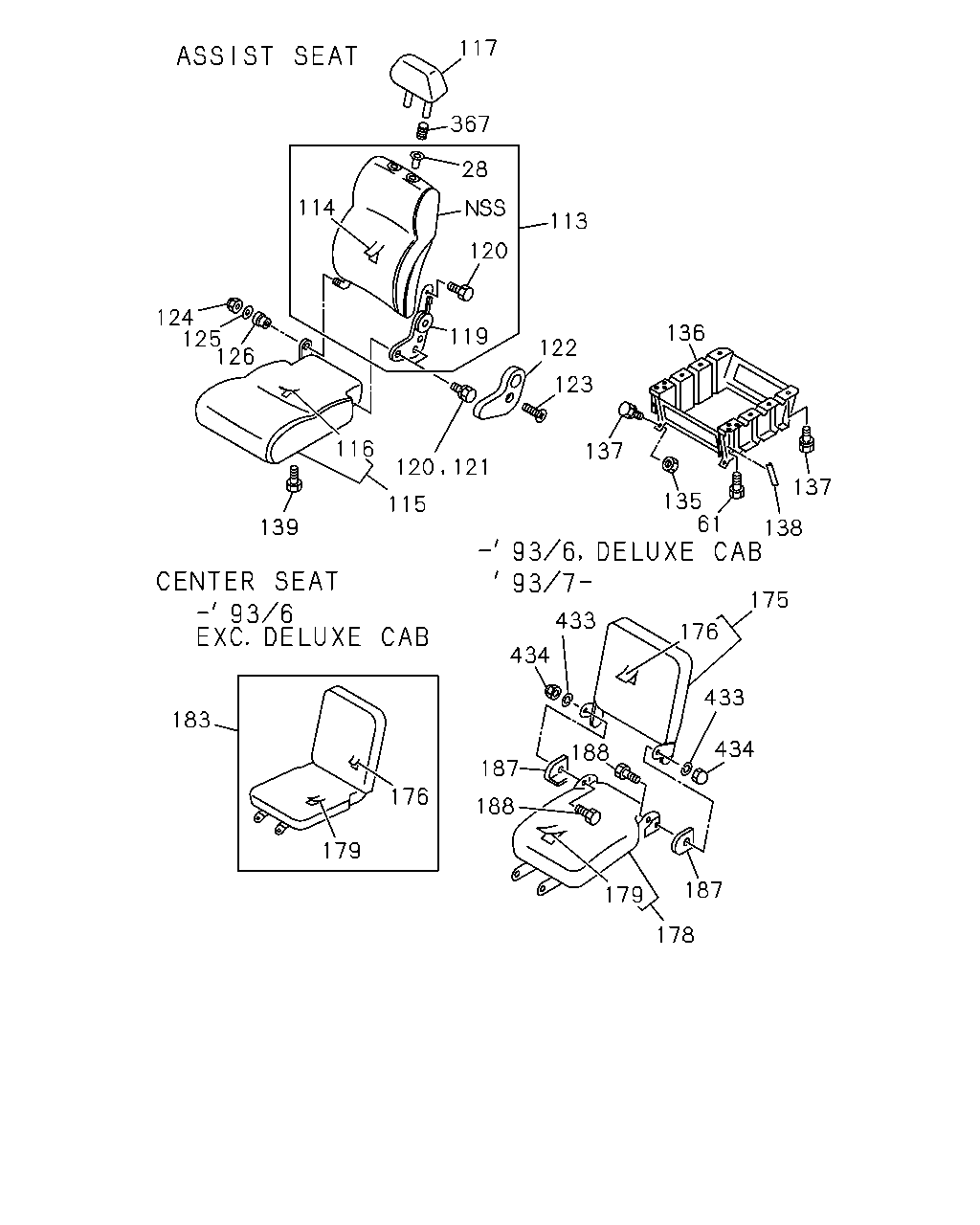

178 179 187 188 187 188 434 433 434 176 175 433 135 137 61 138 136 137 123 122 113 120 119 121 28 367 117 114 124 125 126 116 120 115 139 183 176 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-441-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-443-0	02	1	9307-	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-444-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-446-0	02	1	9307-	●	●
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9505-	●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-192-0	01	1	9002-9306	●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-247-0	01	1	9307-	●	●
113	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-186-0	01	1	9002-9306	●	●
113	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-331-0	01	1	9307-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-644-0	01	1	9002-9306	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-696-0	01	1	9307-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-642-0	01	1	9002-9306	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-781-0	01	1	9307-	●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-173-0	01	1	9002-9306	●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8)	1-75027-244-0	01	1	9307-	●	●
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75027-175-0	01	1	9002-9306	●	●
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-174-0	01	1	9002-9306	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75027-170-0	01	1	9002-9306	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-329-0	01	1	9307-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-631-0	01	1	9002-9306	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-688-0	01	1	9307-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-633-0	01	1	9002-9306	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-632-0	01	1	9002-9306	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-628-0	01	1	9002-9306	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-780-0	01	1	9307-	●	●
117	REST; HD	1-75657-017-0	01	1	9002-9306	●	●
117	REST; HD	1-75657-023-0	01	1	9307-	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED(WX9)	1-75418-015-0	01	1	9002-	●	●
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED(WX9) M8X20	1-09980-438-0	02	1	9002-9306	●	●
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED(WX9) M8X20	1-09980-438-0	04	1	9307-	●	●
121	BOLT; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M8X20	1-09980-438-0	02	1	9002-9306	●	●
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	8-94266-795-0	01	1	9002-9306	●	●
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	1-75418-046-0	01	1	9307-	●	●
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	8-94216-303-0	01	1	9002-9306	●	●
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M6X6	1-09981-499-0	01	1	9307-	●	●
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M8	1-09984-109-0	01	1	9002-	●	●
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-	●	●
126	BUSHING; HINGE,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	1-75508-004-0	01	1	9002-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9002-	●	●
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	9002-9306	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	06	1	9002-9306	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9307-	●	●
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	9002-9306	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9307-	●	●
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	9002-9306	●	●
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED(WX9) SERVICED BY L=500	1-79937-746-0	01	1	9307-	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9002-9306	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	06	1	9307-9504	●	●
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	9505-	●	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75027-086-2	01	1	9002-9306	●	●
175	BACK ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-196-0	01	1	9002-9306	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-255-1	01	1	9307-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-558-1	01	1	9002-9306	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) EXC. DELUXE CAB(W14)	1-75117-653-0	01	1	9002-9306	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-652-0	01	1	9002-9306	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-657-0	01	1	9002-9306	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-715-1	01	1	9307-	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75027-085-1	01	1	9002-9306	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-198-0	01	1	9002-9306	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-254-1	01	1	9307-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-559-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB(W14)	1-75117-647-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-659-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB(W14)	1-75117-651-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-650-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-646-0	01	1	9002-9306	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-714-1	01	1	9307-	●	●
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB(W14)	1-75027-137-0	01	1	9002-9306	●	●
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB(W14)	1-75027-138-0	01	1	9002-9306	●	●
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-136-0	01	1	9002-9306	●	●
183	SEAT ASM; PASSENGER CENTER EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75027-135-0	01	1	9002-9306	●	●
187	COVER; CENTER SEAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-063-0	01	1	9002-9306	●	●
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-063-0	01	1	9307-	●	●
187	COVER; CENTER SEAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-062-0	01	1	9002-9306	●	●
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-062-0	01	1	9307-	●	●
188	BOLT; BACK TO CUSHION DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-577-0	02	1	9002-9306	●	●
188	BOLT; BACK TO CUSHION EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-577-0	02	1	9307-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9307-	●	●
433	WASHER; BRKT TO CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.2	9-09150-508-0	02	1	9002-	●	●
434	NUT; BRKT EXC. PASSENGER SEAT MULTI USED(WX9)	8-94279-505-0	02	1	9002-	●	●

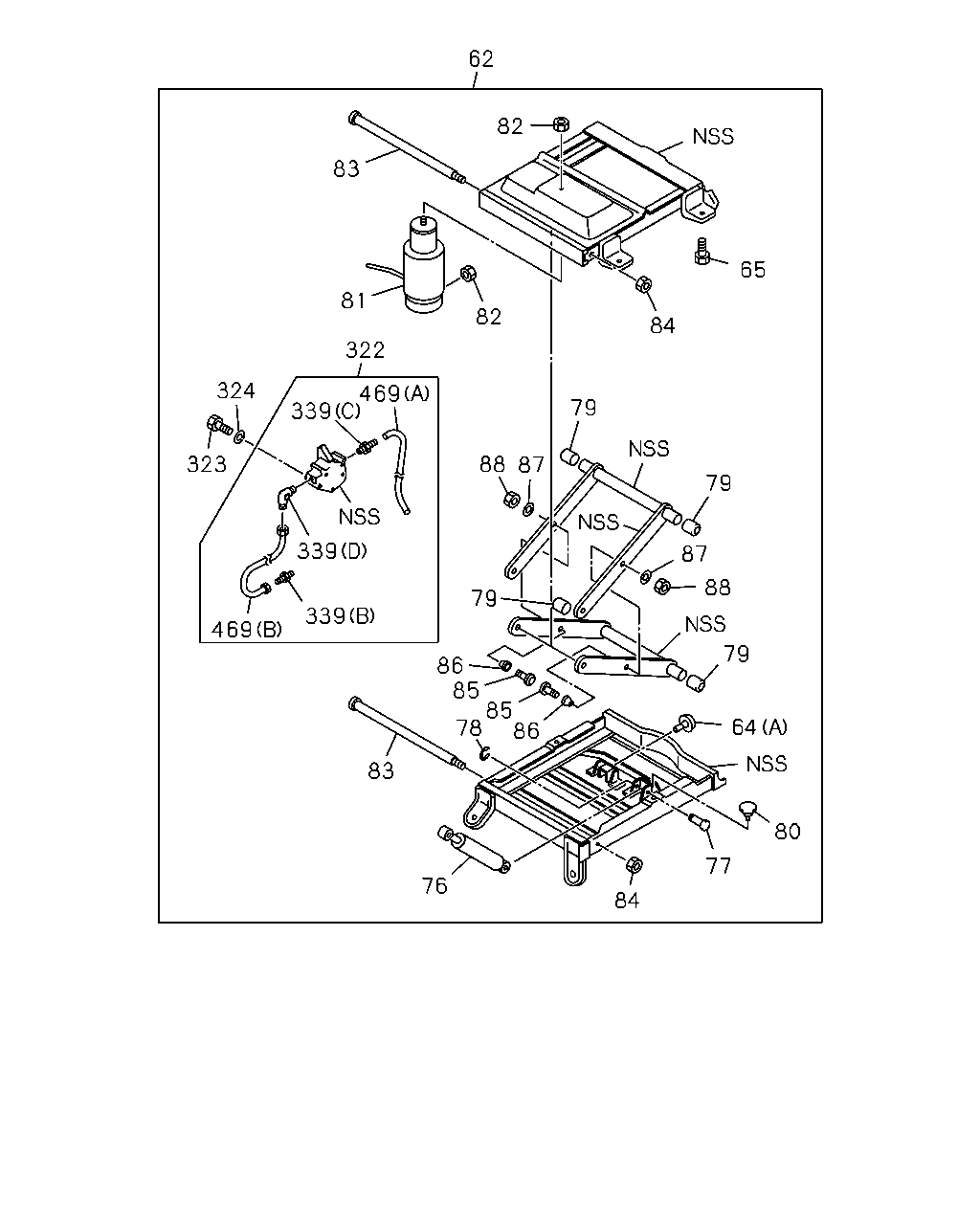

84 76 83 77 80 64 79 88 87 79 79 87 88 79 86 85 85 86 78 339 339 339 469 322 324 323 81 83 82 84 65 82 62 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75537-226-1	01	1	9307-	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-1	01	1	9002-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	9002-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	9002-	●	●
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75537-205-0	01	1	9307-	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-197-0	01	1	9002-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-08201-035-0	02	1	9002-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=8	9-09185-008-0	02	1	9002-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-119-0	04	1	9002-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-61468-039-0	02	1	9002-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75538-117-0	01	1	9307-	●	●
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-192-0	01	1	9002-	●	●
82	NUT; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-09984-096-0	02	1	9002-	●	●
83	PIN; LOW & UPR AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-016-0	02	1	9002-	●	●
84	NUT; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-014-0	02	1	9002-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-118-0	02	1	9002-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75148-153-0	02	1	9002-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=10.5 OD=26	9-09160-710-0	02	1	9002-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M10	8-94279-519-0	02	1	9002-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-75537-218-0	01	1	9307-	●	●
323	SCREW; VALVE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M6X35	9-03490-635-0	02	1	9307-	●	●
324	WASHER; LK,VALVE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=6.1	9-09150-506-0	02	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A)	1-09664-219-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-75537-221-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (C)	1-75537-222-0	01	1	9307-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT W/ARM REST(SGP) (D)	1-75537-224-0	01	1	9307-	●	●
469	HOSE; AIR AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A)	1-75537-223-0	01	1	9307-	●	●
469	HOSE; AIR AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-75537-225-0	01	1	9307-	●	●

147 146 145 148 16 361 362 28 367 117 141 140 16 145 147 148 146 142 143 152 143 142 138 137 135 136 137 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (A) DRIVER SEAT	1-75418-014-2	01	1	9002-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B) MULTI SEAT	1-75417-042-4	01	1	9002-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B) MULTI SEAT	1-75417-064-0	01	1	9002-	●	●
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-441-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST WO/LOCK	8-94477-443-0	02	1	9307-	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-444-0	02	1	9002-9306	●	●
28	HOLDER; GUIDE,HD REST W/LOCK	8-94477-446-0	02	1	9307-	●	●
117	REST; HD	1-75657-017-0	01	1	9002-9306	●	●
117	REST; HD	1-75657-023-0	01	1	9307-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9002-	●	●
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	9002-9306	●	●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-	●	●
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	06	1	9002-9306	●	●
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9307-	●	●
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	9002-9306	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9307-	●	●
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	9002-9306	●	●
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED(WX9) SERVICED BY L=500	1-79937-746-0	01	1	9307-	●	●
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-75027-194-0	01	1	9002-9306	●	●
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-75028-436-1	01	1	9307-	●	●
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-669-0	01	1	9002-9306	●	●
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-700-1	01	1	9307-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-193-1	01	1	9002-9306	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-084-0	01	1	9002-9002	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-204-0	01	1	9003-9306	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-251-0	01	1	9307-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-082-0	01	1	9002-9002	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-203-1	01	1	9003-9306	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-250-0	01	1	9307-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-656-1	01	1	9002-9306	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-594-0	01	1	9002-9002	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-675-0	01	1	9003-9306	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-711-0	01	1	9307-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-591-0	01	1	9002-9002	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-670-1	01	1	9003-9306	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-710-0	01	1	9307-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-024-0	01	1	9002-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-030-0	01	1	9002-	●	●
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED(WX9)	5-09985-015-0	02	1	9002-	●	●
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED(WX9) M6 CAP	1-09984-031-0	02	1	9002-	●	●
148	BOLT; LEVER PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	9002-	●	●
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED(WX9)	1-75418-025-0	01	1	9002-	●	●
152	BOLT; BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9307-	●	●
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	9002-	●	●
362	CAP; HD REST PASSENGER SEAT MULTI USED(WX9)	1-75658-036-1	01	1	9002-	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
