7-45 — CONSOLE BOX (#2904) — 56 parça

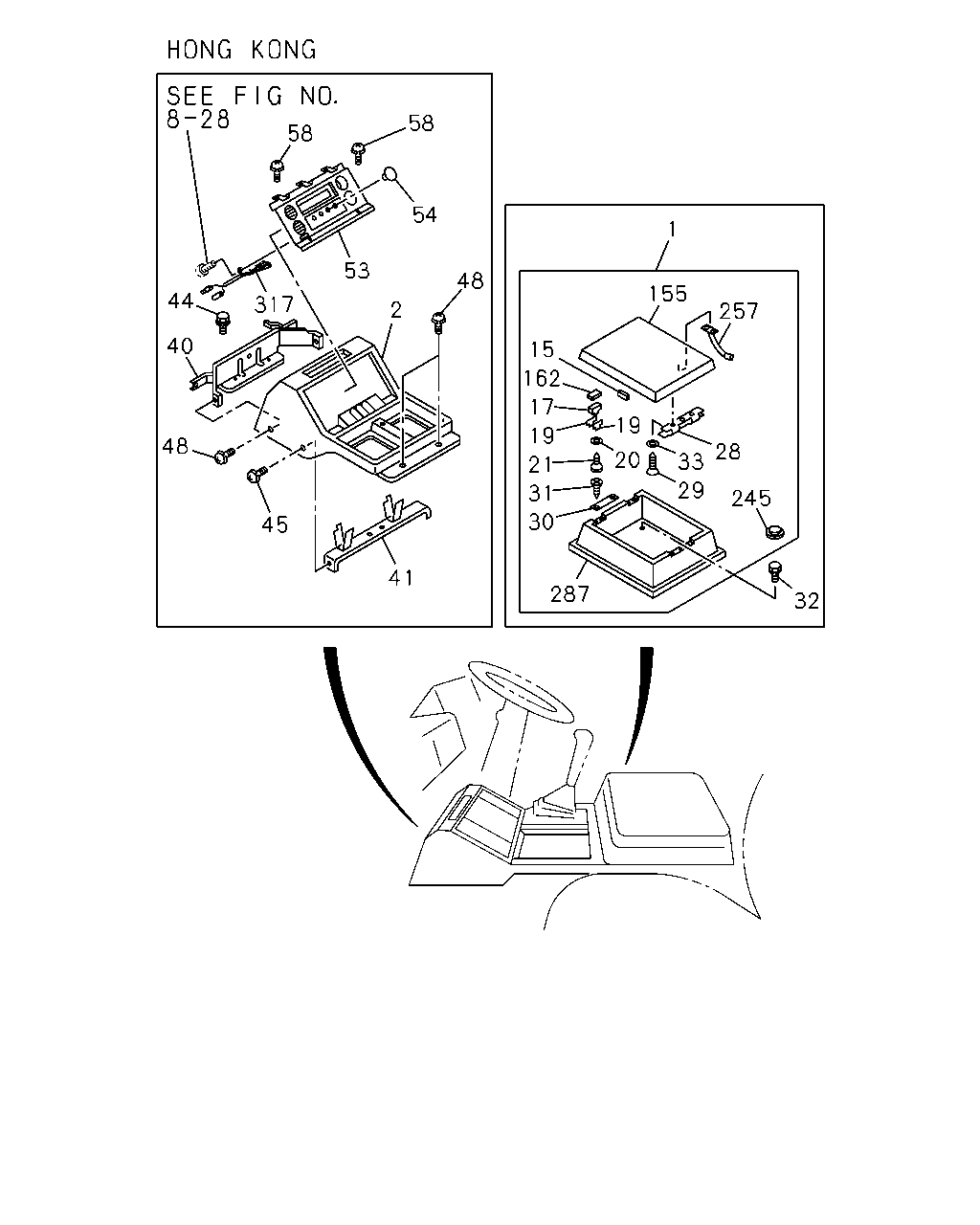

32 245 29 28 33 20 19 257 155 1 15 162 17 19 21 31 30 287 41 45 48 40 44 317 53 48 2 54 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-495-1	01	1	9002-9306	●	●
1	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-506-0	01	1	9307-	●	●
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-	●	●
15	FINISHER; PARCEL BOX HONG KONG EQUIPMENT(PQ1) L=190	1-71998-300-0	04	1	9002-	●	●
17	MAGNET; LID HONG KONG EQUIPMENT(PQ1)	8-94286-017-2	02	1	9002-	●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID HONG KONG EQUIPMENT(PQ1)	8-94286-457-0	04	1	9002-	●	●
20	WASHER; PL,MAGNET HONG KONG EQUIPMENT(PQ1) ID=4.3 OD=10	9-09160-604-0	04	1	9002-	●	●
21	SCREW; MAGNET HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	04	1	9002-	●	●
28	HINGE; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-391-1	01	1	9002-	●	●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M4X16	0-70080-416-0	06	1	9002-	●	●
29	SCREW; HINGE HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING	9-07066-310-0	02	1	9307-	●	●
30	PLATE; MAGNET,PARCEL BOX LOCK HONG KONG EQUIPMENT(PQ1)	8-94286-018-0	02	1	9002-	●	●
31	SCREW; MAGNET PLATE,PARCEL BOX HONG KONG EQUIPMENT(PQ1) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-	●	●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-	●	●
33	WASHER; PL,CONSOLE BOX HONG KONG EQUIPMENT(PQ1) ID=3.9	8-94279-622-0	04	1	9002-9302	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	9002-	●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	9002-9205	●	●
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9002-9502	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9503-	●
54	BUTTON; CLIP,CTR CONSOLE EXC. EXH HEAT WARNING<W50>	1-72447-390-0	01	1	9503-		●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	9002-	●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-423-2	01	1	9002-9306	●	●
155	LID; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-510-0	01	1	9307-	●	●
162	CUSHION; PARCEL BOX HONG KONG EQUIPMENT(PQ1)	1-72447-485-1	02	1	9002-	●	●
245	CAP; CTR,CONSOLE HONG KONG EQUIPMENT(PQ1)	1-72447-467-1	01	1	9002-9306	●	●
257	CONSOLE; BEAR HONG KONG EQUIPMENT(PQ1)	1-72447-468-1	01	1	9307-	●	●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-493-0	01	1	9002-9306	●	●
287	BOX; PARCEL HONG KONG EQUIPMENT(PQ1)	1-72447-508-0	01	1	9307-	●	●
317	CONSENT	1-82523-011-3	01	1	9002-	●	●

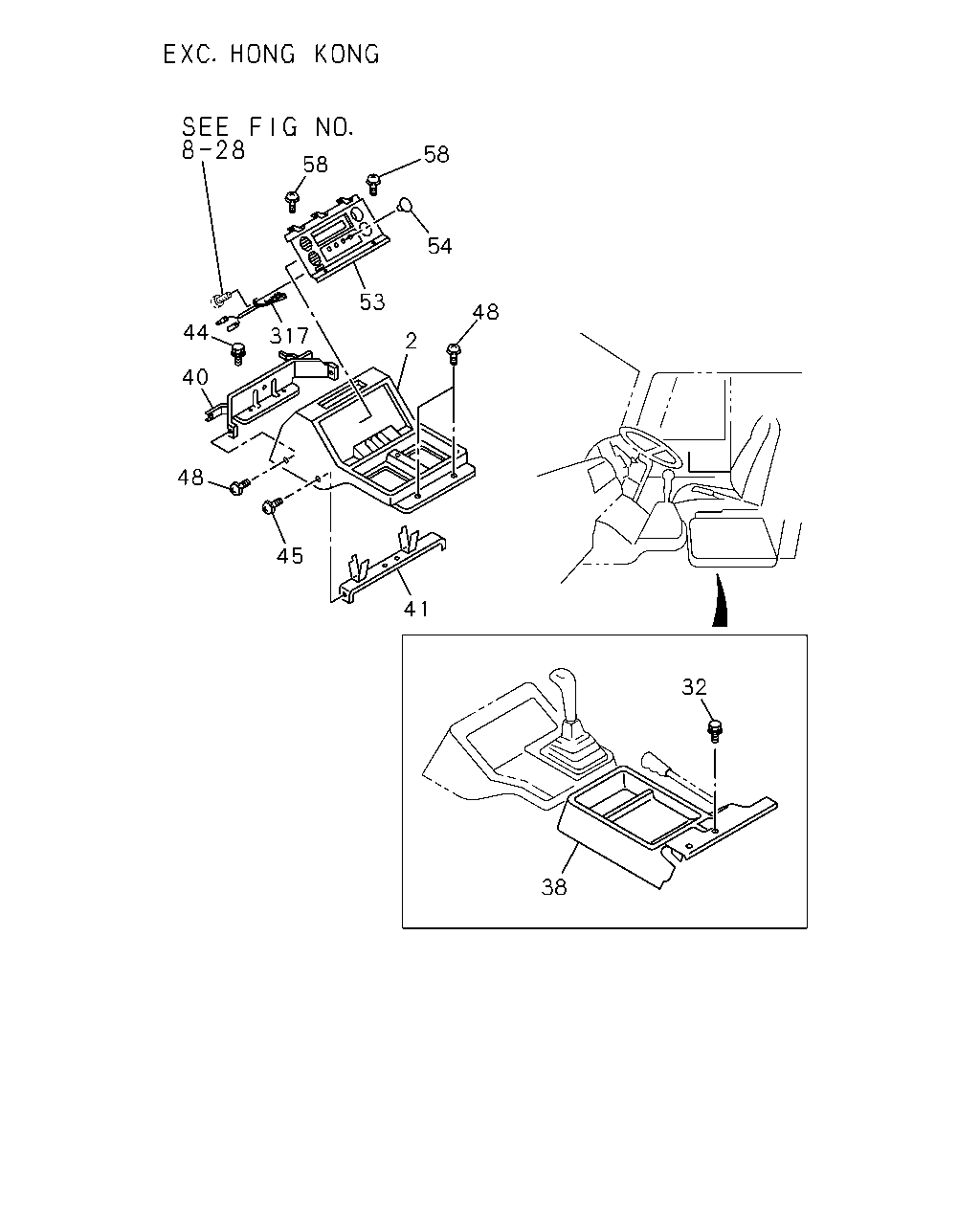

38 32 41 45 48 40 44 317 53 54 2 48 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-	●	●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-	●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-036-2	01	1	9002-9306	●	●
38	TRAY; PARCEL,PIPING COVER EXC. HONG KONG EQUIPMENT(PQ1)	1-72497-055-0	01	1	9307-	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	9002-	●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	9002-9205	●	●
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-	●	●
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9002-9502	●	●
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	9503-	●
54	BUTTON; CLIP,CTR CONSOLE EXC. EXH HEAT WARNING<W50>	1-72447-390-0	01	1	9503-		●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	9002-	●	●
317	CONSENT	1-82523-011-3	01	1	9002-	●	●
