7-43 — SUN VISOR AND ASSIST GRIP (#2903) — 64 parça

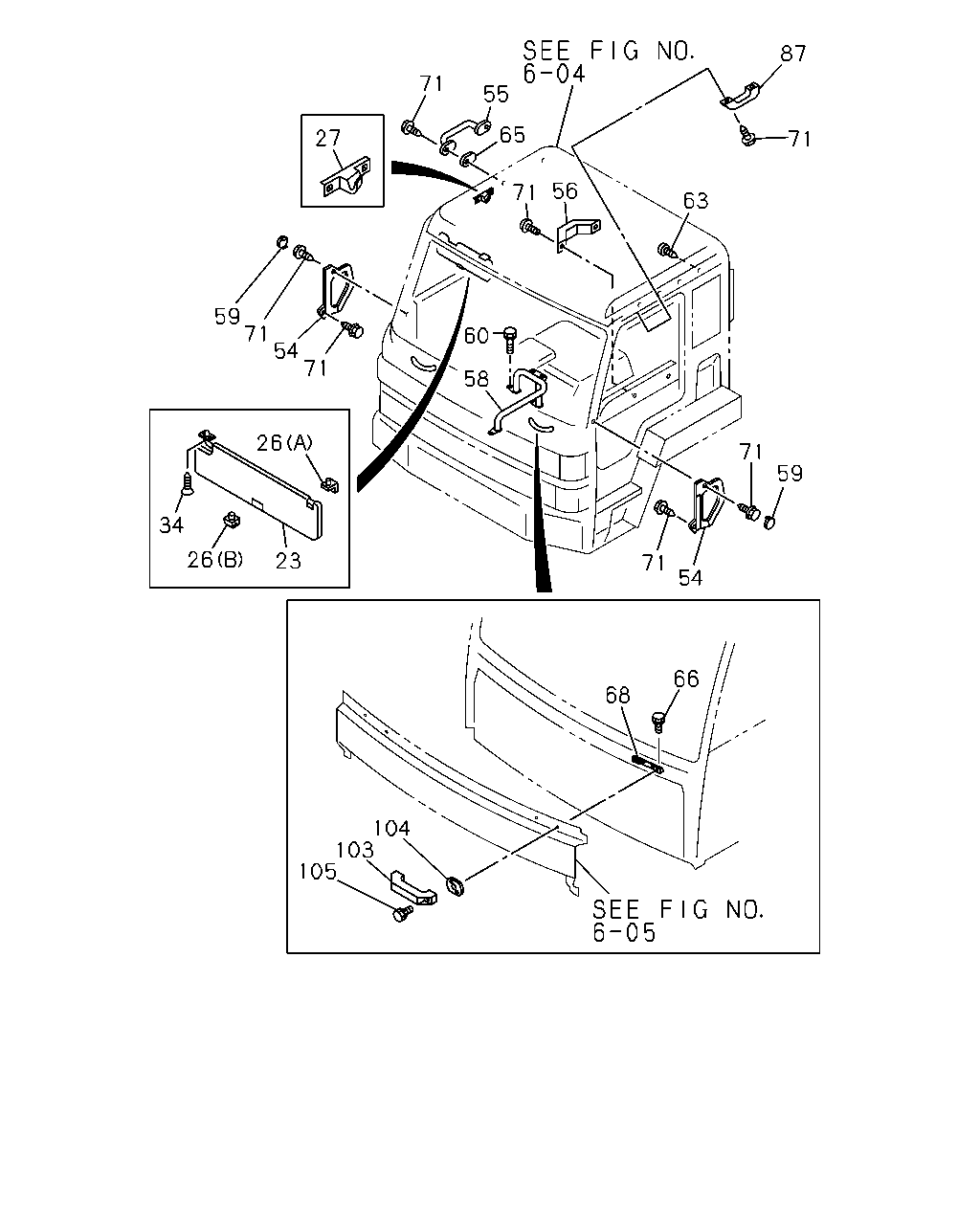

66 68 104 103 105 23 26 34 26 71 54 71 59 27 71 55 71 65 60 58 71 54 59 71 63 56 71 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR	1-73137-151-0	01	1	9002-9306	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-	●	●
23	SUN VISOR	1-73137-149-0	01	1	9002-9306	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-	●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9002-9306	●	●
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-	●	●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9002-9306	●	●
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-	●	●
27	HOLDER; SUN VISOR CURTAIN WINDOW<BW4>	1-73137-154-0	01	1	9002-9306	●	●
27	HOLDER; SUN VISOR CURTAIN WINDOW<BW4>	1-73137-172-0	01	1	9307-	●	●
27	HOLDER; SUN VISOR CURTAIN WINDOW<BW4>	1-73137-153-0	01	1	9002-9306	●	●
27	HOLDER; SUN VISOR CURTAIN WINDOW<BW4>	1-73137-171-0	01	1	9307-	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9002-	●	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52> WHITE	1-71997-477-0	02	1	9002-	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD HONG KONG EQUIPMENT(PQ1)	1-75147-573-0	01	1	9002-	●	●
58	GRIP; ASSIST,ENG HOOD EXC. HONG KONG EQUIPMENT(PQ1)	1-75147-579-0	01	1	9002-	●	●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9002-9306	●	●
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED(WX9) OD=15 L=14.5	1-76378-157-0	01	1	9307-	●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9307-	●	●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	04	1	9002-	●	●
66	BOLT; ASSIST GRIP BRKT DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-9202	●	●
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9203-	●	●
66	BOLT; ASSIST GRIP BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9202	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-	●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●	●
71	SCREW EXC. CURTAIN WINDOW<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. CURTAIN WINDOW<BW4>	1-73618-156-0	01	1	9002-9306	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. CURTAIN WINDOW<BW4>	1-73618-161-0	01	1	9307-	●	●
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-	●	●
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-	●	●
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-	●	●

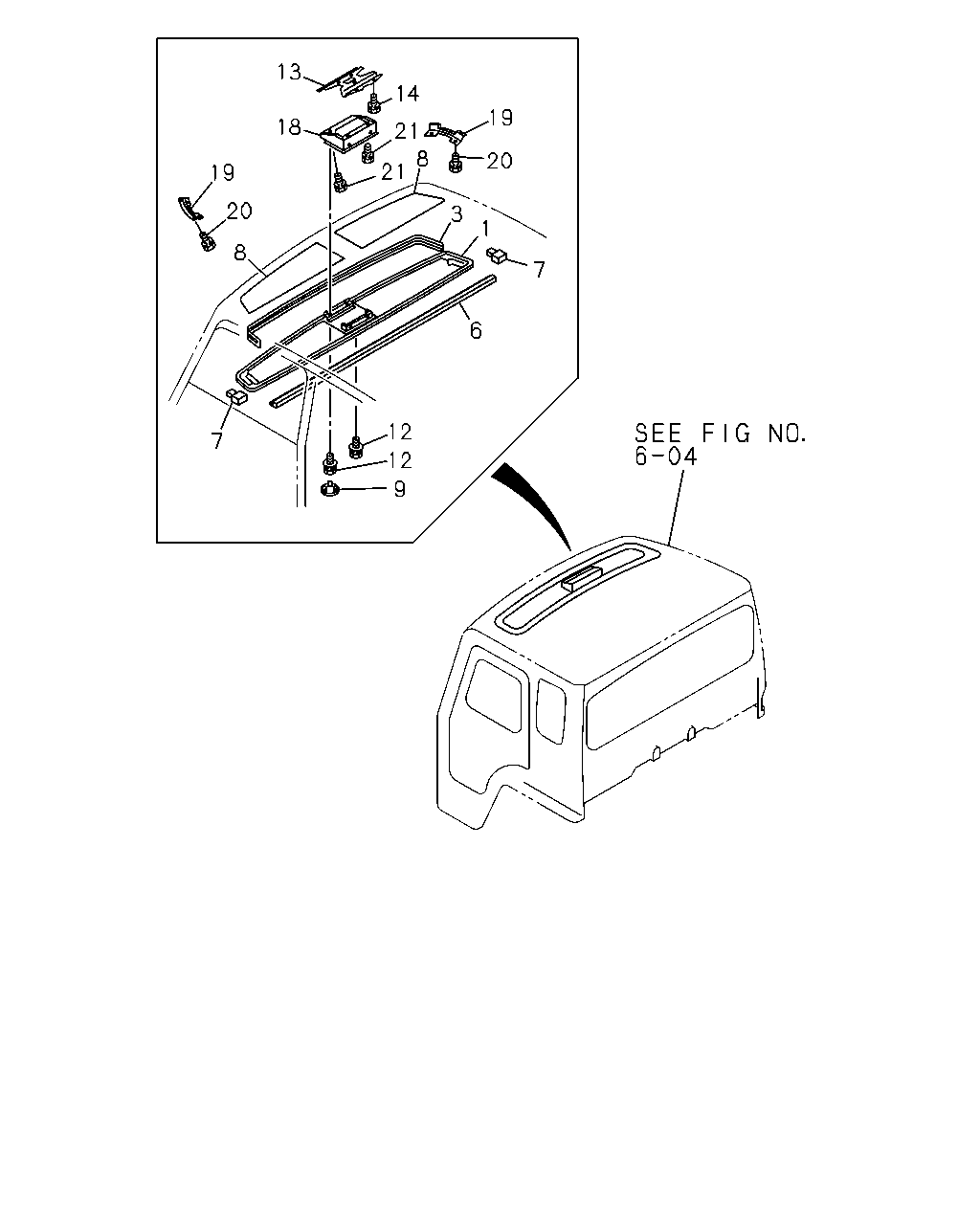

9 12 12 6 7 1 3 20 19 21 8 21 14 13 18 19 8 20 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF CURTAIN WINDOW<BW4>	1-73317-263-0	01	1	9002-9306	●	●
1	BOARD; HEADER SHELF CURTAIN WINDOW<BW4>	1-73317-312-0	01	1	9307-	●	●
1	BOARD; HEADER SHELF EXC. CURTAIN WINDOW<BW4>	1-73317-262-0	01	1	9002-9306	●	●
1	BOARD; HEADER SHELF EXC. CURTAIN WINDOW<BW4>	1-73317-304-0	01	1	9307-	●	●
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-	●	●
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-	●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9002-	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-	●	●
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-	●	●
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-	●	●
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-	●	●
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-	●	●
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-	●	●
