7-41 — UNDER COVER; INSTRUMENT (#2901) — 14 parça

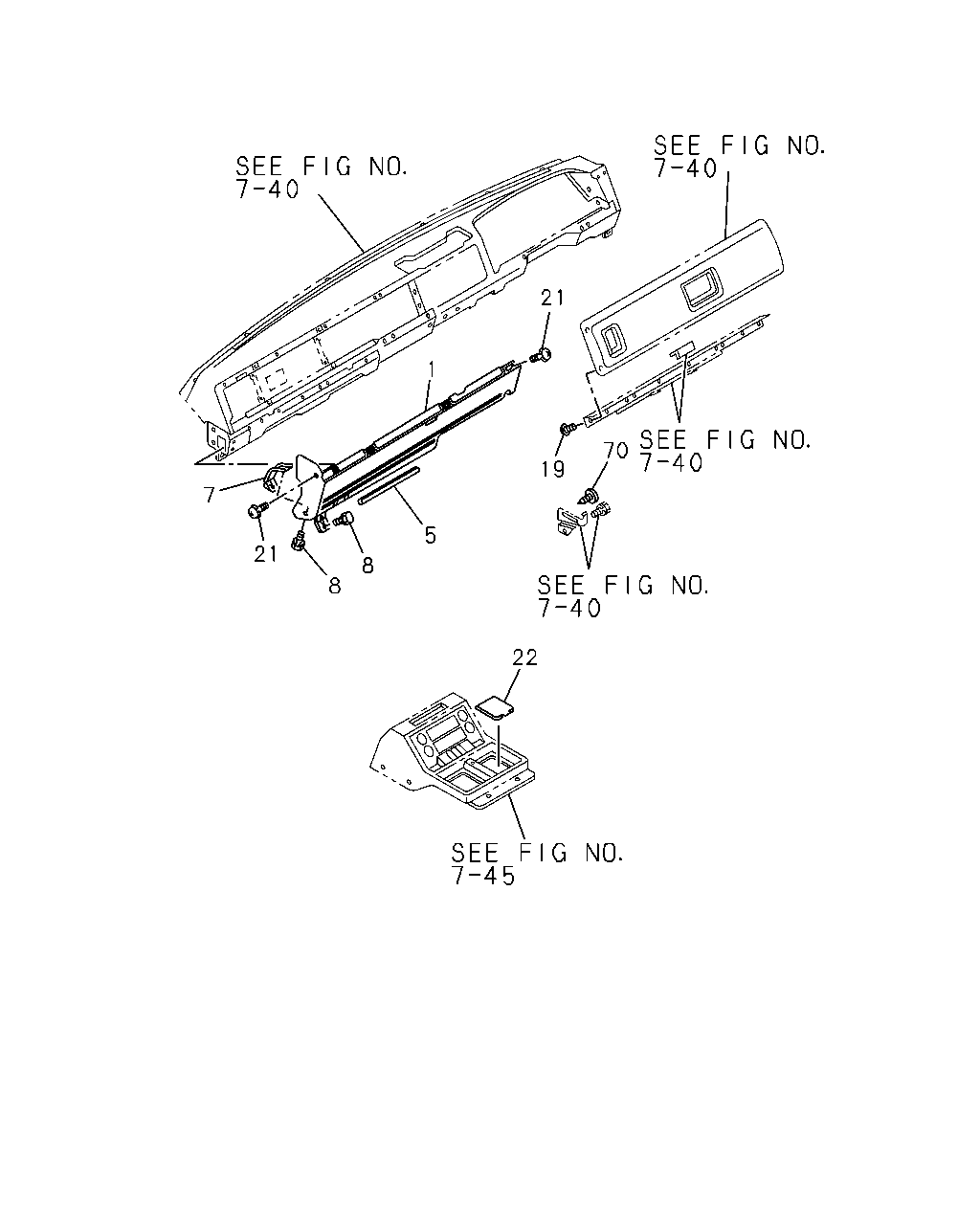

çizim 29584
22 19 21 1 5 8 8 21 7 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-328-0 01 1 9002-9306 ● ●
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-533-0 01 1 9307- ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=880 		1-73948-003-0 01 1 9002- ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
INTAKE HEATER<SL2> L=190 		1-71998-300-0 01 1 9002- ● ●
7 STAY ASM; BLIND PANEL A/C 1-65670-589-2 01 1 9002- ● ●
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9307 ● ●
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9308- ● ●
8 BOLT; STAY,BLIND PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 01 1 9002- ● ●
19 SCREW; FASTENER,SIDE CLUSTER BEZEL
M5X14 TAPPING 		1-72548-072-0 17 1 9002- ● ●
21 BOLT; BLIND PANEL,A/C
M6X14 W/LK&PL WASHER 		1-09980-549-0 05 1 9002- ● ●
21 BOLT; BLIND PANEL,A/C
M6X20 		1-09980-550-0 01 1 9002- ● ●
22 COVER; TRANS CONT 1-72447-472-0 01 1 9305-9306 ● ●
22 COVER; TRANS CONT 1-72447-540-0 01 1 9307- ● ●
70 FASTENER; UNDER COVER
BLACK 		8-94104-935-0 01 1 9407- ● ●
